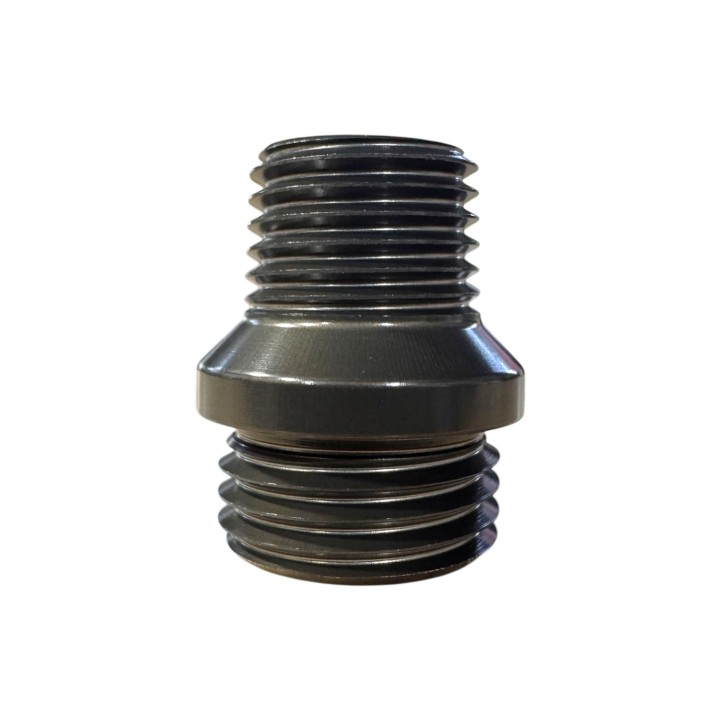

APEX Female 3/8 Swivel to Male 1/4 NPT Adapter

The whole APEX system runs on one standard: the 3/8 swivel. The rest of the pneumatic world runs on 1/4 NPT.

This adapter is the bridge between the two - it lets APEX hardware tie into whatever you already have in the workshop.

Key benefits

• adapts the APEX Quick Connect Male Swivel to 1/4 NPT
• the manufacturer lists it for the Precision Tire Inflator and the Quick Connect "Y" splitter
• lets APEX hardware tie into any 1/4 NPT system - a compressor quick coupler, for example

What is in the box

• APEX female 3/8 swivel to male 1/4 NPT adapter - 1 pc

Technical data

• Manufacturer part number: X02-11-005
• Port 1: female 3/8 swivel
• Port 2: male 1/4 NPT thread
• Application: Precision Tire Inflator, Quick Connect "Y", any 1/4 NPT hardware

Who it is for

For anyone building an air system where APEX hardware has to work with 1/4 NPT equipment - a workshop compressor, a quick coupler or a gauge from outside the APEX range.

Frequently asked questions

Will it fit a compressor with a 1/4 NPT coupler?

The adapter has a male 1/4 NPT thread, so it screws into female 1/4 NPT hardware. Check what port your compressor uses before buying.

Is this the same as the cover-nut version?

No. The cover-nut version is a separate APEX part number. This one is the female 3/8 swivel to male 1/4 NPT adapter, part X02-11-005.

Is a seal included?

The manufacturer does not list package contents beyond the adapter itself, so we make no claim about it.

Why it is worth it

• one small part that opens APEX hardware up to standard workshop fittings
• a genuine APEX Designs and Performance Products part

Not sure this is the right adapter for your setup? Get in touch and we will help.
