APEX Designs & Performance Products
Reference: X02-11-010
Compressors and accessories
APEX Panel Mount Bracket
A bolt-on APEX bracket for the Panel Mount air fitting (X02-11-003). It lets you bolt the fitting to any flat surface — a camper wall, a body panel or a boot shelf — with no need to fabricate your own tab and no drilling into a spot that will not take the fitting. The fitting itself is not included and is bought separately.
APEX Panel Mount Bracket
A Panel Mount fitting is only as good as what it has to hold on to.
This bracket gives it a ready-made mounting point: you bolt it where the air port should come out and mount the fitting in it. From there the only thing that matters is whether the hose fits behind the panel.
TYPE Bolt-on bracket | FOR Panel Mount fitting | MOUNTING Any flat surface |
Key benefits
- a solid mounting point for the fitting instead of a fabricated tab
- bolt-on, so you can move it elsewhere without cutting or welding
- a genuine APEX Designs & Performance Products part
Technical data
- Manufacturer part number: X02-11-010
- Type: bolt-on bracket
- For: Panel Mount fitting (X02-11-003)
- Mounting location: any flat surface

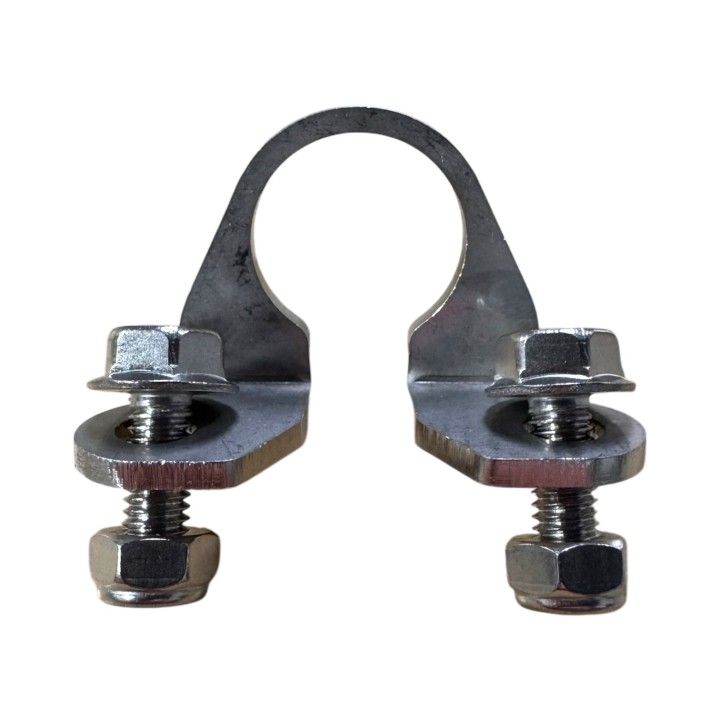

- In the kit: a U-shaped bracket, two flange bolts, two plates and two nuts
The manufacturer does not itemise the kit contents in its description.
Who it is for
It is for you if you are building an air port into a vehicle — a camper wall, a body panel, a boot shelf or a cover — and want a ready-made mounting point for the Panel Mount fitting.
Frequently asked questions
Is the Panel Mount fitting included?
No. The bracket is sold on its own — the Panel Mount to 3/8 braided air line fitting itself is part X02-11-003.
Does the bracket fit other APEX fittings?
The manufacturer lists it for the Panel Mount fitting only and names no other fitting alongside it. Want to mount a different one? Get in touch and we will check.
What should I watch for when choosing the mounting spot?
Access to the fitting from outside, so the hose can be connected comfortably, and the hose route behind the panel — so that it does not kink right behind the bracket.
Planning an air port in a build? Get in touch and we will help pick the fitting and bracket together.
