APEX Designs & Performance Products
Reference: X02-12-002
Compressors and accessories

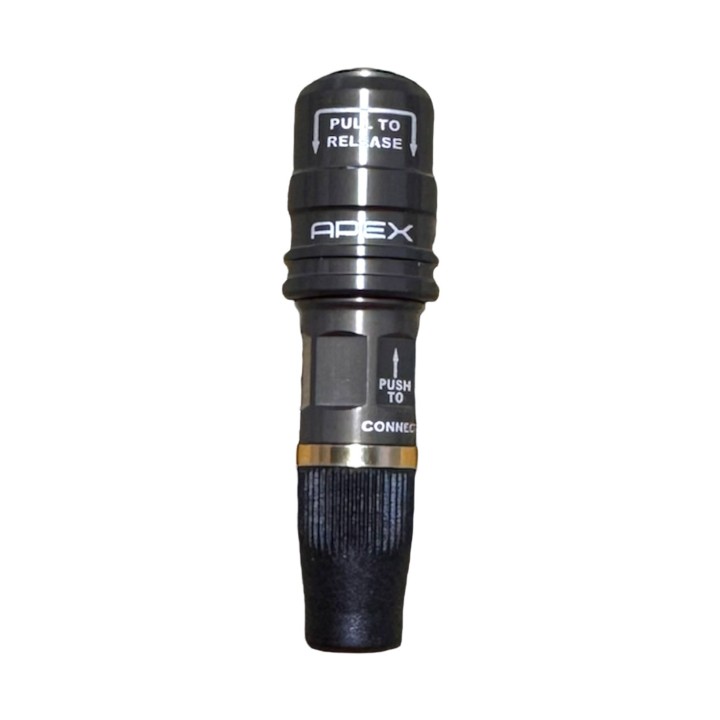

APEX High Flow Push-On Chuck - 3/8 O.D. Hose
This product has no reviews yet — write the first one
zł205.23
Tax included
An APEX High Flow Push-On Chuck that connects directly to APEX 3/8 braided hose. It opens the Schrader valve 100% instead of the usual 50%, so air goes in faster. Closed flow and open flow adapters are included. Hard anodised finish with hardened stainless steel retention components. The chuck ships in the closed flow configuration with an open flow adapter included.
APEX High Flow Push-On Chuck - 3/8 O.D. Hose
The difference between a good chuck and an ordinary one is not cosmetic. A typical chuck opens the Schrader valve about halfway.
This one opens it fully - and you see that on the clock across four tyres.
CONNECTION APEX 3/8 braided hose | MODES Closed flow and open flow | BODY Hard anodised finish |
Key benefits
- opens the Schrader valve 100% instead of the usual 50% - air goes in faster
- works with all Schrader-style valve stems
- retention components in hardened stainless steel
- hard anodised aluminium body - scratch and corrosion resistant
- lightweight and rebuildable construction
- needs low force to connect and does not damage the valve thread
What is in the box
- APEX High Flow Push-On Chuck
- closed flow adapter

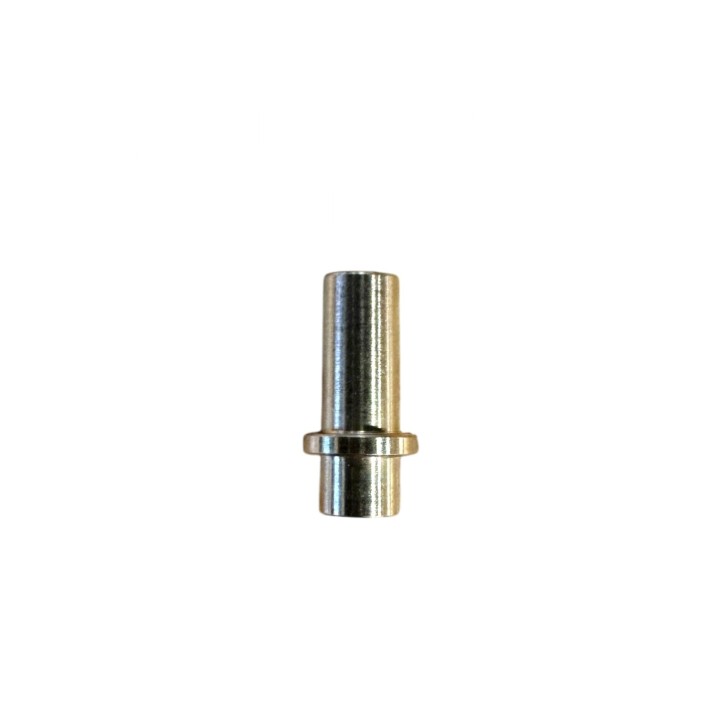

- open flow adapter
Technical data
- Manufacturer part number: X02-12-002
- Connection: APEX 3/8 braided hose
- Working modes: closed flow and open flow - both adapters included
- Body: hard anodised aluminium
- Retention components: hardened stainless steel
- Valves: all Schrader-style; optimised for the APEX Rapid Precision Valve
- Status: patent pending
- Works with: APEX braided hose, Compact Reel System, multi-tire inflation setups, and the Precision Tire Inflator and Precision Pressure Gauge — those two only with the included open flow adapter fitted
- Configuration as shipped: closed flow, with the open flow adapter included
- Torque when converting: 24 in-lbs on reassembly, keeping the orientation of the parts
Who it is for
For drivers who air up a full set after every trip and are tired of chucks that leak and chew up valve threads. And for anyone building an on-board air system on APEX braided hose.
Fitting the chuck and converting it
Onto the hose: remove the cover nut, slide it onto the hose (if the hose end has been used before, the manufacturer has you trim 1 inch), push the barb into the hose and tighten the nut. Off the valve: push the chuck down and pull the collar up.
Converting closed flow to open flow is a swap of adapters, but not only that: on reassembly the orientation of the parts has to be kept and the whole thing torqued to 24 in-lbs.

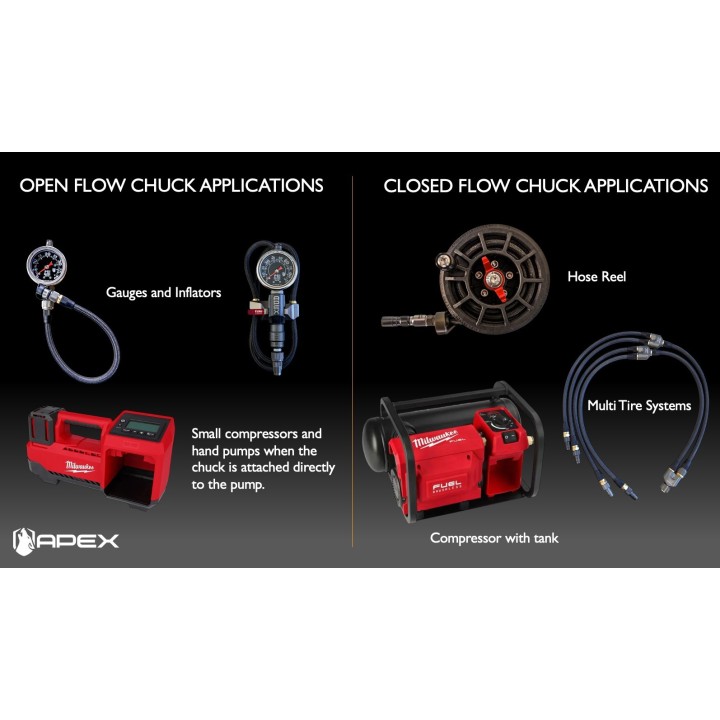

Which configuration to use. The manufacturer sets it out on a sheet: open flow — gauges and inflators, and small compressors and hand pumps where the chuck attaches directly to the pump. Closed flow — a hose reel, a compressor with a tank, and multi tire systems.
Frequently asked questions
Does it fit ordinary tyre valves?
Yes. The manufacturer states the chuck works with all Schrader-style valve stems. It is optimised for the APEX Rapid Precision Valve but also works on standard valves.
How does it differ from the 1/4 NPT version?
This model plugs straight into APEX 3/8 braided hose. Part X02-12-007 has a 1/4 NPT female port.
Are the adapters included?
Yes - the manufacturer states both the closed flow and the open flow adapter are supplied.
Why it is worth it
- a fully opened valve instead of a half-open one - shorter inflation time
- built to be rebuilt, not thrown away after a season
Not sure which version of the chuck suits your setup? Get in touch and we will pick it for you.
