APEX Designs & Performance Products
Reference: X02-12-007
Compressors and accessories

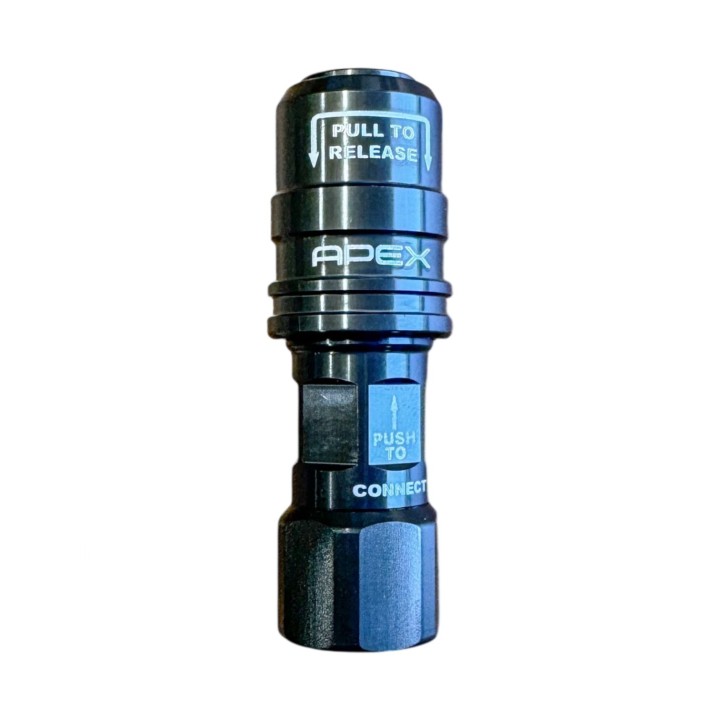

APEX High Flow Push On Chuck - 1/4 NPT Female
This product has no reviews yet — write the first one
zł205.23
Tax included
An APEX High Flow Push On Chuck with a 1/4 NPT female port. It opens the Schrader valve 100% instead of the usual 50%, so inflation is quicker. It ships in closed-flow configuration with an open-flow adapter included. Hard anodised aluminium body with hardened stainless steel retention components.
APEX High Flow Push On Chuck - 1/4 NPT Female
The same chuck as the 3/8 hose version, but with a 1/4 NPT thread.
So it screws into hardware you already own: a compressor, a gauge, a reel - with no rebuild of the whole system.
CONNECTION 1/4 NPT female | MODES Closed flow as shipped, open adapter included | BODY Hard anodised aluminium |
Key benefits
- opens the Schrader valve 100% instead of the usual 50% - air goes in faster
- works with all Schrader-style valve stems
- retention components in hardened stainless steel
- hard anodised aluminium body - scratch and corrosion resistant
- lightweight and rebuildable construction
- needs low force to connect and does not damage the valve thread
What is in the box
- APEX High Flow Push On Chuck in closed flow configuration

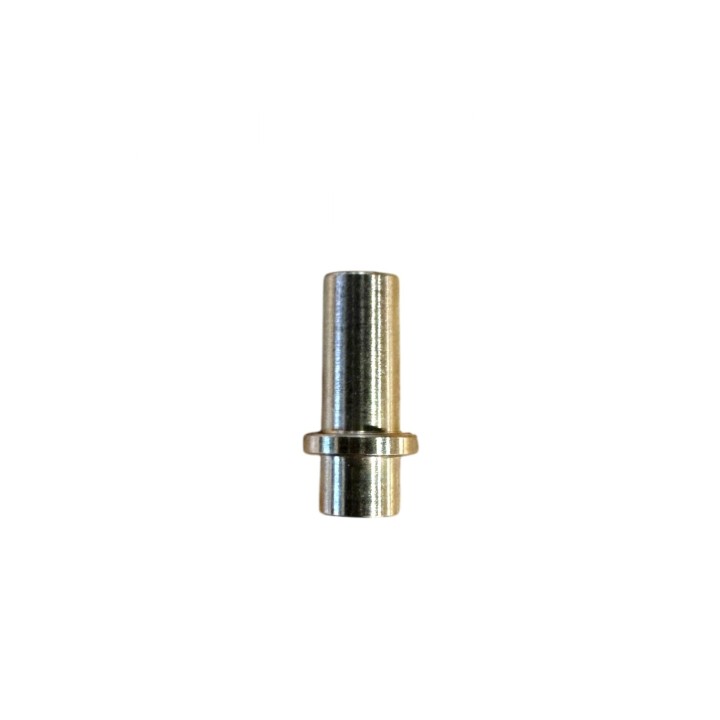

- open flow adapter
Technical data
- Manufacturer part number: X02-12-007
- Connection: 1/4 NPT female
- As shipped: closed flow
- Included: open flow adapter
- Body: hard anodised aluminium
- Retention components: hardened stainless steel
- Valves: all Schrader-style
- Status: patent pending
- Compatible with: the Compact Reel System, multi-tire inflation setups, and the Precision Tire Inflator and Precision Pressure Gauge — those two only with the included open flow adapter fitted. The manufacturer does not list the APEX braided hose for this part number; there is a separate version of the chuck for 3/8 hose
Who it is for
For anyone who already has a compressor, gauge or reel with a 1/4 NPT port and wants faster inflation without changing the rest of the hardware.
Frequently asked questions
What is the difference between closed flow and open flow?
They are two working modes, and the manufacturer sets out what each is for. Open flow: gauges and inflators, plus small compressors and hand pumps where the chuck attaches directly to the pump. Closed flow: a hose reel, a compressor with a tank, and multi tire systems. Both adapters are included and the chuck leaves the factory in closed flow.
Will it fit my compressor?
If the compressor or hose has a male 1/4 NPT thread, yes. Check the port before buying.
Does it work on standard valves?
Yes. The manufacturer states the chuck connects to all Schrader-style valve stems.
Why it is worth it
- it fits the hardware you already own - no system rebuild
- a fully opened Schrader valve and shorter inflation times
Running a compressor with a 1/4 NPT port? This is the simplest way to inflate faster.
