LAZER High Performance LED Lighting
Reference: VIFK-RAPTOR-01K
Lighting mounting brackets Kits

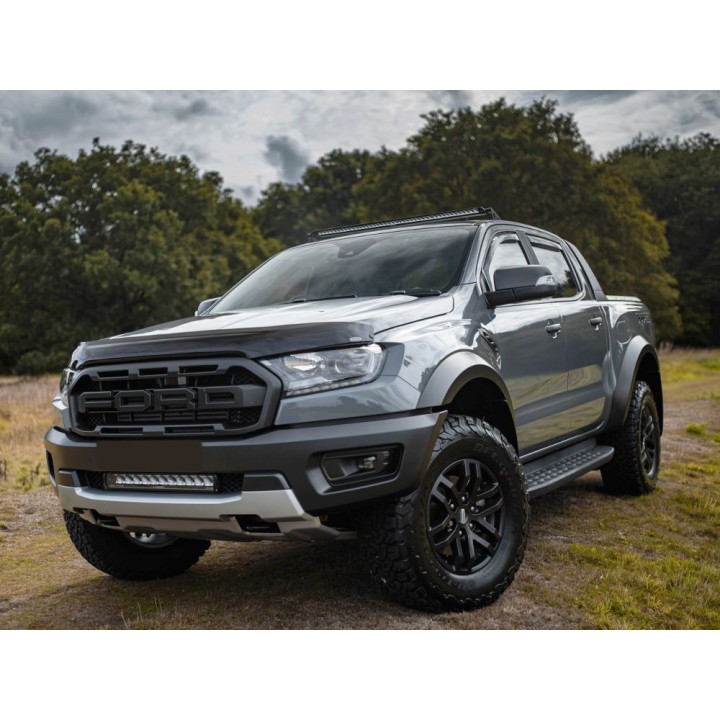

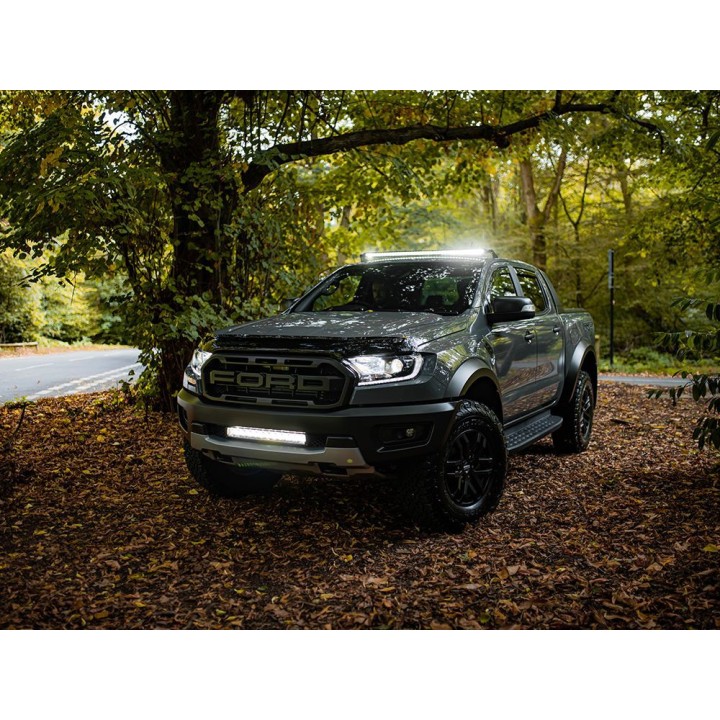

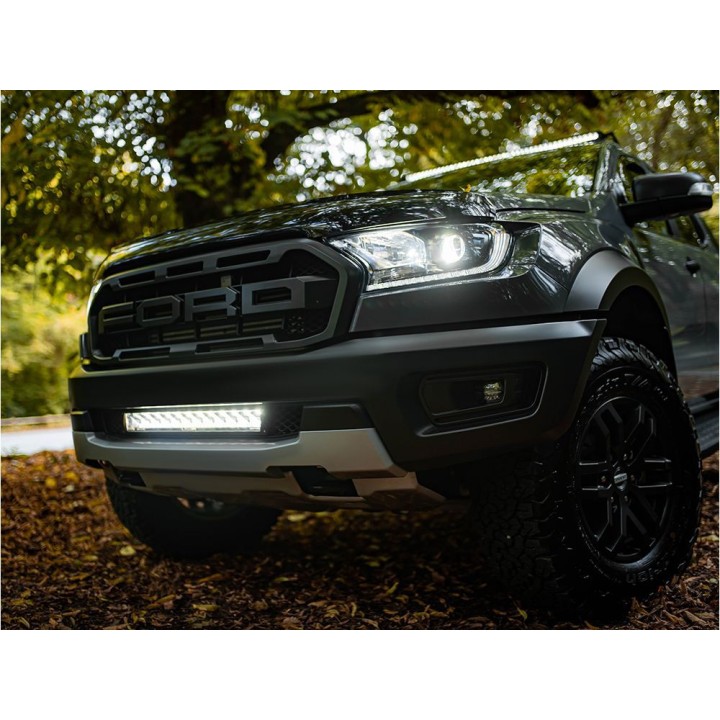

Light mounting kit LAZER Triple-R 1250 w factory grille - Ford Ranger Raptor (2019 - 2022)
Light mounting kit LAZER Triple-R 1250 w factory grille - Ford Ranger Raptor (2019 - 2022). The manufacturer quotes luminous flux: 13,860 lm, range at 0.25 lx: 1500m, power consumption: 125 W. ECE R112 - Ref: 20 (Low Output Mode) approval allows it to be used as a driving light. The kit is built for the Ford Ranger Raptor (2019 - 2022).
Light mounting kit LAZER Triple-R 1250 w factory grille - Ford Ranger Raptor (2019 - 2022)
A factory mount fits without improvisation and leaves no play.
This is a genuine LAZER part, made for a specific lamp range.
Luminous flux 13,860 lm | Range (0.25 lx) 1500m | Beam angle (horizontal / vertical) 28° / 16° |
Key features
- Auxiliary spotlight installation for Ford Ranger Raptor (2018-2022)
- Compatible with Triple-R 1250 Standard, Elite+, or Elite with i-LBA
- Fully robust and secure, with extra protection against theft
- Vehicle wiring kits and CAN bus Interfaces available
- Fully road-legal
- 5-year warranty
- Made in Britain
What is in the box

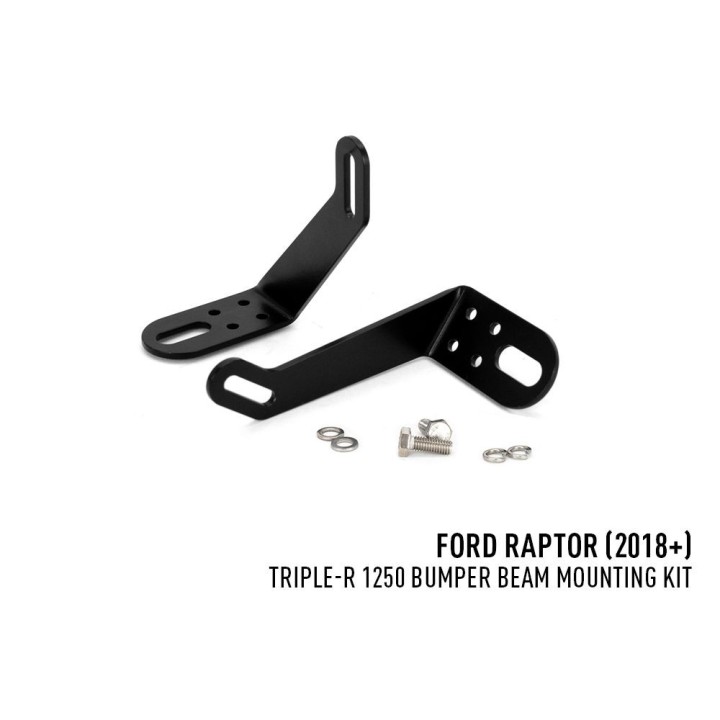

- x2 Bumper Beam Brackets
- Fixtures
- Fitting instructions available in the downloads section below.
Technical data
- Luminous flux: 13,860 lm (full power mode) / 12,028 lm (approved mode)
- Driver 'FOV' flux: 8,358 lm (full power mode) / 7,464 lm (approved mode)
- Colour temperature: 5000 K
- Power consumption: 125 W (full power mode) / 131 W (approved mode)
- Current draw: 8.7 A (full power mode) / 9.1 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 2.4 kg
- Beam angle (horizontal / vertical): 28° / 16°
- Horizontal beam angle: 28° / 16°
- Vertical beam angle: 28° / 16°
- Connector: 3-Pin Superseal (+25cm Cable)
- Ingress protection: IP68
- Driving beam approval: ECE R112 - Ref: 20 (Low Output Mode)
- Position light: ECE R148
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2

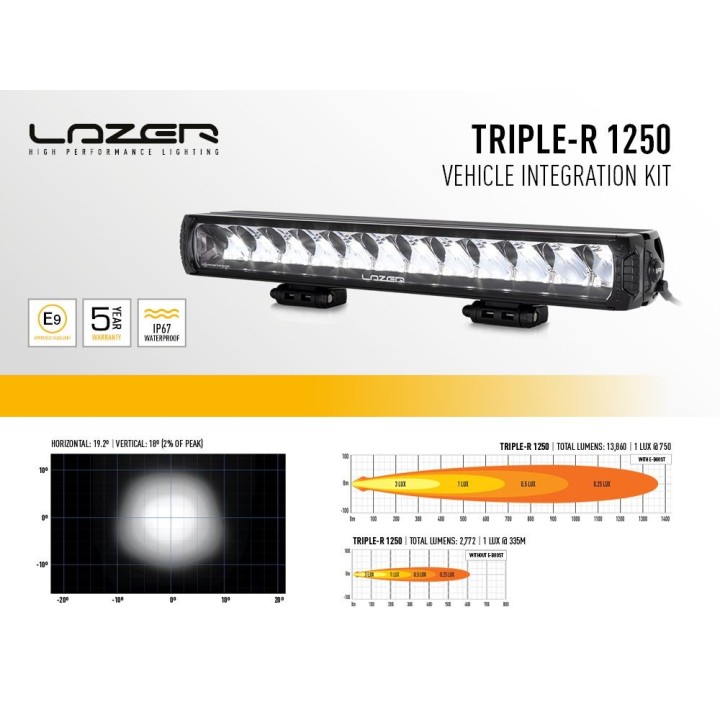

Beam range
| 0.25 lx | 1500m / 1470m |
| 0.5 lx | 1061m / 1039m |
| 1 lx | 750m / 735m |
| 3 lx | 433m / 424m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
As a replacement for a lost bracket or an extra mount for an unusual install.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
The lamp lead ends in: 3-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
The part fits only the lamp range stated by the manufacturer — check the marking on your lamp before ordering.
Why it is worth it
- 13,860 lm of output and 1500m of range on the 0.25 lx line
- ECE R112 - Ref: 20 (Low Output Mode) approval — a legal driving light
- IP68 ingress protection
- A genuine LAZER part, not a copy
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R112 - Ref: 20 (Low Output Mode) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
What is in the box?
The box contains: x2 Bumper Beam Brackets, Fixtures, Fitting instructions available in the downloads section below.
How far does it throw?
The manufacturer quotes 1500m on the 0.25 lx line, 1061m at 0.5 lx and 750m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 125 W, i.e. 8.7 A at 14.4 V.
