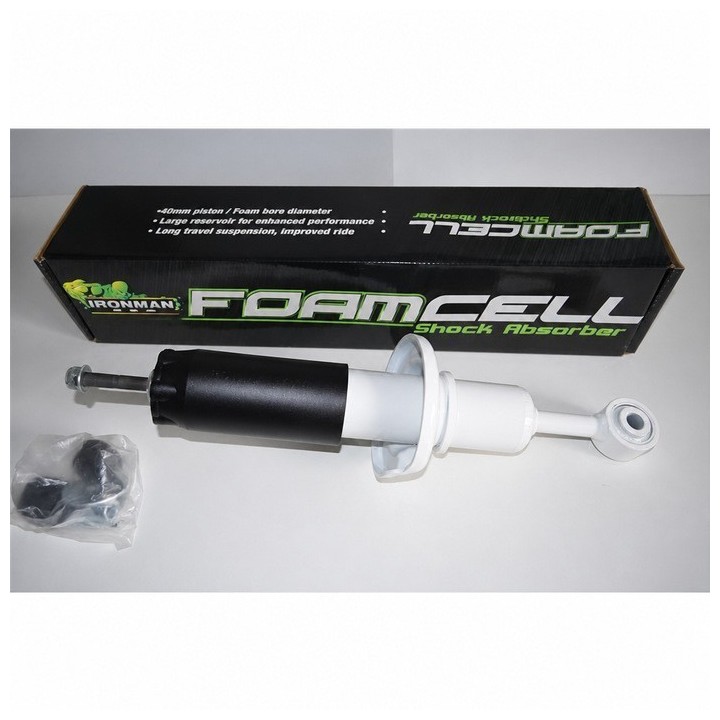

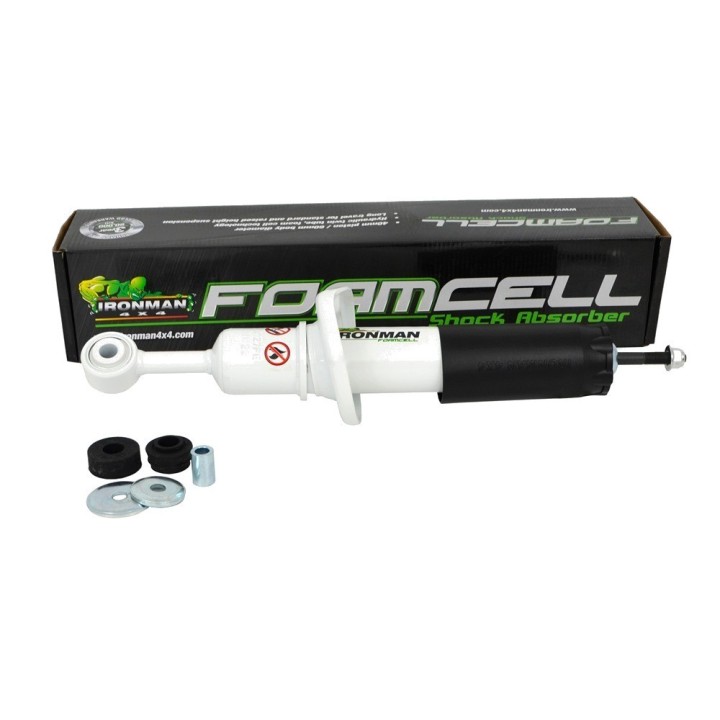

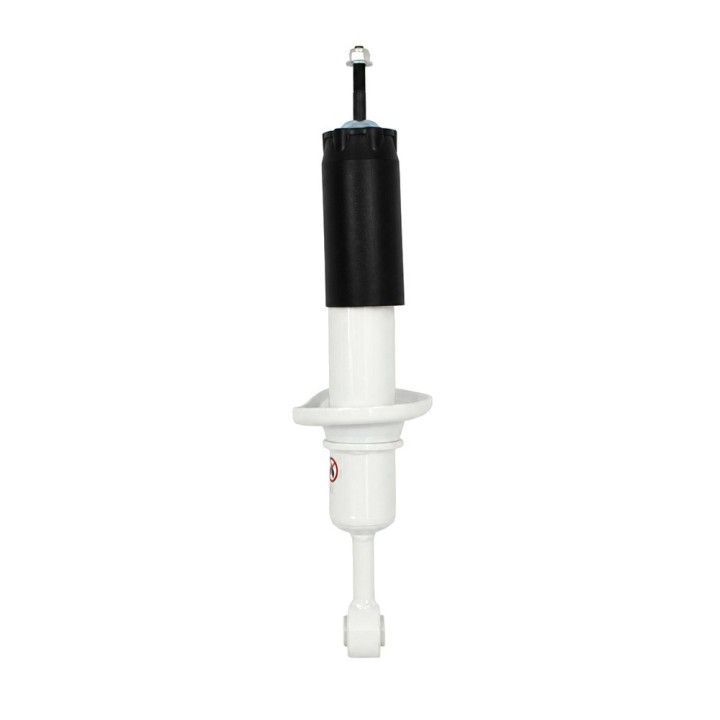

Front shock absorber Ironman 4x4 Foam Cell, 2" lift — Ford Ranger PX MK2, Ford T6 PX NOT, Ford Everest (24727FE)
Lifting a car by 2 inches changes the geometry the suspension works in, and the factory shock stops using the travel it has. 24727FE is a front shock absorber by Ironman 4x4 built for a 2" lift.

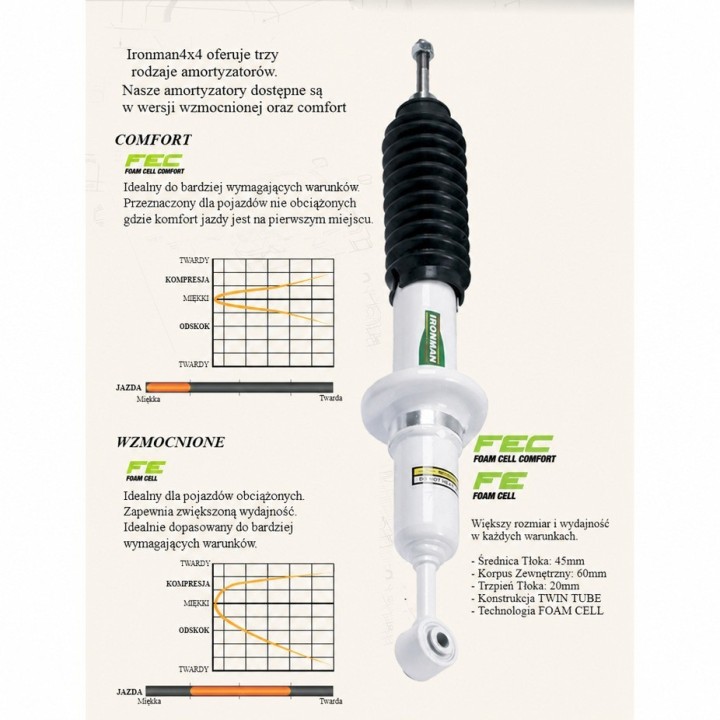

Foam Cell is an oil-filled design with a foam insert instead of gas. Working length is 512–378 mm, mcpherson mounting.
Position
front | Lift
2" (approx. 51 mm) | Series
Foam Cell | Length
512–378 mm |
Key features
- Working length 512–378 mm — matched to a lifted suspension.
- Mounting mcpherson.
- Foam Cell construction.
- Sold each — two are needed per axle.
Vehicle fitment
- Ford Ranger PX MK2 NOT USA model 2015-6/2018
- Ford T6 PX NOT USA model 2011-2015
- Ford Everest 3,2L 2015-6/2018
- Mazda BT50 2011-5/2020
Technical data
| Part number | 24727FE |
| Manufacturer | Ironman 4x4 |
| Position on the car | front |
| Length max–min | 512 mm – 378 mm |
| Mounting | mcpherson |
| Lift | 2" |
| Shock model | Foam Cell |
| EAN | 9326626011628 |
Fitting and notes
The shock absorber is sold per piece — one axle needs two. The 512–378 mm figure is the extended and compressed length; it is worth comparing it with what is on your car, because one model often came with several suspension variants.
We fit these in our own workshop in Warsaw. While the car is apart we check the springs, bushings and top mounts — replacing shocks alone is rarely the whole job.
Frequently asked questions
Will it fit a car with standard ride height?
This one is matched to a 2" lift. On a standard car it would work on the wrong part of its travel — for factory height, choose the standard version.
How many do I need?
Two per axle. A full set for both axles is four shocks — the rear ones have a different part number.
Why buy it here
Ironman 4x4 is an Australian brand built for vehicles that really work off-road and carry weight. We fit everything we sell in our own workshop in Warsaw, so if you are not sure which version suits your car, write to us — we will work it out with you.
