Iron Baltic guards for ATVs

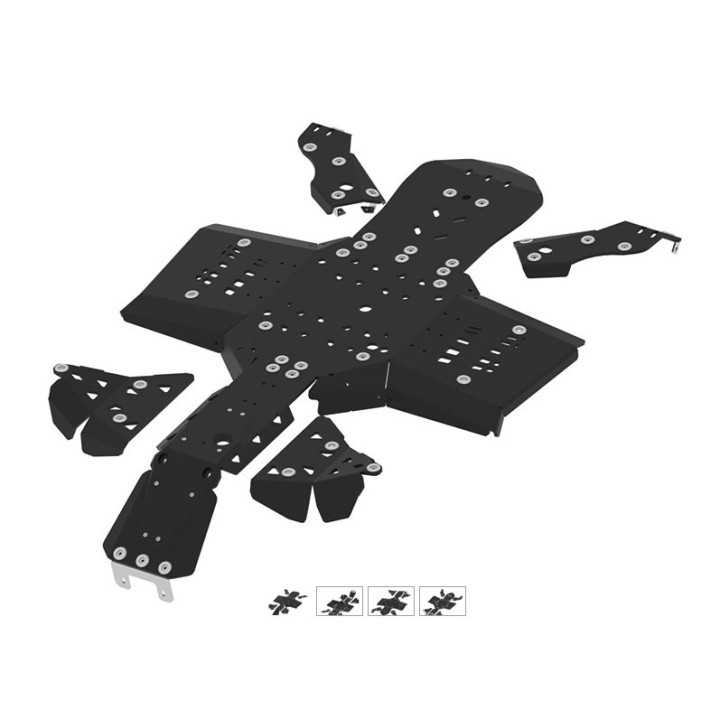

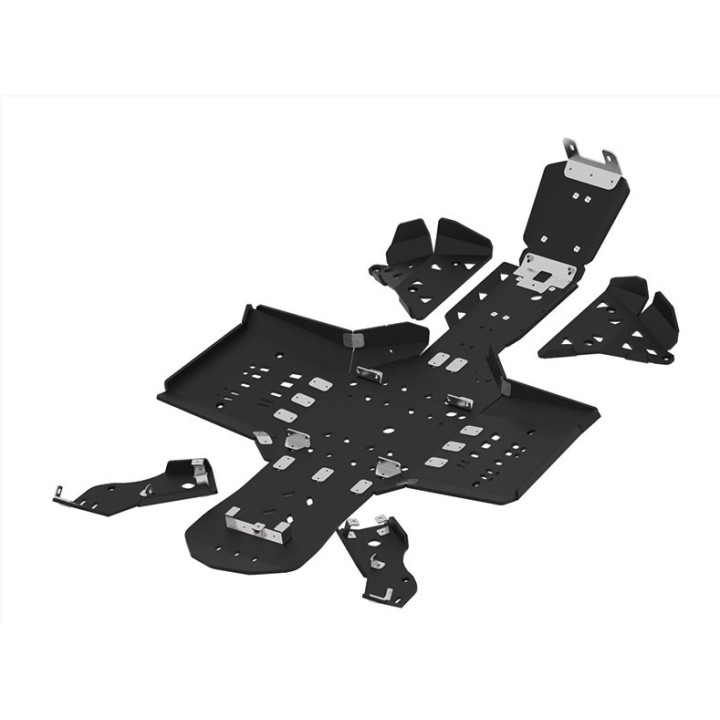

Iron Baltic Skid Plate Full Set Can-Am Outlander G2 650/850/1000 (2019+) - HDPE
Iron Baltic skid plate full set for the Can-Am Outlander G2 650/850/1000 (2019+), made from HDPE plastic in 10 mm. It covers the whole underside and front of the ATV. Oil change holes are provided. Holes for the Iron Baltic Mid-mount adapter are pre-made. Detailed installation instructions included.
Iron Baltic Skid Plate Full Set Can-Am Outlander G2 650/850/1000 (2019+) - HDPE
Rocks, roots and frozen ruts hit the underside of an ATV first, so your Can-Am Outlander G2 650/850/1000 (2019+) deserves skid plates designed for that exact model. This Iron Baltic kit is built from HDPE plastic in 10 mm and covers the full underside and front of the ATV.
Fits Can-Am Outlander G2 650/850/1000 (2019+) / Outlander XXC (2023+) | Material HDPE plastic | Thickness 10 mm |
Key features
- Fits model years 2019-2024.
- Protects the full underside and front of the frame plus the front and rear A-arms.
- Designed for the best possible protection while keeping maximum ground clearance.
- Holes for easier washing and mud drainage.
- Mounting bolts with special protective dish washers allow repeated removal and refitting, making servicing quicker and easier.
- Additional bolt-on reinforcement plate for the front section.
- Service holes for oil changes.
- Holes for the Iron Baltic Mid-mount adapter, plus pre-cuts to open holes for the Mid-mount adapter for the Can-Am Alpine plow (03.4900).
- Full mounting hardware and detailed installation instructions included.
- Also fits 2023+ Outlander XXC 1000 models.
- Only fits 2019-2024 models with the revised A-arm design.
Fitment
Full HDPE kit with arm guards for 2019-2024 Outlander (short, one-up) models, excluding small-cc Outlander L and 2024+ Outlander 500/700/PRO. Also fits the 2023+ Outlander 1000 XXC, but the front section must be trimmed to fit.
Specifications
- Manufacturer: Iron Baltic
- Part number: 02.23200
- Vehicle: Can-Am Outlander G2 650/850/1000 (2019+) / Outlander XXC (2023+)
- Material: HDPE plastic
- Thickness: 10 mm
- Kit weight (manufacturer): 18.9 kg
- Packed dimensions: 780 x 610 x 200 mm
Before you order
Check fitment against your ATV model and model year. If in doubt, send us the VIN or the exact vehicle version and we will confirm that this kit fits.
