Underbody Protection TopFire Jeep Wrangler JL (2018)
Steel TopFire engine and gearbox skid plate for the Jeep Wrangler JL, model years 2018-2020. A single 1040 x 370 x 170 mm plate weighing 15 kg covers the stretch from the front crossmember to the transfer case, with pressed stiffening ribs and service openings. It bolts to points on the frame and crossmembers.
Engine and Gearbox Skid Plate TopFire — Jeep Wrangler JL 2018-2020 (TXJL 0050)
The sump and gearbox on a Wrangler JL sit low and are covered mainly by thin factory panels. One rock on a bank or one drop off a ledge is enough to turn a trip into a recovery. This steel skid plate closes that whole stretch of the underbody with a single part — from the front crossmember all the way past the transfer case.
It is a 1040 x 370 x 170 mm plate weighing 15 kg, with pressed stiffening ribs running its full length. Those ribs are functional: they keep the plate from folding under a point impact and let the vehicle slide off an obstacle instead of hanging up on it.
Fits Jeep Wrangler JL 2018-2020 | Material Steel | Dimensions 1040 x 370 x 170 mm | Weight 15 kg |
Key benefits
- One plate instead of several separate guards — 1040 mm of length covers the engine, gearbox and transfer-case zone with no gaps in between to catch on.
- 15 kg of steel — across this area that is material which absorbs a rock strike rather than deforming on first contact.
- Pressed stiffening ribs — they add rigidity without adding thickness and weight.

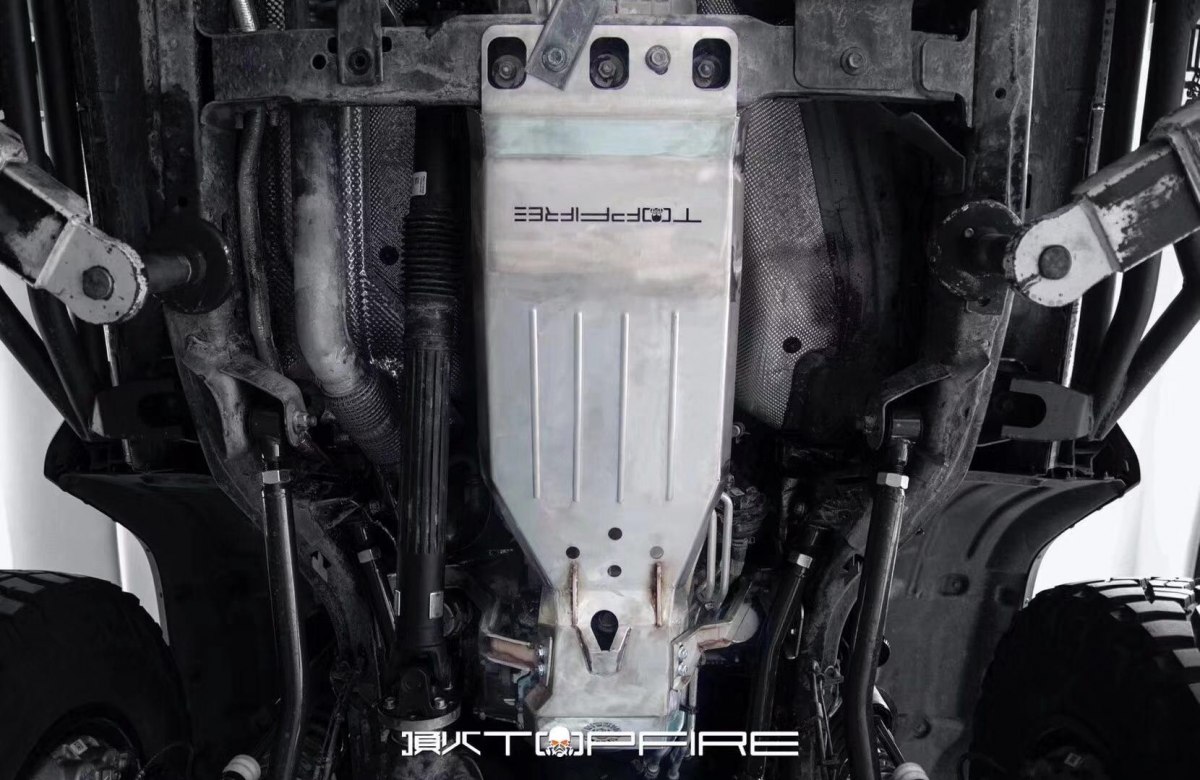

- Service openings in the plate — the photos show cut-outs giving access to points underneath without removing the whole guard.

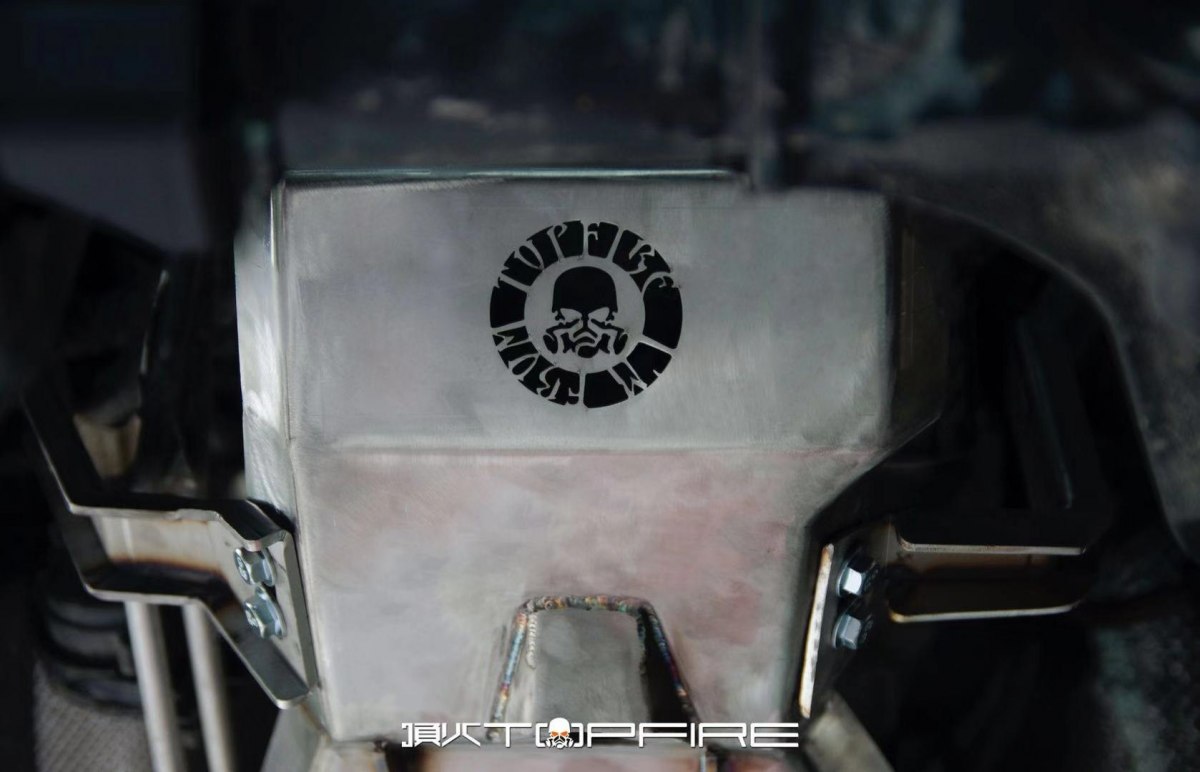

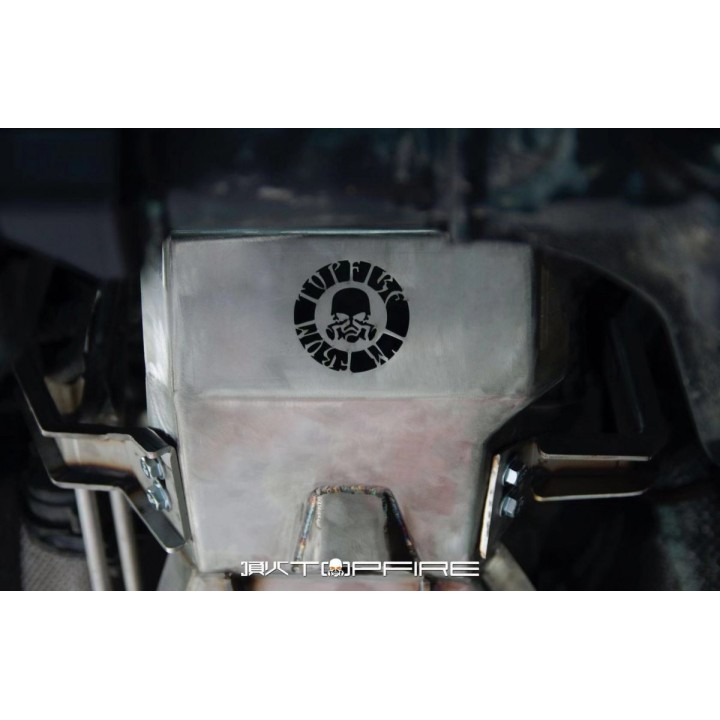

- Shaped rear section — the plate is formed around the transfer case rather than left flat, so it does not give away ground clearance unnecessarily.
What is in the box
- Engine and gearbox skid plate — 1 pc
- Mounting parts as shown in the fitting photos (brackets and bolts)
Technical data
- Part number: TXJL 0050
- Manufacturer: TopFire
- Compatibility: Jeep Wrangler JL, model years 2018-2020
- Material: steel
- Dimensions: 1040 x 370 x 170 mm
- Weight: 15 kg
- Protected area: engine and gearbox
Who it is for
For JLs that see rocks, ruts and rocky climbs — anywhere the underbody touches ground regularly rather than once a season. It is also a sensible purchase before a longer trip, where a holed sump ends the expedition instead of meaning a visit to the workshop round the corner.
Fitting and notes

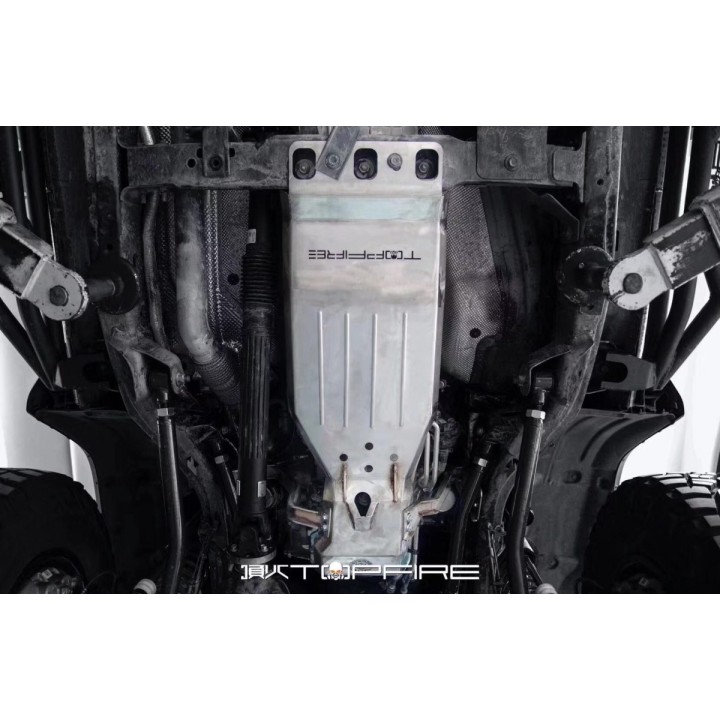

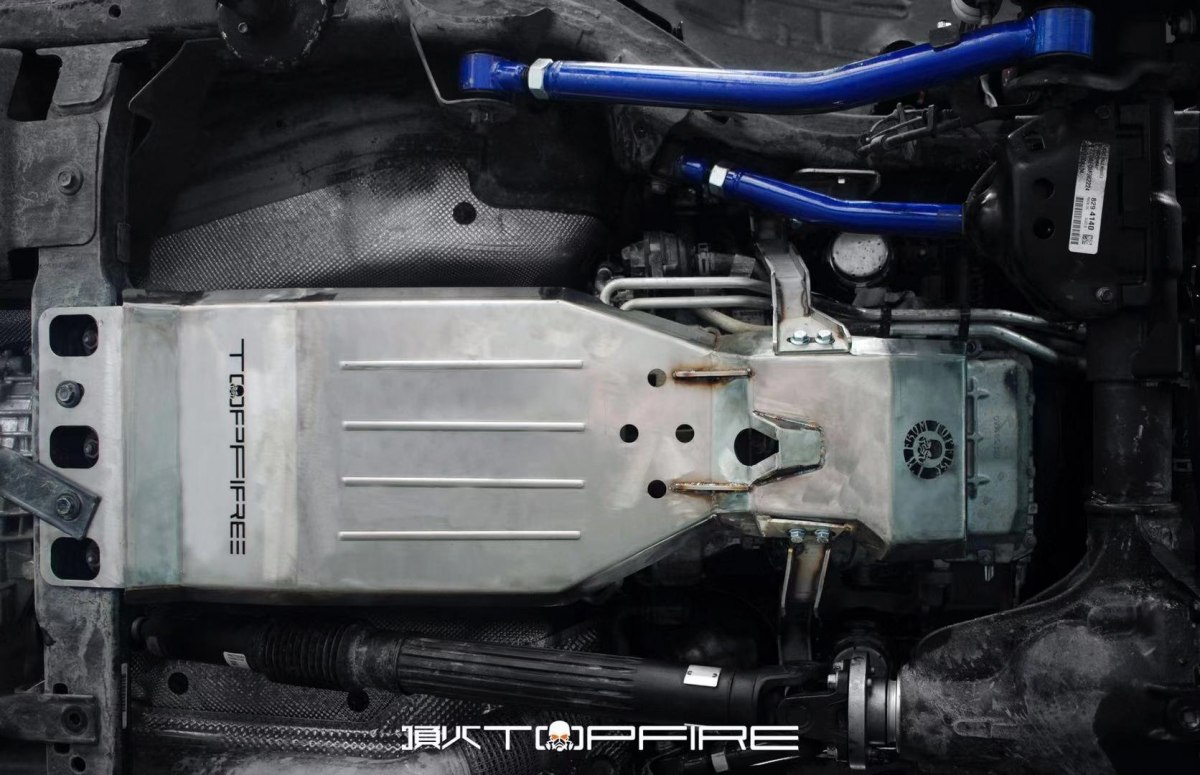

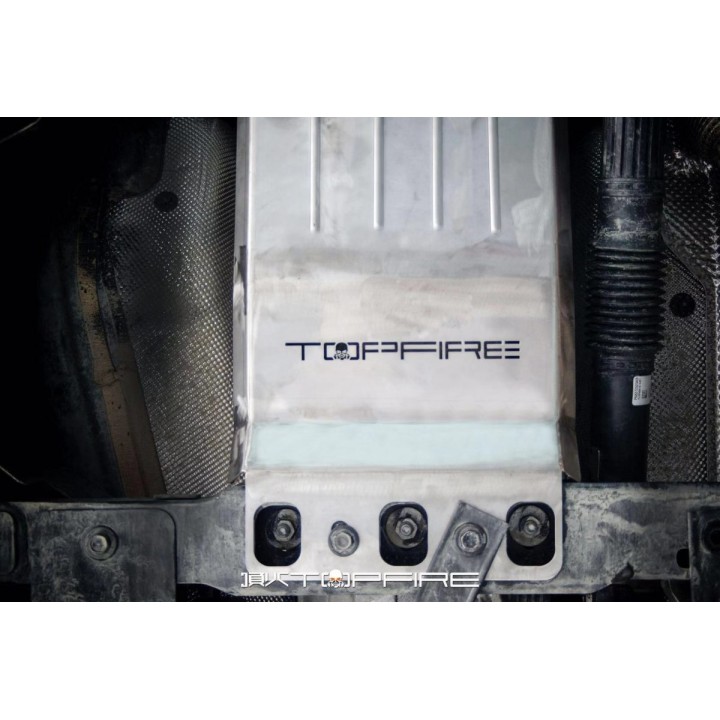

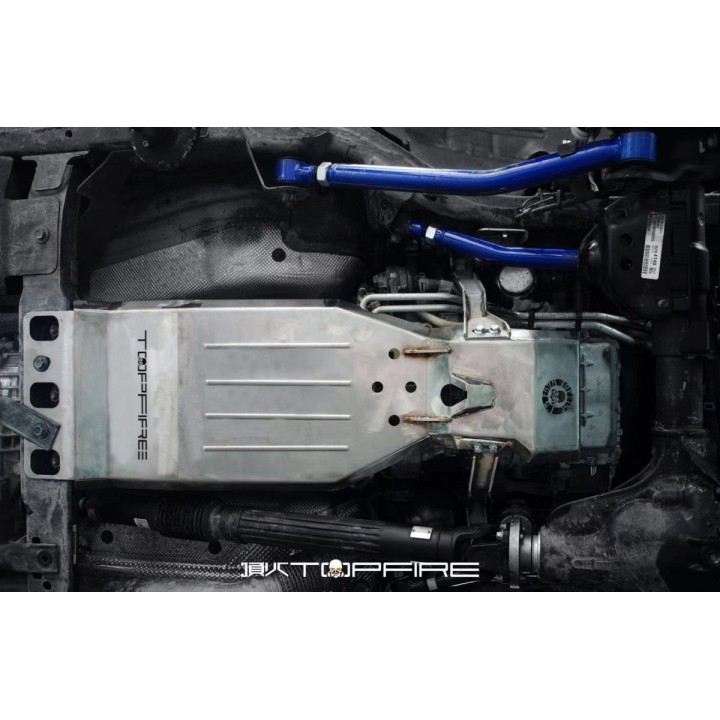

The plate bolts to points on the frame and crossmembers — the gallery photos show brackets and bolts at the front edge and in the rear section. At 15 kg, and with the work happening underneath the vehicle, a lift makes the job far easier. The Szekla4x4 workshop fits skid plates routinely, including checking clearance around the exhaust.
In the manufacturer's photos the plate has a bare, unpainted metal finish. If the vehicle sees winter salt, plan your own corrosion protection — the product sheet does not describe any protective coating.
Why it is worth it
- One part instead of sourcing separate guards for the engine and the gearbox.
- Steel and pressed ribs — rigidity where the factory panel gives way.
- Made for specific JL model years, with no universal-fit compromises.
If your JL goes where the underbody has to work, this is the cheapest insurance on the most expensive parts of the vehicle.
Frequently asked questions
Which JL model years does this skid plate fit?
The manufacturer lists the Jeep Wrangler JL from model years 2018-2020.
What exactly does the plate cover?
The engine and gearbox. At 1040 mm long it spans from the front crossmember to the transfer-case area — visible in the fitted photos.
How much does the plate weigh?
15 kg. It is steel, so working on a lift is far more comfortable than on the ground.
Does the plate have service openings?
Yes — the gallery photos show cut-outs in the plate giving access to points underneath.
Is the plate painted?
In the manufacturer's photos the plate has a bare metal finish — the product sheet gives no information about a protective coating.
