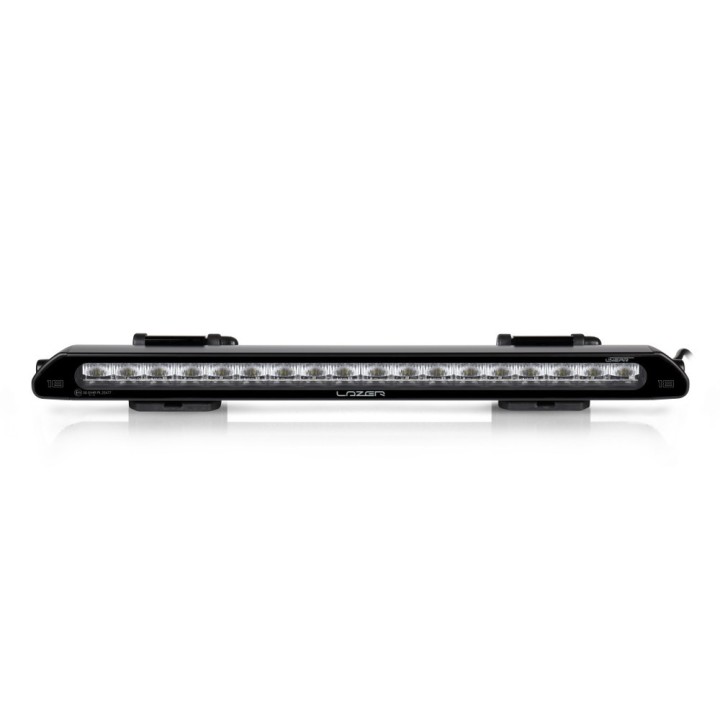

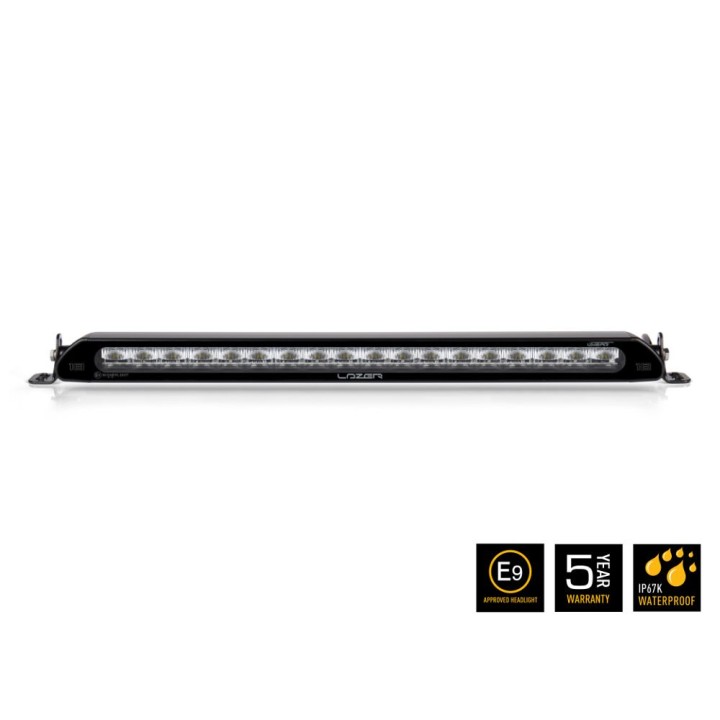

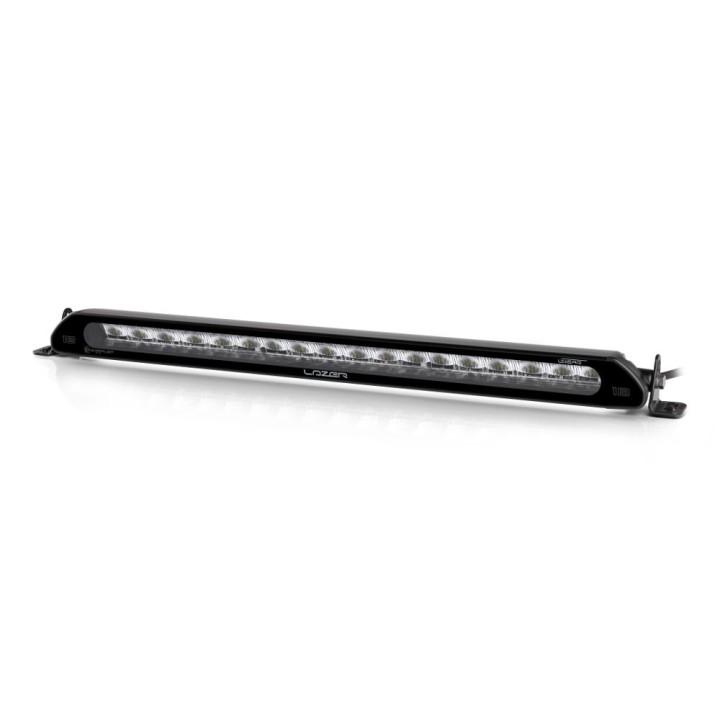

LAZER Linear 18

Factory main beam runs out exactly where the real risk begins — an animal on the verge, a pothole, a blind corner.

The manufacturer quotes 6,750 lm of output, 532mm wide, 1.09 kg. ECE R112 - Ref: 30 approval means the lamp is homologated as a driving light, not restricted to off-road use.

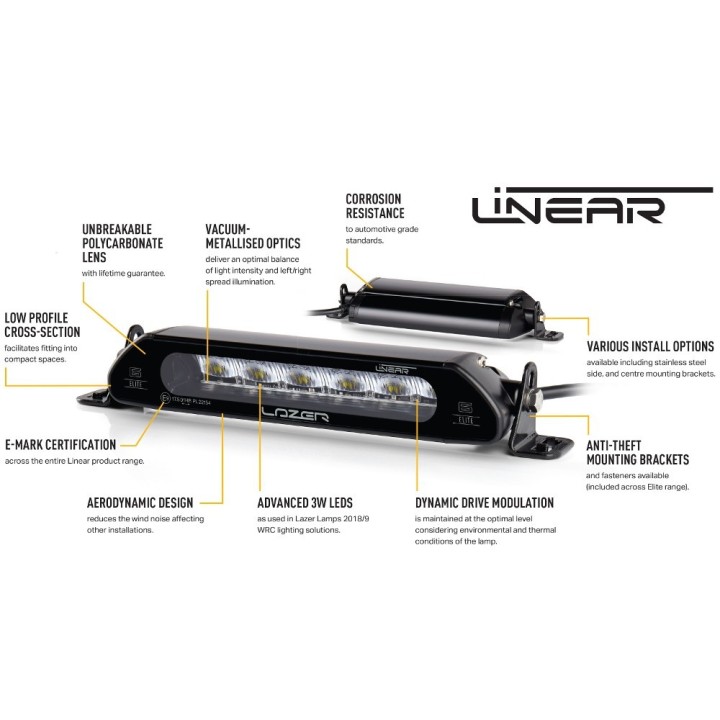

Key features

• Highly efficient 3W LED technology
• 5000 K LED colour temperature and 80CRI maximises sharpness and definition
• Vacuum-metallised optics deliver wide spread of light
• Reduced up/down spread of light suits even low mounting positions, or roof mounting
• Sleek, low profile design eases installation
• Aero design virtually eliminates wind noise on roof installations
• Includes low profile side mounting brackets (anti-theft solutions included on Linear-36/42/48)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP68 watertight
• 5 year warranty
• Supplied with pre-wired male/female 2-pin Superseal connectors
• Designed and manufactured in UK

What is in the box

• x1 Linear-18 LED Lamp
• x1 Side Mount (1126 K)
• x1 Installation Instructions

Technical data

• Luminous flux: 6,750 lm
• Driver 'FOV' flux: 4,806 lm
• Colour temperature: 5000 K
• Number of LEDs: 18
• Power consumption: 63 W
• Current draw: 4.4 A
• Peak current draw: 5.8 A
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 1.09 kg

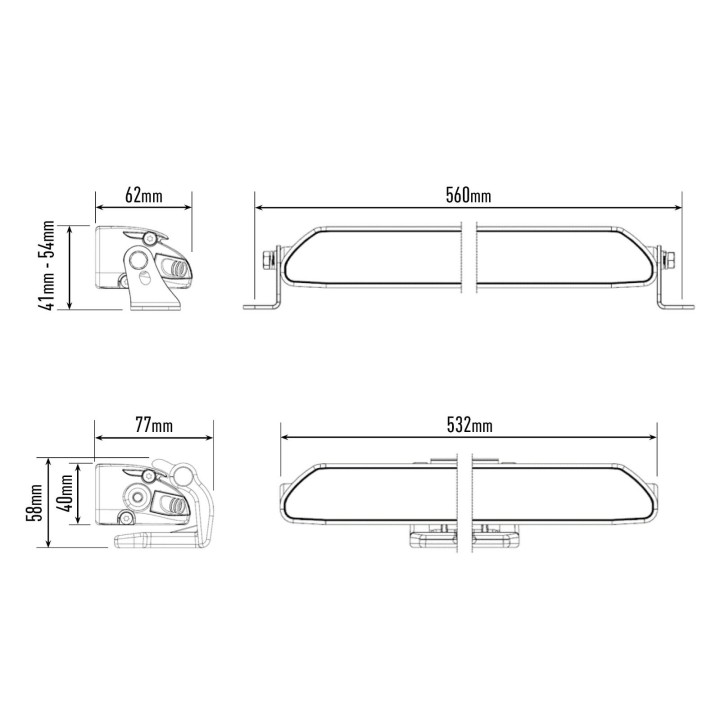

• Width: 532mm
• Depth: 62mm
• Height: 40mm
• Horizontal beam angle: 56°
• Vertical beam angle: 13°
• Connector: 2-Pin Superseal (+20cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R112 - Ref: 30
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2

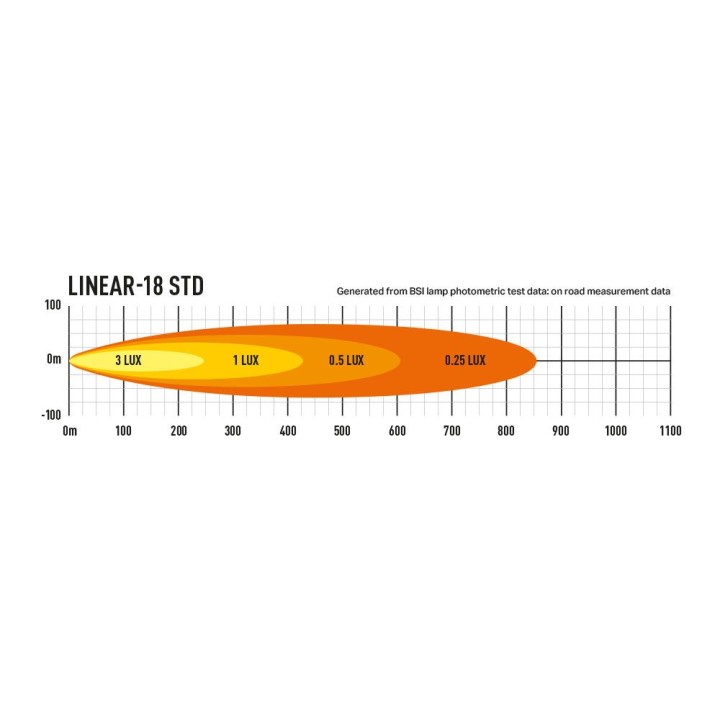

Beam range

Who it is for

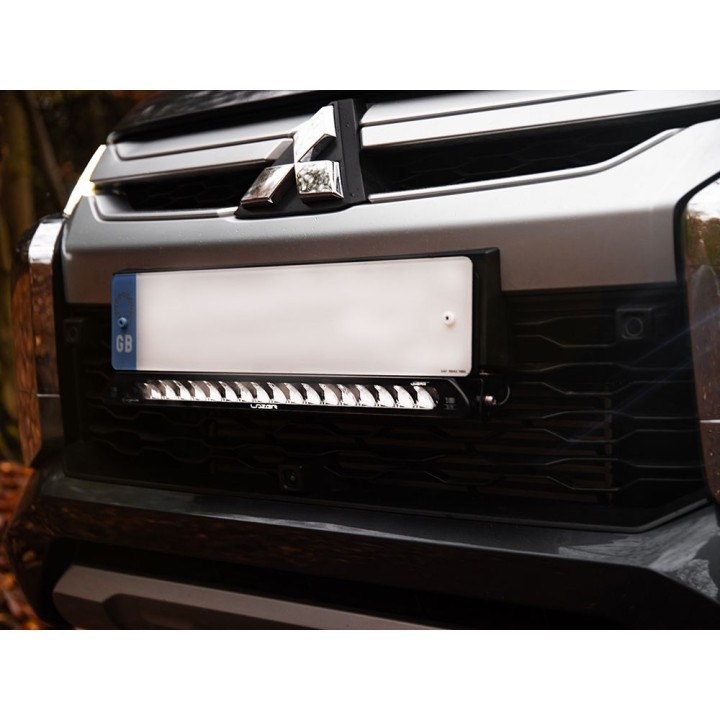

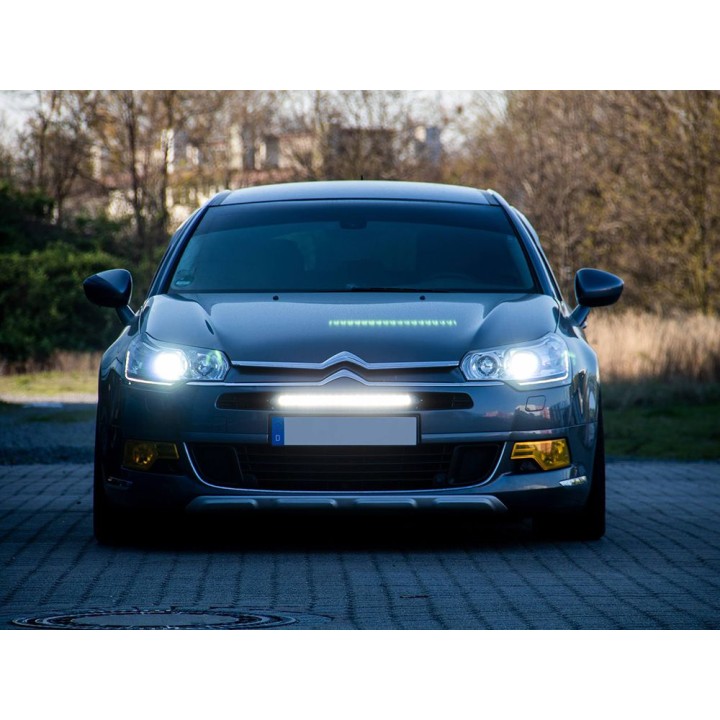

For installs where space is tight — grille, bumper, windscreen mount, roof.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 2-Pin Superseal (+20cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R112 - Ref: 30 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

Why it is worth it

• 6,750 lm of output and 855 m of range on the 0.25 lx line
• ECE R112 - Ref: 30 approval — a legal driving light
• IP68 ingress protection
• LAZER — designed and manufactured in the United Kingdom

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R112 - Ref: 30 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 Linear-18 LED Lamp, x1 Side Mount (1126k), x1 Installation Instructions.

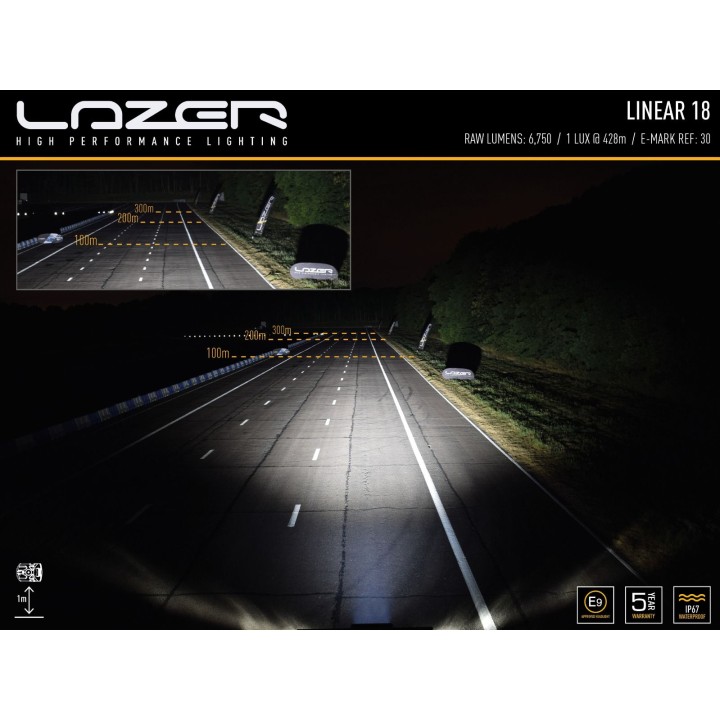

How far does it throw?

The manufacturer quotes 855 m on the 0.25 lx line, 605 m at 0.5 lx and 428 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 63 W, i.e. 4.4 A at 14.4 V.
