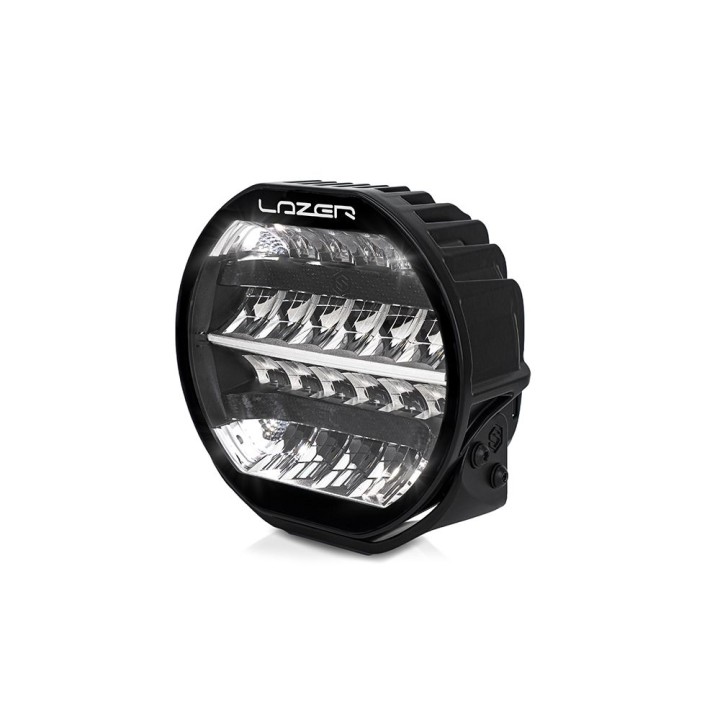

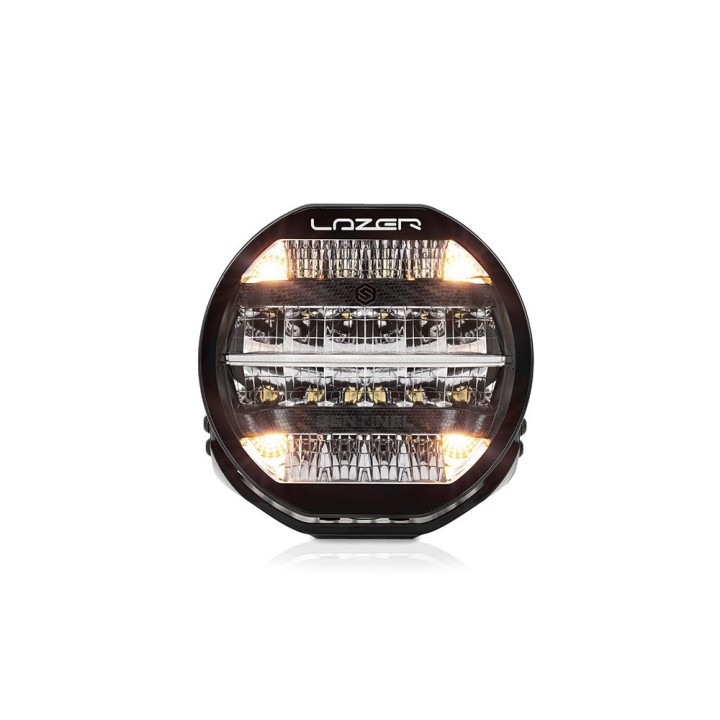

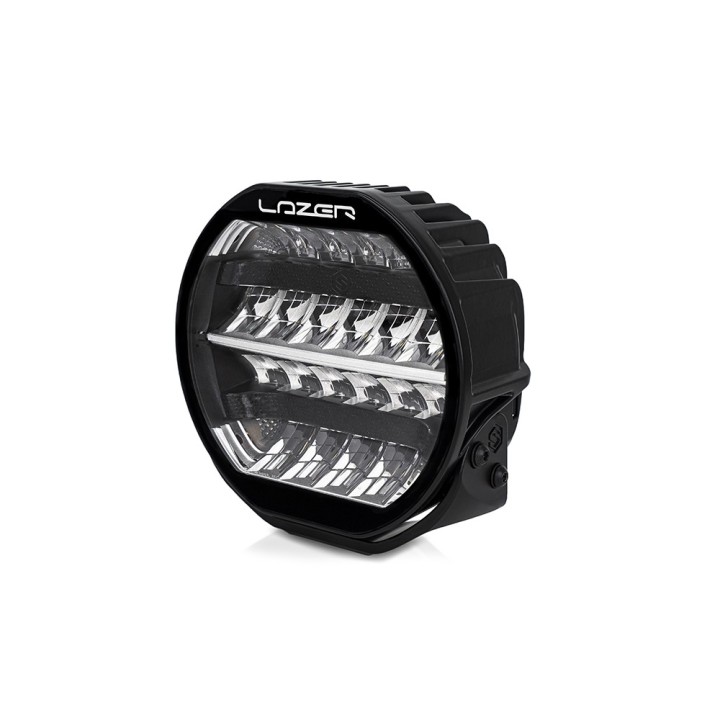

LAZER Sentinel 9'' Black with position lights – round LED lamp

A round lamp on the front of a vehicle is a classic that either looks right or looks bolted on.

The manufacturer quotes 9,520 lm of output.

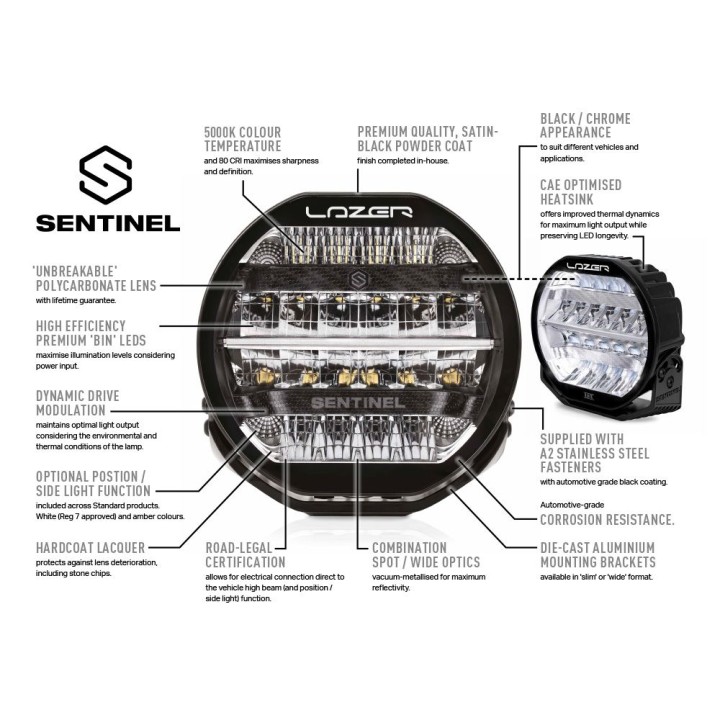

Key features

• Combination of 20 premium ‘bin’ LEDs

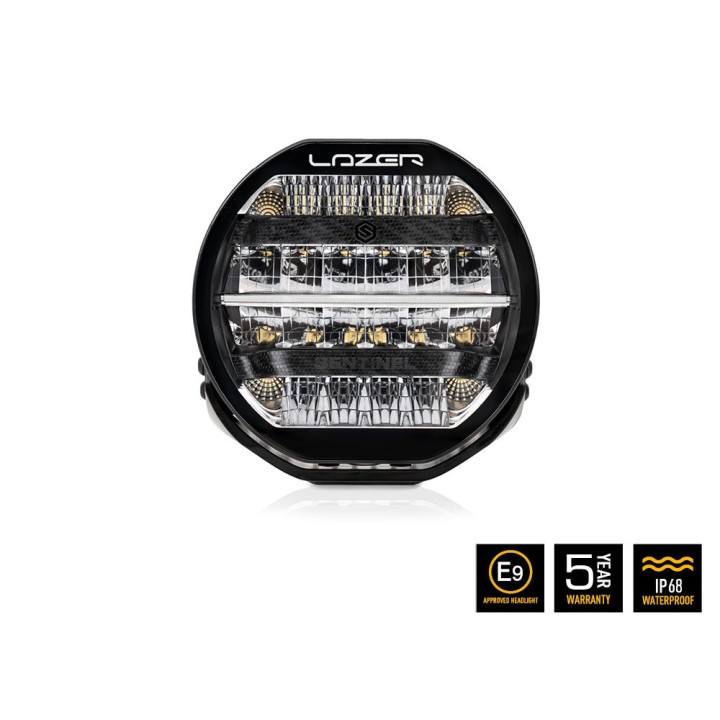

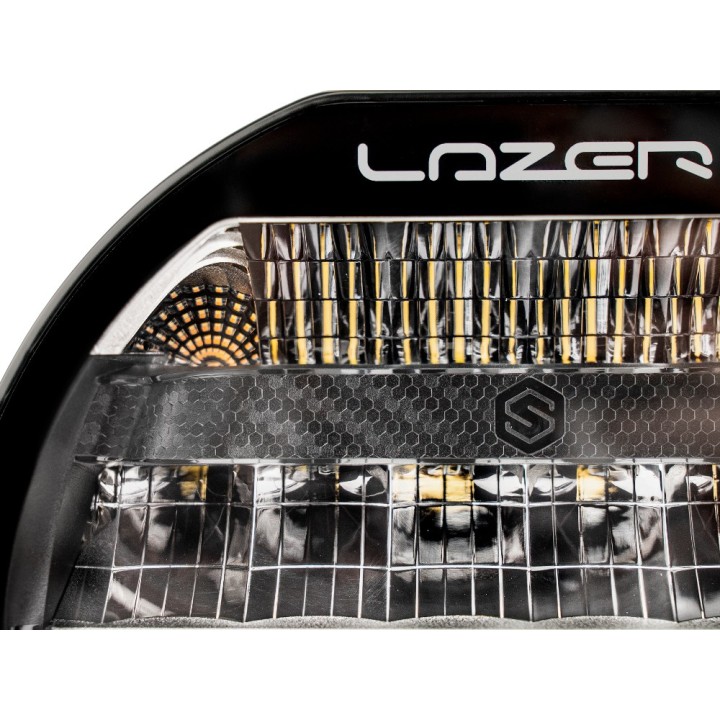

• 'Stealth' appearance from black internal bezel, plus black circuit boards

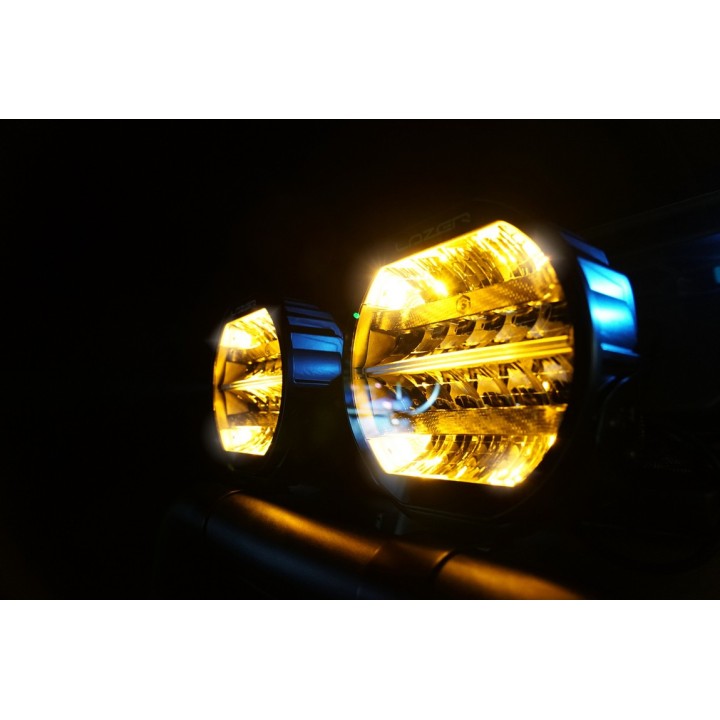

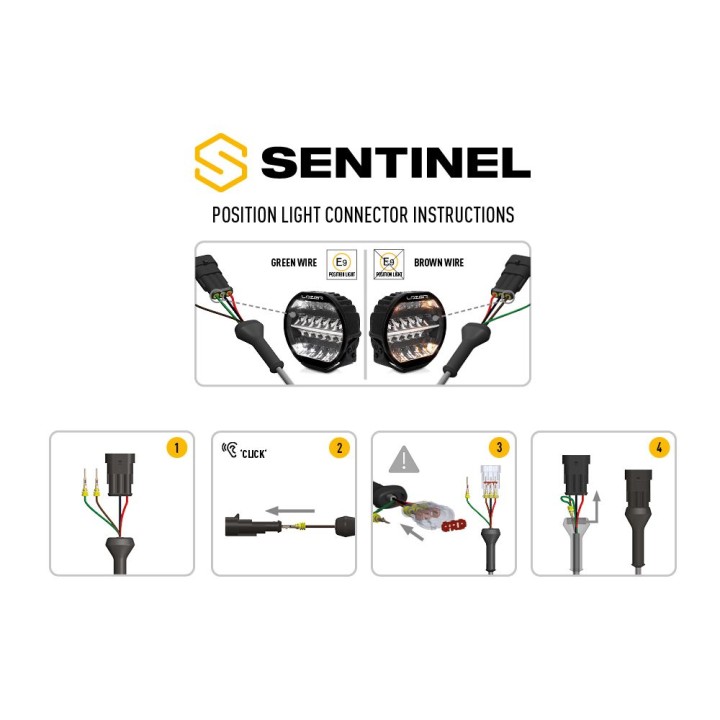

• Integrated white and amber position light function
• Ultra-reflective vacuum-metallised spot and wide optics

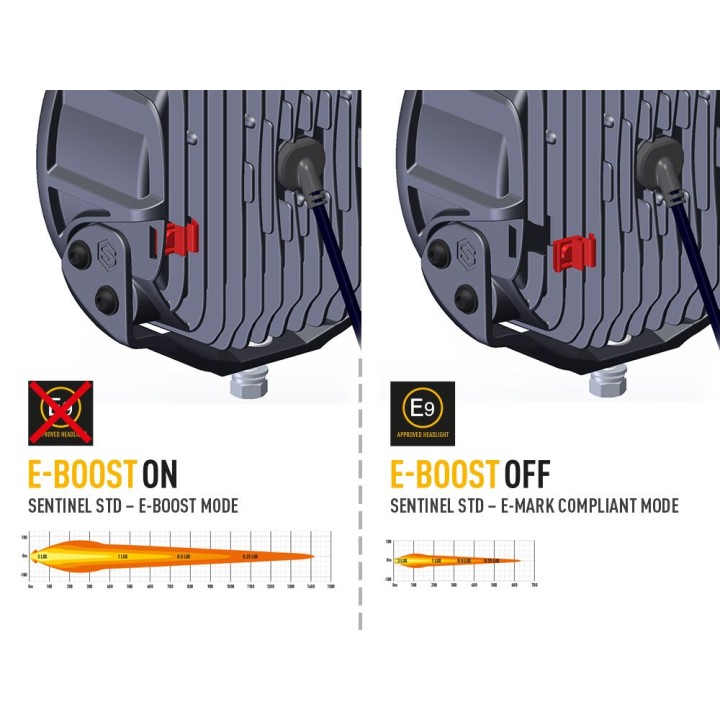

• UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)
• 5000 K LED colour temperature and 80CRI maximises sharpness and definition
• Contemporary lamp design

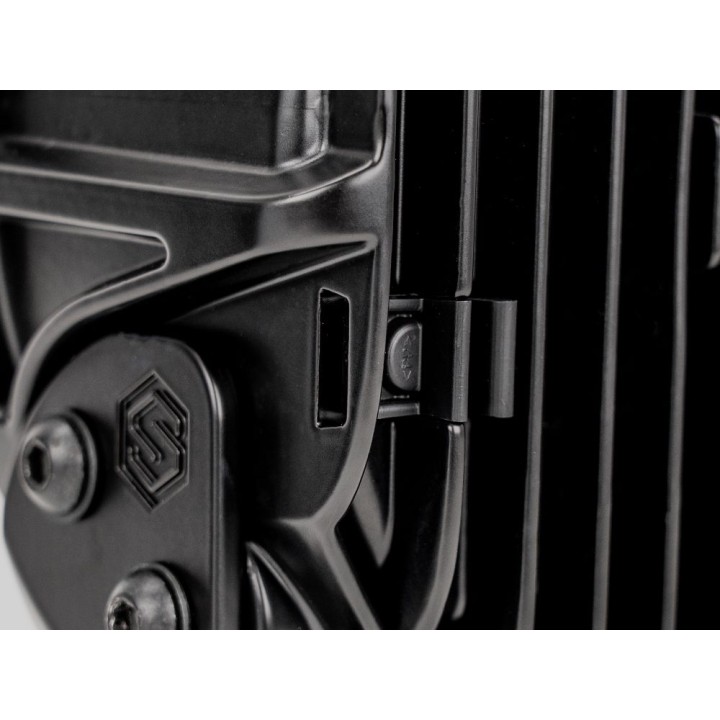

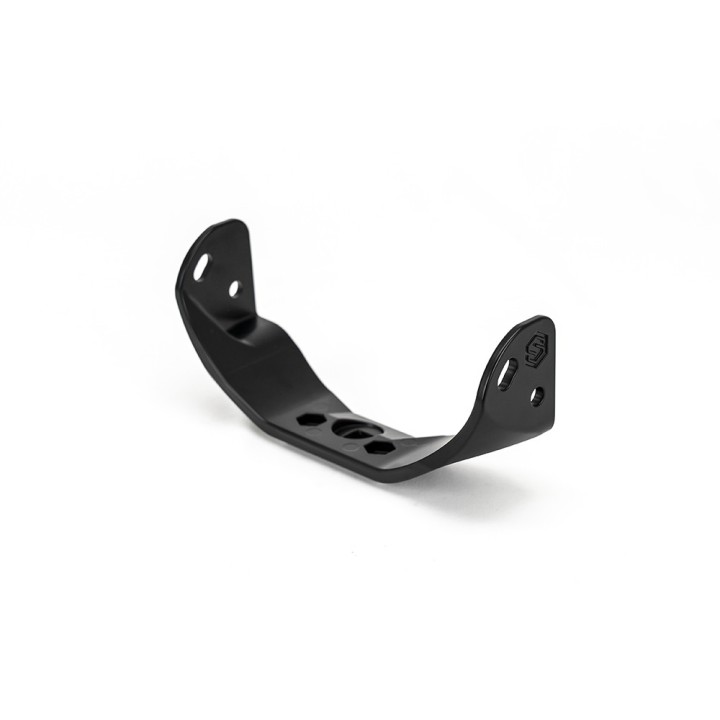

• Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

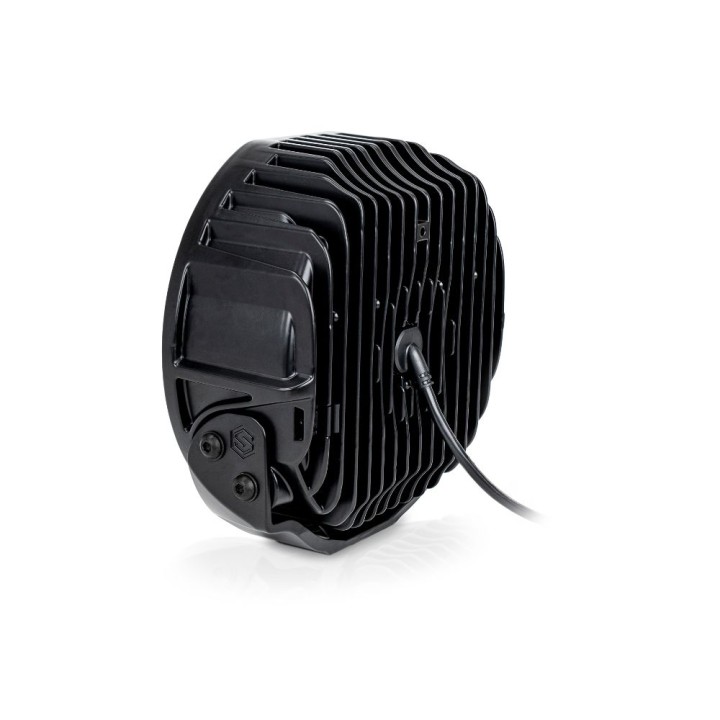

• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• A2 stainless steel fasteners with automotive grade black coating
• UNECE approved Reg 10
• IP68 watertight – 1.5m submersion (30mins)
• 5-year warranty
• Supplied with pre-wired male/female 3-pin Superseal connectors
• Designed & manufactured in UK

What is in the box

• x1 Sentinel 9'' LED Lamp
• x1 'Slim' Mount Kit (1141 K)
• x1 Installation Instructions

Technical data

• Luminous flux: 9,520 lm (full power mode) / 1,904 lm (approved mode)
• Driver 'FOV' flux: 5,588 lm (full power mode) / 1,118 lm (approved mode)
• Colour temperature: 5000 K
• Number of LEDs: 20
• Power consumption: 87 W (full power mode) / 17 W (approved mode)
• Current draw: 6 A (full power mode) / 1.2 A (approved mode)
• Peak current draw: 7.7 A (full power mode) / 1.6 A (approved mode)
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 2.5 kg

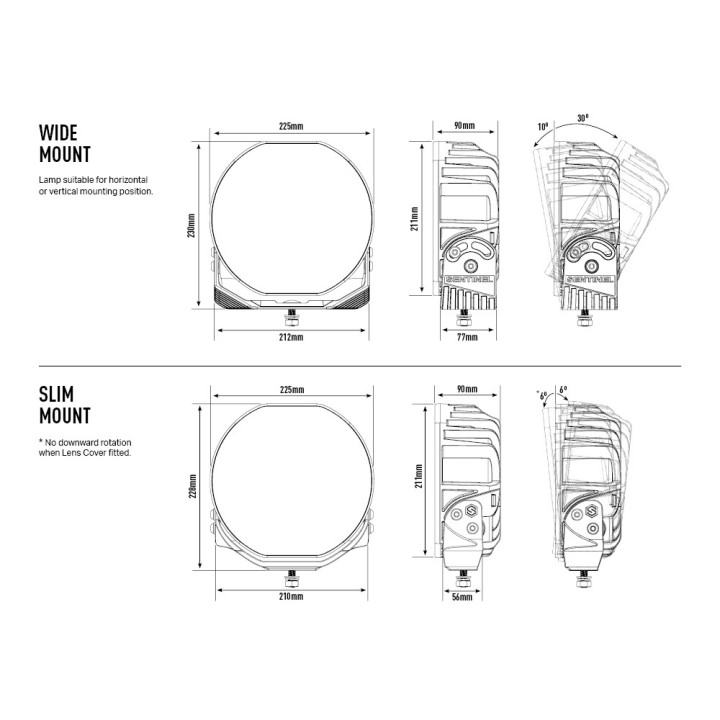

• Width: 225mm
• Depth: 90mm
• Height: 230mm

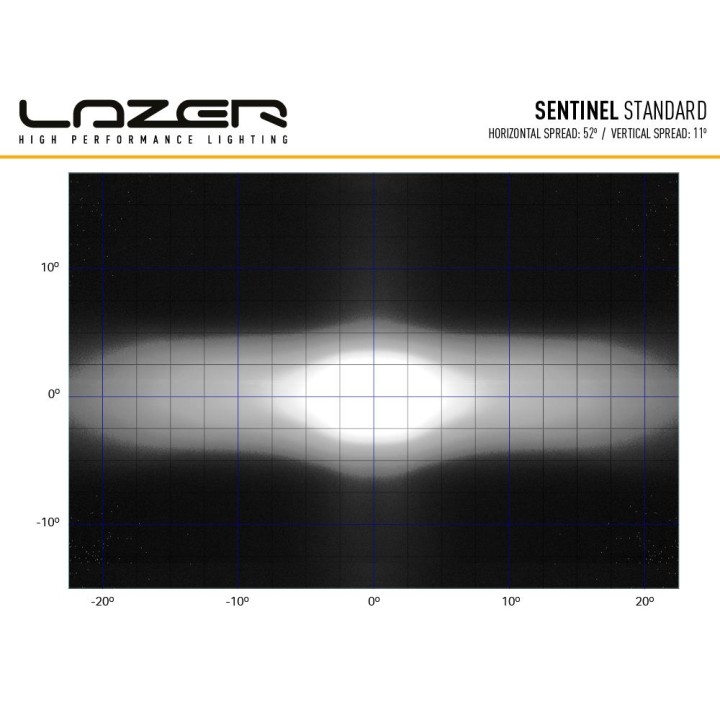

• Horizontal beam angle: 52°
• Vertical beam angle: 11°
• Connector: 3-Pin Superseal (+25cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R112 - Ref: 20 (in Low Output Mode only)
• E-Mark reference: 20
• Position light: ECE R7
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2
• Warranty: 5 years

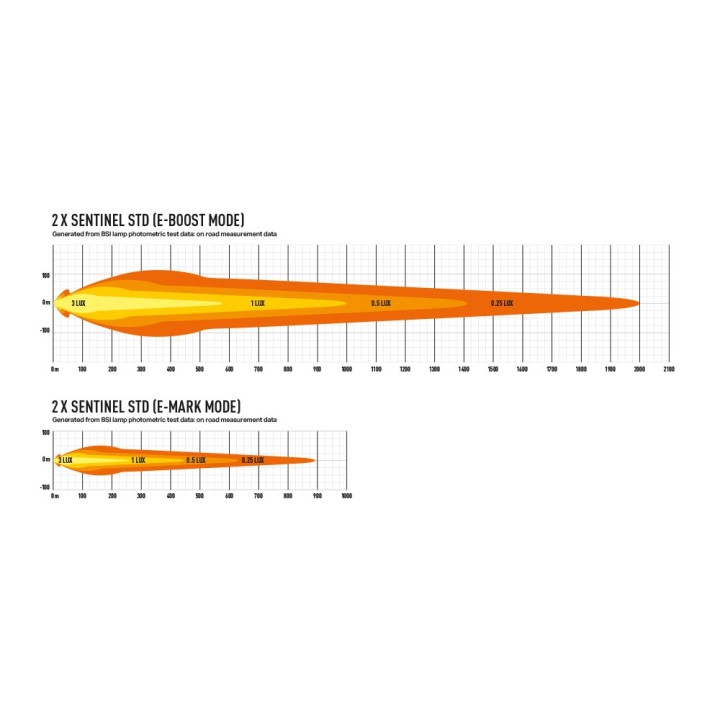

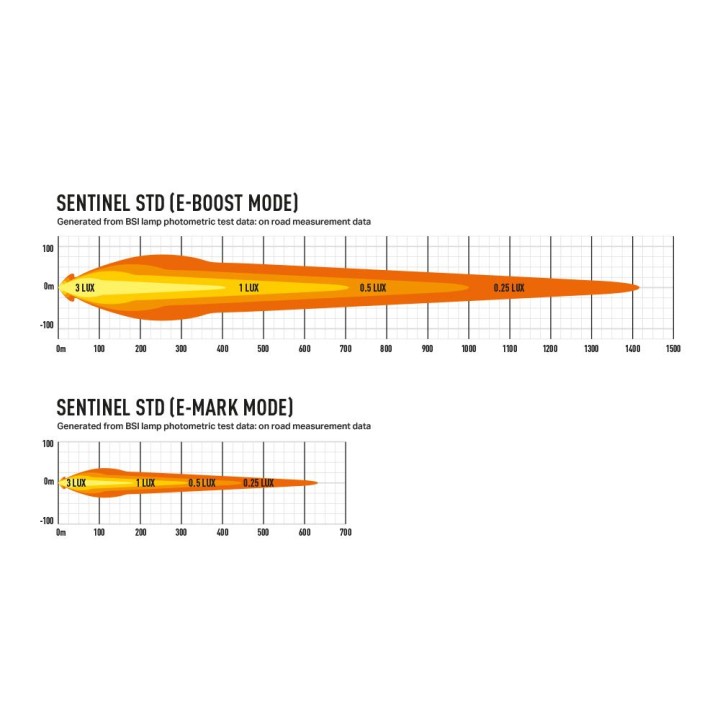

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

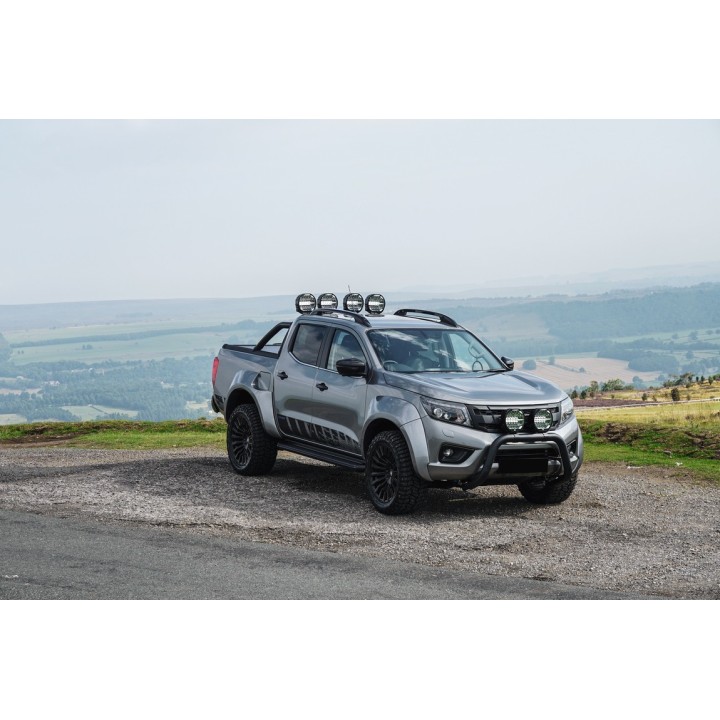

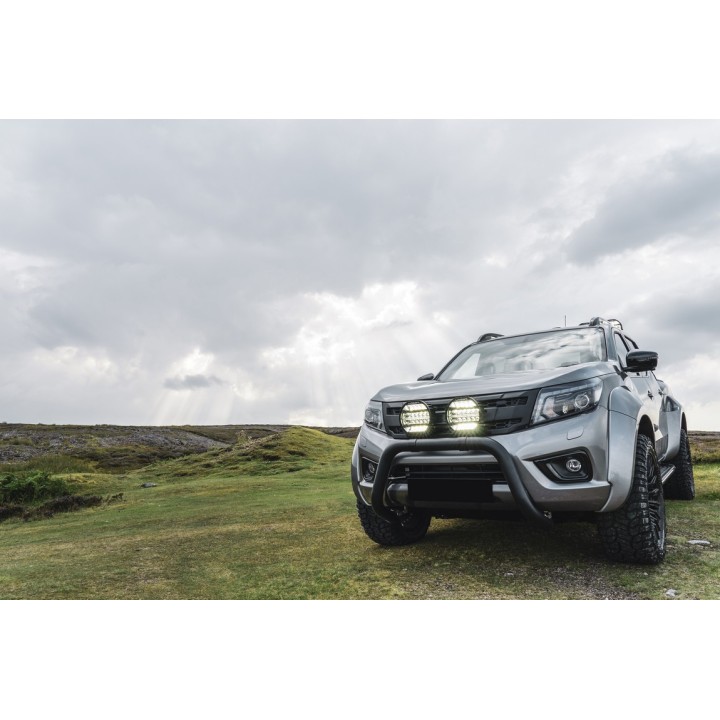

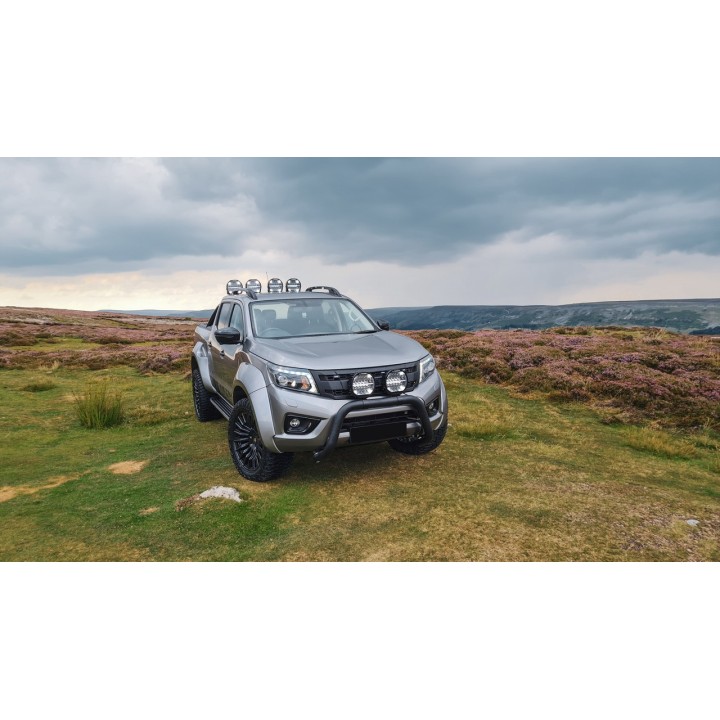

For vehicles where a round lamp suits the front end — classic and overland builds.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 3-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R112 - Ref: 20 (in Low Output Mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

Why it is worth it

• 9,520 lm of output and 1414 m of range on the 0.25 lx line
• ECE R112 - Ref: 20 (in Low Output Mode only) approval — a legal driving light
• IP68 ingress protection
• Manufacturer warranty: 5 years

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R112 - Ref: 20 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 Sentinel 9'' LED Lamp, x1 'Slim' Mount Kit (1141k), x1 Installation Instructions.

How far does it throw?

The manufacturer quotes 1414 m on the 0.25 lx line, 1000 m at 0.5 lx and 707 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 87 W, i.e. 6 A at 14.4 V.
