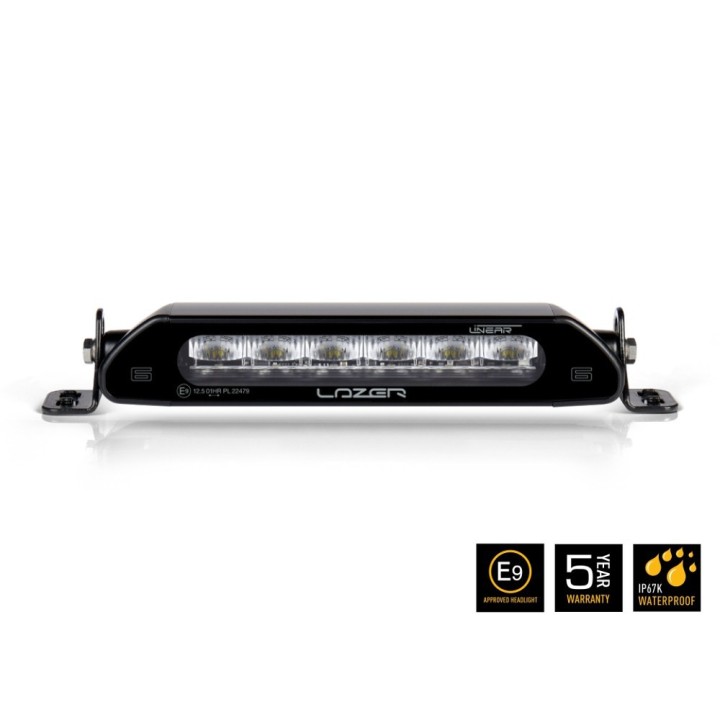

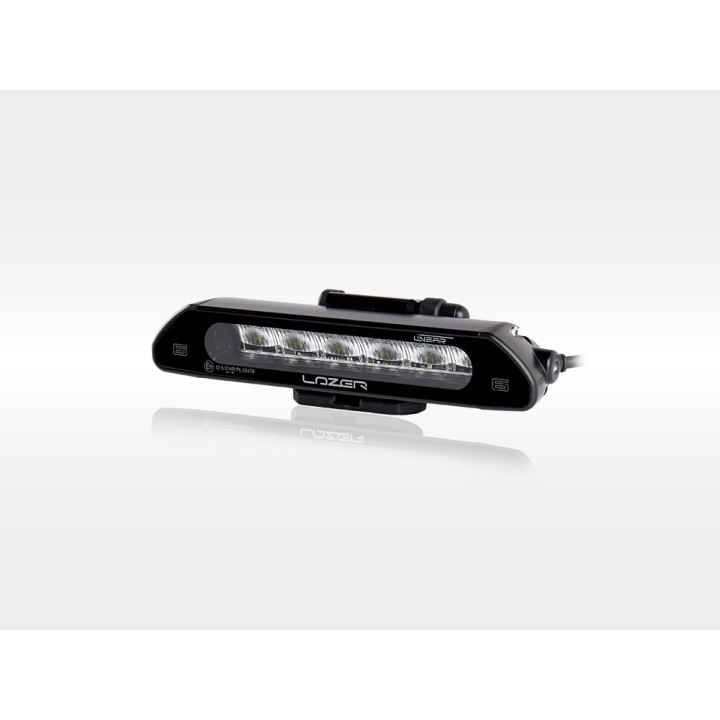

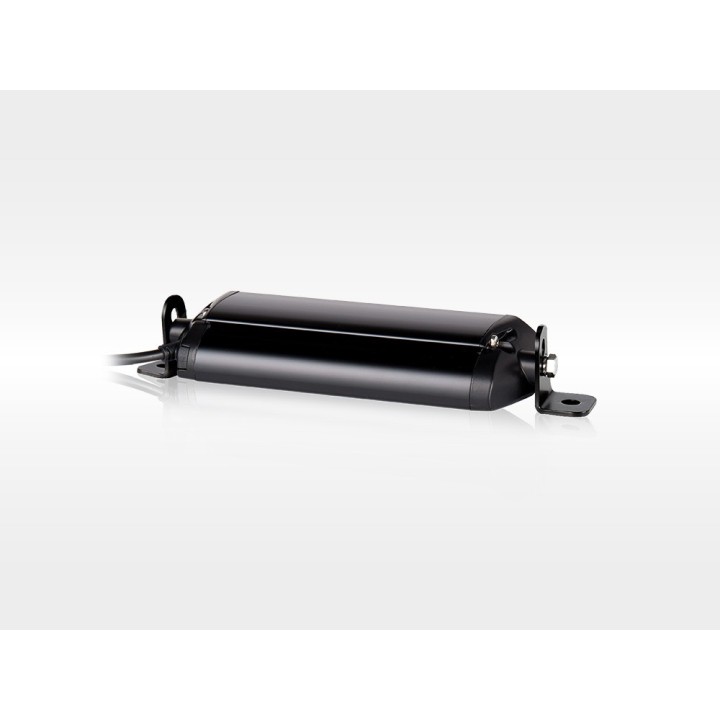

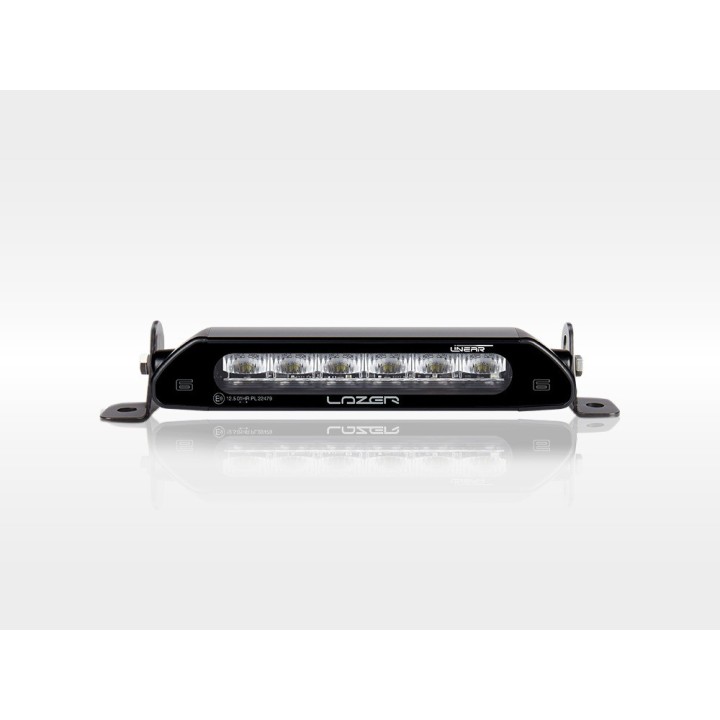

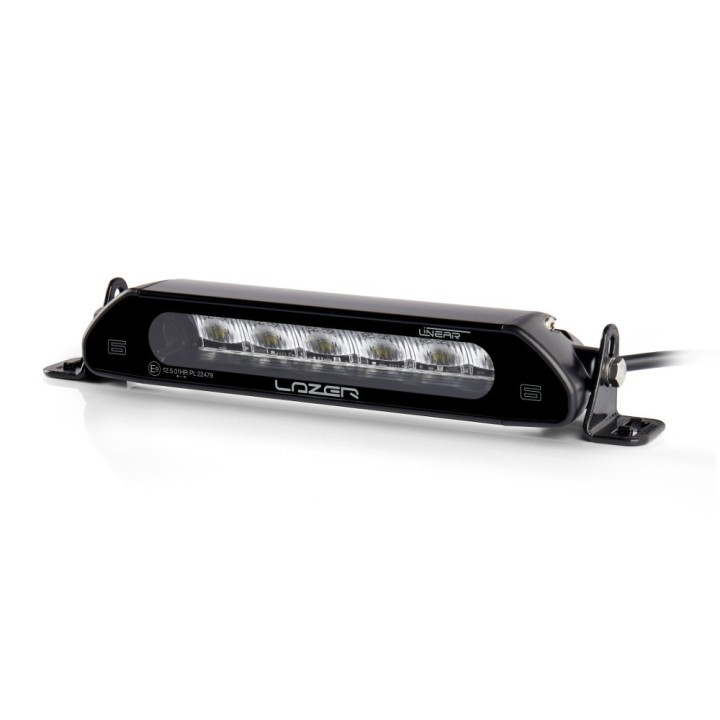

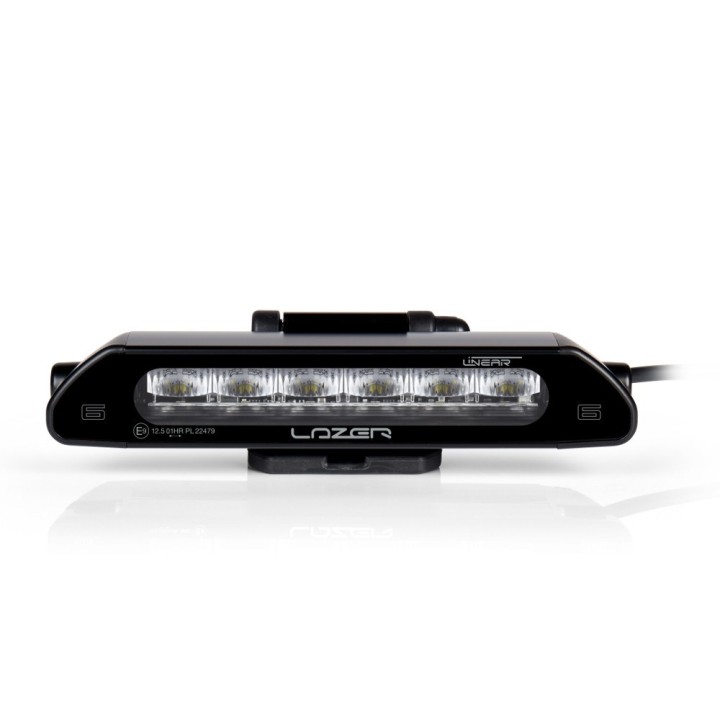

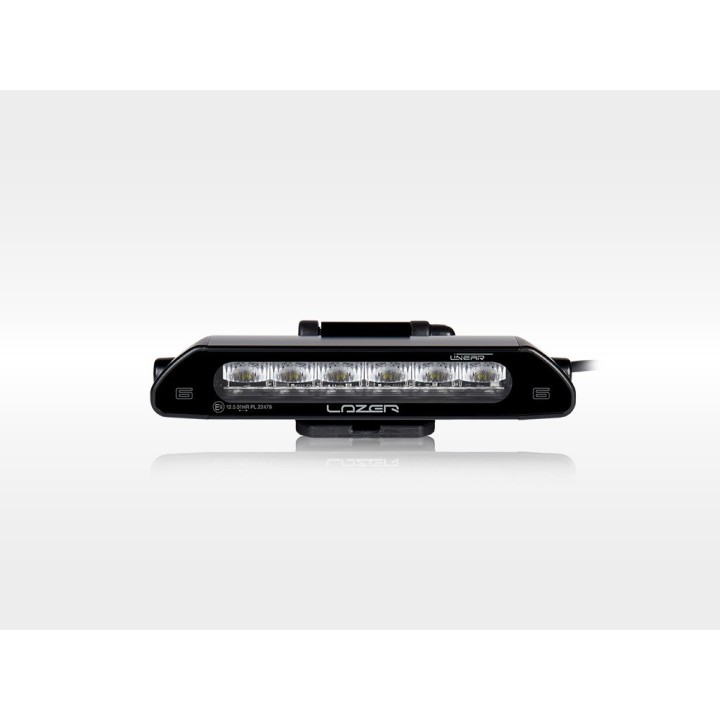

LAZER Linear-6 — road-legal LED bar for grilles and bumpers

Most LED bars end up mounted "somewhere nearby" simply because they will not fit the factory air intake. Linear-6 is 232 mm wide and 40 mm tall — it goes where other bars stop, without spoiling the front of the vehicle.

It is a full driving light with ECE R112 approval, not a field-only lamp. You can use it on public roads together with the vehicle main beam.

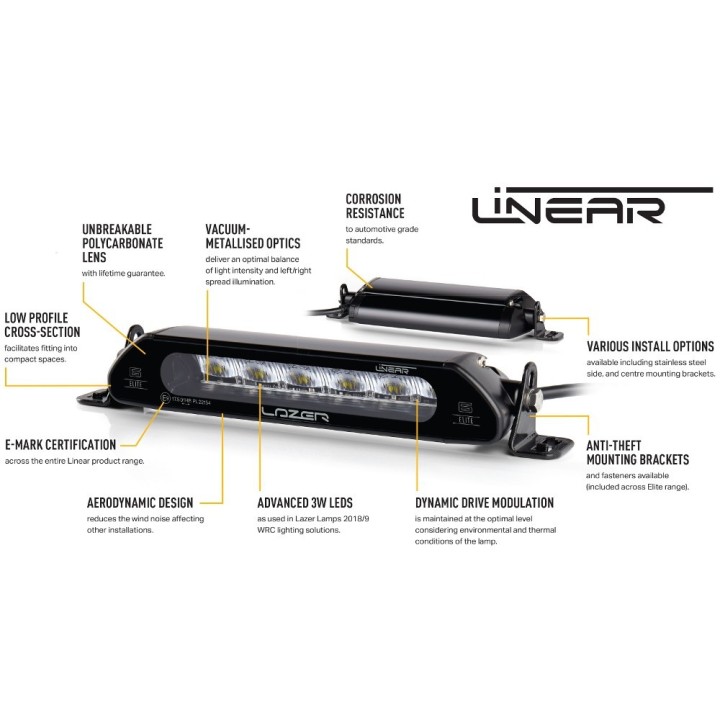

Key features

• Highly efficient 3W LED technology
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Vacuum-metallised optics deliver wide spread of light
• Reduced up/down spread of light suits even low mounting positions, or roof mounting
• Sleek, low profile design eases installation
• Aero design virtually eliminates wind noise on roof installations

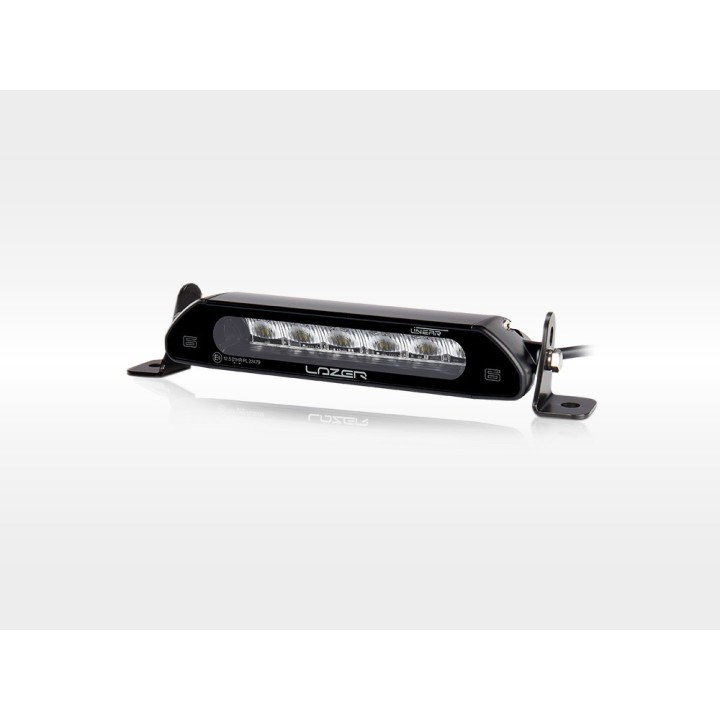

• Includes low profile side mounting brackets (anti-theft solutions included on Linear-36/42/48)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

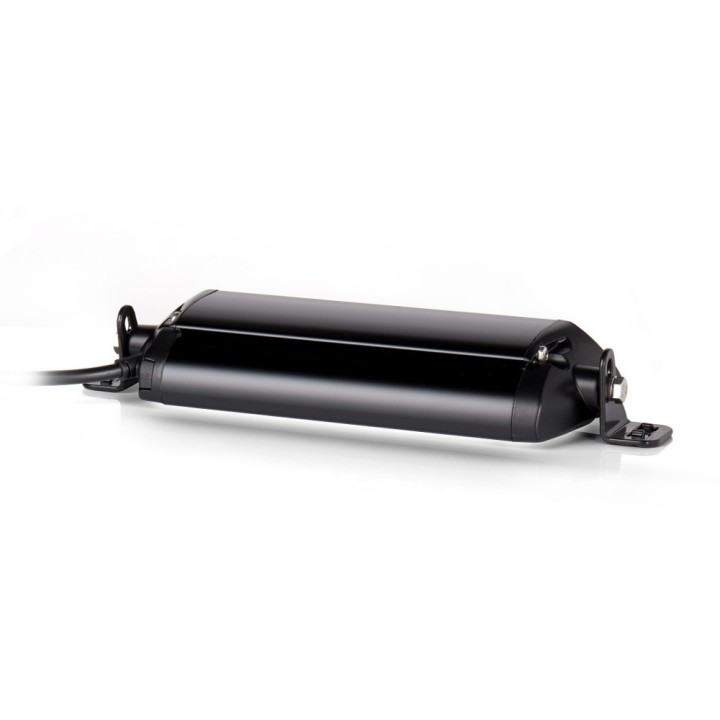

• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP68 watertight
• 5 year warranty
• Supplied with pre-wired male/female 2-pin Superseal connectors
• Designed and manufactured in UK

What is in the box

• x1 Linear-6 LED Lamp
• x1 Side Mount (1126k)
• x1 Installation Instructions

Technical data

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hrs
• Weight: 0.495 kg
• Total Luminous Flux: 2,250 Lm
• Total Driver 'FOV' Flux: 1,602 Lm
• Colour Temperature: 5000K
• Power Consumption: 21 Watts
• Current Draw (14.4V): 1.5 Amps
• Peak Current Draw: 1.9 Amps
• Connector: 2-Pin Superseal (+20cm Cable)
• IP Rating: IP68
• High Beam (E9 approval): ECE R112 - Ref: 12.5
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2
• Horizontal: 56 degrees
• Vertical: 13 degrees

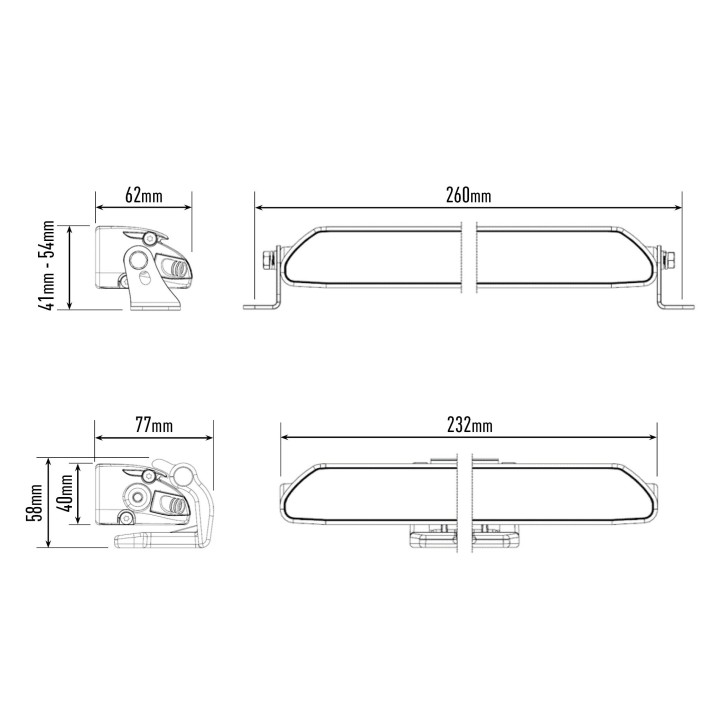

• Width: 232mm
• Depth: 62mm
• Height: 40mm

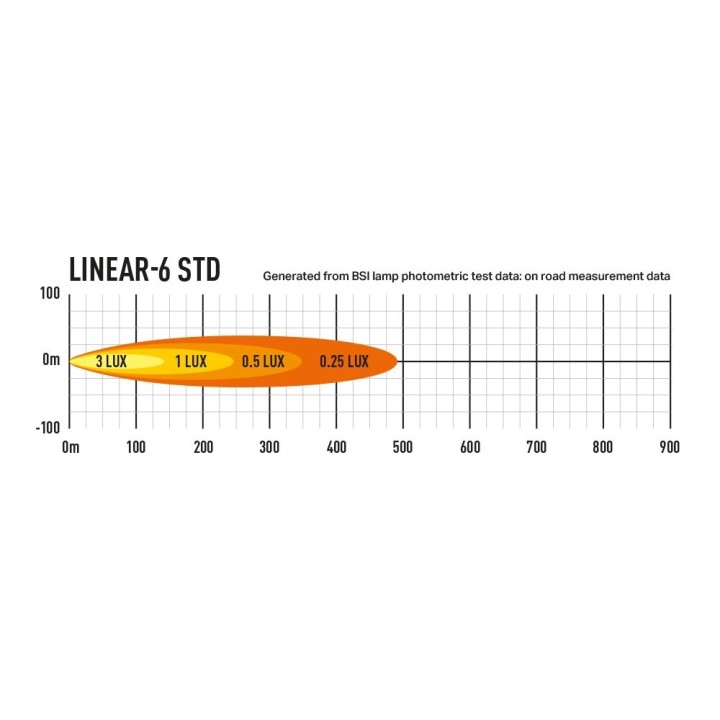

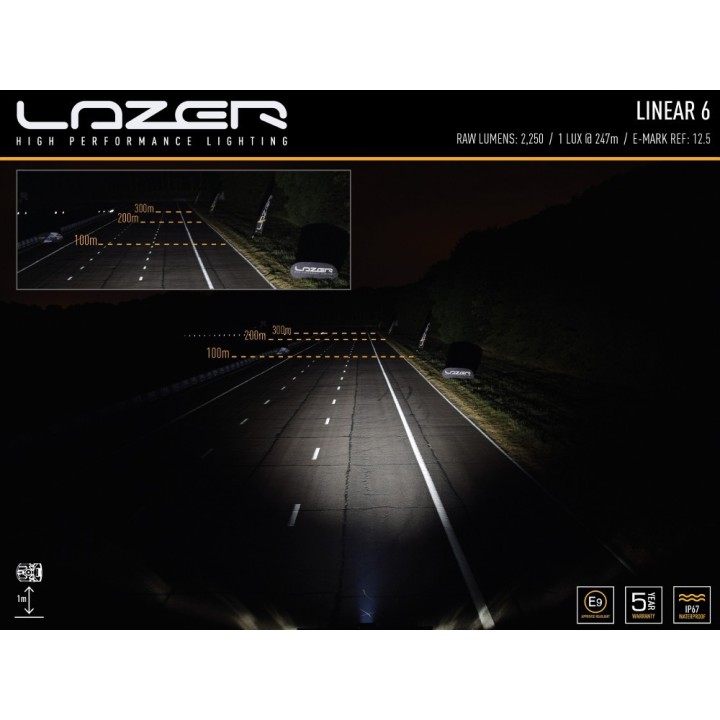

Beam range

Who it is for

Linear-6 earns its place where space is tight: an SUV or pickup grille, a bumper, a quad bar, a camper roof. At 21 W it will not stress the charging system of a vehicle with a modest alternator.

If you need more distance, the same range offers longer models (Linear-12, -18, -42, -48) — Linear-6 is the one for confined installations.

Fitting and notes

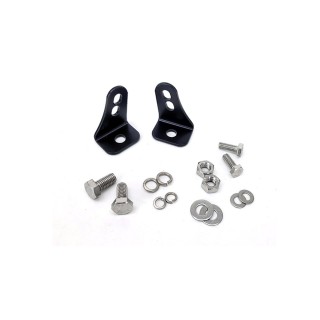

Side brackets (1126K) are supplied, so a standard installation needs nothing extra. The lead ends in a 2-pin Superseal connector; a relay wiring kit is sold separately.

Driving lights must not be used with dipped beam — the harness has to switch the lamp off together with the vehicle main beam.

Why it is worth it

• ECE R112 approved — a legal driving light, not an off-road-only lamp
• Hardcoat-lacquered polycarbonate lens and IP68 sealing
• 5-year manufacturer warranty, designed and built in the UK

Frequently asked questions

Is the Linear-6 road legal?

Yes. The manufacturer lists UNECE Reg 112 (Class B) approval for the driving beam function and Reg 10 for EMC. It must be wired so that it only lights with the vehicle main beam.

What is in the box?

The Linear-6 lamp, a set of 1126K side brackets and installation instructions. The wiring kit is bought separately.

How far does it throw?

The manufacturer quotes 494 m at the 0.25 lx line, 349 m at 0.5 lx and 247 m at 1 lx.

Will it survive pressure washing and road salt?

The manufacturer states IP68 sealing, ISO 9227 salt spray testing, anodised pre-treatment and an automotive-grade powder coat.

How much current does it draw?

In driving beam mode 21 W, i.e. 1.5 A at 14.4 V, with a 1.9 A peak.
