Kit of two LAZER Linear 6 with factory grille mounting system - Isuzu D-Max (2021 - 2022)

A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Isuzu D-Max (2021 - 2022) — the brackets land on factory points.

One box gives you the complete answer: the lamps and the mounting system made for them.

Technical data

• Luminous flux: 2250 lm
• Number of LEDs: 6
• Power consumption: 21 W
• Current draw: 1.5 A
• Voltage range: 9-32V
• LED life: 50,000 hrs
• Weight: 495 gr
• Width: 232 mm
• Depth: 62 mm
• Height: 40 mm

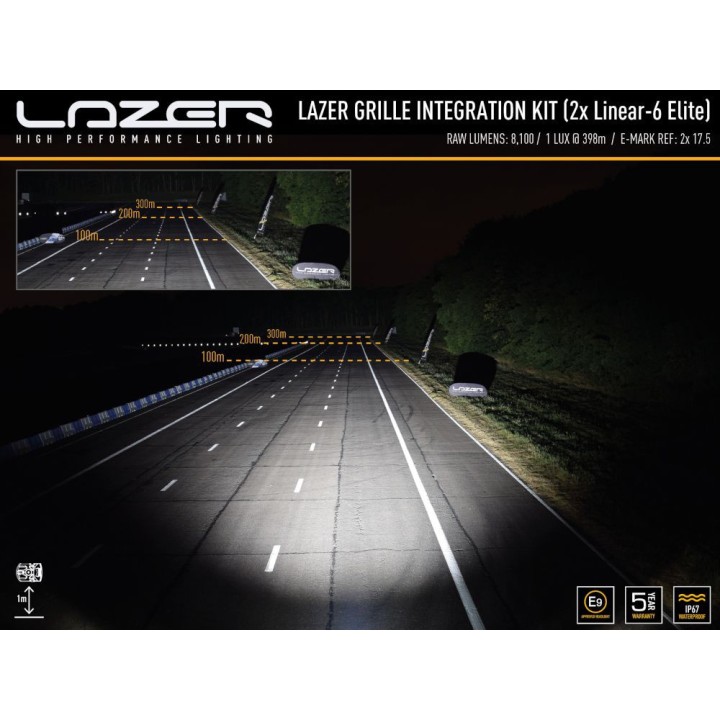

Beam range

Who it is for

For owners of this specific model who want a fit with no modifications.

The kit is built for the Isuzu D-Max (2021 - 2022) — another vehicle needs a different version.

Fitting and notes

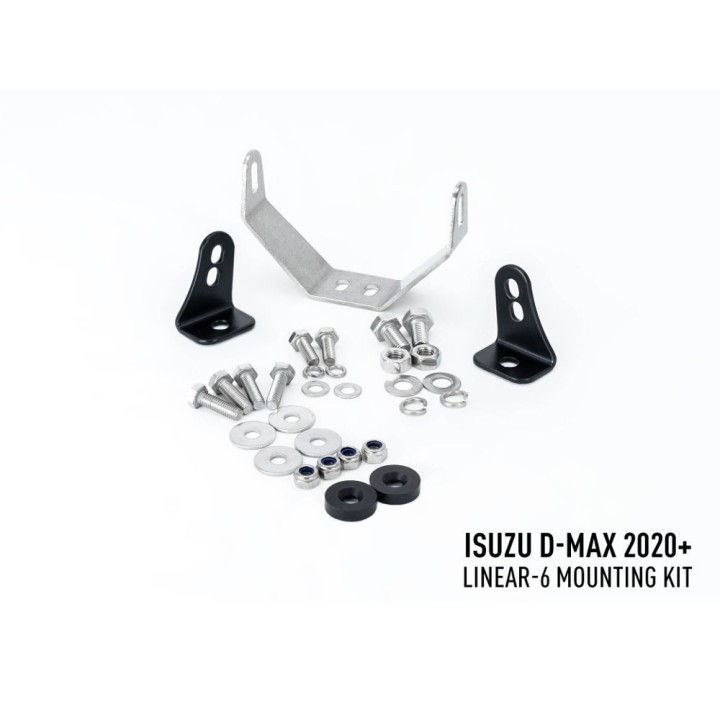

The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.

Why it is worth it

• 2250 lm of output and 494 m of range on the 0.25 lx line
• A complete kit for one specific model — no drilling, no modifications
• LAZER — designed and manufactured in the United Kingdom

Frequently asked questions

How far does it throw?

The manufacturer quotes 494 m on the 0.25 lx line, 349 m at 0.5 lx and 247 m at 1 lx.

How much power does it use?

Power consumption is 21 W, i.e. 1.5 A at 14.4 V.

What are the dimensions?

Width 232 mm, depth 62 mm, height 40 mm, weight 495 gr.

Which vehicle does this kit fit?

The manufacturer lists the fitment as: Isuzu D-Max (2021 - 2022). Other versions and model years need a different kit variant.
