Reference: 3001-RANGER-42-K
Lighting mounting brackets Kits

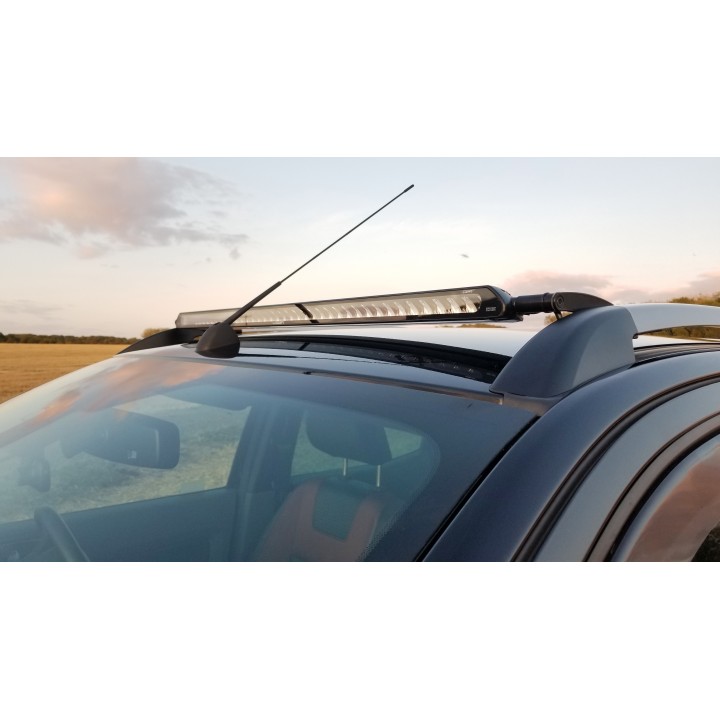

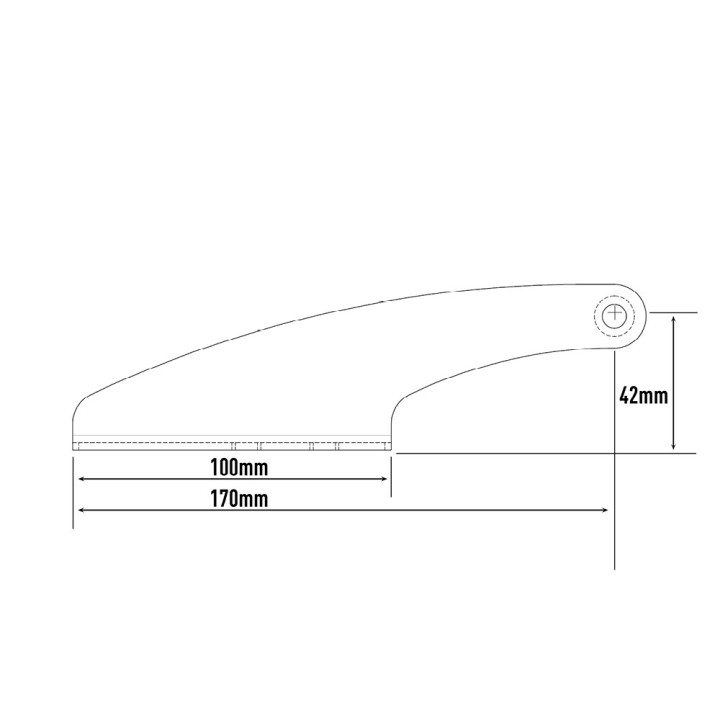

Roof mounting kit for Lamps LAZER Linear-36 - Ford Ranger (2016 - 2022) version with roof rails - height 42 mm
Roof mounting kit for Lamps LAZER Linear-36 - Ford Ranger (2016 - 2022) version with roof rails - height 42 mm. The manufacturer quotes luminous flux: 13500 lm, range at 0.25 lx: 940m, power consumption: 126 W. ECE R112 (Ref 2x 30 - Double E-Mark) approval allows it to be used as a driving light. The kit is built for the Ford Ranger (2016 - 2022) version with roof rails - height 42 mm.
Roof mounting kit for Lamps LAZER Linear-36 - Ford Ranger (2016 - 2022) version with roof rails - height 42 mm
A factory mount fits without improvisation and leaves no play.
This is a genuine LAZER part, made for a specific lamp range.
Luminous flux 13500 lm | Range (0.25 lx) 940m | Beam angle (horizontal / vertical) 50° / 20° |
Key features
- Complete one-stop solution for roof-mounting on Ford Ranger with Roof Rails
- Two bracket variants optimised for either Linear-36
- Made from 3mm A2 stainless steel
- UV-stable, satin black powder coat
- Includes assortment of A2 stainless steel fixings with countersunk head
- Carbon spacers facilitate positioning of different length LED light bars
- M6 fasteners facilitate mounting brackets to underside of the roof rails
- 5 year warranty
- Manufactured in the UK

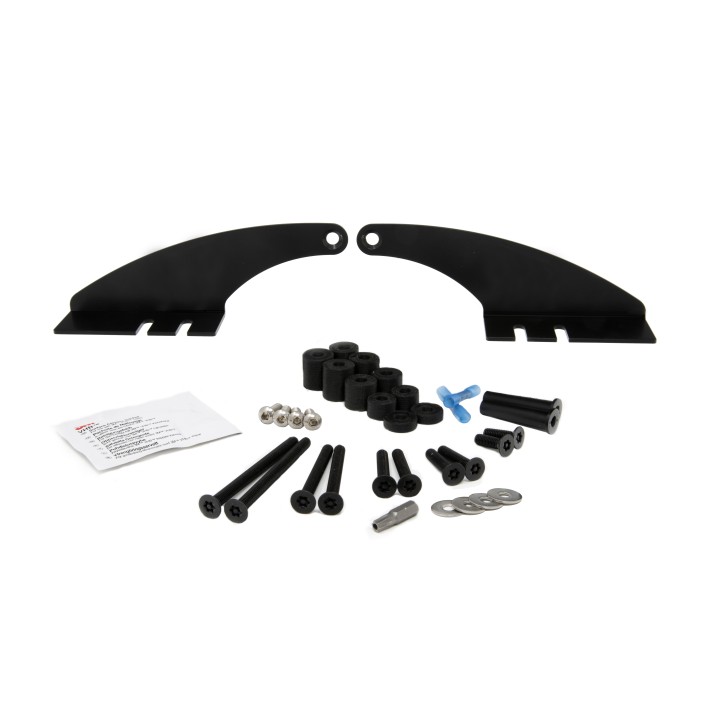

What is in the box
- 2x Stainless Steel Mounting Bracket (LH/RH)
- Anti-theft Fastener Set (various sizes)
- Spacer Set (various sizes)
- Rivets (Black)
- Cable Grommets
- VHB Cleaning Sachet
- Heat-shrink Butt Splices
- Fitting instructions available in the downloads section below.
Technical data
- Luminous flux: 13500 lm (full power mode) / 29700 lm (approved mode)
- Driver 'FOV' flux: 9612 lm (full power mode) / 21325 lm (approved mode)
- Colour temperature: 5000 K
- Power consumption: 126 W (full power mode) / 308 W (approved mode)
- Current draw: 8.8 A (full power mode) / 21.4 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 2.7 kg
- Beam angle (horizontal / vertical): 50° / 20°
- Horizontal beam angle: 50° / 20°
- Vertical beam angle: 50° / 20°
- Connector: 2-Pin Superseal (+25cm Cable)
- Ingress protection: IP68
- Driving beam approval: ECE R112 (Ref 2x 30 - Double E-Mark)
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
Beam range
| 0.25 lx | 940m / 1423m |
| 0.5 lx | 665m / 1006m |
| 1 lx | 470m / 712m |
| 3 lx | 271m / 411m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
As a replacement for a lost bracket or an extra mount for an unusual install.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
The lamp lead ends in: 2-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
The part fits only the lamp range stated by the manufacturer — check the marking on your lamp before ordering.
Why it is worth it
- 13500 lm of output and 940m of range on the 0.25 lx line
- ECE R112 (Ref 2x 30 - Double E-Mark) approval — a legal driving light
- IP68 ingress protection
- A genuine LAZER part, not a copy
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R112 (Ref 2x 30 - Double E-Mark) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
What is in the box?
The box contains: 2x Stainless Steel Mounting Bracket (LH/RH), Anti-theft Fastener Set (various sizes), Spacer Set (various sizes), Rivets (Black), Cable Grommets, VHB Cleaning Sachet.
How far does it throw?
The manufacturer quotes 940m on the 0.25 lx line, 665m at 0.5 lx and 470m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 126 W, i.e. 8.8 A at 14.4 V.
