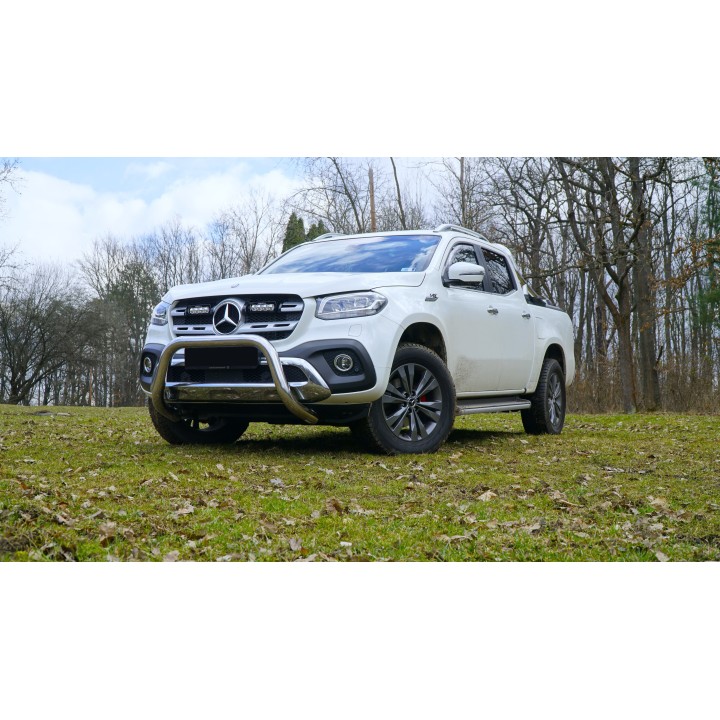

Kit of two LAZER ST4 Evolution with factory grille mounting system - Mercedes X-Class V6 (2017-)

A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Mercedes X-Class V6 (2017-) — the brackets land on factory points.

One box gives you the complete answer: the lamps and the mounting system made for them.

Key features

• Bespoke mounting bracket kit for Lazer LED Spotlight installation
• Custom fit for Mercedes X-Class
• Available with: Triple-R 750 or ST4 Evolution High Performance LED Spotlights
• Kits include: 4x brackets, cutting guides, wiring loom, and fasteners
• Made from high strength, UV-stable, composite material
• Fully UNECE approved for on-road use
• 5-year warranty
• Made in Britain

What is in the box

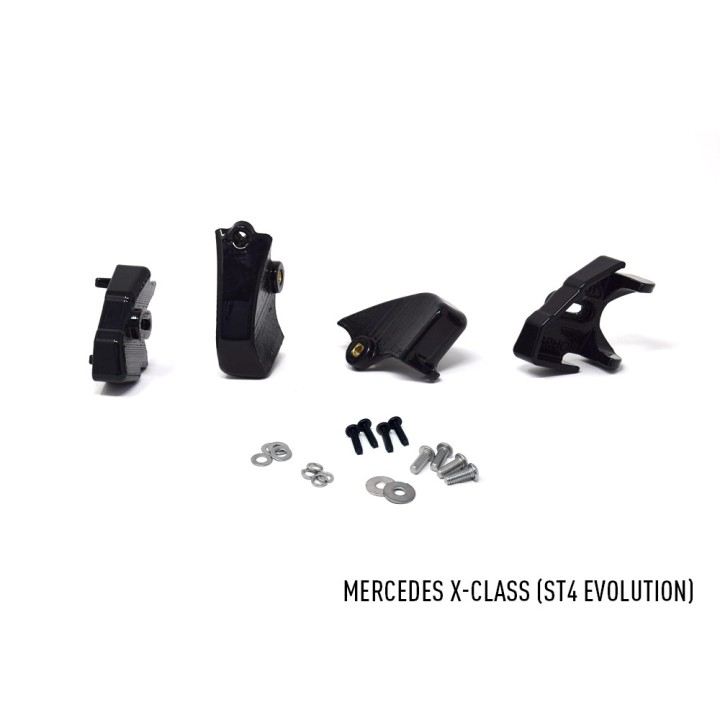

• 1x Grille Mounting Kit (Includes cutting guides)
• 2x Triple-R 750 / 2x ST4 Evolution LED Lamps
• 1x Two-Lamp Wiring Kit
• Installation Instructions

Technical data

• Luminous flux: 9240 lm
• Driver 'FOV' flux: 5266 lm (full power mode) / 5572 lm (approved mode)
• Colour temperature: 5000 K
• Power consumption: 88 W
• Current draw: 6.2 A
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 2.6 kg
• Beam angle (horizontal / vertical): 40° / 20°
• Horizontal beam angle: 40° / 20°
• Vertical beam angle: 40° / 20°
• Connector: 2-Pin Superseal (+25cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R149 - Ref: 2x 20
• Position light: N/A
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

For owners of this specific model who want a fit with no modifications.

The kit is built for the Mercedes X-Class V6 (2017-) — another vehicle needs a different version.

Fitting and notes

The lamp lead ends in: 2-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R149 - Ref: 2x 20 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

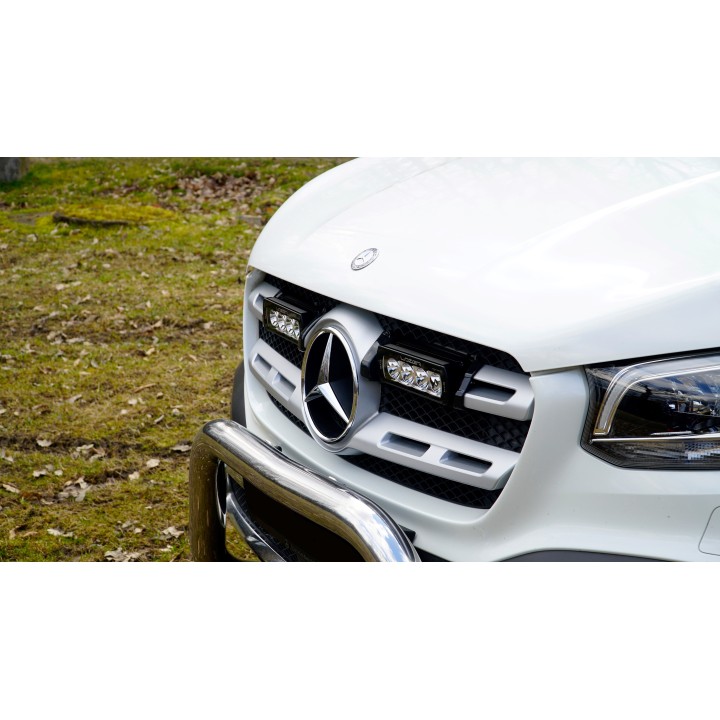

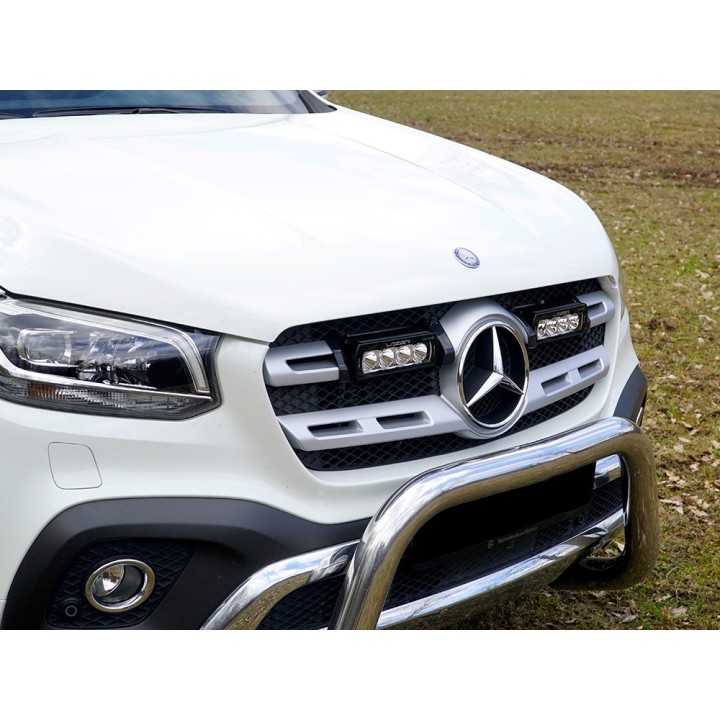

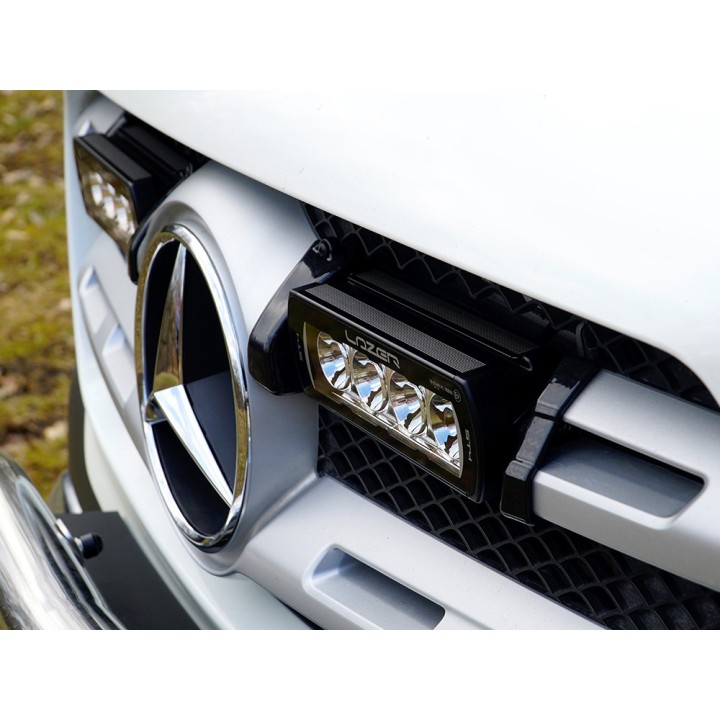

The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.

Why it is worth it

• 9240 lm of output and 829m of range on the 0.25 lx line
• ECE R149 - Ref: 2x 20 approval — a legal driving light
• IP68 ingress protection
• A complete kit for one specific model — no drilling, no modifications

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R149 - Ref: 2x 20 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: 1x Grille Mounting Kit (Includes cutting guides), 2x Triple-R 750 / 2x ST4 Evolution LED Lamps, 1x Two-Lamp Wiring Kit, Installation Instructions.

How far does it throw?

The manufacturer quotes 829m on the 0.25 lx line, 587m at 0.5 lx and 415m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 88 W, i.e. 6.2 A at 14.4 V.
