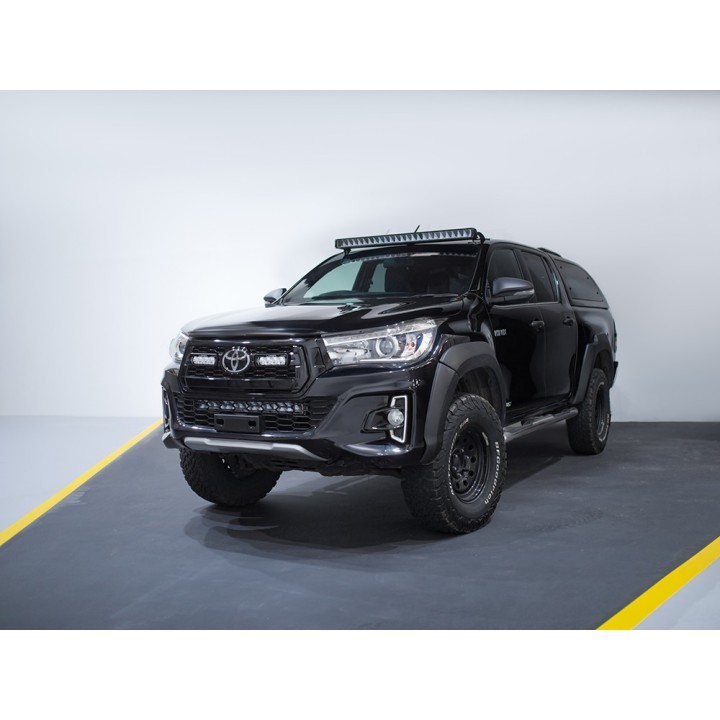

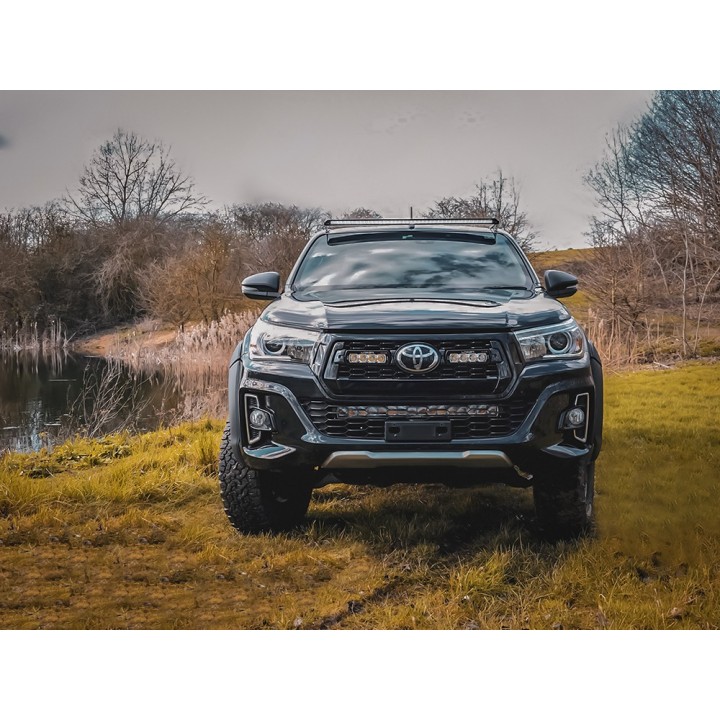

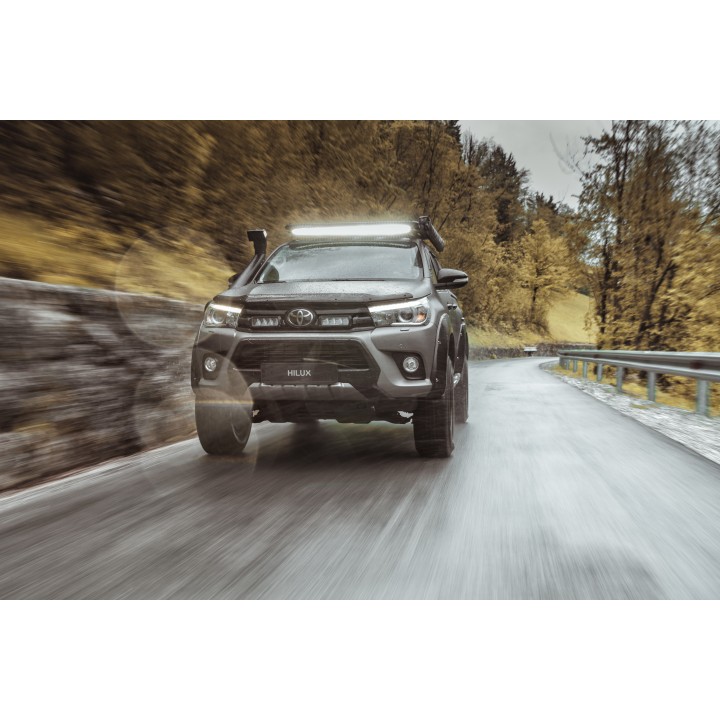

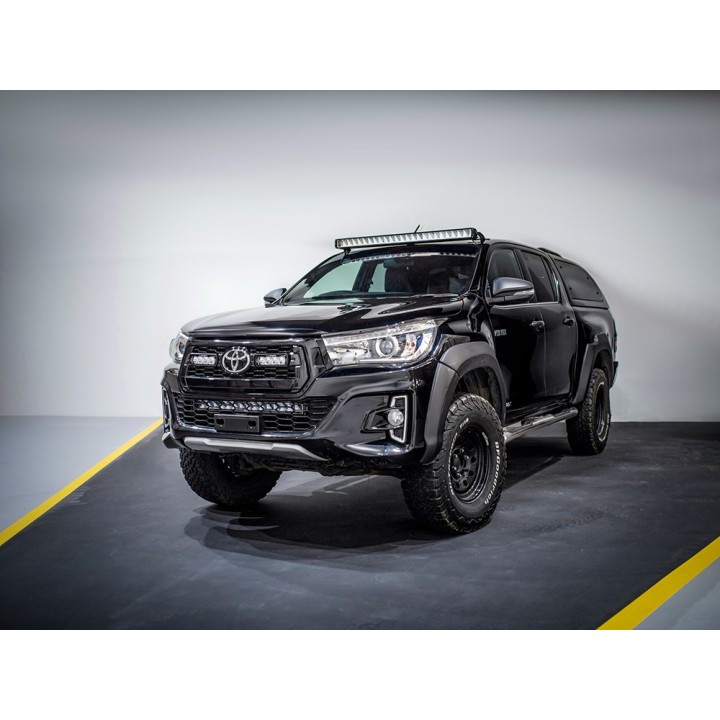

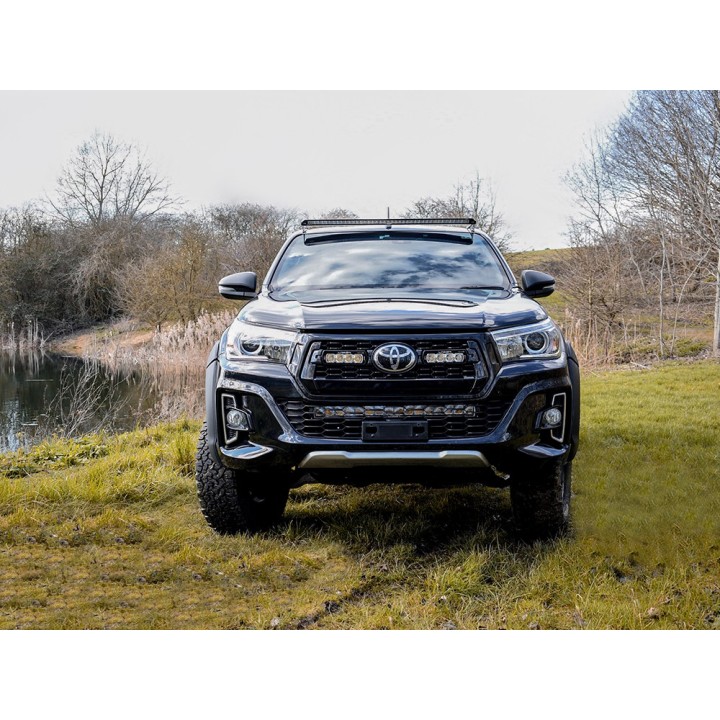

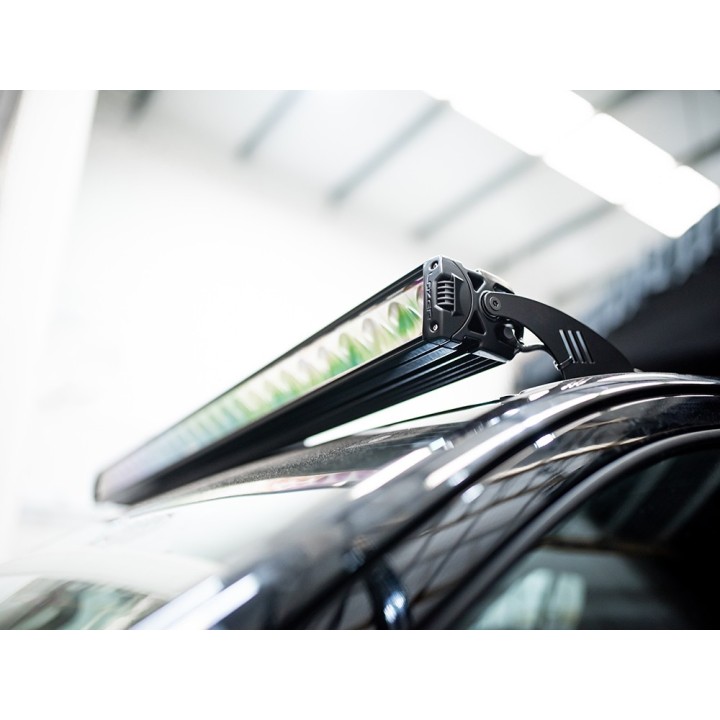

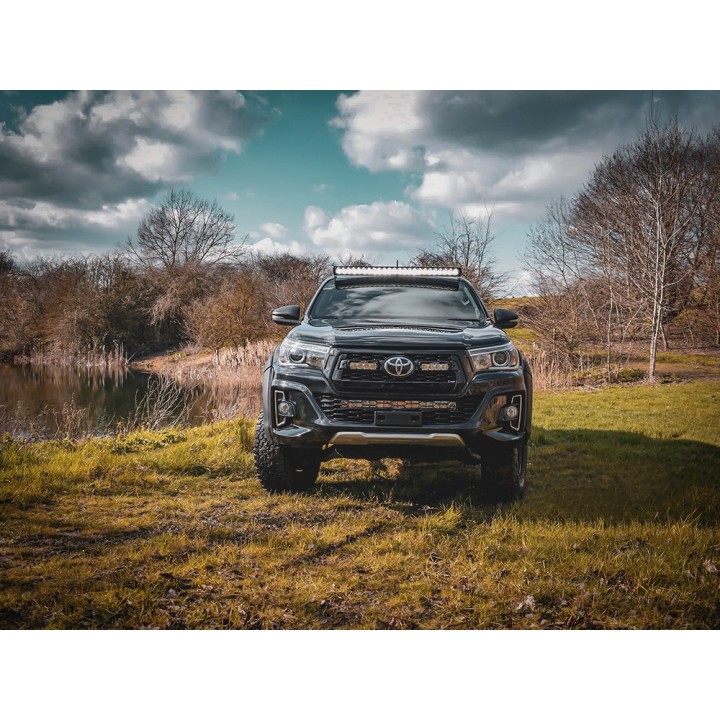

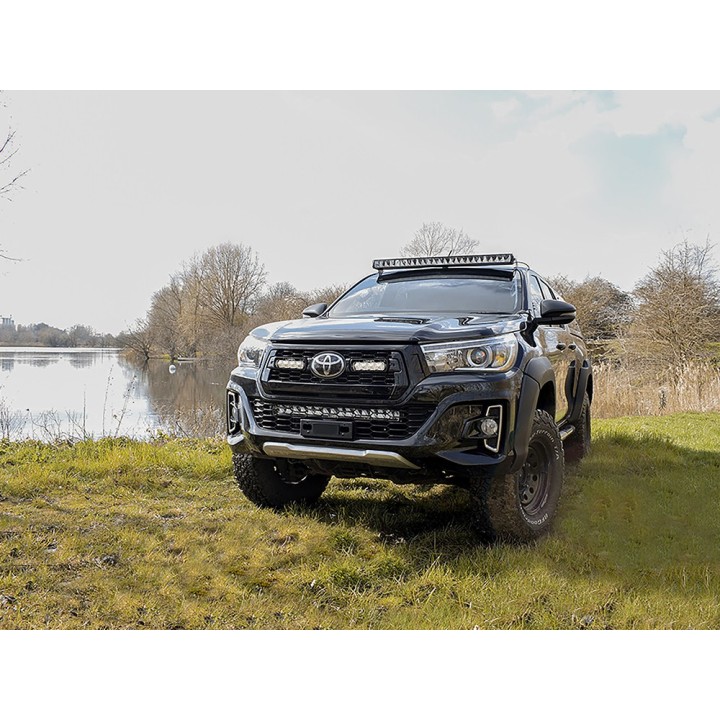

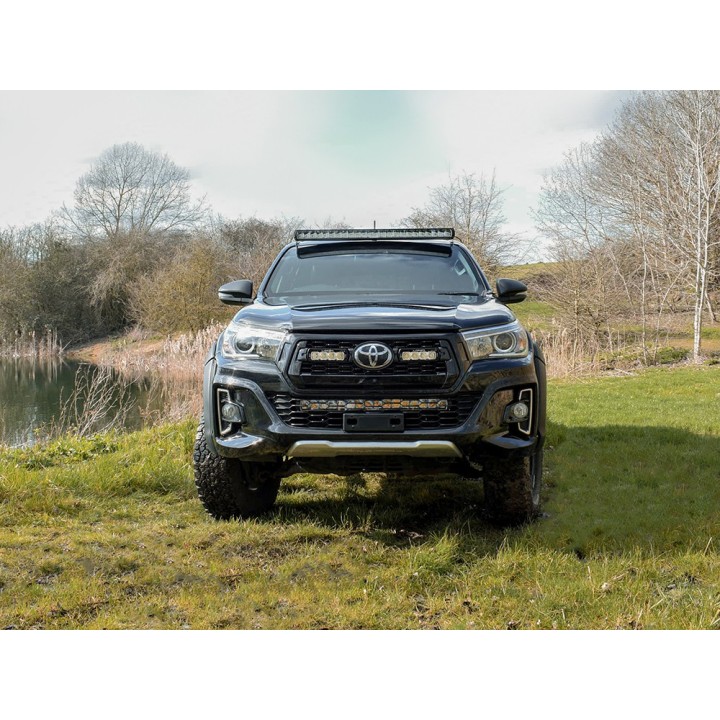

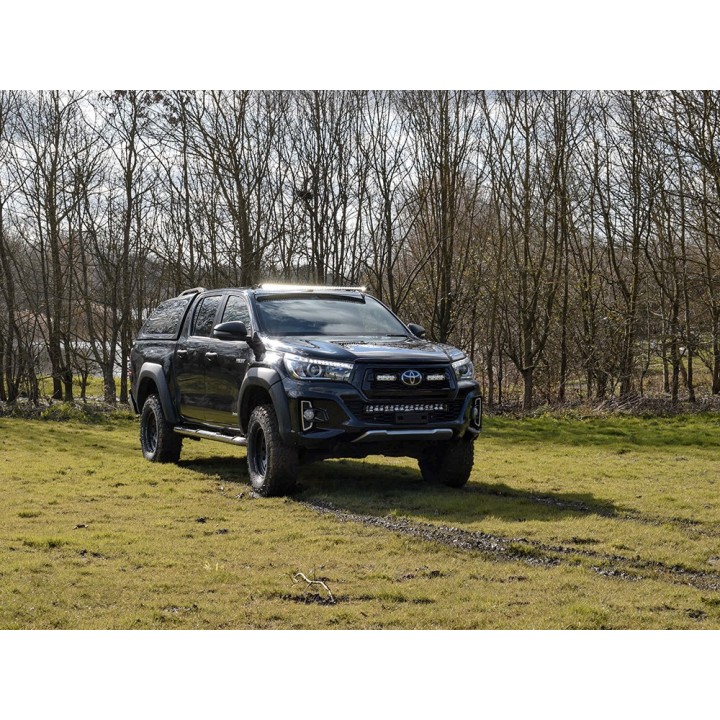

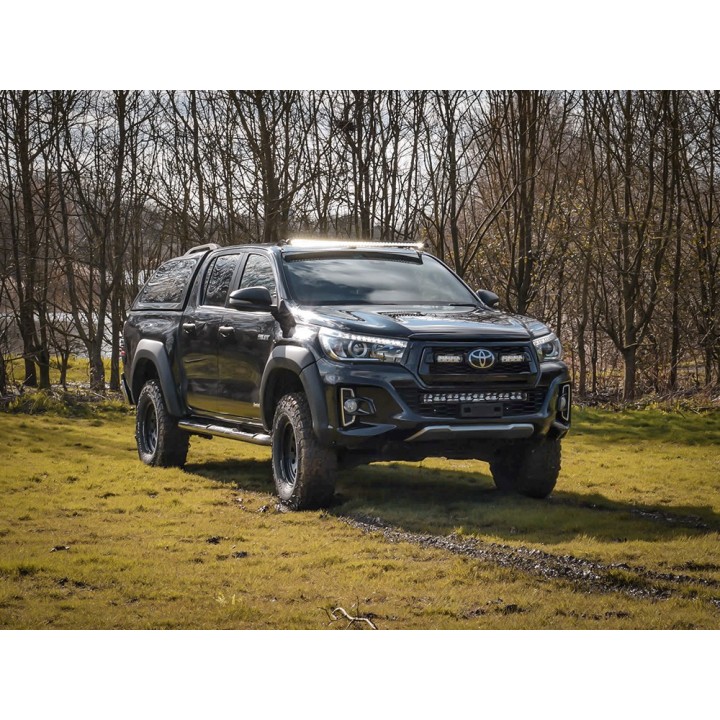

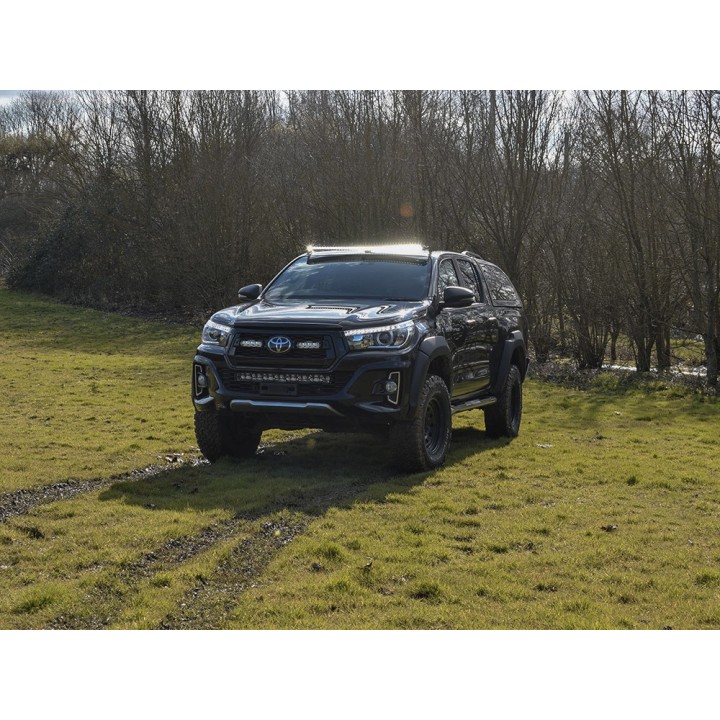

LAZER 3001-HILUX-65-K roof mounting kit — Toyota Hilux without roof rails
A dedicated bracket kit for mounting a Linear-42 or Triple-R 24 on the roof of a Toyota Hilux without roof rails. Brackets are 3 mm stainless steel with a satin black powder coat, and a full set of A2 stainless anti-theft fasteners is included. Mounting height 65 mm.
LAZER 3001-HILUX-65-K — roof light mounting kit for the Toyota Hilux

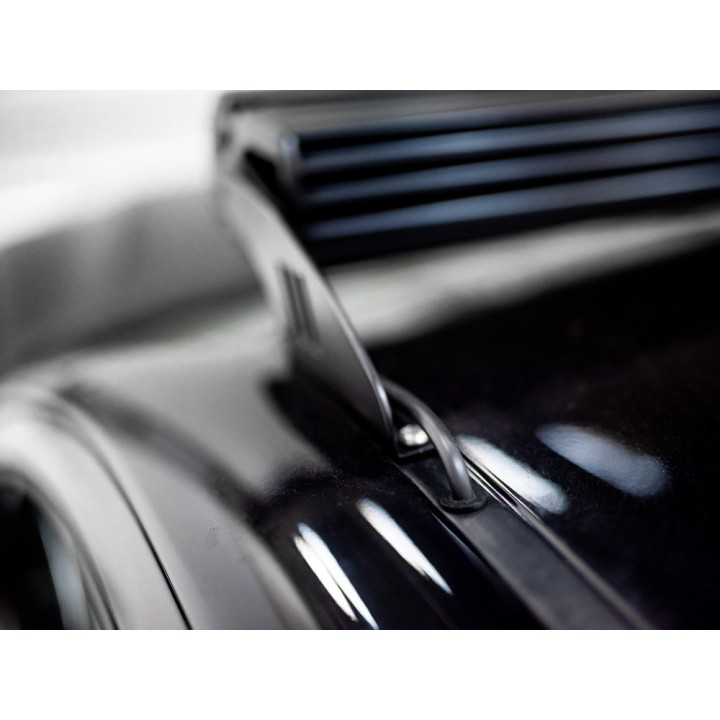

Universal roof brackets usually end in drilling, vibration and wind noise. This kit is designed around the actual Hilux roof — the brackets land in the roof channels, not in a random piece of sheet metal.
3 mm stainless steel and countersunk anti-theft fasteners are the difference between a lamp that survives the winter and one you have to re-fit after the first wash.

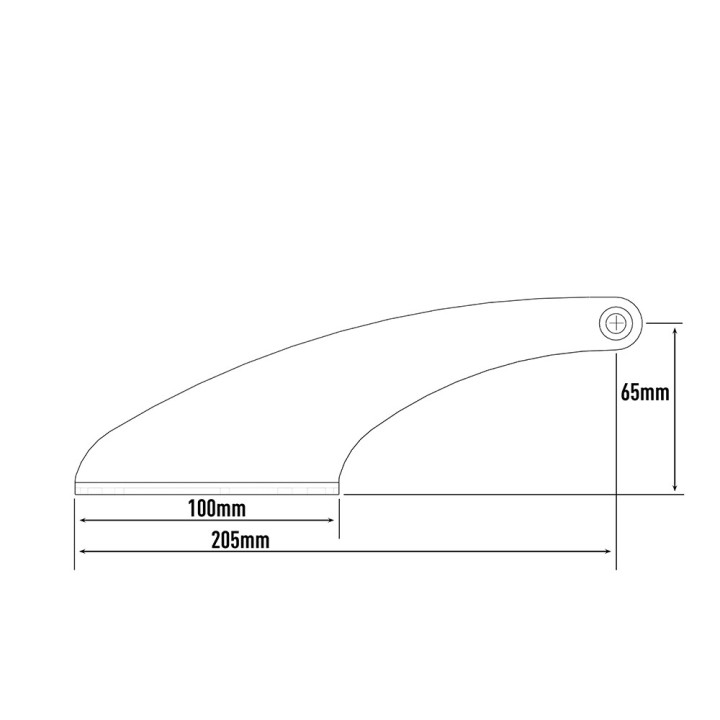

Vehicle Toyota Hilux 2015+ without rails | Material 3 mm stainless steel | Mounting height 65 mm |
Key features
- Complete one-stop solution for roof-mounting on Toyota Hilux (2015+) without Roof Rails
- Optimised for use with either Linear-42 or Triple-R 24 high performance LED spotlights
- Made from 3mm A2 stainless steel
- UV-stable, satin black powder coat
- Includes assortment of A2 stainless steel, anti-theft fixings with countersunk head
- Spacers facilitate positioning of different length LED light bars
- Roof ditch spacers facilitate mounting brackets within the roof ditch
- 5yr Warranty
- Manufactured in the UK

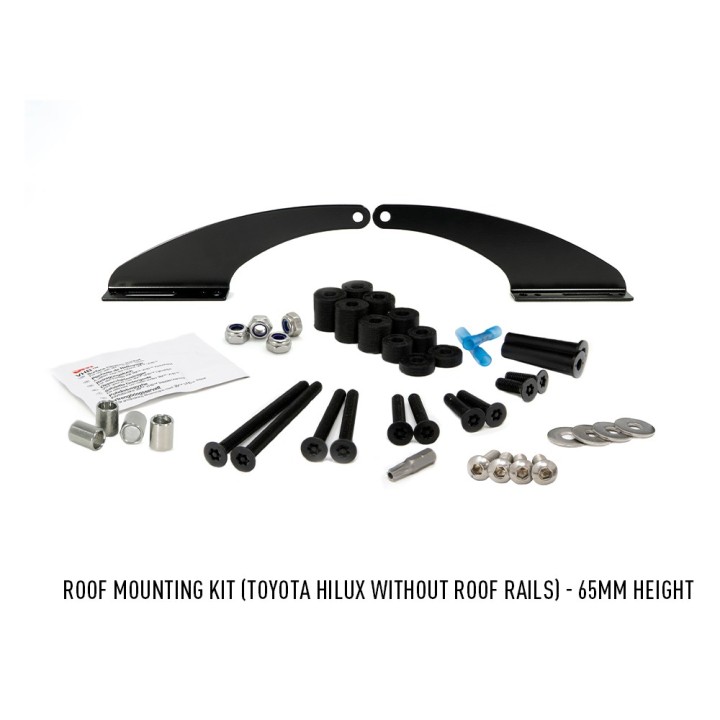

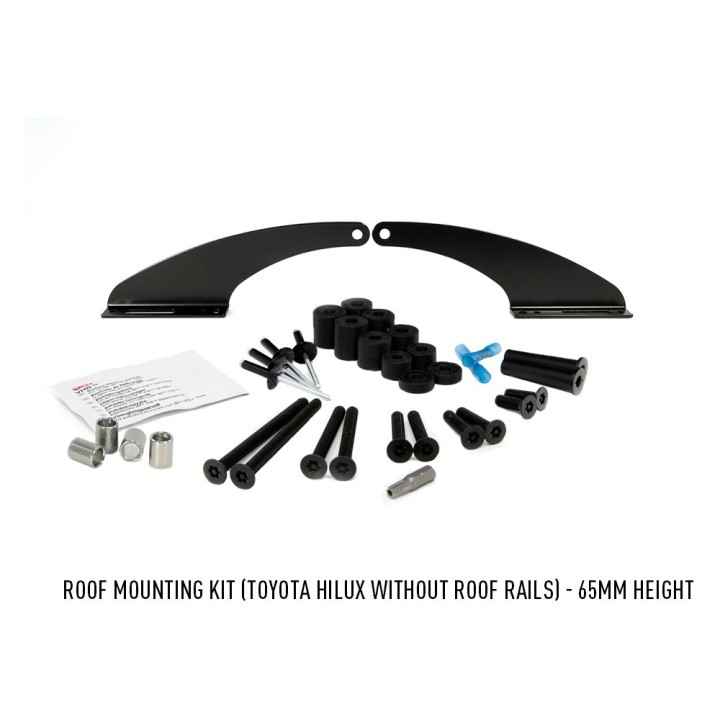

What is in the box
- 2x Stainless Steel Mounting Bracket (LH/RH)
- Anti-theft Fastener Set (various sizes)
- Spacer Set (various sizes)
- Rivets (Black)
- Roof Ditch Spacers
- Cable Grommets
- VHB Cleaning Sachet
- Heat-shrink Butt Splices
- Fitting instructions available in the downloads section below.
Who it is for
The kit is made for a Hilux without factory roof rails and for two specific bars: the Linear-42 and the Triple-R 24. With rails, or with a different lamp, you need a different kit variant.
It suits vehicles that actually work — field crews, forestry, expedition trucks — where the lamp has to stay on the roof for years, not for a season.
Fitting and notes
The kit includes spacer sets for lamps of different lengths and packers for the roof channels. The lamp itself and the wiring kit are not included.
The manufacturer publishes the fitting instructions for download on its product page.
Why it is worth it
- Built for one specific roof rather than a universal clamp
- 3 mm stainless steel and A2 anti-theft fasteners included
- 5-year manufacturer warranty, made in the UK
Frequently asked questions
Which lamps does this kit fit?
The manufacturer lists it as optimised for the Linear-42 and the Triple-R 24.
Does it fit a Hilux with roof rails?
No. This is the version for vehicles without rails; the manufacturer offers a separate kit for railed roofs.
Is a lamp included?
No. The kit is brackets and hardware; the lamp and wiring are bought separately.
Does the roof need drilling?
The kit supplies rivets, a cable grommet, roof channel packers and a VHB cleaning wipe — the exact procedure is in the manufacturer fitting instructions.
Which Hilux model years does it cover?
The manufacturer page states Toyota Hilux 2015+. The distributor listing states 2018+, so it is worth confirming the model year before ordering.
