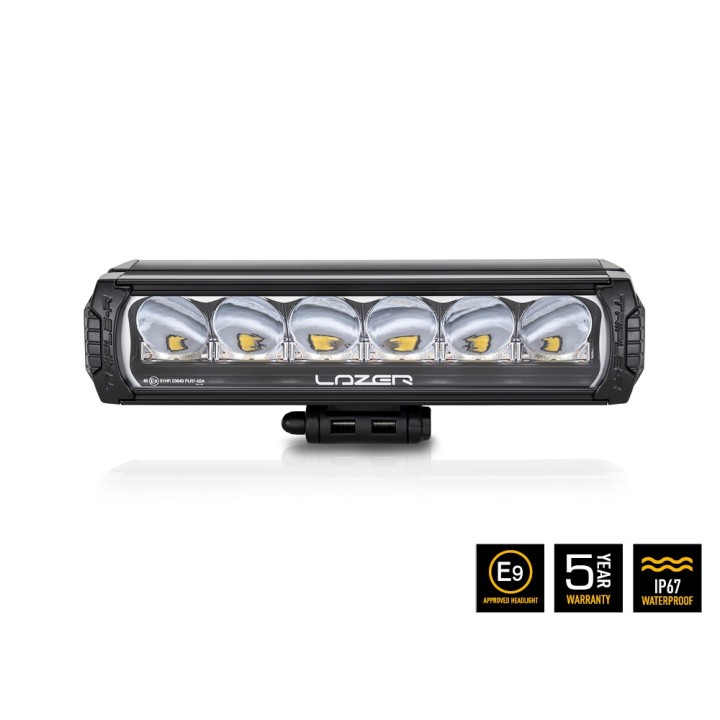

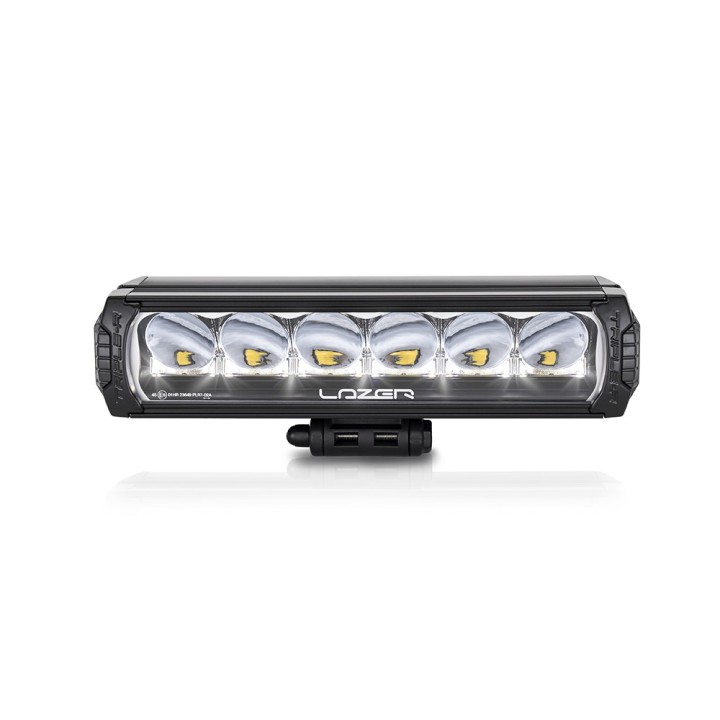

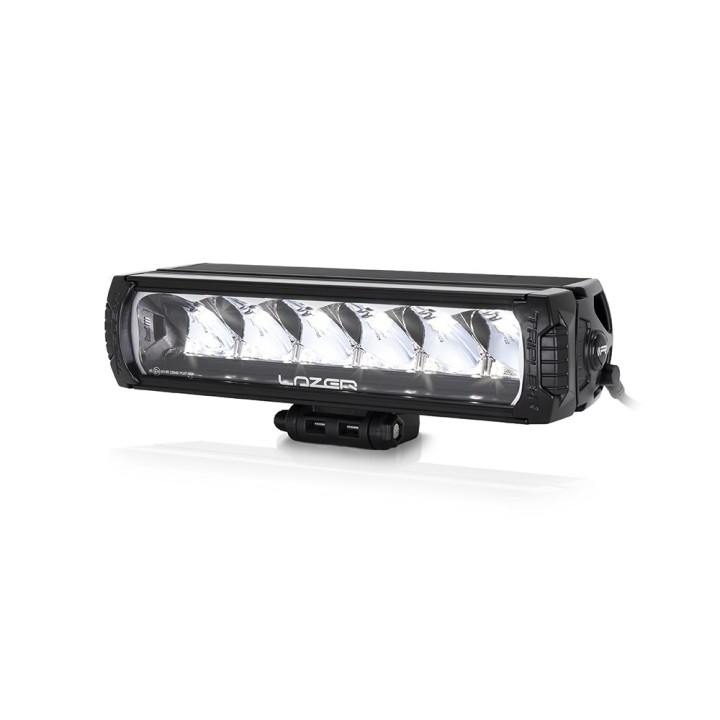

LAZER Triple-R 850 (Gen2)

You can tell a good auxiliary light by one thing: after dark you stop slowing down "just in case".

The manufacturer quotes 6,930 lm of output, 322mm wide, 1.34 kg. ECE R149 - Ref: 12.5 (in Low Output Mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.

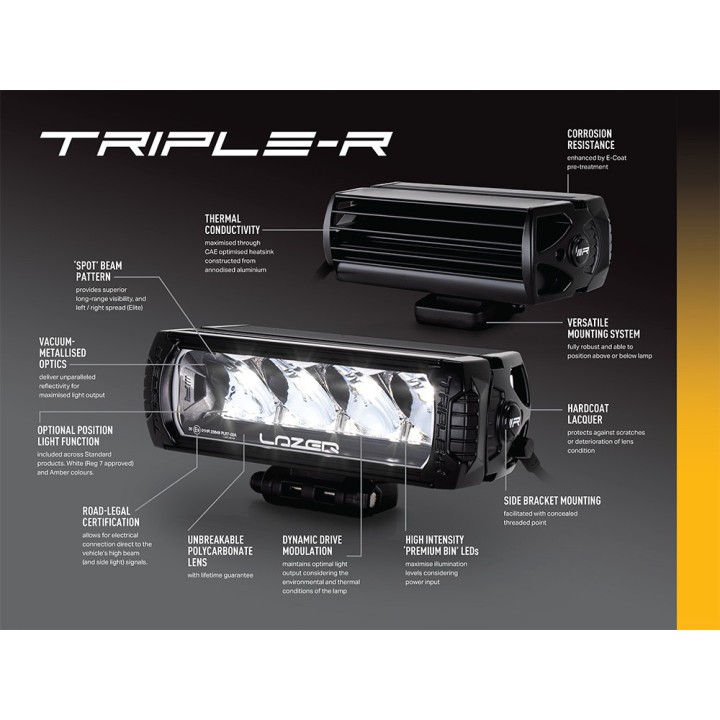

Key features

• Highly efficient 11W LED technology
• 5000 K LED colour temperature and 80CRI maximises sharpness and definition

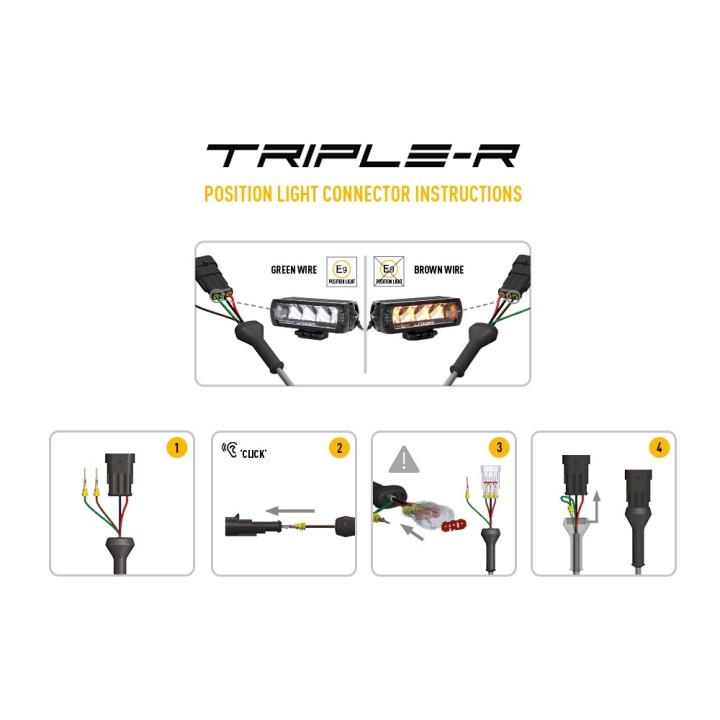

• Integrated white and amber position light function (UNECE Reg148 approved – white only)
• Gradual brightening and smooth colour transitions available via dynamic start-up/welcome mode.
• Ultra-reflective vacuum-metallised optics deliver spot beam pattern
• UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Dual-output technology via flash-to-dim)
• Contemporary lamp design
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

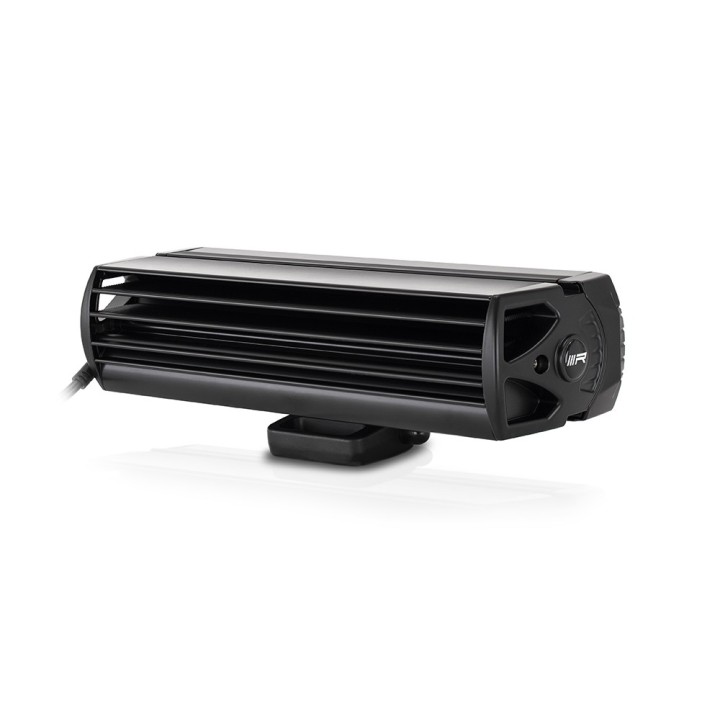

• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP68 watertight
• 5-year warranty
• Supplied with pre-wired male/female 3-pin Superseal connectors
• Designed & manufactured in UK

What is in the box

• x1 Triple-R 850 LED Lamp
• x1 Centre Mount (1114 K)
• x1 Installation Instructions

Technical data

• Luminous flux: 6,930 lm (full power mode) / 1,386 lm (approved mode)
• Driver 'FOV' flux: 4,179 lm (full power mode) / 790 lm (approved mode)
• Colour temperature: 5000 K
• Number of LEDs: 6
• Power consumption: 66 W (full power mode) / 13.2 W (approved mode)
• Current draw: 4.6 A (full power mode) / 0.8 A (approved mode)
• Peak current draw: 6.3 A (full power mode) / 0.94 A (approved mode)
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 1.34 kg

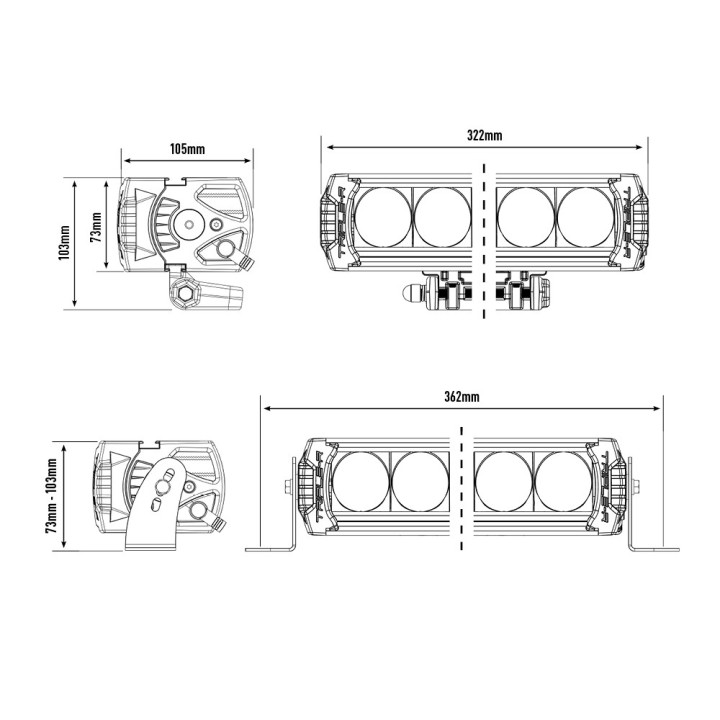

• Width: 322mm
• Depth: 105mm
• Height: 73mm

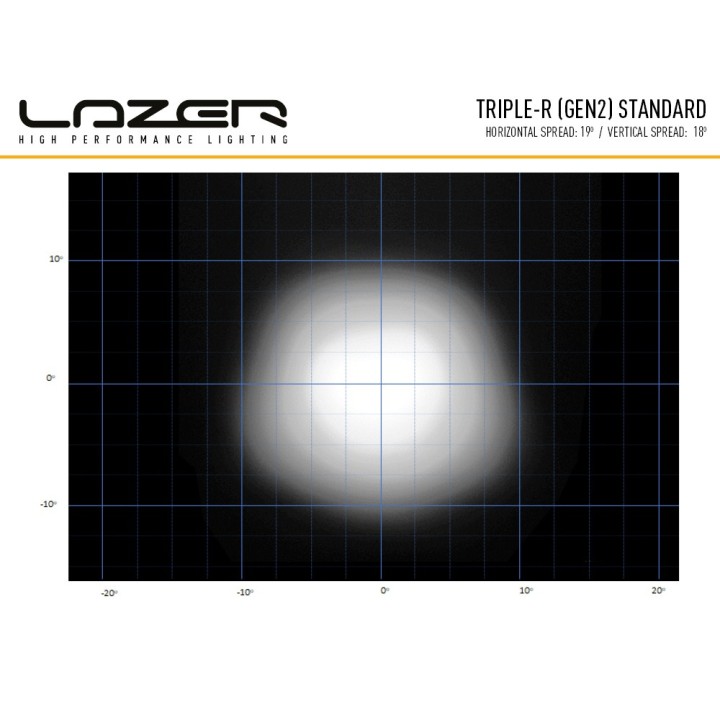

• Horizontal beam angle: 28°
• Vertical beam angle: 16°
• Connector: 3-Pin / 6-Pin Superseal (+25cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R149 - Ref: 12.5 (in Low Output Mode only)
• E-Mark reference: 45
• Position light: ECE R148
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2
• Warranty: 5 years

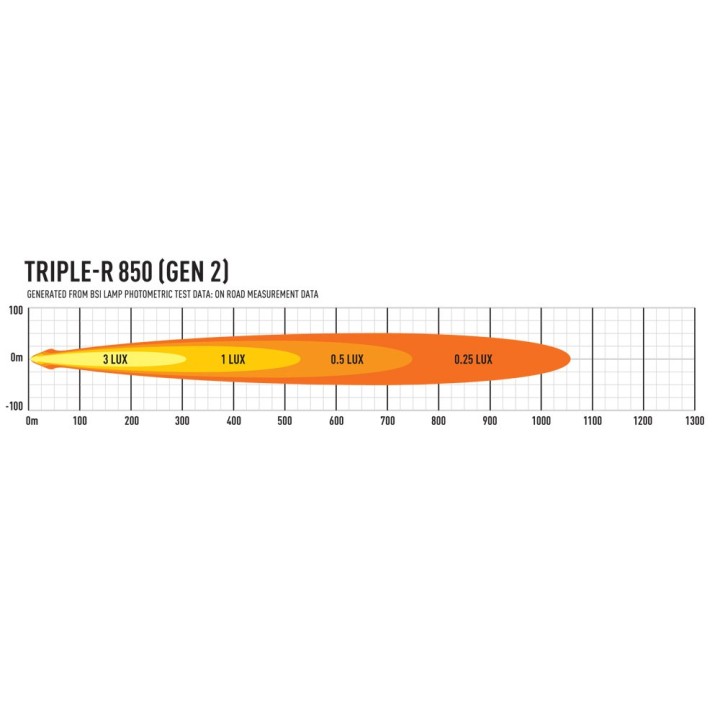

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

For covering distance at night: expeditions, forest tracks, utility vehicles, campers.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 3-Pin / 6-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R149 - Ref: 12.5 (in Low Output Mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

Why it is worth it

• 6,930 lm of output and 1061 m of range on the 0.25 lx line
• ECE R149 - Ref: 12.5 (in Low Output Mode only) approval — a legal driving light
• IP68 ingress protection
• Manufacturer warranty: 5 years

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R149 - Ref: 12.5 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 Triple-R 850 LED Lamp, x1 Centre Mount (1114K), x1 Installation Instructions.

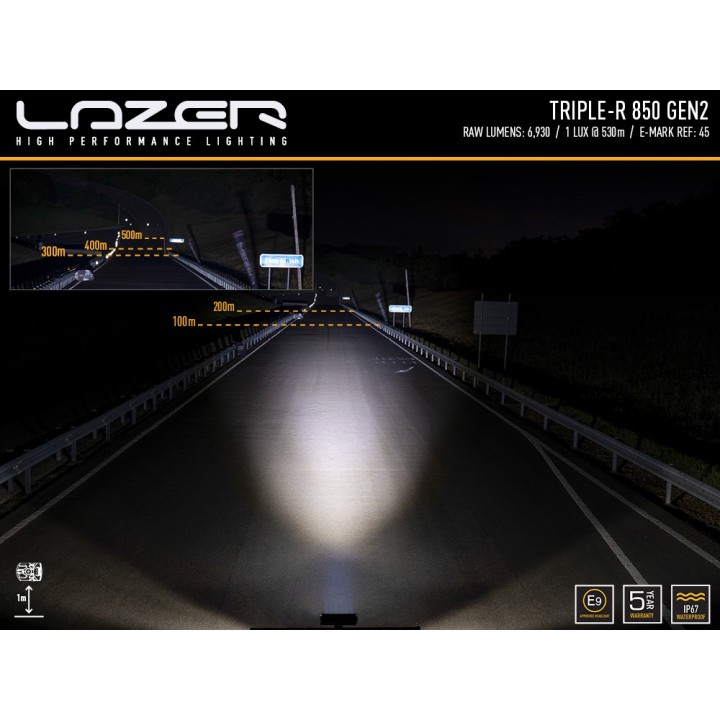

How far does it throw?

The manufacturer quotes 1061 m on the 0.25 lx line, 750 m at 0.5 lx and 530 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 66 W, i.e. 4.6 A at 14.4 V.
