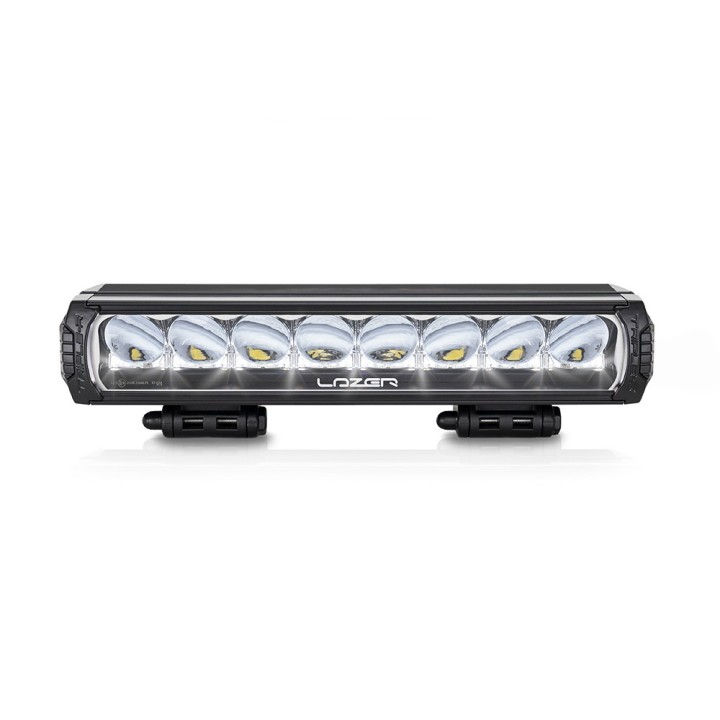

LAZER Triple-R 1000 (Gen2) — long-range LED light bar

On an empty road at three in the morning what matters is not the lumen count but how far ahead you can see the edge of the tarmac. In Boost mode the Triple-R 1000 reaches 1,225 metres on the 0.25 lx line — reaction time factory lights will never give you.

Dual Output technology switches the lamp between full power and the approved mode, so one lamp covers both public roads and the trail.

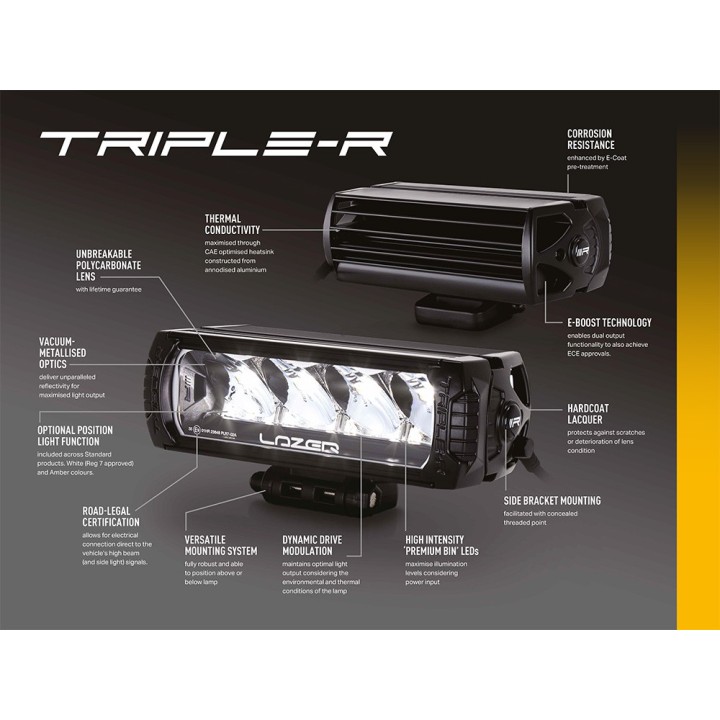

Key features

• High-efficiency 11W LEDs with a 5000K colour temperature deliver maximum sharpness, definition, and long-range visibility.

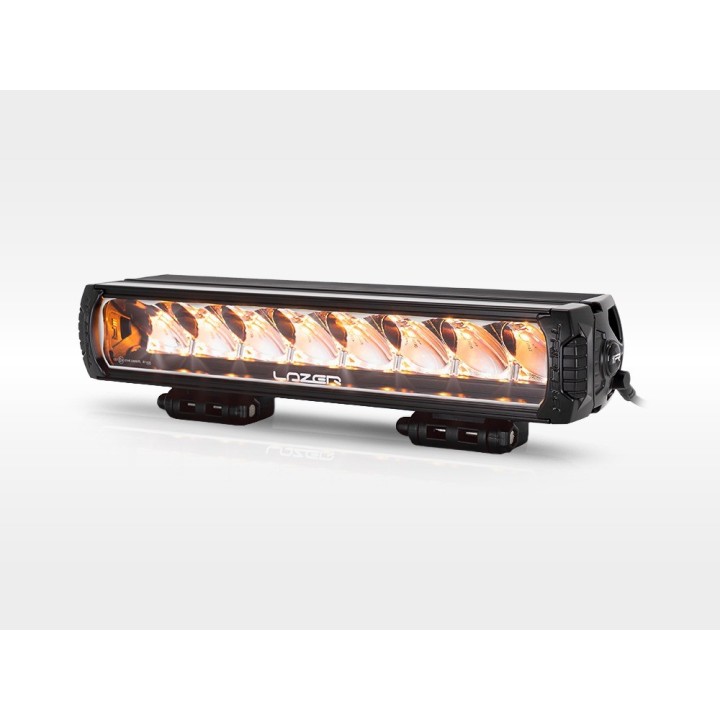

• Integrated white and amber position light function (UNECE Reg148 approved – white only)
• Gradual brightening and smooth colour transitions available via dynamic start-up/ welcome mode.
• Ultra-reflective vacuum-metallised optics deliver spot beam pattern
• UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Dual-output technology via flash-to-dim)
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage and reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP68 watertight
• 5-year warranty
• Supplied with pre-wired male/female 3-pin Superseal connectors
• Designed & manufactured in UK

What is in the box

• x1 Triple-R 1000 LED Lamp
• x2 Centre Mount (1114K)
• x1 Installation Instructions

Technical data

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hrs
• Weight: 1 kg
• Total Luminous Flux: BOOST MODE: 9,240 Lm / LOW OUTPUT / E-MARK MODE: 1,848 Lm
• Total Driver 'FOV' Flux: BOOST MODE: 5,572 Lm / LOW OUTPUT / E-MARK MODE: 1,114 Lm
• Colour Temperature: BOOST MODE: 5000K / LOW OUTPUT / E-MARK MODE: 5000K
• Power Consumption: BOOST MODE: 88 Watts / LOW OUTPUT / E-MARK MODE: 17.6 Watts
• Current Draw (14.4V): BOOST MODE: 6.1 Amps / LOW OUTPUT / E-MARK MODE: 0.74 Amps
• Peak Current Draw: BOOST MODE: 7.2 Amps / LOW OUTPUT / E-MARK MODE: 0.88 Amps
• Connector: 3-Pin / 6-Pin Superseal (+25cm Cable)
• IP Rating: IP68
• High Beam (E9 approval): ECE R149 - Ref: 12.5 (in Low Output Mode only)
• Postion Light (white): ECE R148
• Beacon: ECE R65 (XA1)
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2
• 0.25 lx Line: BOOST MODE: 1225 metres / LOW OUTPUT / E-MARK MODE: 548 metres
• 0.5 lx Line: BOOST MODE: 866 metres / LOW OUTPUT / E-MARK MODE: 387 metres
• 1 lx Line: BOOST MODE: 612 metres / LOW OUTPUT / E-MARK MODE: 274 metres
• 3 lx Line: BOOST MODE: 354 metres / LOW OUTPUT / E-MARK MODE: 158 metres
• Horizontal: 28 degrees
• Vertical: 16 degrees

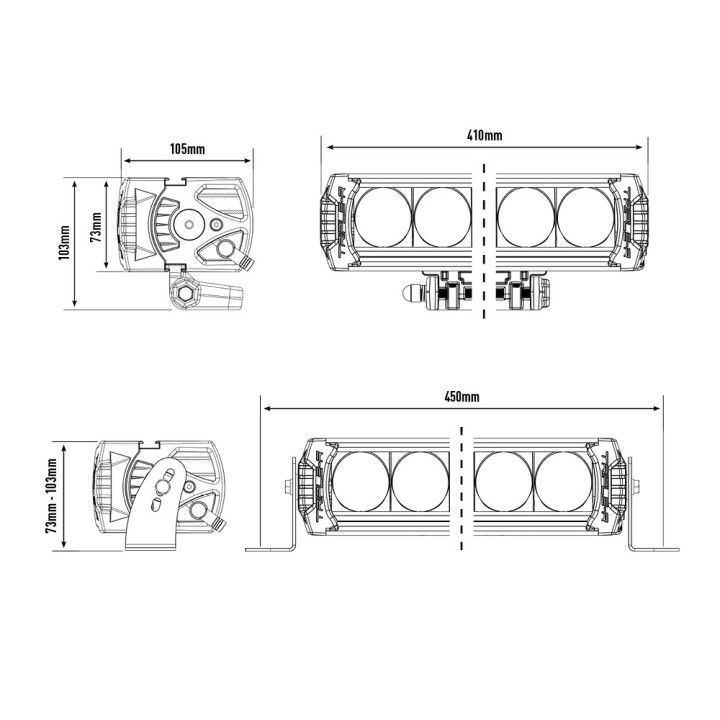

• Width: 410mm
• Depth: 105mm
• Height: 73mm

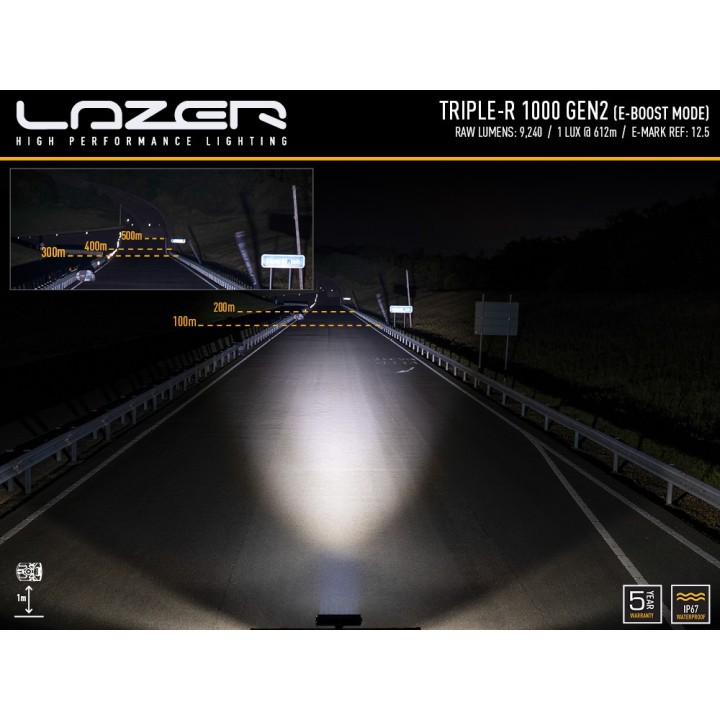

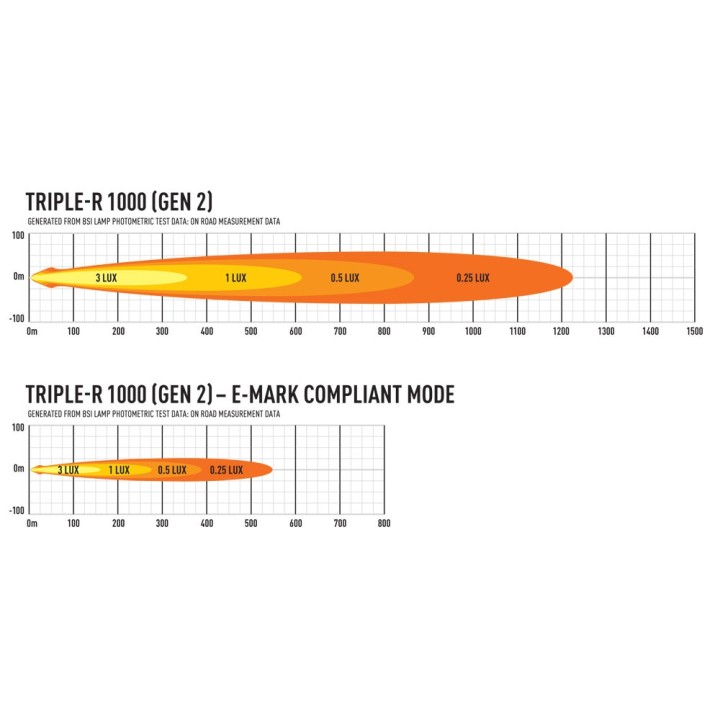

Beam range

Who it is for

This is a lamp for people who actually drive at night: expeditions, forest tracks, utility vehicles, campers. At 410 mm wide it fits most bumpers and roof bars without modification.

The integrated position light lets the lamp work as part of the front-end styling in daylight too, with no extra LEDs to add.

Fitting and notes

The kit includes two universal 1114K centre mounts; the housing is also prepared for side mounting (brackets sold separately). The lead ends in a 3-pin Superseal connector and a relay wiring kit is bought separately.

Full power (Boost mode) is not road approved — on public roads the lamp runs in the lower output mode.

Why it is worth it

• 1,225 m of range and 9,240 lm — a real step up from factory main beam
• ECE R149 (driving), R148 (position) and R10 (EMC) approvals
• IP68, ISO 9227 salt spray tested, 5-year manufacturer warranty

Frequently asked questions

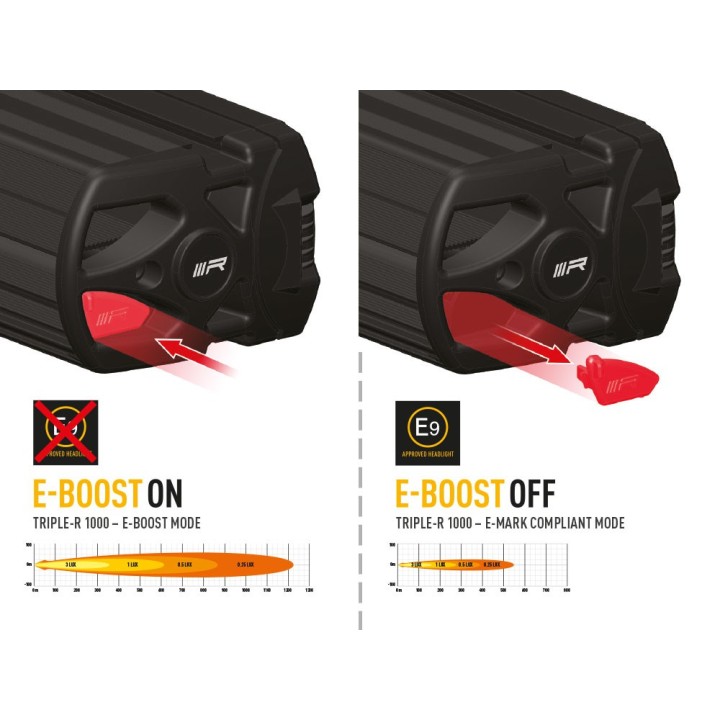

What is the difference between Boost and the approved mode?

Boost mode gives 9,240 lm at 88 W; the lower output mode gives 1,848 lm at 17.6 W. Only the latter is covered by ECE R149 road approval.

Are brackets included?

Yes — two 1114K centre mounts and instructions. Side brackets and wiring are separate.

Which connector does it use?

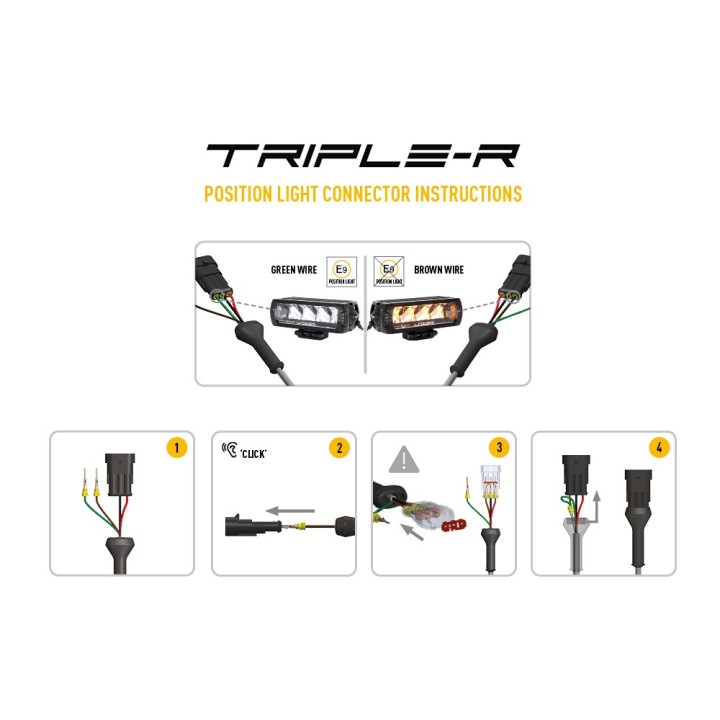

A 3-pin or 6-pin Superseal with 25 cm of cable, depending on the position light version.

What are the weight and dimensions?

Weight 1 kg, dimensions 410 × 105 × 73 mm (width × depth × height).

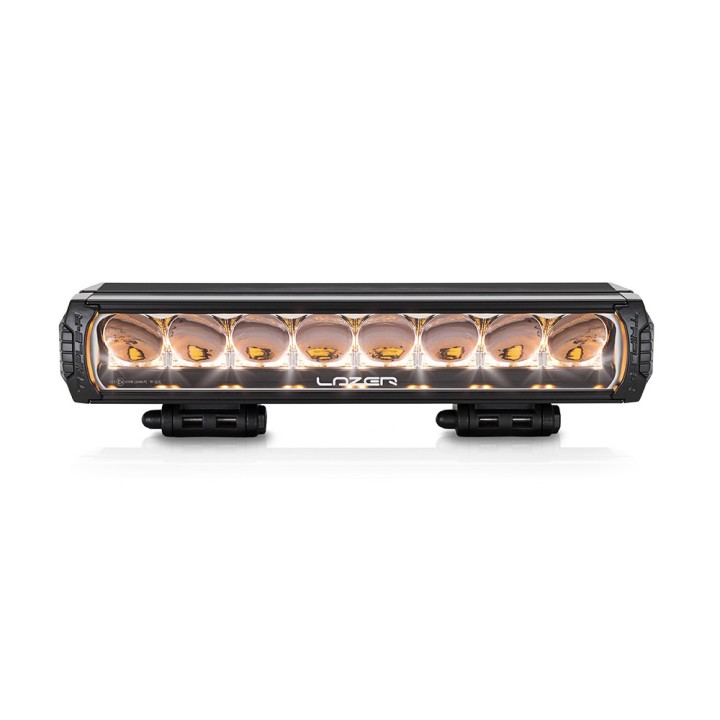

Can the position light be set to amber?

The manufacturer lists an integrated position light in white and amber; UNECE Reg 148 approval covers the white light only.
