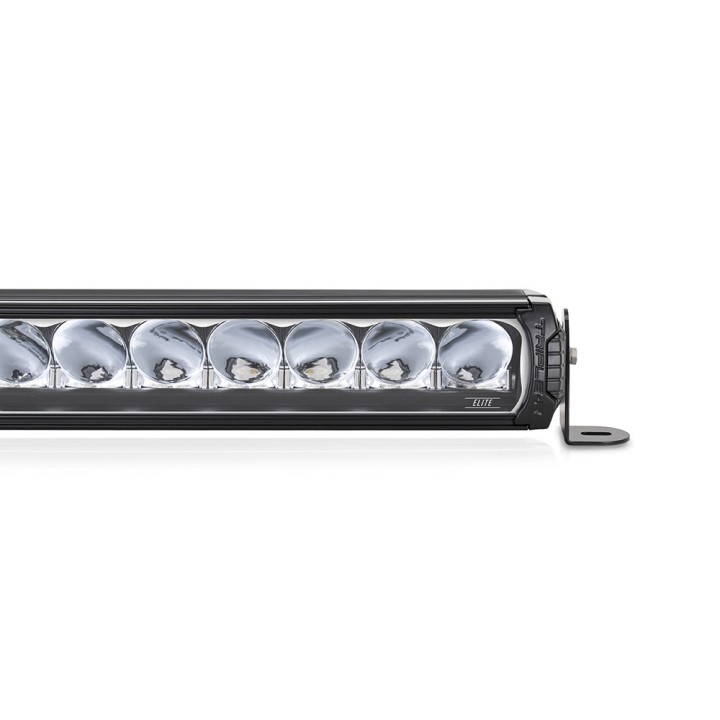

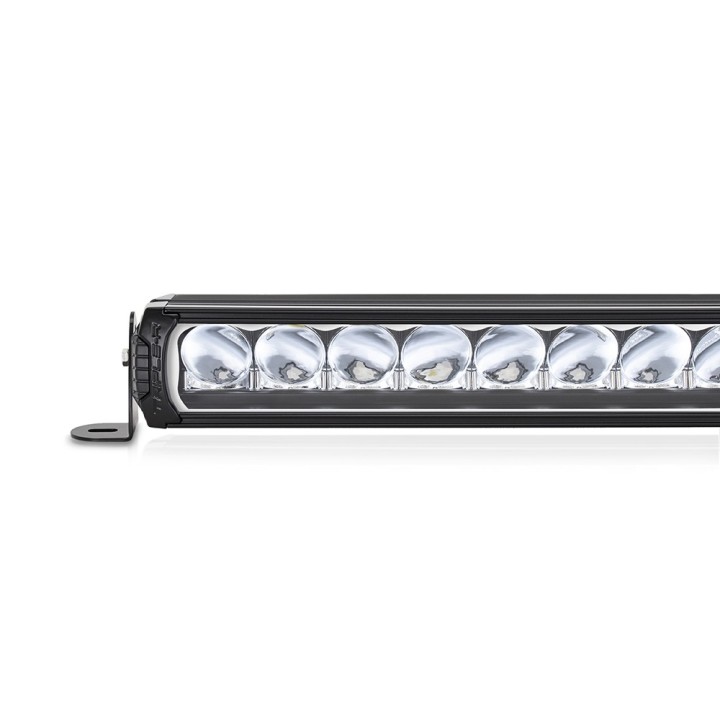

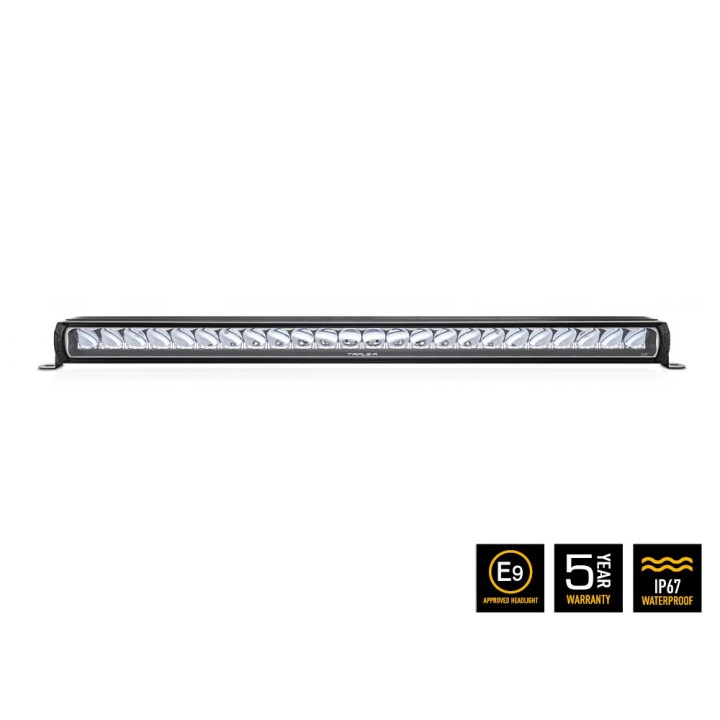

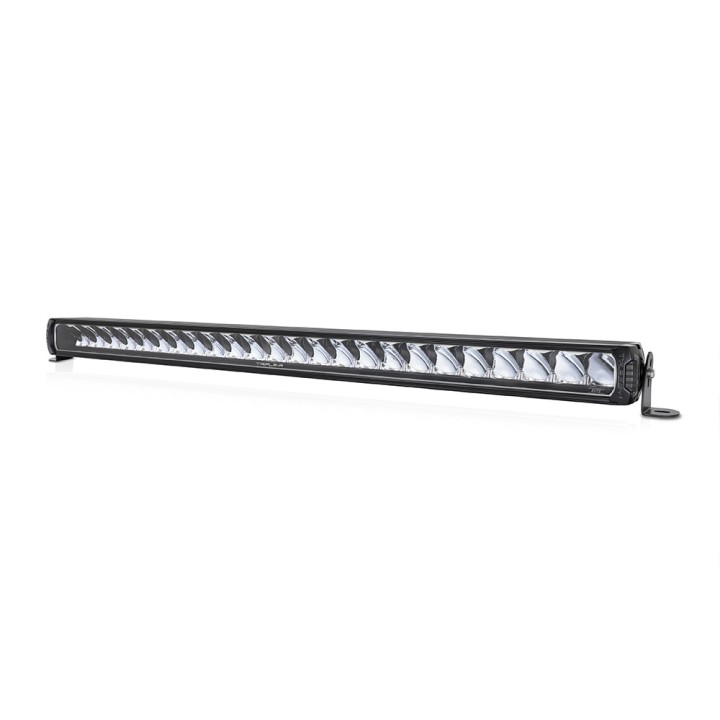

LAZER Triple-R 24 Elite (Gen2)

You can tell a good auxiliary light by one thing: after dark you stop slowing down "just in case".

The manufacturer quotes 27,060 lm of output, 1125mm wide, 4.5 kg.

Key features

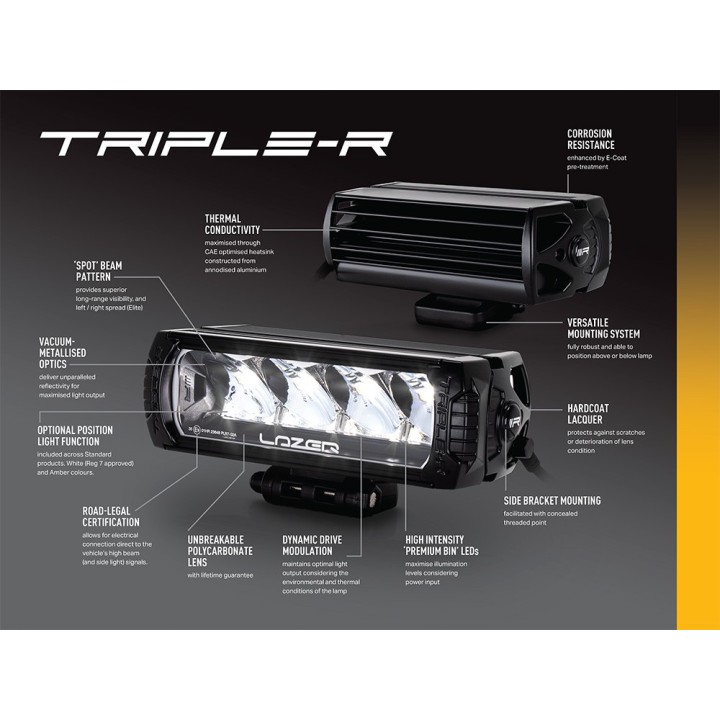

• Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
• Highly efficient LED technologies
• 5000 K LED colour temperature and 80CRI maximises sharpness and definition
• Ultra-reflective vacuum-metallised optics deliver spot beam pattern
• Contemporary lamp design
• Improved aero design benefits low wind noise performance
• Vehicle wiring kit included (1L-HP-300)
• Includes ‘Centre Mount’ and Side Mount Kit
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• IP68 watertight
• 5-year warranty
• Supplied with pre-wired male/female 2-pin Superseal connectors
• Designed & manufactured in UK

What is in the box

• x1 Triple-R 24 Elite LED Lamp
• x3 Centre Mount (1114 K)
• x1 Side Mount Kit (1118 K)

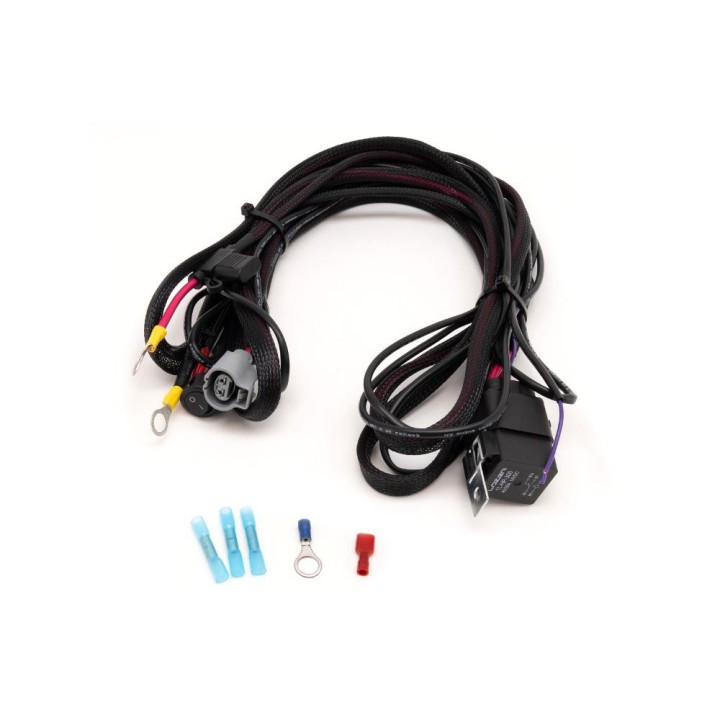

• x1 Single-Lamp Wiring Kit with Switch (1L-HP-300)
• x1 Installation Instructions

Technical data

• Luminous flux: 27,060 lm
• Driver 'FOV' flux: 17,833 lm
• Colour temperature: 5000 K
• Number of LEDs: 24
• Power consumption: 312 W
• Current draw: 21.7 A
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 4.5 kg

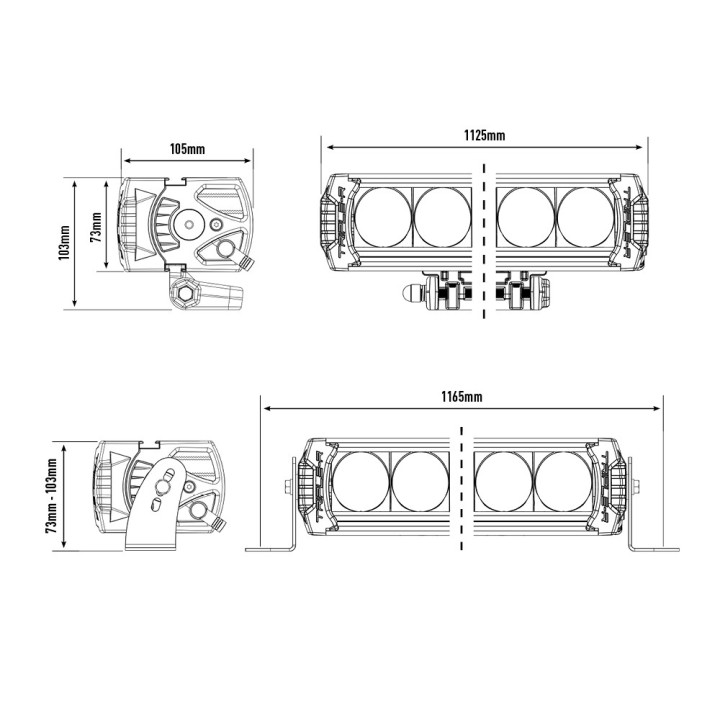

• Width: 1125mm
• Depth: 105mm
• Height: 73mm

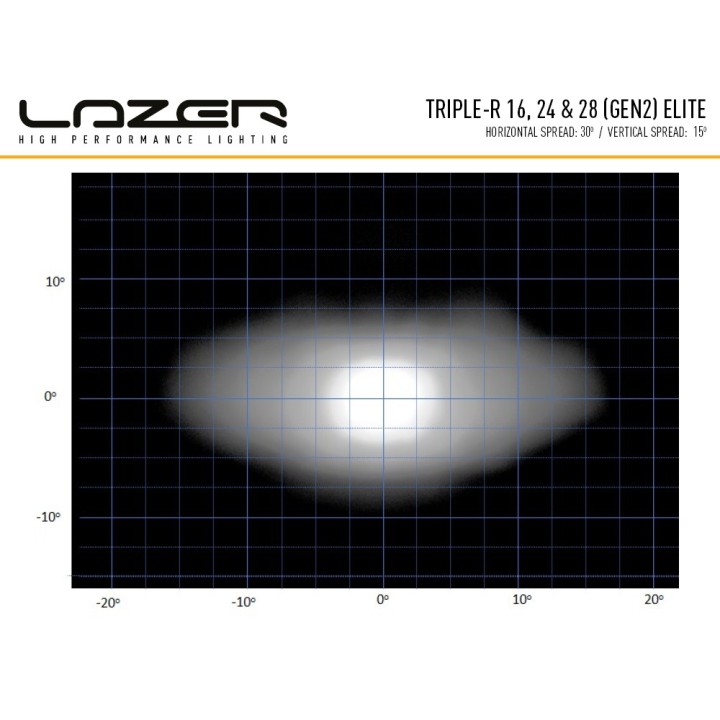

• Horizontal beam angle: 30°
• Vertical beam angle: 15°
• Connector: 2-Pin Econoseal (+25cm Cable)
• Ingress protection: IP68
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2
• Warranty: 5 years

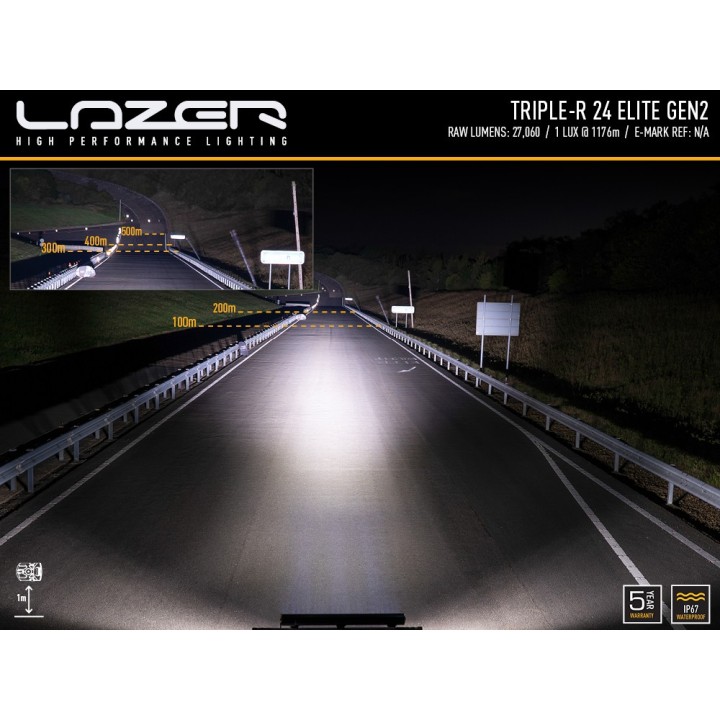

Beam range

Who it is for

For covering distance at night: expeditions, forest tracks, utility vehicles, campers.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 2-Pin Econoseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

Why it is worth it

• 27,060 lm of output and 2352 m of range on the 0.25 lx line
• IP68 ingress protection
• Manufacturer warranty: 5 years

Frequently asked questions

What is in the box?

The box contains: x1 Triple-R 24 Elite LED Lamp, x3 Centre Mount (1114k), x1 Side Mount Kit (1118k), x1 Single-Lamp Wiring Kit with Switch (1L-HP-300), x1 Installation Instructions.

How far does it throw?

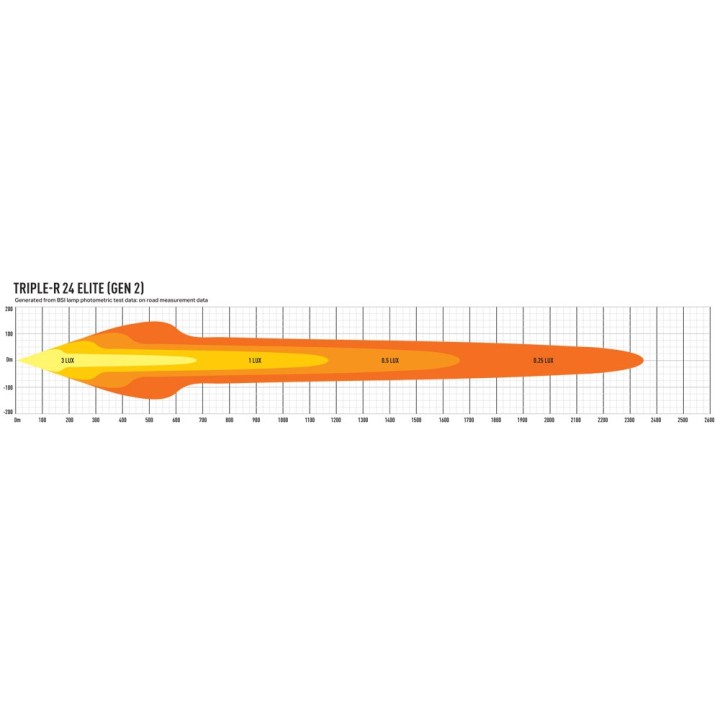

The manufacturer quotes 2352 m on the 0.25 lx line, 1663 m at 0.5 lx and 1176 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 312 W, i.e. 21.7 A at 14.4 V.

What are the dimensions?

Width 1125mm, depth 105mm, height 73mm, weight 4.5 kg.
