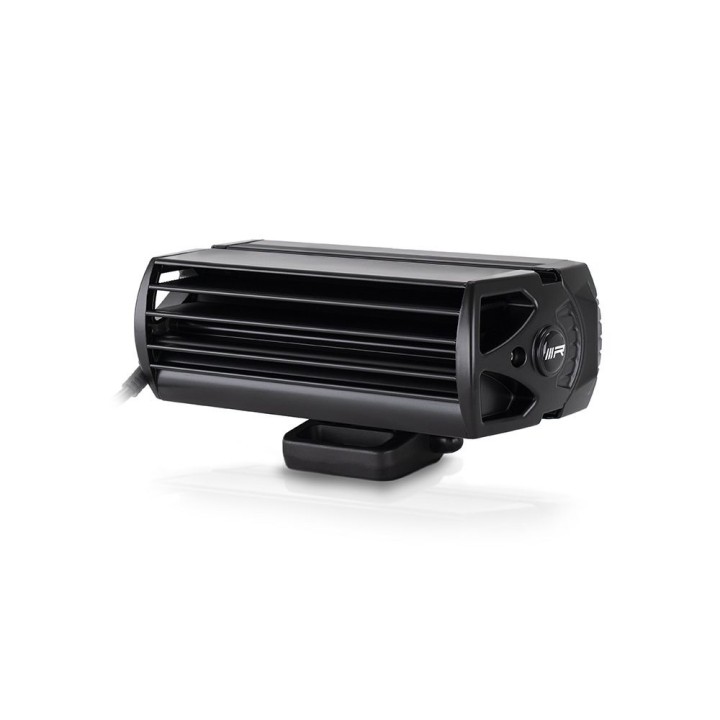

Kit of two LAZER TRIPLE-R 750 (Gen2) with factory grille mounting system - Mercedes-Benz Vito (2014 - 2020)

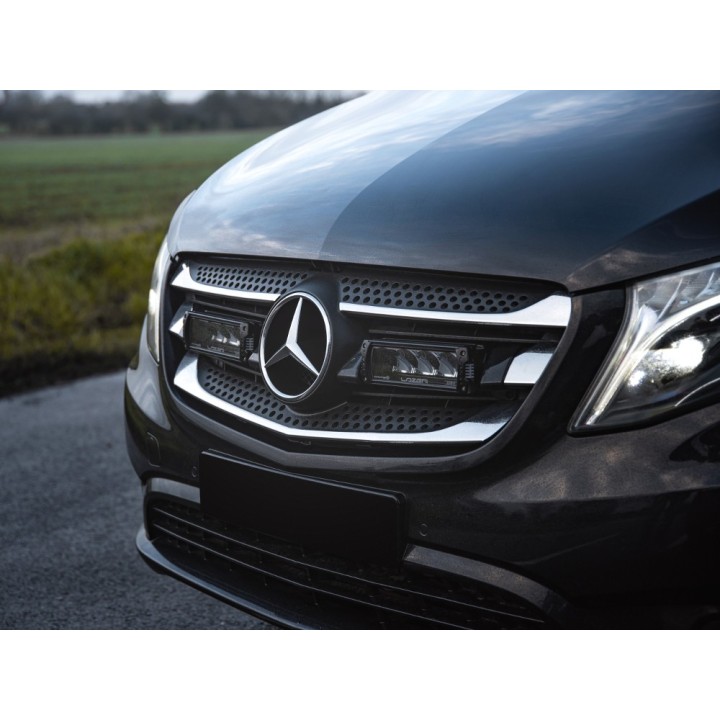

A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Mercedes-Benz Vito (2014 - 2020) — the brackets land on factory points.

One box gives you the complete answer: the lamps and the mounting system made for them.

Technical data

• Luminous flux: 4620 lm
• Colour temperature: 5000 K
• Number of LEDs: 4
• Power consumption: 45 W
• Current draw: 3.1 A
• Voltage range: 9-32V
• LED life: 50,000 hrs
• Weight: 1kg
• Horizontal beam angle: 19°
• Ingress protection: IP67
• Driving beam approval: ECE R112
• E-Mark reference: 35

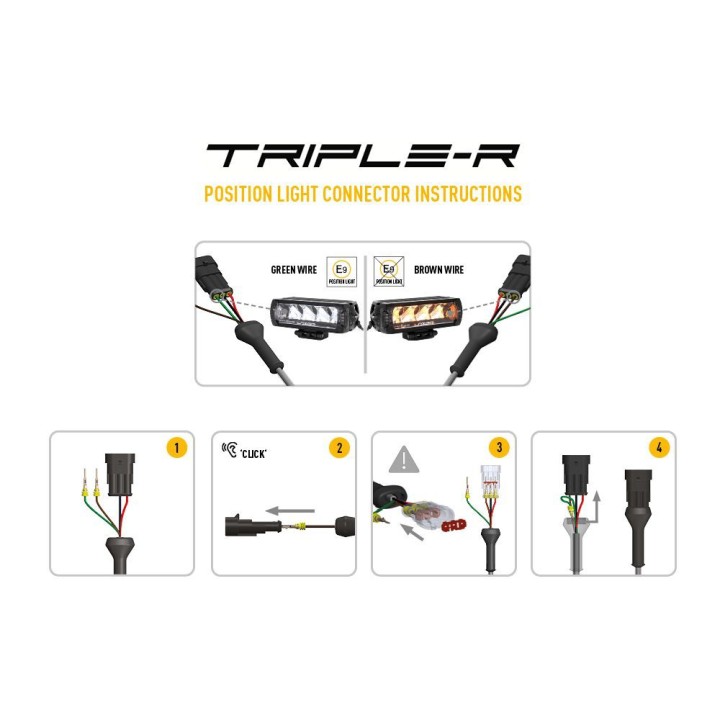

• Position light: ECE R7
• Warranty: 5 years

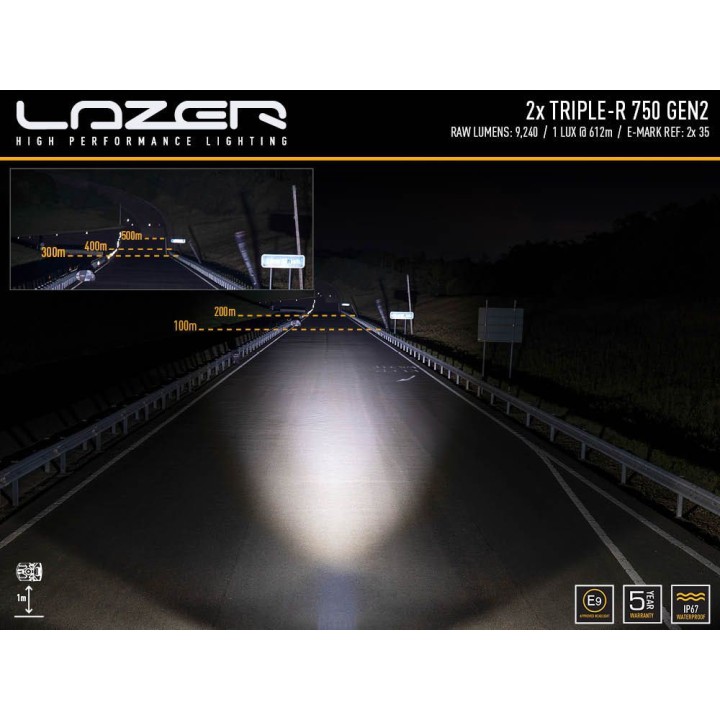

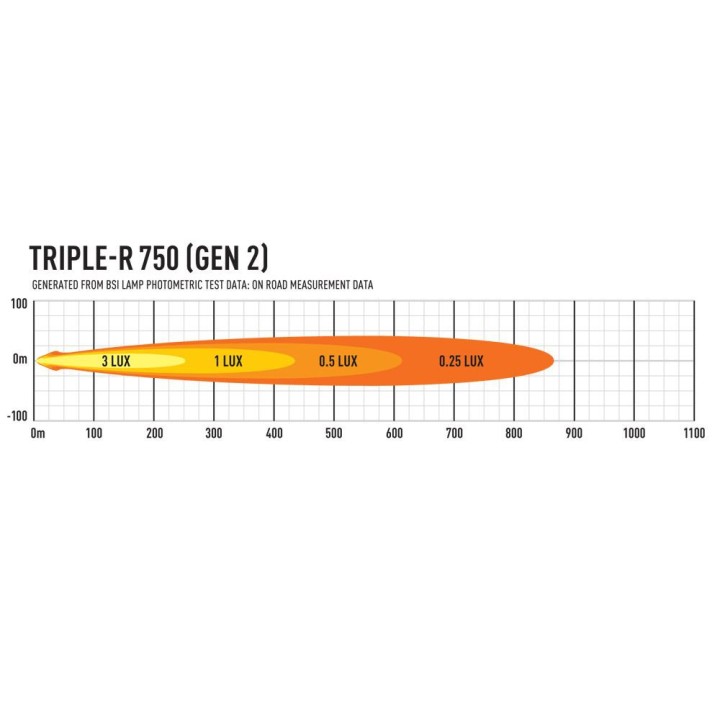

Beam range

Who it is for

For owners of this specific model who want a fit with no modifications.

The kit is built for the Mercedes-Benz Vito (2014 - 2020) — another vehicle needs a different version.

Fitting and notes

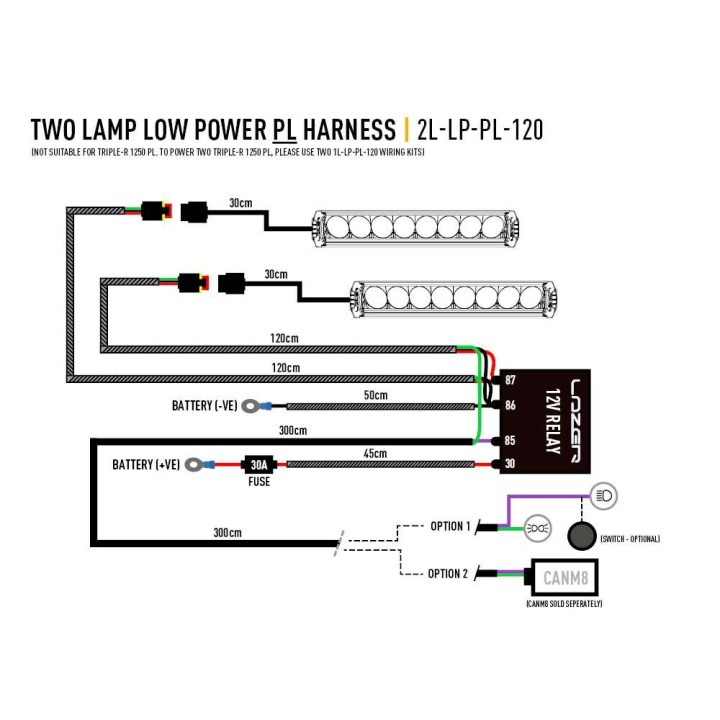

ECE R112 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

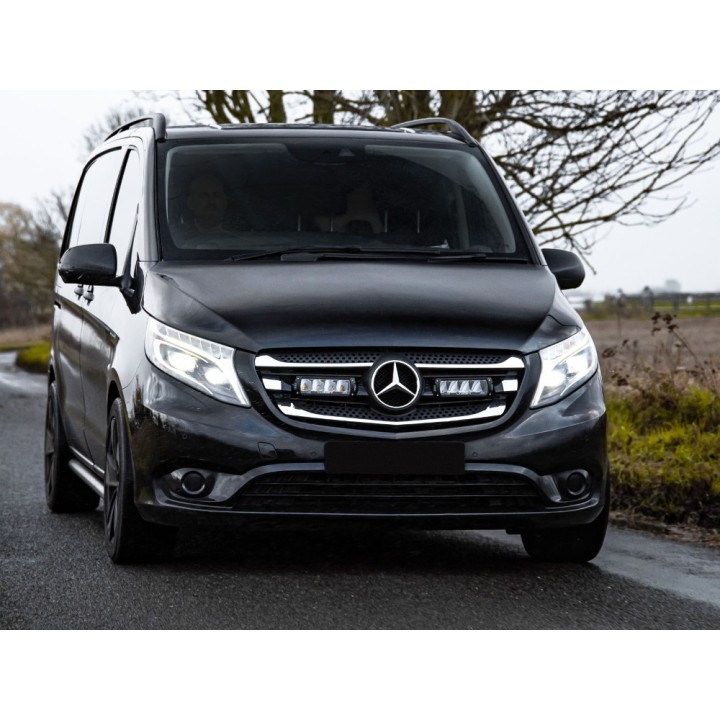

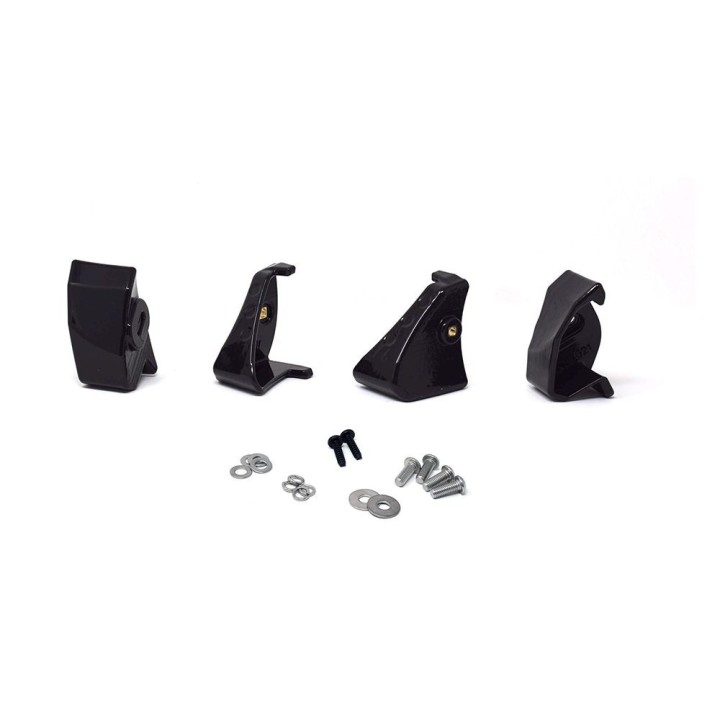

The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.

Why it is worth it

• 4620 lm of output and 866 m of range on the 0.25 lx line
• ECE R112 approval — a legal driving light
• IP67 ingress protection
• A complete kit for one specific model — no drilling, no modifications

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R112 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

How far does it throw?

The manufacturer quotes 866 m on the 0.25 lx line, 612 m at 0.5 lx and 433 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP67 ingress protection.

How much power does it use?

Power consumption is 45 W, i.e. 3.1 A at 14.4 V.

How much does it weigh?

The manufacturer states 1kg.
