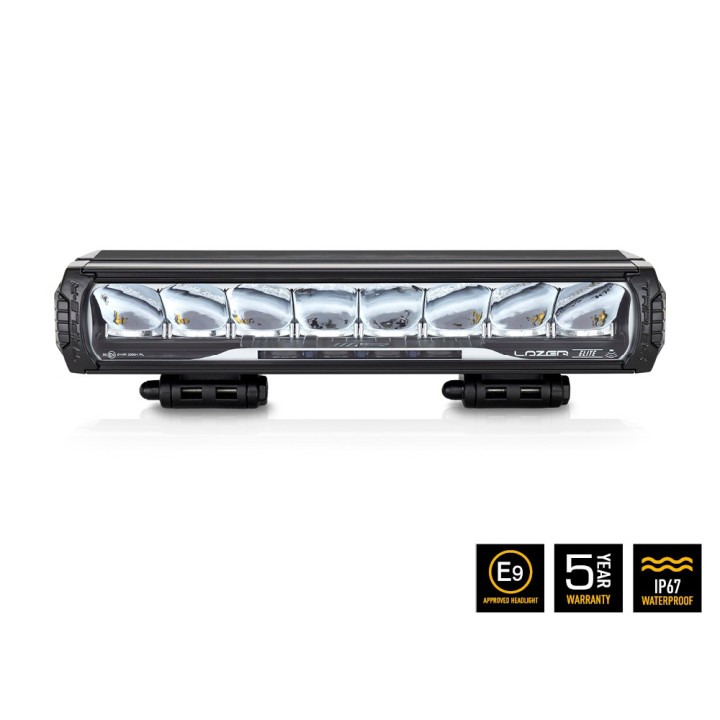

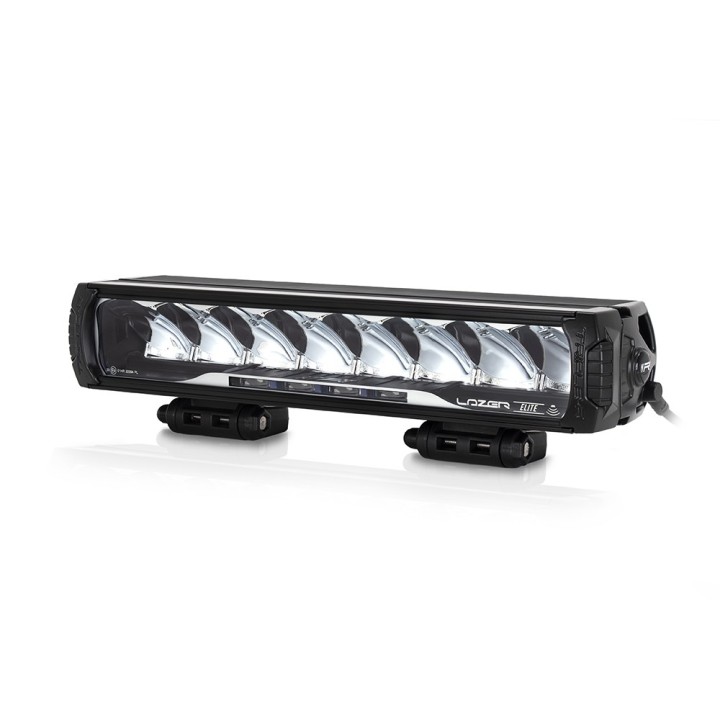

LAZER Triple-R 1000 Elite i-LBA

Factory main beam runs out exactly where the real risk begins — an animal on the verge, a pothole, a blind corner.

The manufacturer quotes 11,068 lm of output, 410mm wide, 1.7 kg. ECE R112 - Ref: 30 (in Low Output Mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.

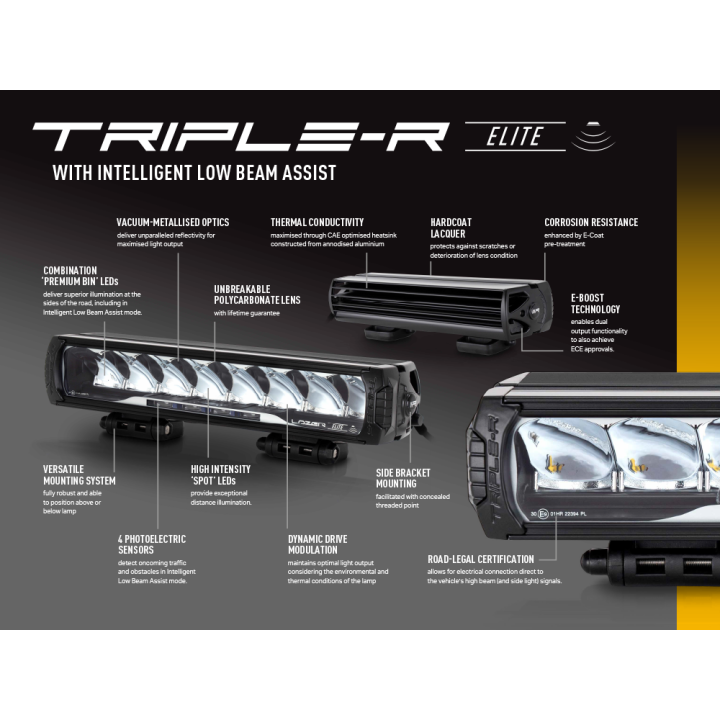

Key features

• Combination of 26 high efficiency LEDs deliver exceptional lighting performance

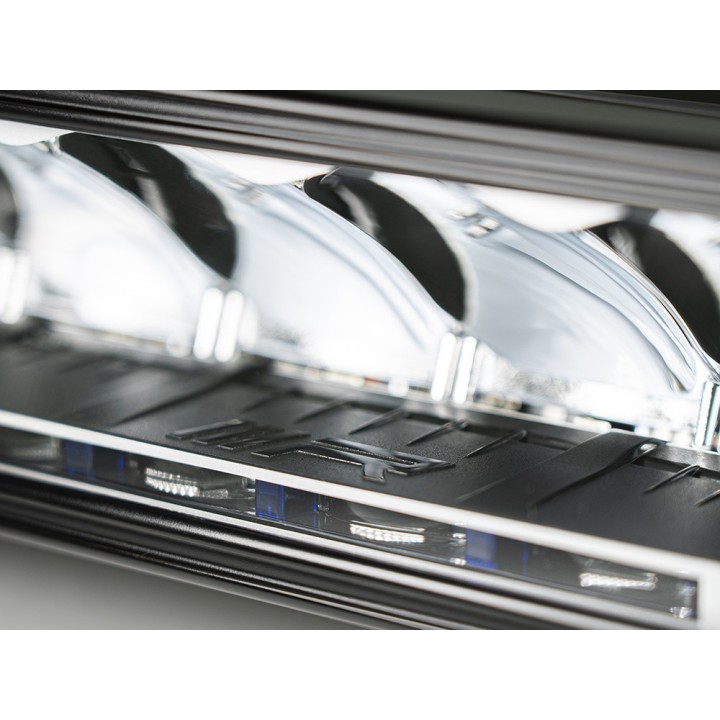

• Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern for everyday road use
• Low Beam Assist mode provides superior short/mid-range visibility

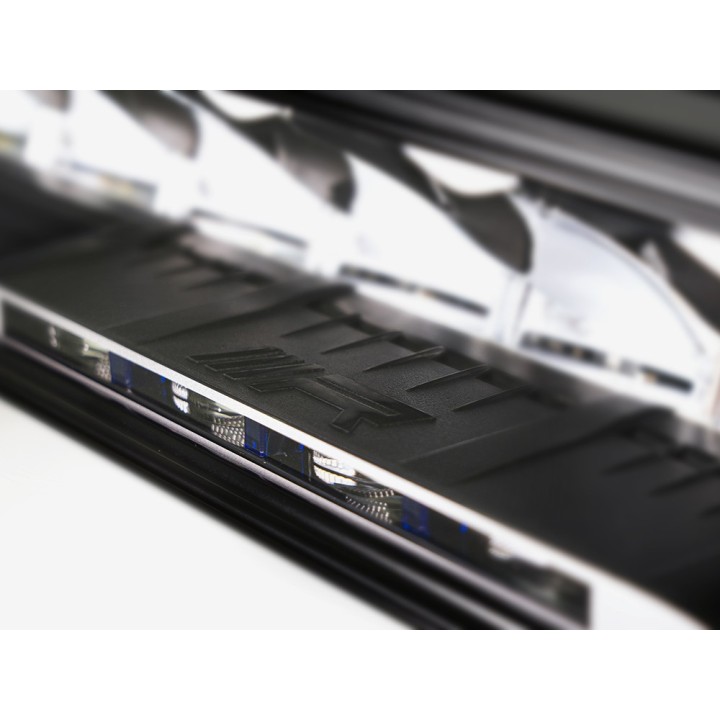

• Integrated photoelectric sensors detect oncoming traffic and obstacles so that light output responds to surroundings in Low Beam Assist mode
• 5000 K LED colour temperature and 80CRI maximises sharpness and definition

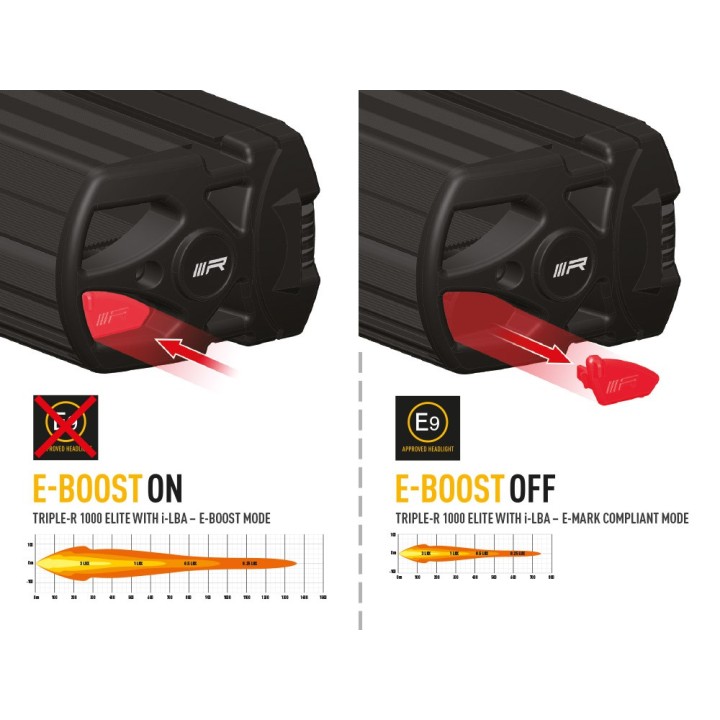

• UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)
• Contemporary lamp design
• Supplied with Single-Lamp Wiring Kit
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP68 watertight
• 5-year warranty
• Electrical connection made via 4-pin Deutsch connectors
• Designed & manufactured in UK

What is in the box

• x1 Triple-R 1000 with i-LBA LED Lamp
• x2 Centre Mount (1114 K)

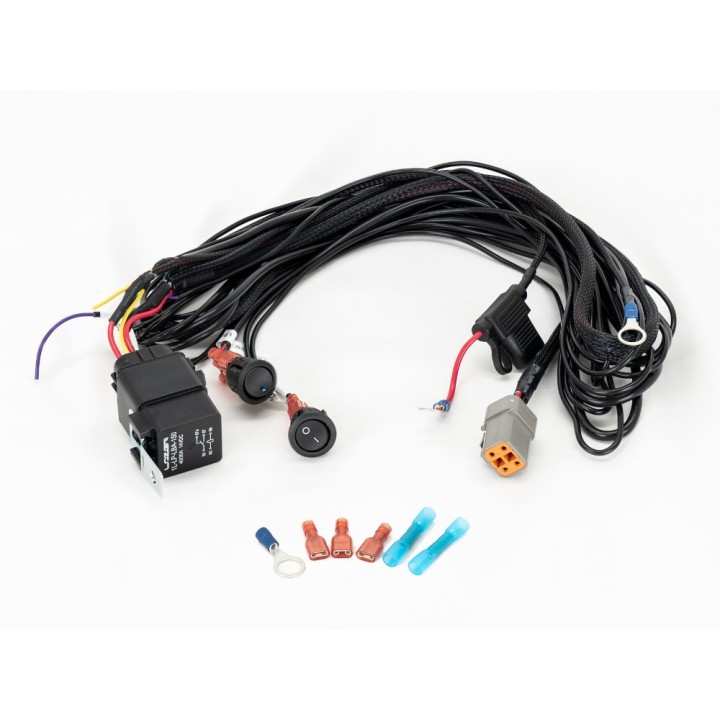

• x1 Single-Lamp 'Low Beam Assist' Wiring Kit (1L-LP-LBA-150)
• x1 Installation Instructions

Technical data

• Luminous flux: 11,068 lm (full power mode) / 3,423 lm (approved mode)
• Driver 'FOV' flux: 7,294 lm (full power mode) / 2,256 lm (approved mode)
• Colour temperature: 5000 K
• Number of LEDs: 26
• Power consumption: 111 W (full power mode) / 32 W (approved mode)
• Current draw: 6.6 A (full power mode) / 2.3 A (approved mode)
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 1.7 kg

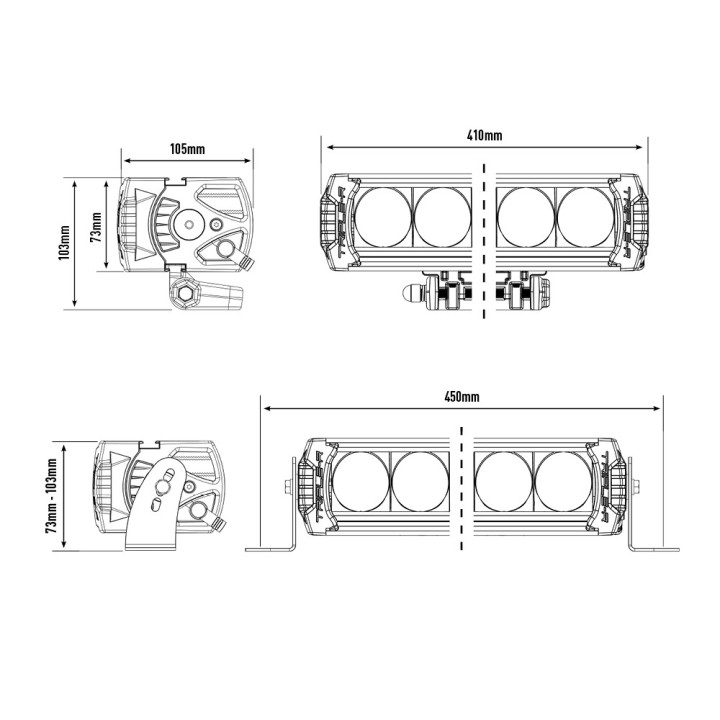

• Width: 410mm
• Depth: 105mm
• Height: 73mm

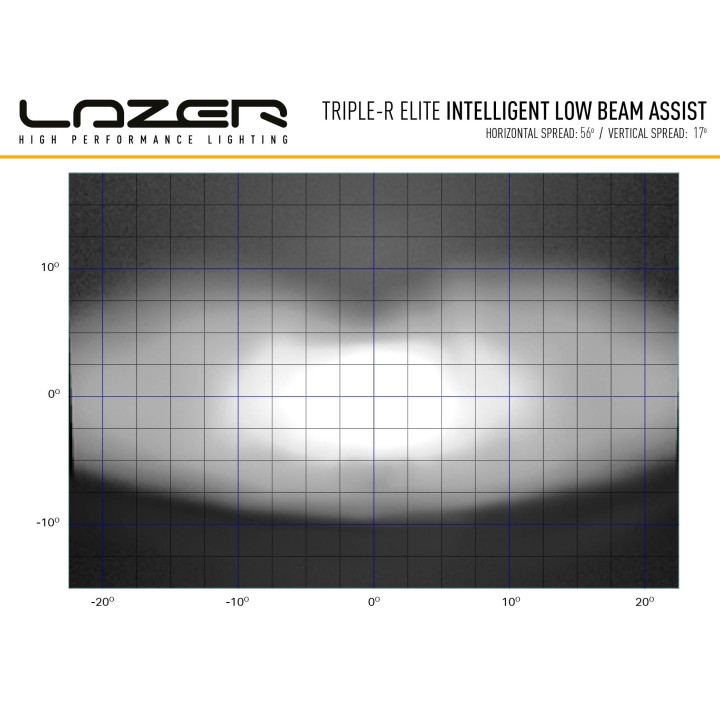

• Horizontal beam angle: 56°
• Vertical beam angle: 17°
• Connector: 4-Pin Deutsch DT (+25cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R112 - Ref: 30 (in Low Output Mode only)
• E-Mark reference: 30
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2
• Warranty: 5 years

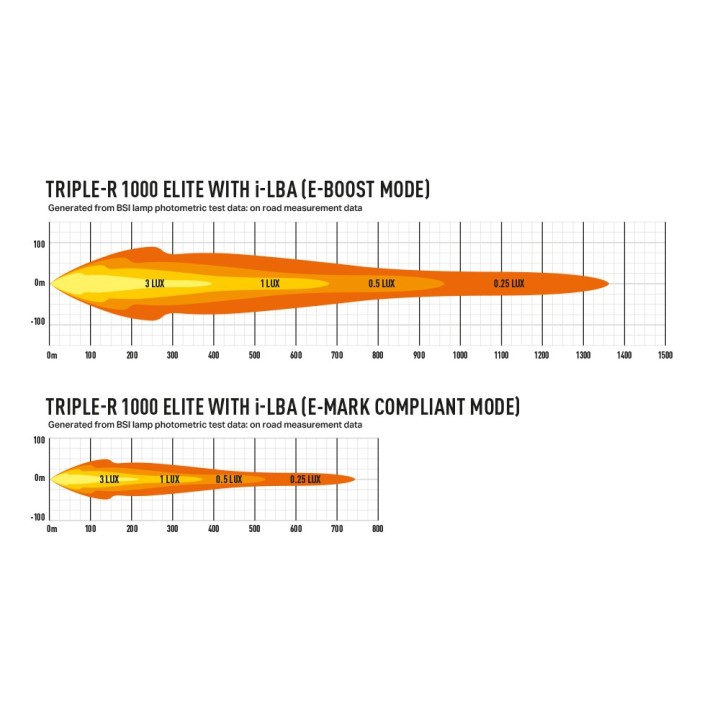

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

For covering distance at night: expeditions, forest tracks, utility vehicles, campers.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

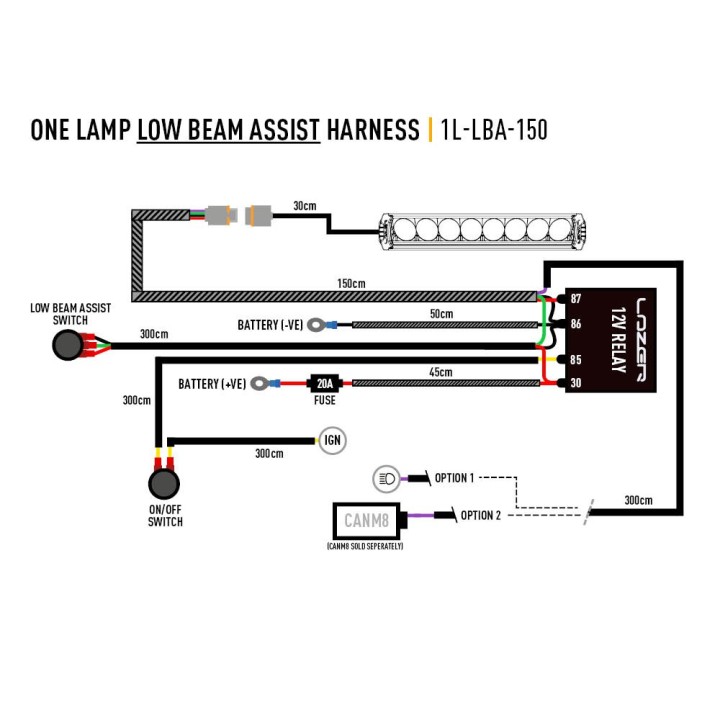

The lamp lead ends in: 4-Pin Deutsch DT (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R112 - Ref: 30 (in Low Output Mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

Why it is worth it

• 11,068 lm of output and 1362 m of range on the 0.25 lx line
• ECE R112 - Ref: 30 (in Low Output Mode only) approval — a legal driving light
• IP68 ingress protection
• Manufacturer warranty: 5 years

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R112 - Ref: 30 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 Triple-R 1000 with i-LBA LED Lamp, x2 Centre Mount (1114k), x1 Single-Lamp 'Low Beam Assist' Wiring Kit (1L-LP-LBA-150), x1 Installation Instructions.

How far does it throw?

The manufacturer quotes 1362 m on the 0.25 lx line, 963 m at 0.5 lx and 681 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 111 W, i.e. 6.6 A at 14.4 V.
