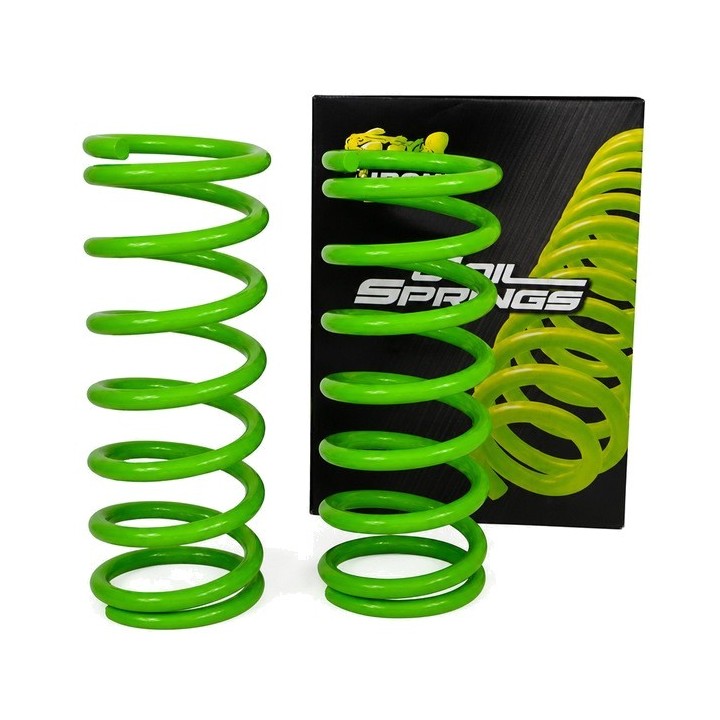

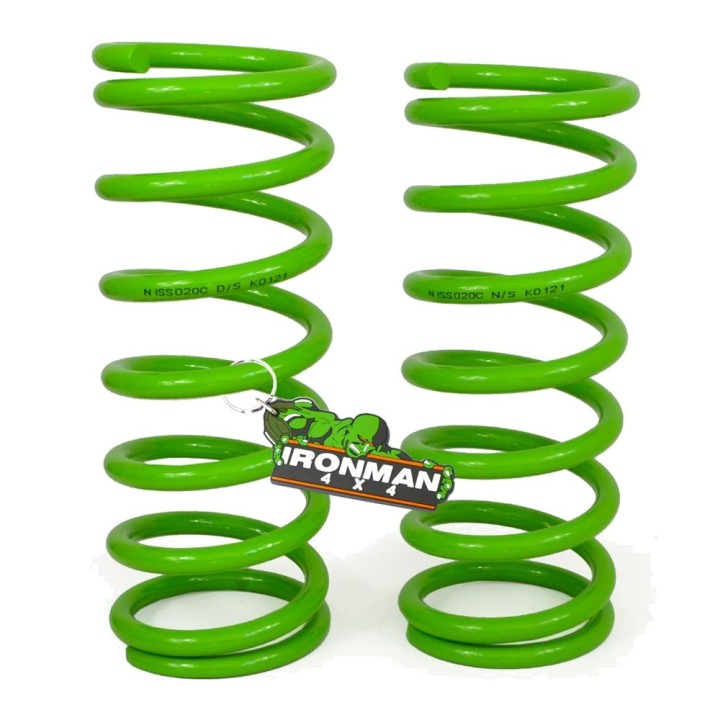

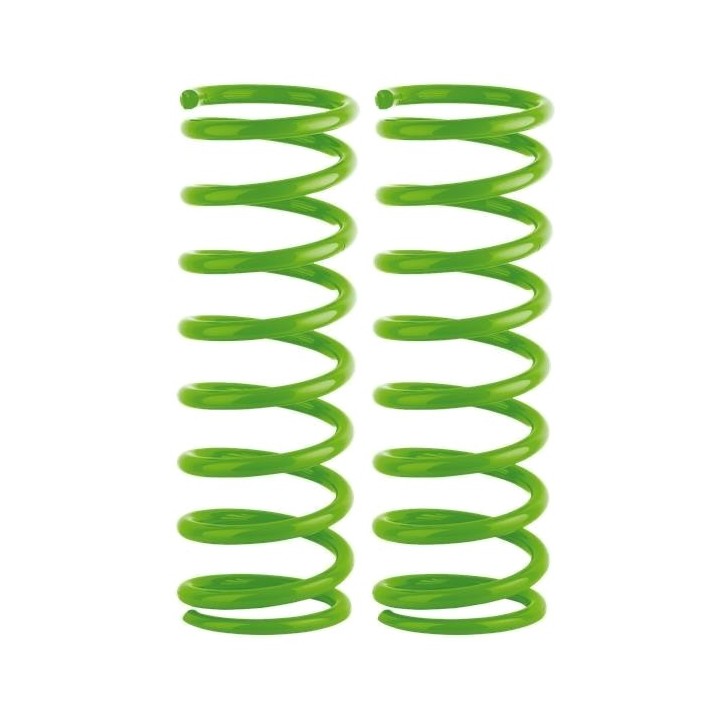

Rear coil springs Ironman 4x4 Extra Heavy Duty, 2" lift — Nissan Patrol Y60, Nissan Patrol Y61 (NISS020C)

The spring decides how high the car sits permanently and how much it will carry before the back starts to sag. This set gives a 2" lift and is made for specific models — not a universal spring fitted by eye.

This variant is built for an additional load of 200-400 / 300-400 / 400-500 kg — that figure is where the choice of spring starts. Extra Heavy Duty springs suit a car that carries weight all the time; in an empty car they feel noticeably stiff. Dimensions: wire 20 mm, coil diameter 139 mm, free height 475/458 mm.

Key features

• Wire diameter 20 mm.
• Coil diameter 139 mm.
• Free height 475/458 mm.
• Built for an additional load of 200-400 / 300-400 / 400-500 kg.
• Sold as a pair — one axle set.

Vehicle fitment

• Nissan Patrol Y60 (long wheelbase) 1988-1998
• Nissan Patrol Y61 from 1997

Technical data

Fitting and notes

Springs are replaced in pairs on an axle — otherwise the car sits unevenly. When you change ride height, check the shock absorbers at the same time: factory shocks on a lifted car work on the wrong part of their travel and wear out quickly.

We do the fitting and pick the whole kit in our workshop in Warsaw. After a lift, a wheel alignment check is recommended.

Frequently asked questions

What does "additional load of 200-400 / 300-400 / 400-500 kg" mean?
It is permanent weight above the factory figure — a steel bumper, a winch, a roof rack, a canopy, a long-range tank. If you carry less than that, pick a softer variant, otherwise the car will ride hard.

How many do I need?
This is one axle set — lifting the whole car needs a set for the other axle as well.

Do I need anything else after fitting?
With a 2" lift you usually need longer shock absorbers, and on the rear axle a corrected Panhard rod or shackles may be required. Tell us what is on the car and we will say what is missing.

Why buy it here

Ironman 4x4 is an Australian brand built for vehicles that really work off-road and carry weight. We fit everything we sell in our own workshop in Warsaw, so if you are not sure which version suits your car, write to us — we will work it out with you.
