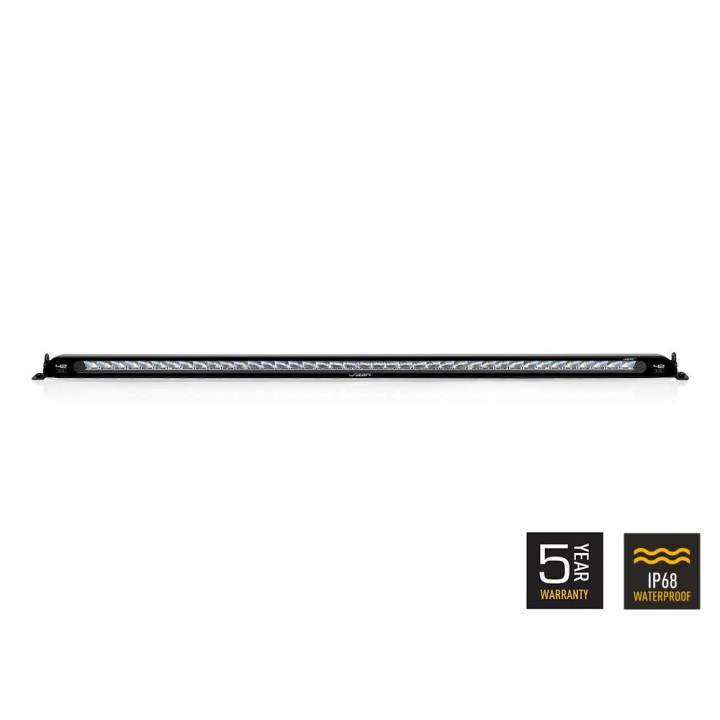

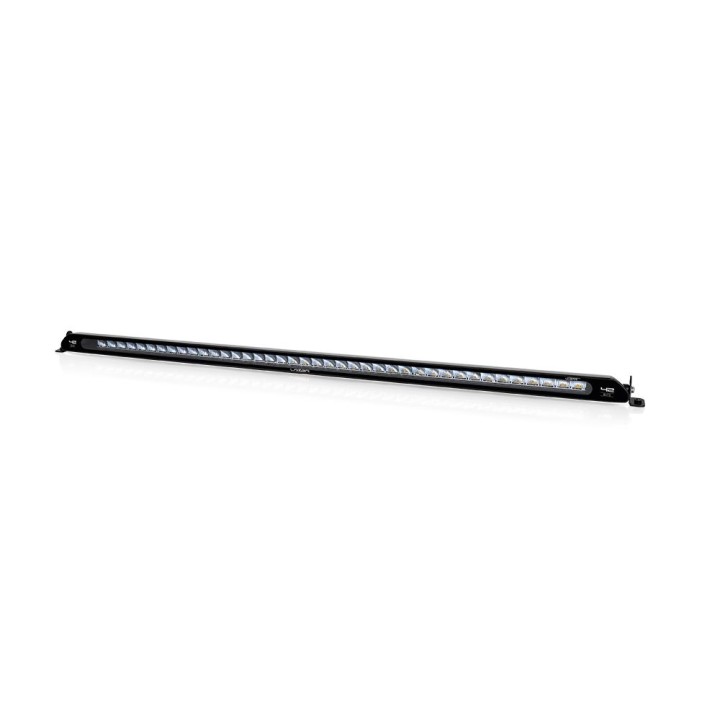

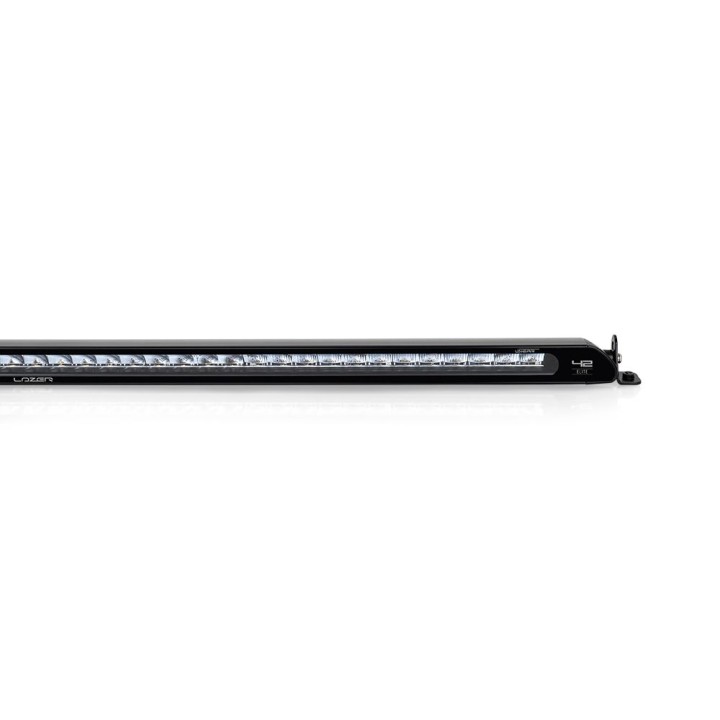

LAZER Linear 42 Elite

Factory main beam runs out exactly where the real risk begins — an animal on the verge, a pothole, a blind corner.

The manufacturer quotes 33,300 lm of output, 1132mm wide, 3.5 kg.

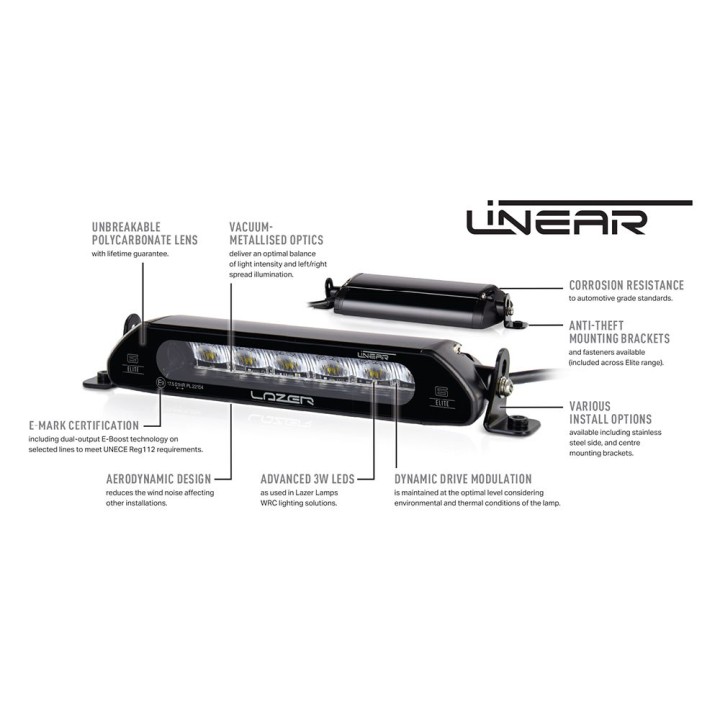

Key features

• Combination of highly efficient 3W ‘premium bin’ LEDs
• 5000 K LED colour temperature and 80CRI maximises sharpness and definition
• Vacuum-metallised optics deliver wide spread of light
• Reduced up/down spread of light suits even low mounting positions, or roof mounting
• Sleek, low profile design eases installation
• Aero design virtually eliminates wind noise on roof installations

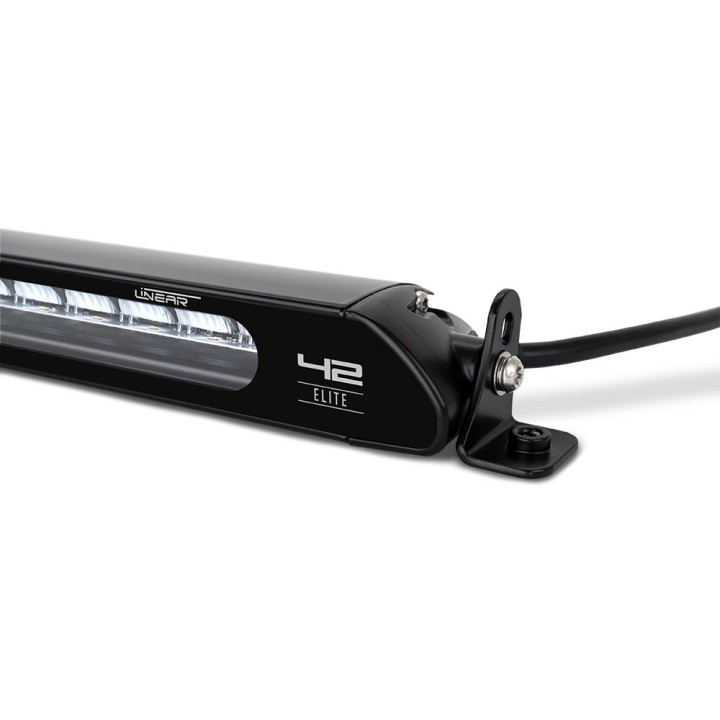

• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP68 watertight
• 5 year warranty
• Supplied with pre-wired male/female 2-pin Aptiv connectors
• Designed and manufactured in UK

What is in the box

• x1 Linear-42 Elite LED Lamp
• x1 Anti-Theft Side Mount (1127 K)

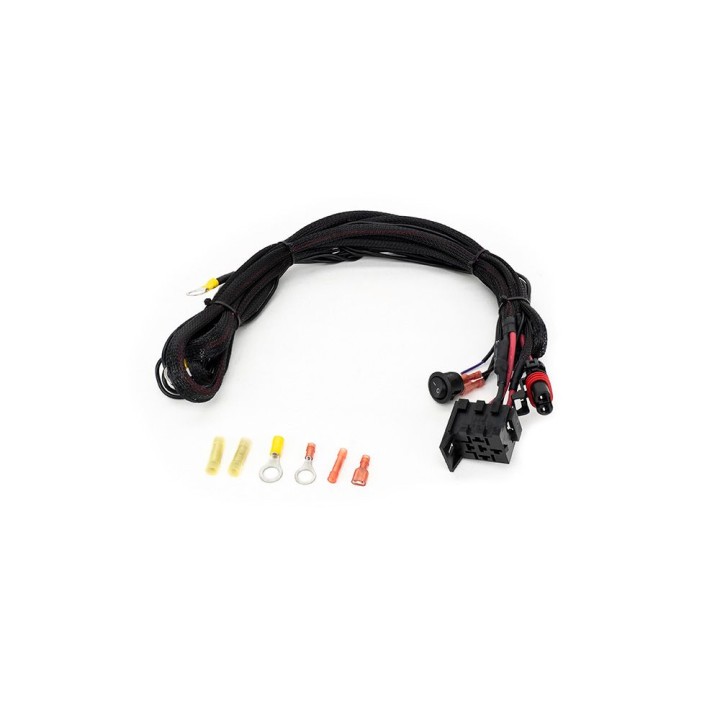

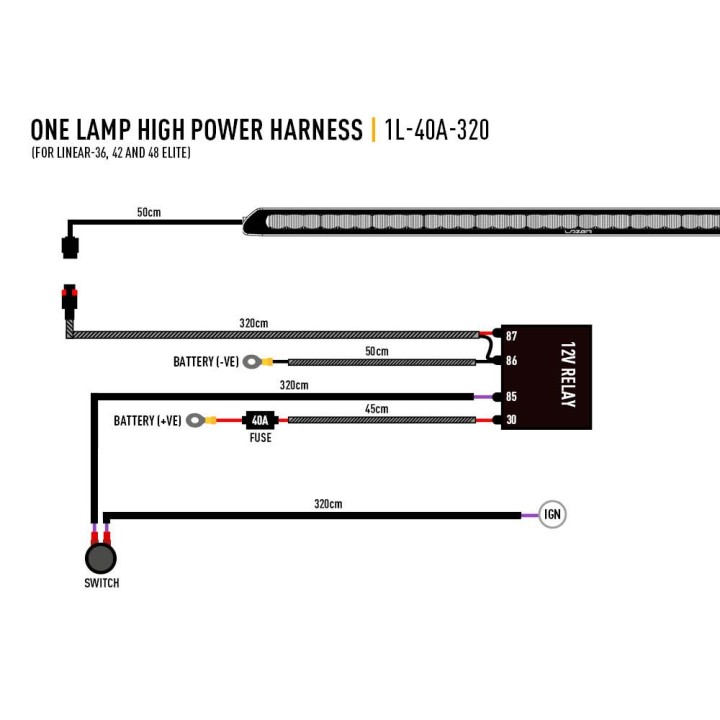

• x1 Single-Lamp Wiring Harness (1L-40A-320)
• x1 Installation Instructions

Technical data

• Luminous flux: 33,300 lm
• Driver 'FOV' flux: 23,909 lm
• Colour temperature: 5000 K
• Number of LEDs: 84
• Power consumption: 355 W
• Current draw: 24.7 A
• Peak current draw: 35.5 A
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 3.5 kg

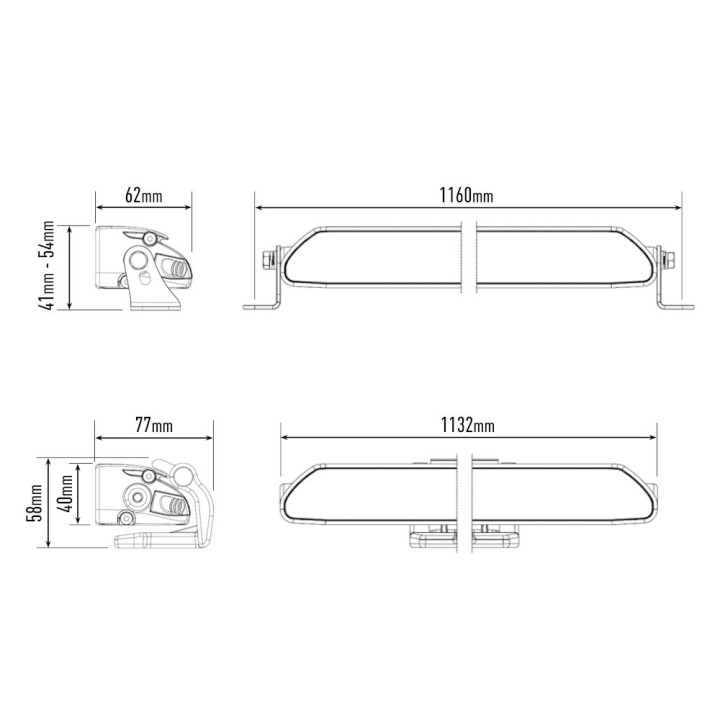

• Width: 1132mm
• Depth: 62mm
• Height: 40mm

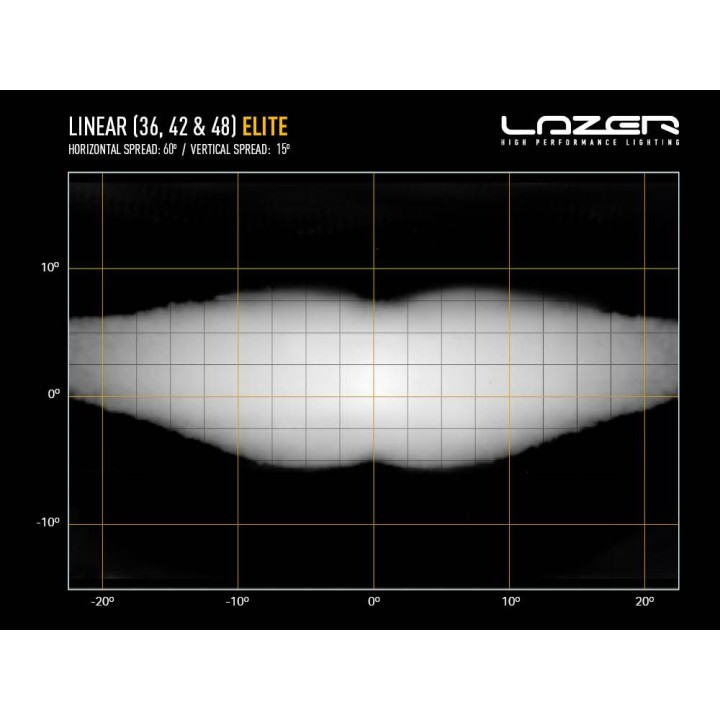

• Horizontal beam angle: 60°
• Vertical beam angle: 15°
• Connector: 2-Pin Aptiv (+20cm Cable)
• Ingress protection: IP68
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2

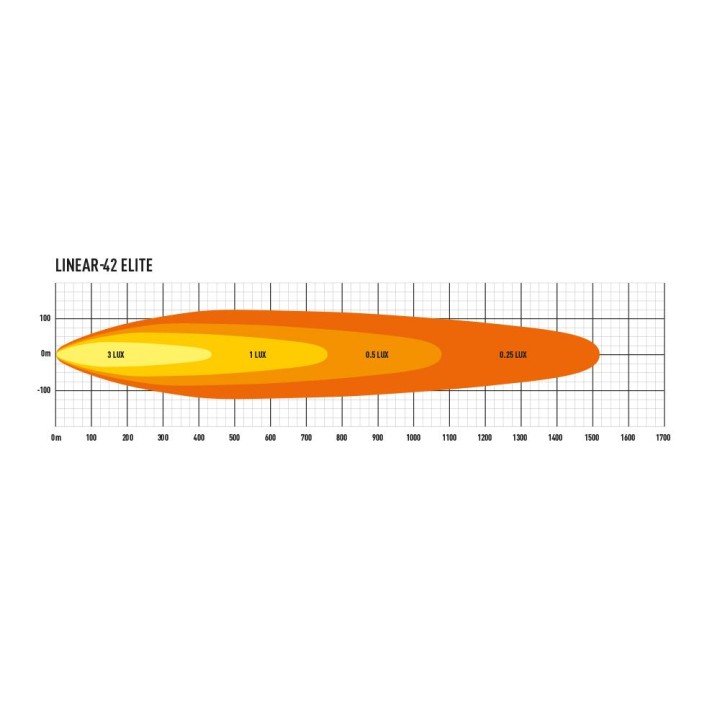

Beam range

Who it is for

For installs where space is tight — grille, bumper, windscreen mount, roof.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 2-Pin Aptiv (+20cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

Why it is worth it

• 33,300 lm of output and 1530 m of range on the 0.25 lx line
• IP68 ingress protection
• LAZER — designed and manufactured in the United Kingdom

Frequently asked questions

What is in the box?

The box contains: x1 Linear-42 Elite LED Lamp, x1 Anti-Theft Side Mount (1127k), x1 Single-Lamp Wiring Harness (1L-40A-320), x1 Installation Instructions.

How far does it throw?

The manufacturer quotes 1530 m on the 0.25 lx line, 1082 m at 0.5 lx and 765 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 355 W, i.e. 24.7 A at 14.4 V.

What are the dimensions?

Width 1132mm, depth 62mm, height 40mm, weight 3.5 kg.
