Product description

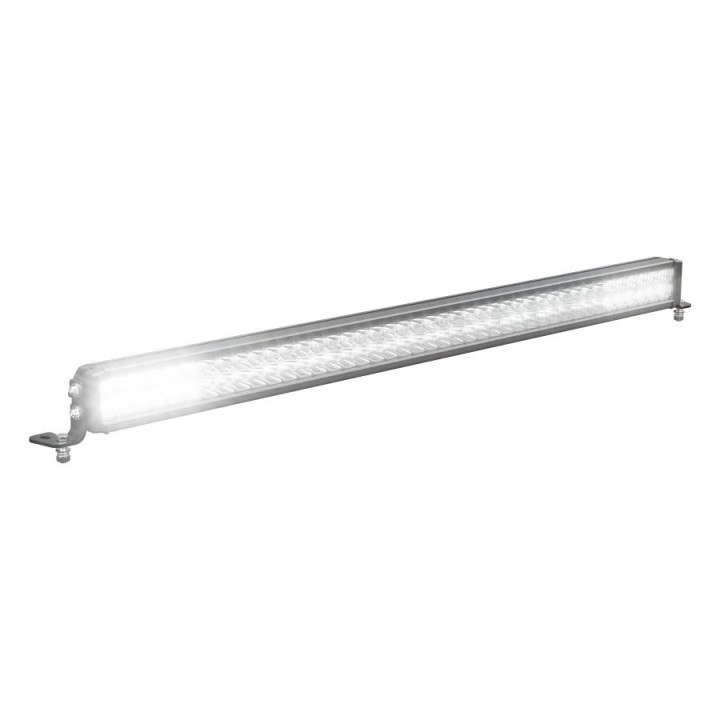

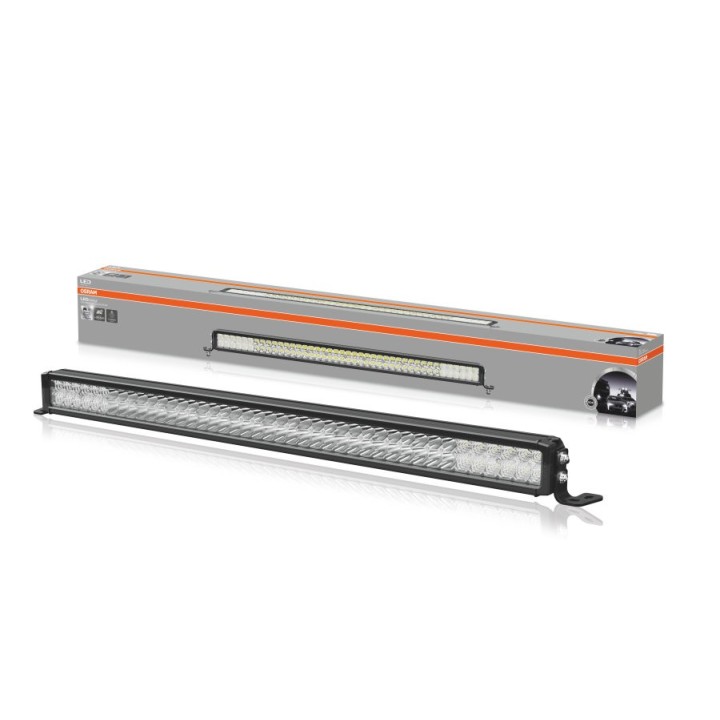

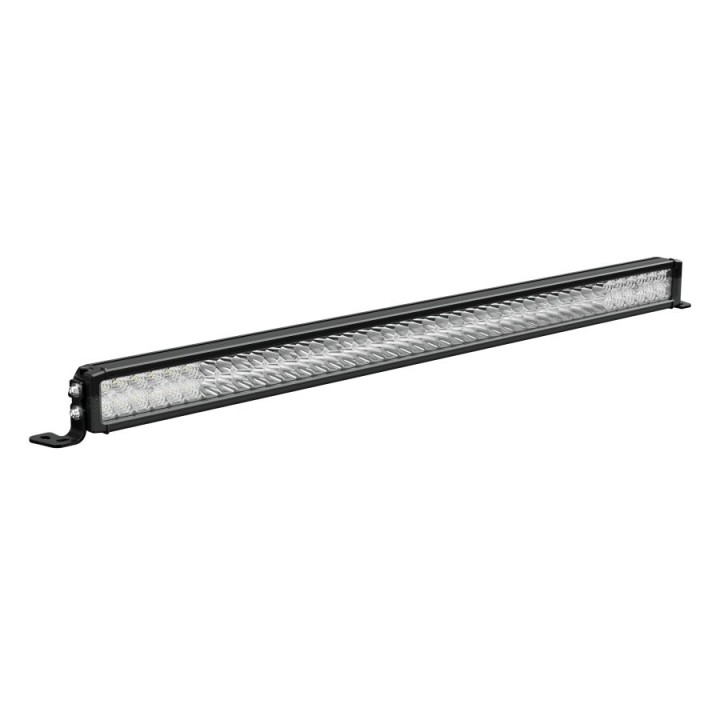

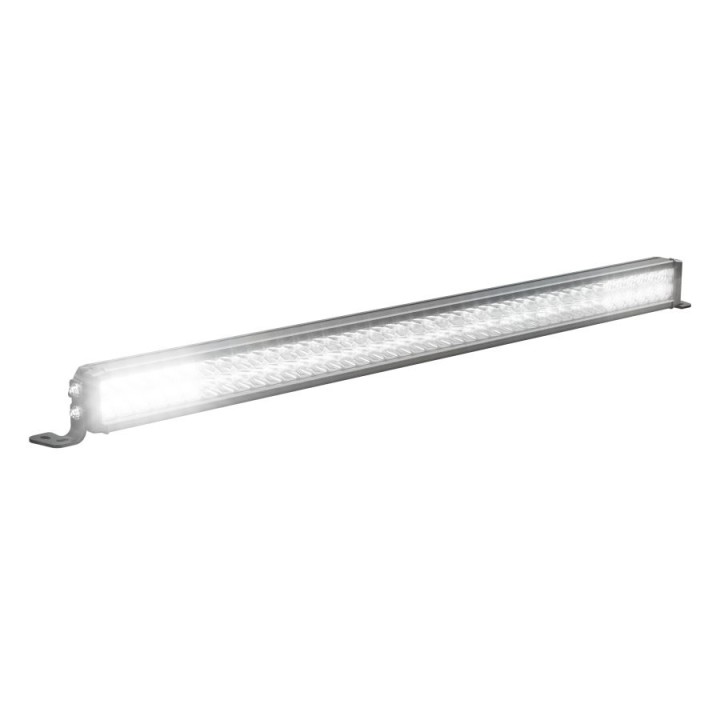

VX1000-CB DR SM is a powerful LED lightbar created as an additional high-beam driving light for a central single-mount installation. The dual-row design with 84 LEDs delivers long reach and clear forward illumination, helping you drive more confidently on unlit roads, forest access tracks and off-road routes after dark.

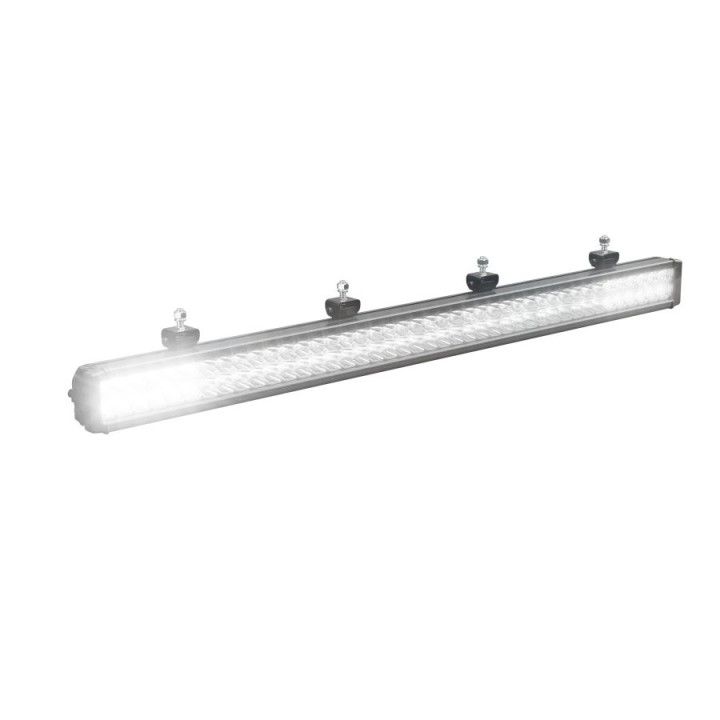

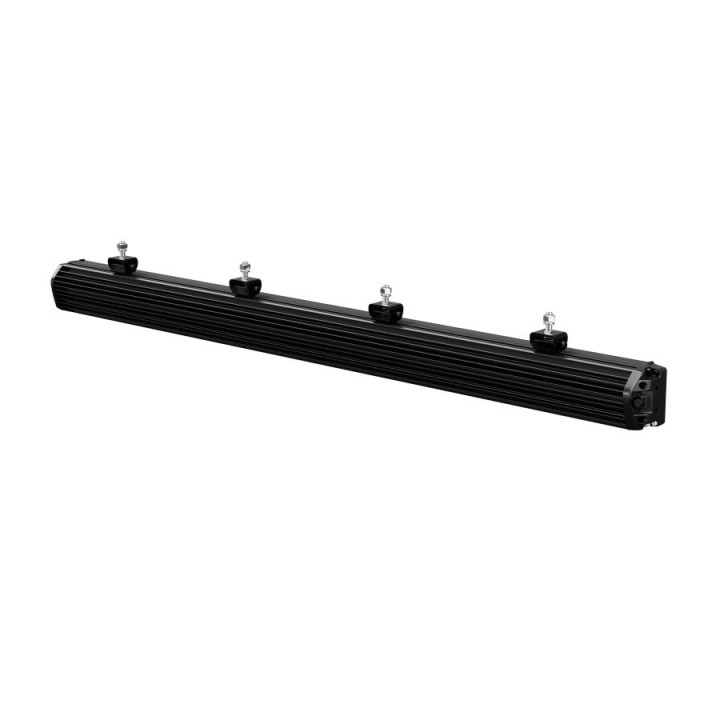

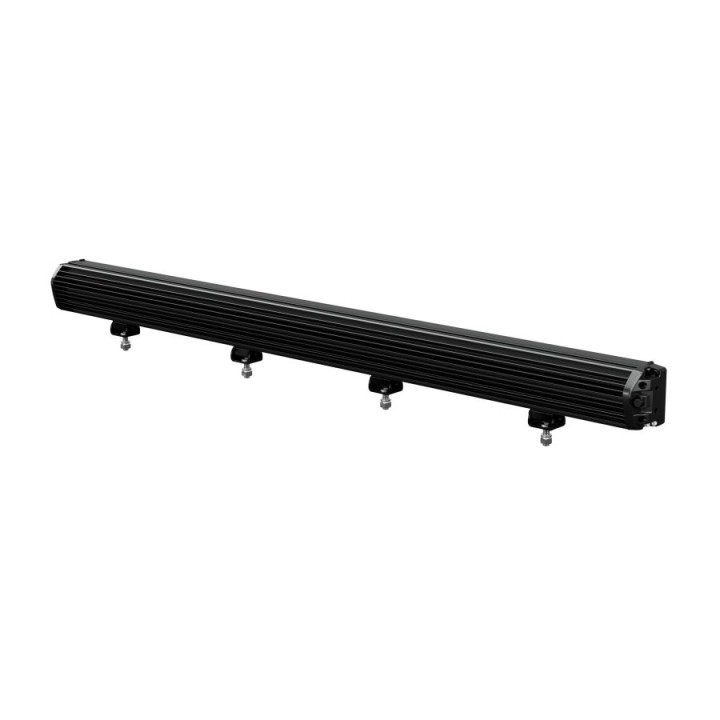

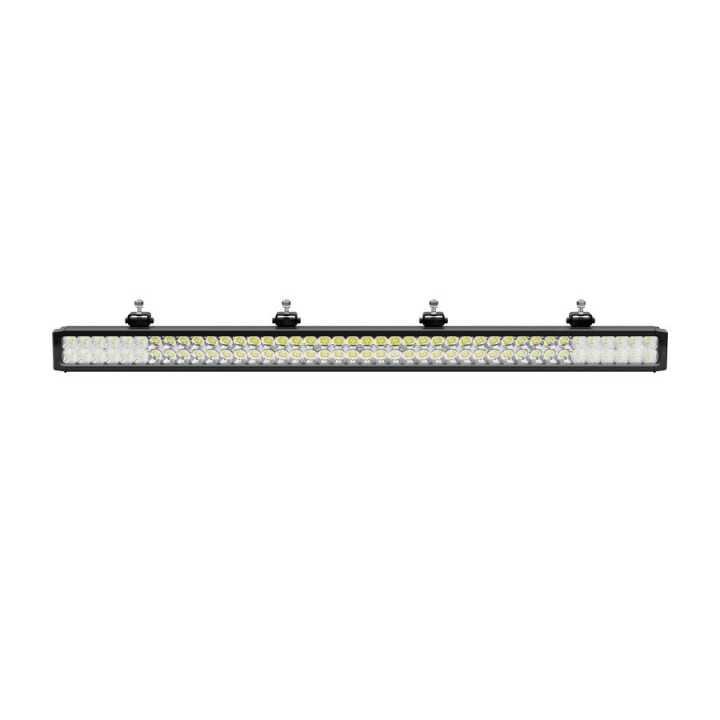

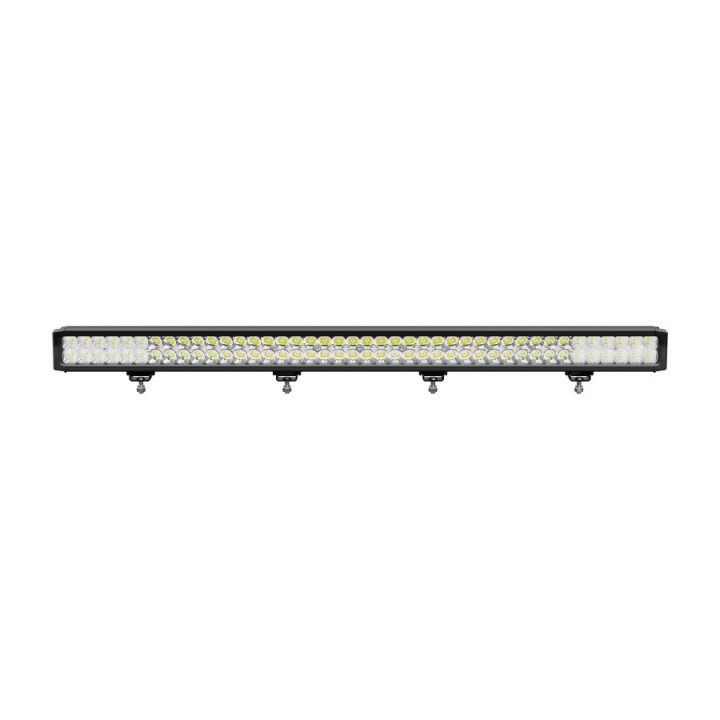

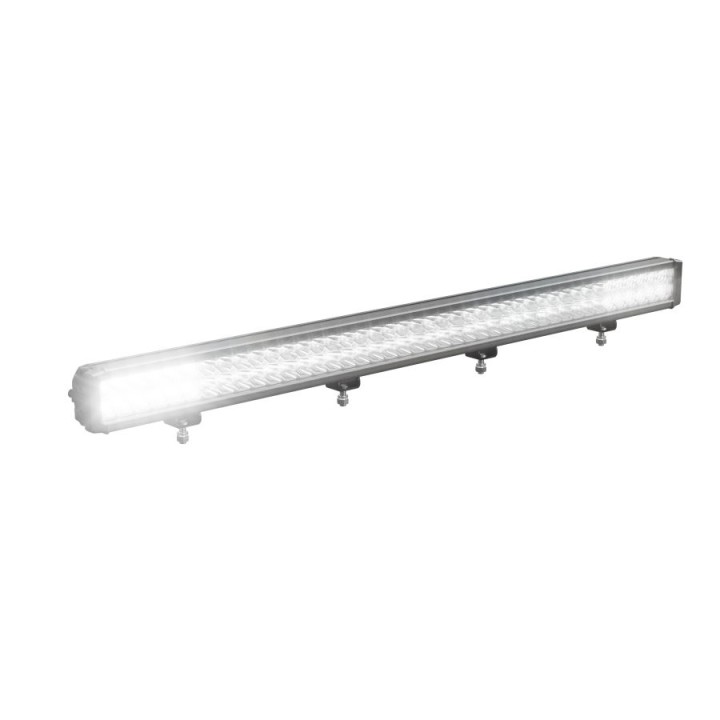

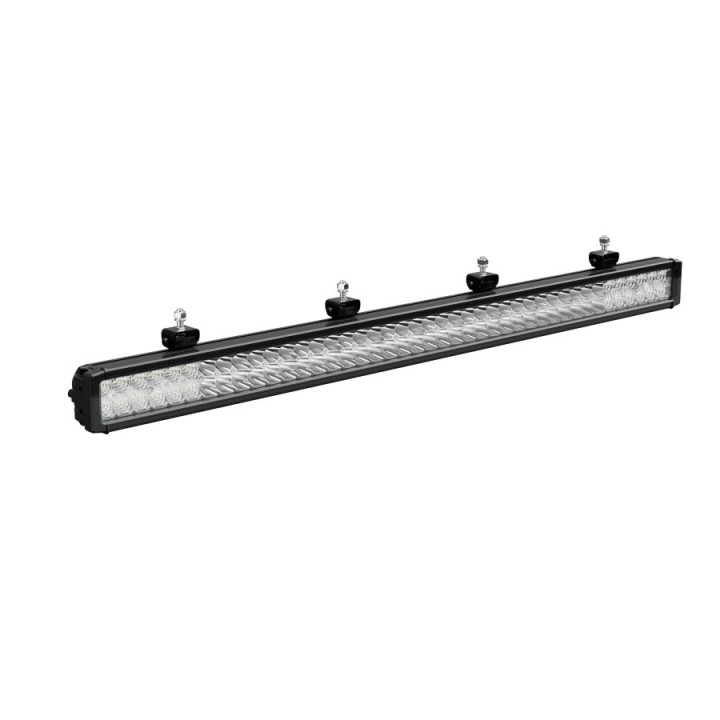

An aluminum housing combined with a polycarbonate lens keeps the unit robust and ready for harsh conditions. Thanks to the included standard brackets, the lightbar can be installed in the configuration that best fits your build (pendant, upright or side mounting).

Key features

• Additional high-beam driving light for central single-mount installation.

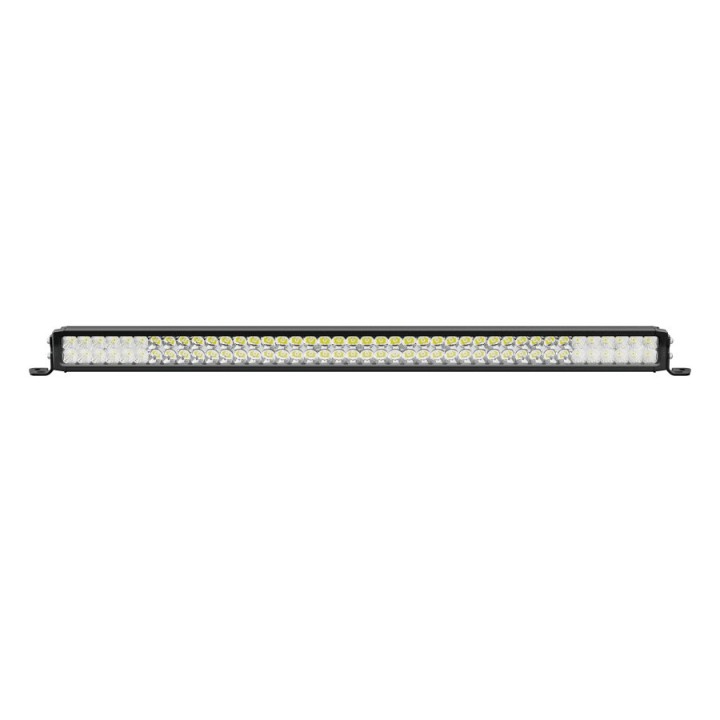

• Dual-row lightbar design with 84 LEDs.
• Reach at 1 lx: 385 m.
• Luminous flux: 10100 lm; color temperature: 6000 K.
• Aluminum housing and polycarbonate lens.
• Ingress protection rating: IP6K8 / IP6K9K.

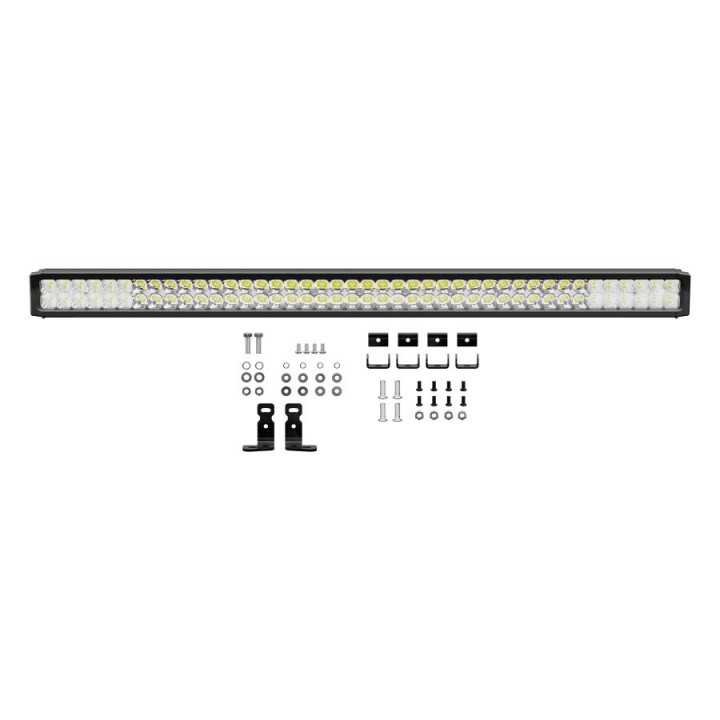

• Includes standard brackets for pendant, upright and side mounting.
• Standards: ECE R10, ECE R149; E57 approval; ECE reference number: 17.5 + 17.5.

Technical data

• Model: Lightbar VX1000-CB DR SM
• Part number: LEDDL121-CB DR SM
• Rated power: 108 W
• Test voltage (measurement): 13.2 V
• Luminous flux: 10100 lm
• Reach at 1 lx: 385 m
• Color temperature: 6000 K
• Dimensions: 996.0 × 62.0 × 74.0 mm (L × W × H)
• Weight: 3300 g
• Tc lifetime: > 5000 hr
• Lamp plug: Open wire
• Ingress protection: IP6K8 / IP6K9K
• Warranty: 2 years

Off-road and 4x4 use

This lightbar is a strong choice for night driving on expeditions, overlanding routes and off-road sections where you need a longer view ahead. A 385 m reach supports earlier obstacle detection and better terrain reading, while multiple mounting options help integrate it into bumpers, brackets or custom vehicle builds.
