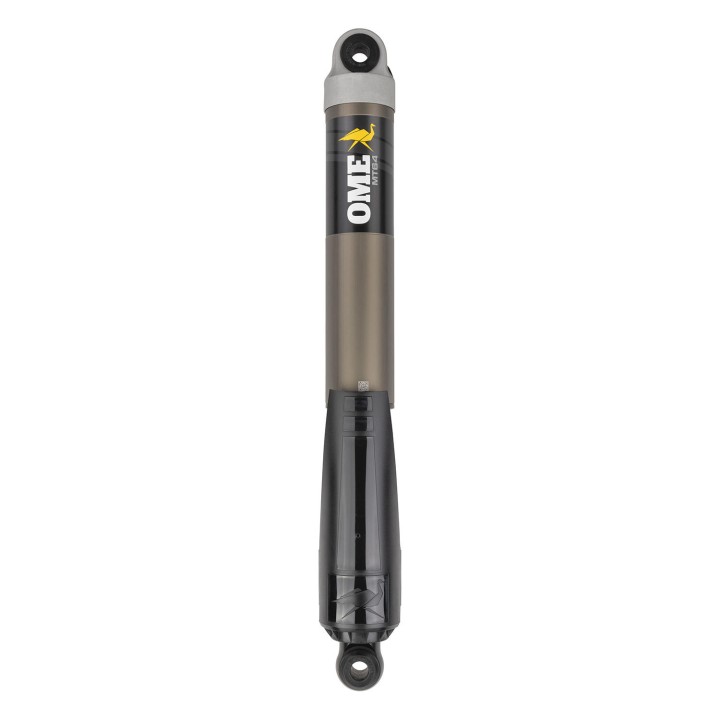

ARB MT64 Medium rear shock absorber - Ford Ranger (2022 -)

The ARB MT64 Medium rear shock absorber - Ford Ranger (2022 -), part number MT64602003L. Everything below comes from the importer catalogue entry for this part.

Key features

• Part number: MT64602003L
• designed and manufactured by ARB to its own quality standards
• the MT64 is larger than most monotube shock absorbers on the market, with a 64 mm bore
• an adjustable spring seat with six positions at 5 mm intervals lets one coil spring cover the whole weight range
• an aerospace aluminium body, as used in the BP-51, sheds heat fifteen times faster than steel
• a 22.5 mm shaft of the kind used in racing shock absorbers gives great strength and stiffness
• a smooth, controlled ride day to day and over long distances, which reduces fatigue for driver and passengers

About this part

ARB MT64 front shock absorber for the Ford Ranger and VW Amarok, 2023 on.

The MT64 name stands for a monotube design with a 64 mm internal bore.

The MT64 has six machined grooves on the outside of its aluminium body.

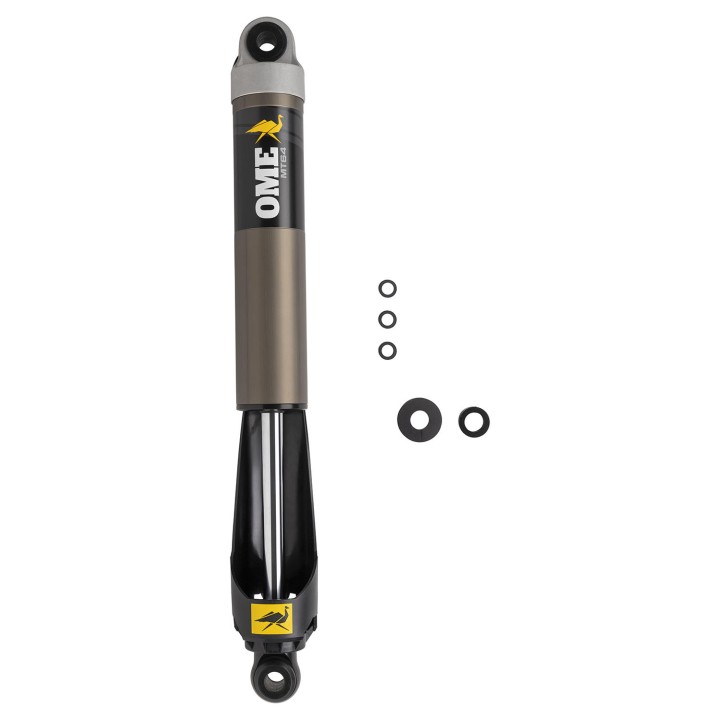

That lets the circlip supplied with every shock absorber be moved up or down to set the spring seat.

Setting the circlip and spring higher adds spring preload and ride height, ready for accessories or other added weight.

Lowering the circlip and spring seat sets the strut up for a lighter vehicle, for example one without a bull bar.

The MT64 and its large oil volume cope with the weight.

With a 64 mm bore, large shim stacks and an aluminium body, shock fade is a thing of the past.

The MT64 uses a new matt black coil spring, so the OME catalogue has to be checked when choosing one.

that allows more oil and larger shim stacks, which reduces heat build-up and keeps the ride comfortable.

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

Will it fit my vehicle?

ARB parts are made for a specific model and model year, and the part number decides what fits. Tell us the vehicle and the year and we will confirm it against the manufacturer catalogue before you order.

Can you fit it for me?

Yes. We are a workshop as well as a shop, so we can fit this and match the rest of the setup around it.

Not sure whether this is the right part number for your vehicle? Get in touch – we will check it against the manufacturer catalogue.
