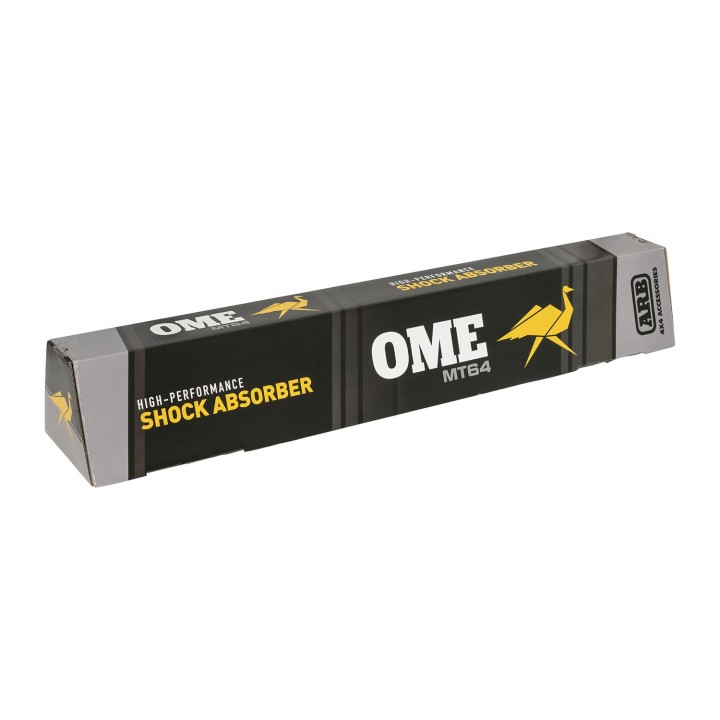

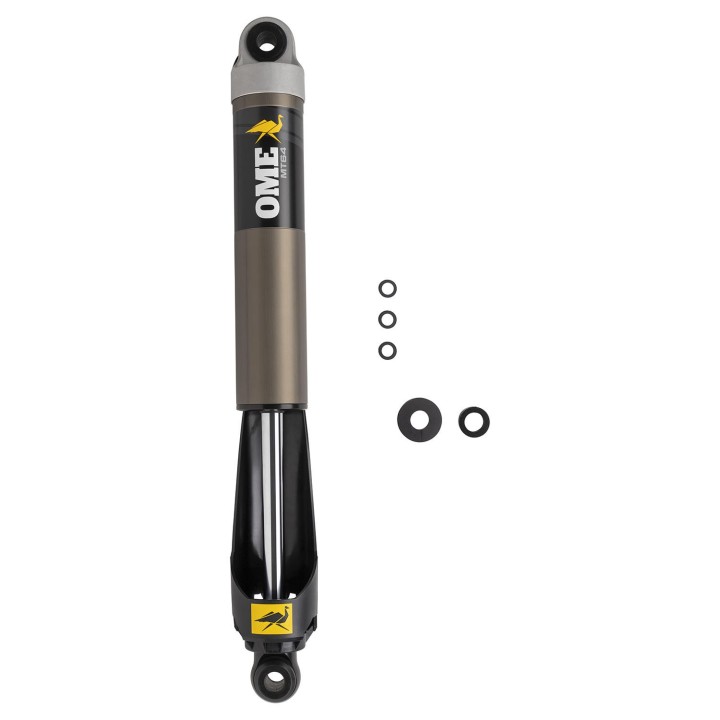

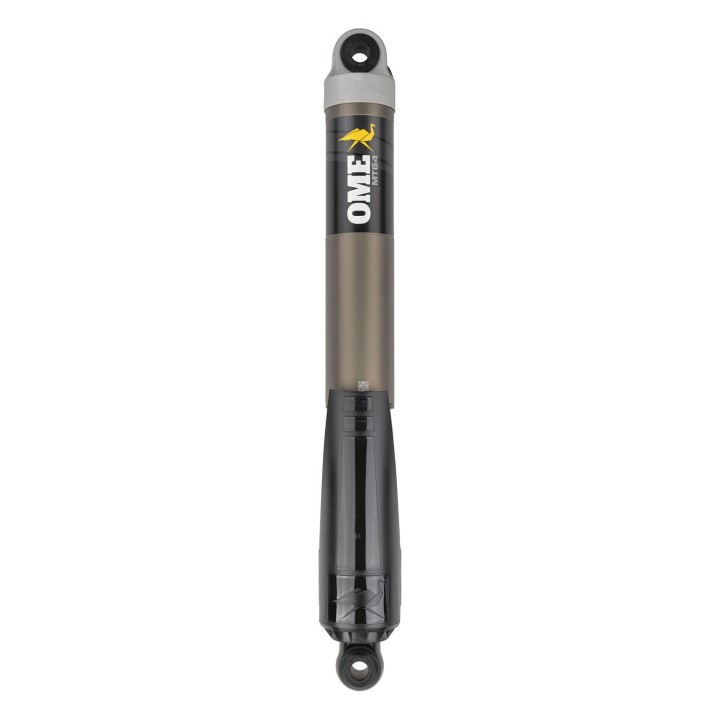

OME MT64 front shock absorber MT64901007

A touring vehicle gains weight every season: a bar, a winch, drawers, a tank, a roof load. Usually that means replacing the suspension along the way. The MT64 handles it differently – the spring seat moves through six positions at 5 mm intervals, so preload and ride height are adjusted without changing the shock. Add a 64 mm bore and an aluminium body that sheds heat far faster than steel.

Key features

• Designed and manufactured by ARB
• A monotube design with a 64 mm bore – more oil and larger shim stacks
• An adjustable spring seat: six positions at 5 mm intervals
• One spring covers a range of loads – as the vehicle gains weight the shock is adjusted rather than replaced
• An aerospace aluminium body, as in the BP-51 – it sheds heat fifteen times faster than steel
• A 22.5 mm shaft of the kind used in racing dampers
• A circlip supplied with the shock

Fitment - a discrepancy to confirm

Sources disagree on the vehicle for this part number, so it has to be confirmed before ordering.

Importer price list and description: Toyota Hilux from 2015.

Old Man Emu suspension selection guide: MT64901007 appears as a Strut MT64 for the front axle of the Toyota LandCruiser Prado 150 (to 09/2017 and from 10/2017, 2.8 diesel and 4.0 petrol, KDSS and non-KDSS), the FJ Cruiser from 2011, the 4Runner 2010–2024 and the Tacoma 2005–2015 and from 2016. The Hilux does not appear against this number.

We are not settling this on the manufacturer’s behalf: the MODEL feature is left empty and the fitment is confirmed with the supplier before dispatch. Send us the model, year and specification of your vehicle and we will check the number before you order.

Specifications

• Part number: MT64901007
• Range: Old Man Emu MT64
• Axle: front
• Design: monotube, 64 mm bore
• Shaft: 22.5 mm
• Body: aerospace aluminium
• Spring seat: six positions at 5 mm

Installation notes

Setting the circlip and spring seat higher gives more spring preload and more height – for accessories or other added load. Setting it lower prepares the strut for a lighter vehicle, for example one without a steel bar and winch.

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

Which vehicle does this number fit?

The sources disagree: the importer says Hilux from 2015, while the OME selection guide points to the Prado 150, FJ Cruiser, 4Runner and Tacoma. We confirm the fitment with the supplier before dispatch.

What does the name MT64 mean?

A monotube design with a 64 mm internal bore.

Why an adjustable spring seat?

It lets one spring cover a range of loads. As the vehicle gains weight over time the shock is adjusted rather than replaced.

Planning suspension for a loaded vehicle? Get in touch – we will confirm the number with the supplier and match springs and shocks to what your vehicle actually weighs.
