TX-KB 005 LED Lamp Wiring Harness with Remote

A ready-made harness for wiring an LED lamp, operated by a remote control instead of a cabin switch. No hole drilled in the dashboard and no cable pulled through the bulkhead — the control sits on a key fob.

A relay and a fuse are included. The supplier quotes a remote range of about 20 metres, a cable length of about 3 metres and two functions: constant on and a flash mode.

Key features

• Remote control operation, with no switch to fit in the cabin
• Relay and fuse included
• Two modes: constant on and flash
• Supports one lamp rated up to 300 W

Specification

• Maximum lamp power: 300 W
• Number of lamps supported: 1
• Remote range: about 20 m
• Cable length: about 3 m
• In the box: harness, relay, fuse, remote

Fitting and notes

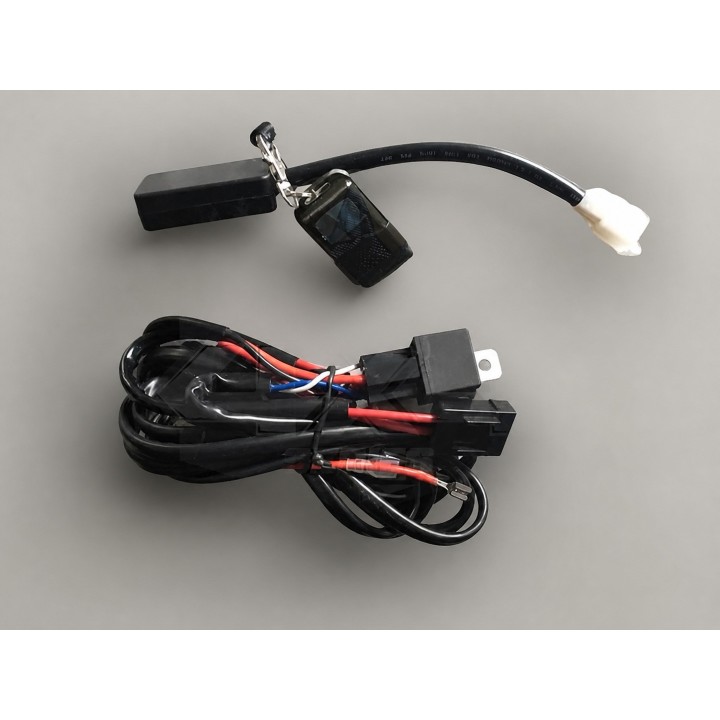

The supplier states explicitly that the photo is illustrative only. It shows a harness with a relay and a fuse holder, a small remote and a receiver module ending in a white plug — but this may not be exactly the variant you receive.

The flash mode is an auxiliary function, not an emergency signal. A flashing auxiliary lamp on a public road falls under vehicle lighting rules — use it off the road or confirm what is permitted before driving.

Frequently asked questions

Can I connect two lamps?

The supplier states support for one lamp of up to 300 W. For two lamps, add up the load and confirm it with the supplier.

What voltage is the harness for?

The supplier gives no operating voltage and no fuse rating. Check before fitting it to a 24 V system.

Can a normal switch be added?

The supplier does not describe that option. The kit is listed as remote-controlled only.
