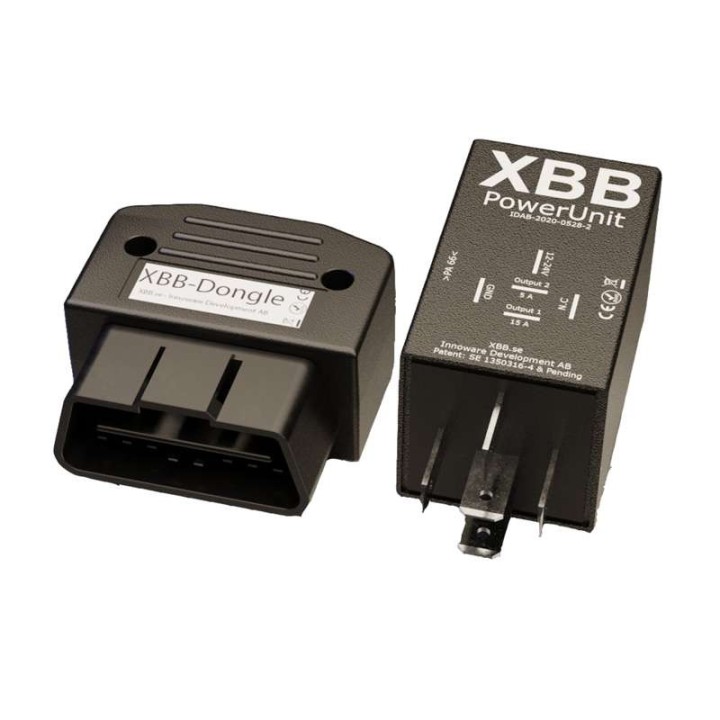

trands XBB OBD2 KIT (XBB Dongle + XBB PowerUnit)

Advanced wireless lighting control system – no wiring modifications needed

The Strands XBB OBD2 KIT is an innovative wireless interface designed for controlling additional lighting in 4x4 vehicles, SUVs, pickups, vans, and utility vehicles. It enables safe and seamless installation of LED light bars, driving lights, and work lamps without tapping into CAN wires or modifying the factory wiring harness.
This solution is perfect for modern vehicles equipped with complex CAN systems where traditional relay setups often cause errors or conflict with onboard electronics.

Key Features of the XBB OBD2 KIT

? Plug & play installation

Simply connect the XBB Dongle to your vehicle’s OBD2 port, pair it with the PowerUnit and the mobile app – the setup takes just a few minutes and requires no electrical modifications.

? Smartphone configuration

All settings are controlled via the XBB Configurator® app (Android & iOS). You can assign CAN signals, manage output behavior, and configure lighting functions with an easy-to-use interface.

? Wireless communication

The Dongle and PowerUnit communicate through Bluetooth 5, reducing cabling and simplifying installation.

⚡ Full CAN-bus integration

The system reads factory CAN signals such as:

• high beam
• low beam
• reverse light
• turn indicators
• position lights and DRL

This ensures perfect synchronization with your vehicle’s existing lighting logic.

? No wiring cuts — no warranty issues

There is no need to splice into factory wires or connect to headlight harnesses. The system is fully reversible and completely safe for modern electronic systems.

Technical Specifications – Strands XBB OBD2 KIT

XBB Dongle

• Operating voltage: 10–36 V DC
• Interface: OBD2
• Communication: Bluetooth 5
• Compatibility: Android / iOS
• Operating temperature: –40°C to +85°C
• Housing material: durable plastic
• Weight: approx. 63 g
• Protection rating: IP53

XBB PowerUnit

• Input voltage: 10–36 V DC
• Output 1: 15 A (up to 180 W @ 12 V)
• Output 2: 5 A (up to 60 W @ 12 V)
• Total outputs: 2 independent channels
• Connectors: 5 × 6.3 mm terminals
• Wireless communication with Dongle
• Operating temperature: –40°C to +85°C
• Rugged plastic housing
• Universal mounting points

Ideal for 4x4 and off-road applications

The XBB OBD2 KIT is a perfect choice wherever traditional relay installations are complicated or risky. It is especially useful in modern vehicles such as:

• Toyota Hilux, Land Cruiser
• Ford Ranger & Ranger Raptor
• Isuzu D-Max
• Mitsubishi L200
• Jeep Wrangler JL/JT
• VW Amarok
• Utility vehicles and fleet cars

Perfect for controlling:

• LED driving lights
• light bars
• work lights
• reverse lighting
• auxiliary off-road lighting

Summary

The Strands XBB OBD2 KIT is a revolutionary solution for installing additional lighting in modern vehicles. With full CAN-bus compatibility, wireless communication, and completely non-intrusive installation, it offers a professional, safe, and fast way to control auxiliary lighting.
It’s an excellent choice for off-road enthusiasts, professional installers, and workshops looking for a clean and reliable installation method.
