Strands Siberia XPA SR 22” (809412A) is a single-row LED light bar designed for confident night driving and a clean, modern front-end look. It delivers an extended driving beam and lets you choose the position light color—white or amber—so you can match the style of your build and other auxiliary lighting.

A standout feature of this version is the Hello function for the position lights. Trigger it with a quick double flash of the high beam within 2 seconds to launch a dynamic position-light animation (position-light wire connection required).

Key features

• 22” single-row LED bar for driving light applications.
• Two operating modes: Xperience mode (default) and E-mode.

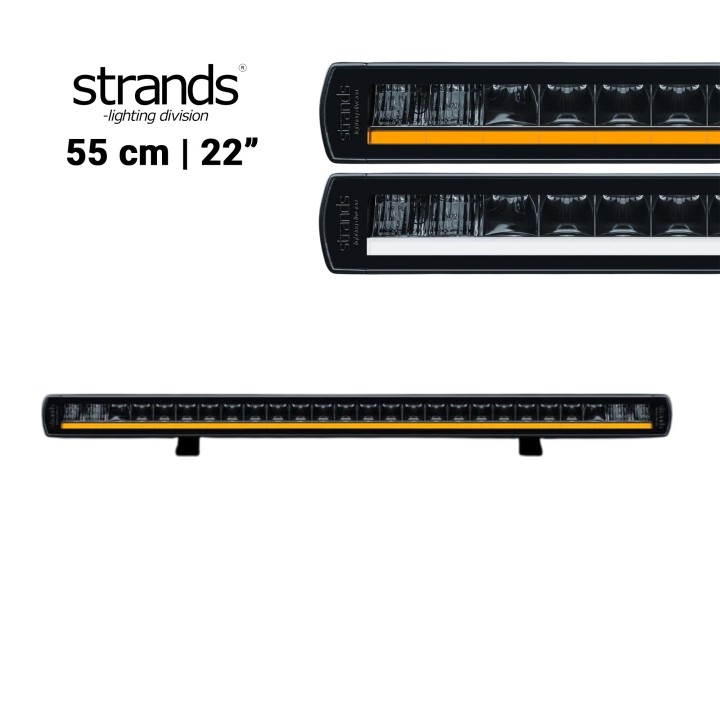

• Selectable position light color: white or amber.
• Hello animation for position lights, activated by a double high-beam flash (within 2 seconds).
• IP68/IP69K ingress protection with aluminium housing and polycarbonate lens.
• DT-4PIN connector and 550 mm cable for practical installation.

Technical data

• SKU: 809412A
• Series / type: Siberia XPA Single Row LED Bar
• Size: 22"
• Voltage: 10–32V DC
• Power consumption: 102W (Xperience); 25W (E-mode)
• Position light power consumption: 9.2W white; 9.2W amber
• Lumen output (actual): 7150 lm (Xperience); 1875 lm (E-mode)

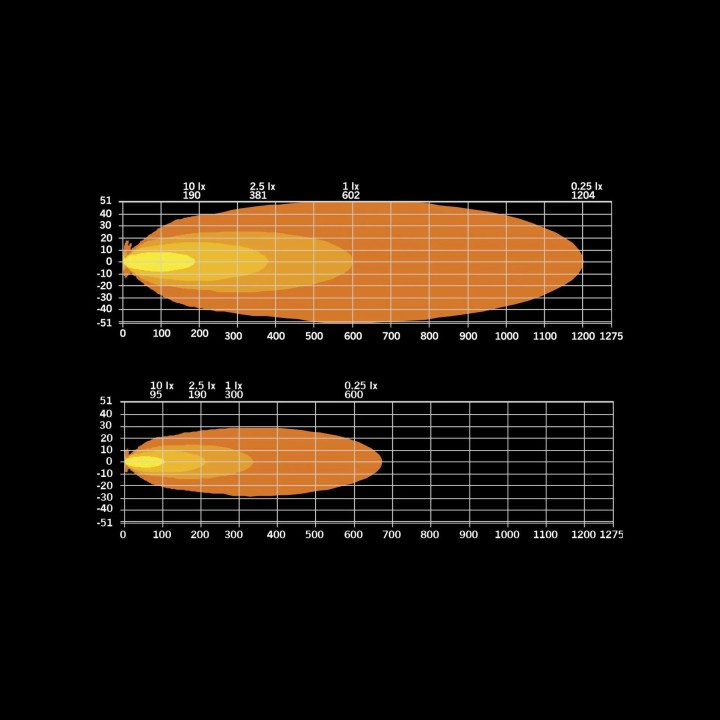

• 1 lux distance: 602 m (Xperience); 300 m (E-mode)
• Color temperature: 5700K
• Beam pattern: Extended beam
• Ingress protection: IP68 / IP69K
• Lens color: Clear
• Connector: DT-4PIN
• Cable length: 550 mm
• Housing material: Aluminium
• Lens material: Polycarbonate

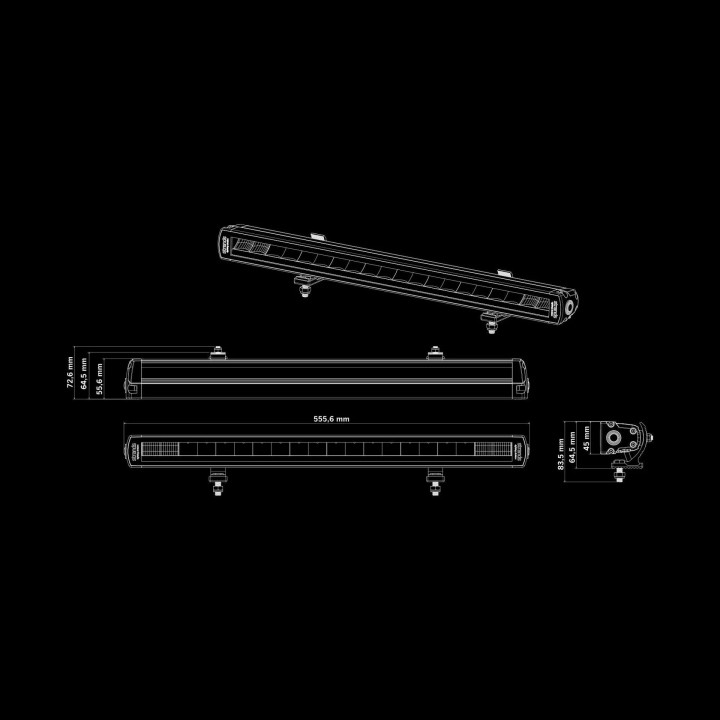

• Dimensions: 555.6 mm (L) × 55.5 mm (D) × 45 mm (H); 64.5 mm height incl. bracket
• Operating temperature: -35°C to +60°C
• Approvals: ECE R148; ECE R149
• EMC: ECE R10
• REF: 20
• Install note: side brackets not included (optional accessory)

Off-road and 4x4 use

For overlanding and off-road builds, you need a predictable beam and durability in harsh conditions. The extended beam pattern supports fast night transits, while the selectable white/amber position light helps create a consistent lighting signature on your vehicle. The E-mode can be useful when you want a reduced output setting for specific conditions.

Why buy from Szekla4x4.pl

At Szekla4x4.pl you get lighting picked with real 4x4 use in mind. We help match the bar to your installation concept and accessories, so your setup is functional, tidy, and ready for long-distance trips.
