APEX Compact Reel System Complete Kit with Inflator and Hose

Building a reel system from scratch usually means four separate orders and one missing fitting that holds the job up for a week.

Here it goes into one basket: part of the hardware is always in the kit, while the reel, the inflator and the length of hose to the compressor are chosen with the order.

What the kit gives you

Always included

• high flow push-on chuck — 1 pc
• banjo bolt — 1 pc
• 1/4" NPT to 3/8" braided hose adapter — 1 pc

Chosen with the order

• the Compact Reel System reel: 20 feet or 35 feet — the 35 ft version has a body about 38 mm deeper (4.400" against 2.900")

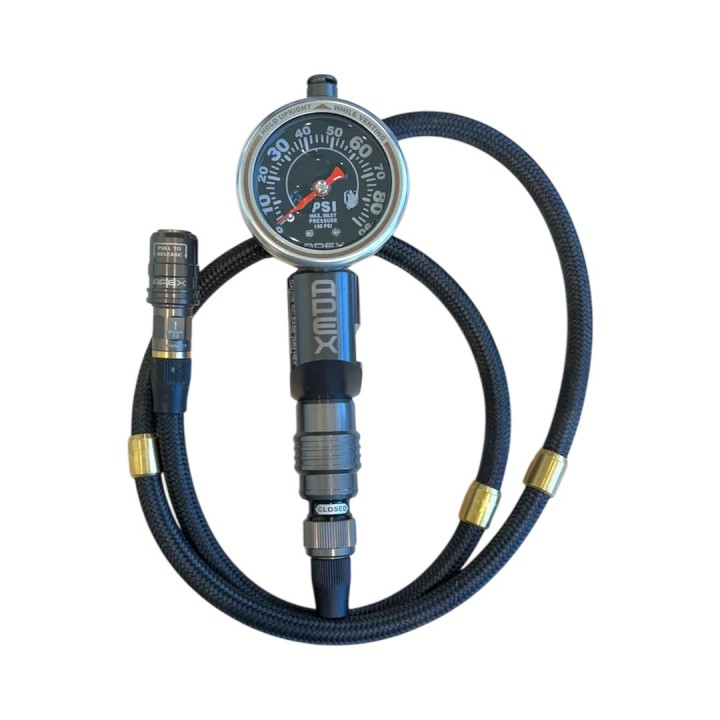

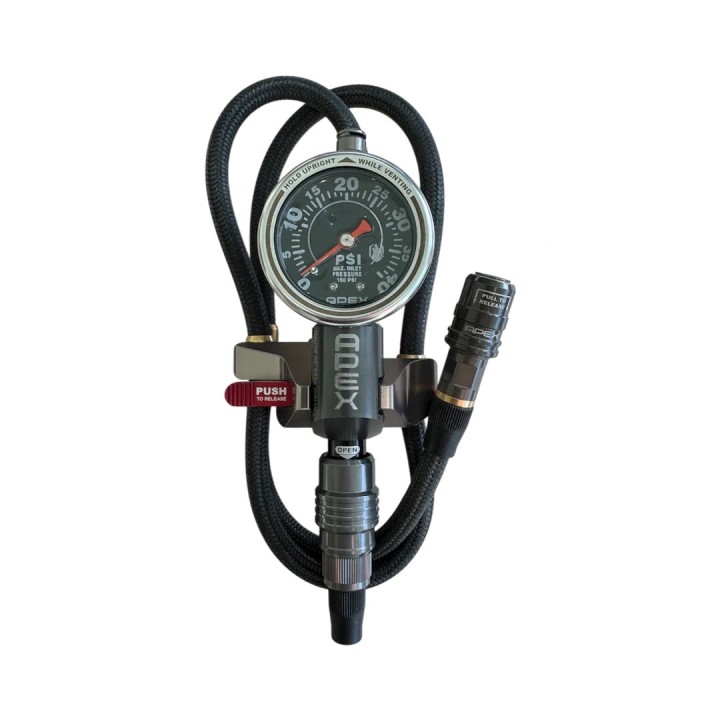

• the inflator with gauge: PTI 40 PSI, PTI 90 PSI or the Apex Inflator 90 PSI
• the length of 3/8" braided hose to the compressor: 5, 10, 15 or 20 feet

Those choices spread the manufacturer price of the kit from 378 to 626 dollars, so state the configuration you want with your order — or write to us and we will pick it.

Key benefits

• one order instead of four — the hardware that joins the reel to the compressor is selected by the manufacturer, so the parts match
• the inflator has a gauge, so you inflate and check the pressure with one tool
• the high flow push-on chuck goes onto the valve in one movement
• the reel is the same one as in the single listings, and its hose can be cut and repaired in the field with an ordinary knife

Technical data

• Part number: X02-06-002-SET
• Contents: reel, inflator with gauge, push-on chuck, banjo bolt, 1/4" NPT adapter, hose to the compressor
• Reel: Compact Reel System — a hard anodised 6061-T6 aluminium body (wear and fade resistant), a reel guide in glass-filled nylon 66 polyamide (DuPont, UV and chemical resistant), Viton seals rated for high temperature and resistant to chemicals, an aluminium knob, lubricated and sealed, with no play
• Reel hose: nitrile rubber with a nylon braid — abrasion resistant, flexible at low temperature, high burst pressure at 93°C (200°F)
• Fitting standard: 1/4" NPT thread, 3/8" APEX hose
• Status: patent pending

Who it is for

For anyone building an on-board air system from scratch who would rather know that the hardware matches. It also makes sense as a first purchase if you are only starting with on-board air.

Installation and notes

The manufacturer sells mounting brackets separately: a universal one and dedicated versions for the Jeep JL, JKU and Gladiator. It also explicitly forbids taking the reel apart — that damages it and voids the warranty.

Frequently asked questions

Do I need extra fittings for the compressor?

No. The banjo bolt, the 1/4" NPT to 3/8" braided hose adapter and a length of hose to the compressor are in the kit — you only choose how long that length is.

How do the inflators differ?

In measuring range and price. The mount is included with the PTI 90 PSI and optional with the Apex Inflator 90 PSI — for the PTI 40 PSI the manufacturer does not mention one.

What does the part number X02-06-002-SET mean?

It is our own designation for the whole kit — the manufacturer gives this configuration no part number of its own. X02-06-002 on its own is the manufacturer's 35 ft reel.

Does the kit include a bracket for the reel?

No, brackets are bought separately; which versions exist is covered in the installation section.

Not sure which reel version and which hose length suit your vehicle? Get in touch and we will pick them for you.
