Strands Dark Knight Slim — tail and brake light, 238 mm, 12 LED

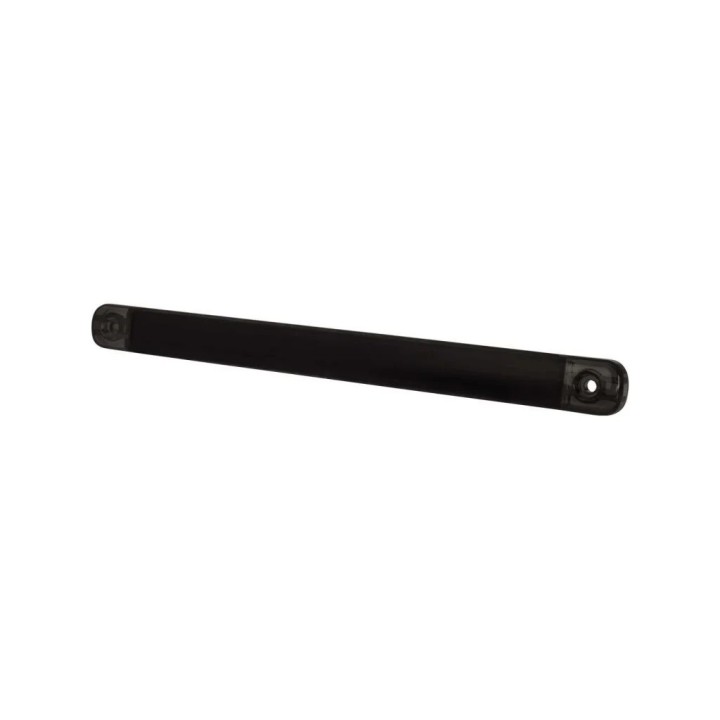

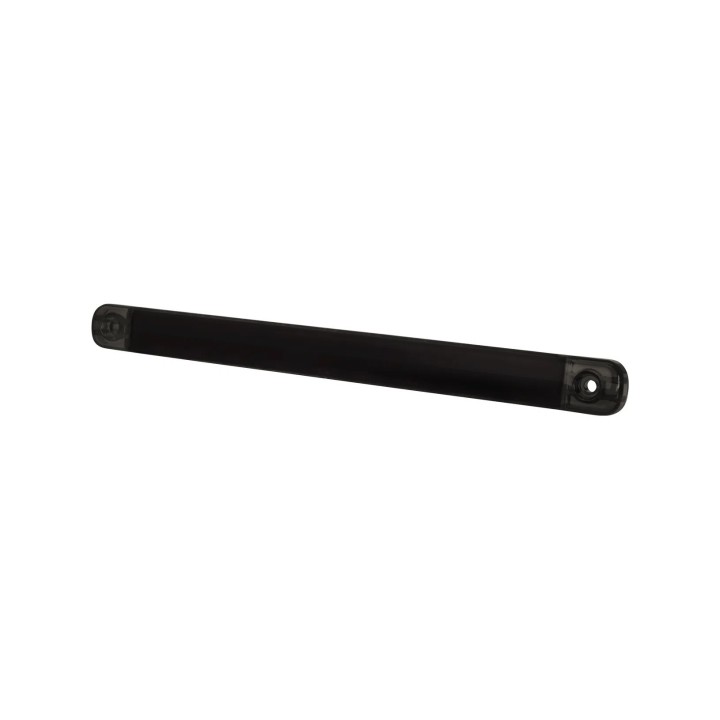

Ten millimetres of depth. That is all this lamp stands off the surface you bolt it to — less than a bolt head. Switched off it is a dark strip that reads as body trim rather than bolted-on equipment.

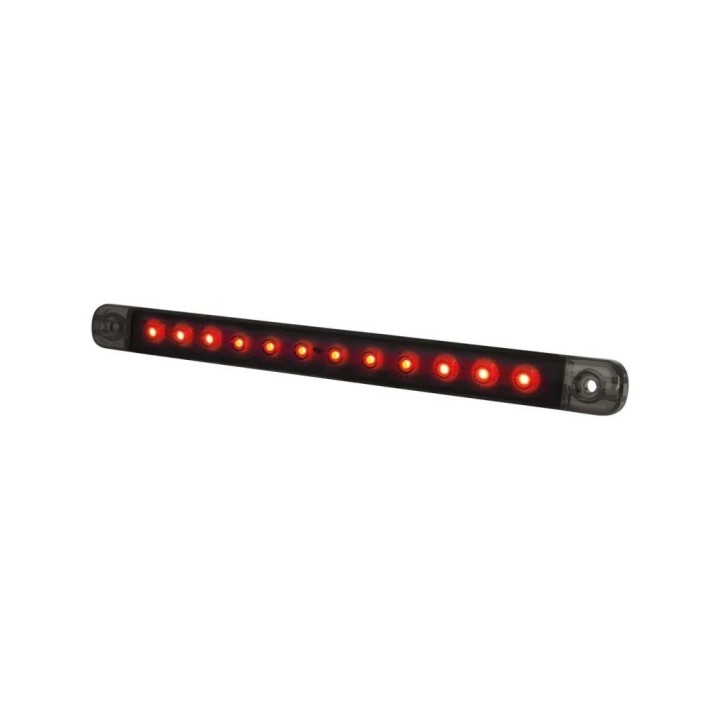

Touch the brake and twelve red LEDs come out of that strip, spread across the full 238 mm. One housing runs two functions: rear position light and brake light, switched by voltage on a separate wire.

Key benefits

• 10.4 mm deep — the lamp stays inside the body line, so it does not catch a loading dock or collect branches when you reverse off-road.
• 238 mm of light instead of a dot — twelve LEDs stretched across the full length give a long horizontal line, easier to read at distance than a single round lamp.
• Two functions in one housing — 0.5 W tail and 3.5 W brake. No second lamp to fit and no second loom to run.
• Tinted lens — one uniform dark strip when off, with no visible LEDs.
• 10–32 V supply — the same lamp works on 12 V and 24 V, on a car, a 4x4, a trailer or a truck.
• IP6K9K — dust tight and rated for high-pressure, high-temperature washing, the class you want on a lamp mounted low in the spray zone.
• 3 m cable included — usually enough to reach the junction box without an extension.
• Five-year Strands Freedom Warranty.

Technical data

• Manufacturer part number: 800335
• Functions: rear position light and brake light
• LED count: 12
• Light colour: red
• Lens colour: tinted
• Supply voltage: 10–32 V DC
• Power draw: 4 W total — brake 3.5 W, tail 0.5 W
• Dimensions: 238 × 20.6 × 10.4 mm
• Mounting hole spacing (CC): 213.4 mm
• Housing and lens material: polycarbonate
• Ingress protection: IP6K9K
• Operating temperature: −40°C to +40°C
• Cable: 3 m, YLY-S 3×0.5 mm²
• Approvals: ECE R7, ECE R10.06
• In the box: rubber pad
• Manufacturer warranty: 5 years (Freedom Warranty)

Wiring and mounting

The cable carries three wires. Per the manufacturer's manual: red is the brake light positive, black is the supply positive and white is ground. Verify the markings on your own unit before connecting.

The lamp can be mounted horizontally or vertically. A rubber pad is included to level it on an uneven surface and seal the joint. The manufacturer asks you not to shorten the cable below 50 cm, to switch the power off while installing, and to make every connection watertight.

In service — what the manufacturer says

Who it is for

For bodies, trailers, car transporters and pickups where the rear face is flat and there is no room for a lamp standing several centimetres proud. It also works as an additional brake light on a tailgate or a body rail — a long horizontal line is visible from further away than a dot.

Why it is worth it

• Two functions and twelve LEDs in a housing 10.4 mm deep.
• ECE R7 and R10.06 approval — a road-legal lamp, not decoration.
• Five-year manufacturer warranty and IP6K9K sealing.

Frequently asked questions

Is this one lamp or a pair?

The price is for a single unit. A symmetrical installation needs two.

Does it work on 24 V?

Yes, the supply range is 10–32 V DC, so it runs on both 12 V and 24 V systems.

Does the tinted lens reduce the light output?

The lamp holds ECE R7 approval for the tail and brake functions in this exact lens version, so its photometric performance meets the regulation.

How long is the cable?

3 metres, type YLY-S 3×0.5 mm². The manufacturer asks you not to shorten it below 50 cm.

What else is in the box?

A rubber mounting pad.

What is the warranty?

Five years under the Freedom Warranty programme. The manufacturer requires you to keep the manual, the purchase invoice and the batch number to claim it.

Summary

• Combined tail and brake light, 238 × 20.6 × 10.4 mm, 213.4 mm mounting spacing.
• 12 red LEDs, tinted lens, polycarbonate housing and lens.
• 10–32 V DC, 4 W draw (brake 3.5 W / tail 0.5 W).
• IP6K9K, −40°C to +40°C, 3 m cable.
• ECE R7 and ECE R10.06 approval, rubber pad included, 5-year warranty.
