Strands Dark Knight Slim — indicator light, 238 mm

An indicator usually gives away where it is long before it flashes. This one does not: 10.4 mm of depth and a tinted lens make it read as a dark trim strip when off, not as a lamp stuck onto the body.

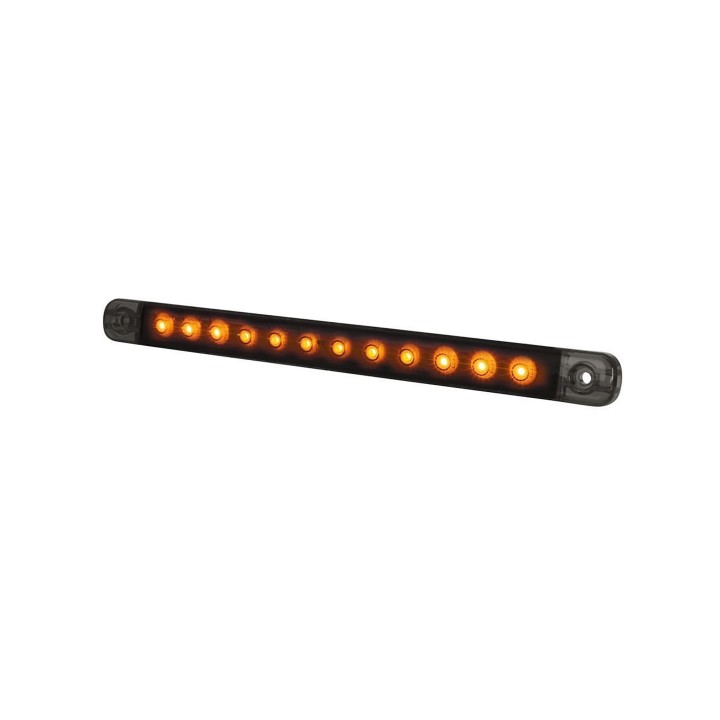

Switched on, amber comes out of that strip across the full 238 mm. A horizontal line instead of a dot — easier to read from the side and from behind than a single round lens, so the driver behind you does not have to guess which way you are turning.

Key benefits

• 10.4 mm deep — the lamp barely stands off the mounting face, so it does not catch a loading dock or branches.
• 238 mm of lit length — turn direction readable from further away and at a sharper angle than with a conventional point-source indicator.
• Tinted lens — switched off it is one uniform dark bar, matching the rest of the Dark Knight Slim range so the whole rear face looks consistent.
• 10–32 V supply — one version for 12 V and 24 V systems: car, 4x4, trailer, truck.
• IP6K9K — dust tight and rated for high-pressure, high-temperature washing.
• ECE R6 approval — a road-legal indicator, not an unapproved styling part.
• 3 m cable included — usually enough to reach the junction box without an extension.
• Five-year Strands Freedom Warranty.

Technical data

• Manufacturer part number: 800334
• Function: indicator
• Light colour: amber
• Lens colour: tinted
• Supply voltage: 10–32 V DC
• Power draw: 6.5 W
• Dimensions: 238 × 20.6 × 10.4 mm
• Mounting hole spacing (CC): 213.4 mm
• Housing and lens material: polycarbonate
• Ingress protection: IP6K9K
• Operating temperature: −40°C to +40°C
• Cable: 3 m
• Approvals: ECE R6, ECE R10.06
• Manufacturer warranty: 5 years (Freedom Warranty)

The whole range matches

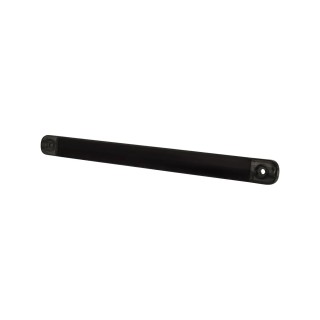

Dark Knight Slim 238 mm is three lamps in an identical housing with the same 213.4 mm mounting spacing: the indicator (this lamp), the rear position light and the combined tail and brake light. Side by side they form an even row of three identical strips — switched off they look like one piece of trim, and only differ once lit.

Mounting and service

Who it is for

For bodies, trailers, car transporters and pickups with a flat rear face, where a conventional indicator standing several centimetres proud either does not fit or simply spoils the line. It also works along the sides of longer bodies as a clearly visible repeater.

Why it is worth it

• 238 mm of lit length in a housing 10.4 mm deep.
• ECE R6 and R10.06 approval — a road-legal lamp.
• Matches the other Dark Knight Slim 238 mm lamps in size and looks.

Frequently asked questions

Is the price for one lamp?

Yes, a single unit. A symmetrical installation needs two.

Does it work on 24 V?

Yes, the supply range is 10–32 V DC.

Does the tinted lens reduce the output?

The lamp holds ECE R6 approval for the indicator function in this lens version, so its photometric performance meets the regulation.

Does it match the other Dark Knight Slim lamps?

Yes — the same 238 × 20.6 × 10.4 mm housing and the same 213.4 mm mounting spacing as the position light and the tail/brake light in this range.

How long is the cable?

3 metres. The manufacturer asks you not to shorten it below 50 cm.

What is the warranty?

Five years under the Freedom Warranty programme. The manufacturer requires you to keep the manual, the purchase invoice and the batch number to claim it.

Summary

• Strip indicator, 238 × 20.6 × 10.4 mm, 213.4 mm mounting spacing.
• Amber light, tinted lens, polycarbonate housing and lens.
• 10–32 V DC, 6.5 W draw, 3 m cable.
• IP6K9K, −40°C to +40°C.
• ECE R6 and ECE R10.06 approval, five-year manufacturer warranty.
