MetalCloak Game Changer 2.5″ Lift Kit, RockSport Black – Ineos Grenadier

From the factory the Grenadier is tuned as a compromise: comfortable enough on tarmac, capable enough off it. Add a steel bumper, a winch, a roof rack and jerry cans, and that compromise stops working – the car sits lower, the bump stops start doing the work, and on fast rough tracks the dampers heat up.

This kit fixes the problem as a system rather than piece by piece. You get a full set of adjustable Duroflex control arms, both adjustable Durotrak track bars, True Dual Rate coils and RockSport BLACK remote reservoir shocks – all matched to each other and to 2.5 inches of lift.

Key benefits

• Adjustment at every geometry point – all eight control arms and both track bars are length-adjustable, so after the lift you set the axles exactly where they belong instead of living with whatever the lift leaves you.
• Duroflex joints instead of rubber bushings – a vulcanized elastomer with DuPont Kevlar fibre articulates off-axis without binding, while still keeping vibration out of the body the way a heim joint never does.
• 2.5″ bodied shocks with remote reservoirs – more oil and a separate reservoir mean damping that holds up on long, broken sections instead of fading.
• 8-position compression adjustment – each click adds roughly 15% compression force, so the same vehicle can be soft for the road and firm for the rocks.
• True Dual Rate coils – two rates in one spring: soft at the start of travel, progressive under load.
• Coatings chosen for salt and mud – gold zinc on the suspension components, hard black anodize on shock bodies and reservoirs.

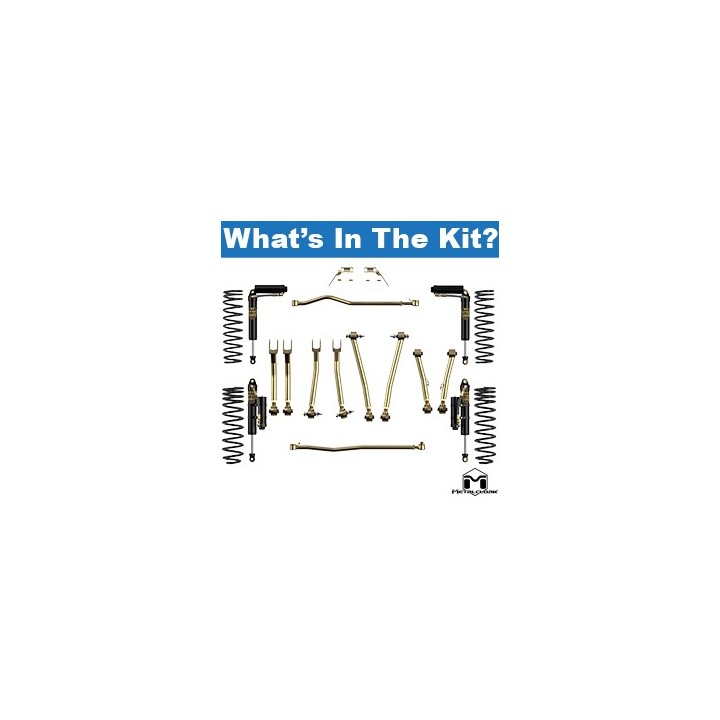

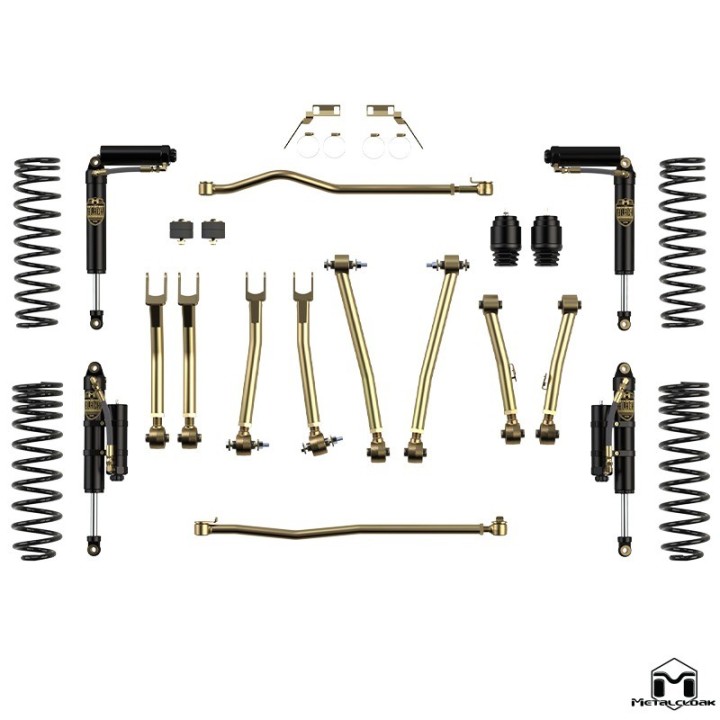

What is in the kit

• Adjustable Duroflex control arms, front lower (8201) and front upper (8203) – sets
• Adjustable Duroflex control arms, rear lower (8204) and rear upper (8206) – sets
• Adjustable Durotrak track bar, front (8202) and rear (8205)
• True Dual Rate coils, front (8208) and rear (8209) – pairs
• RockSport BLACK adjustable remote reservoir shocks – front (1700) and rear (1701), pairs
• Upper rear bump stop extension kit (8211)
• Front adjustable bump stops
• DuroSpring replacement bump stops
• Model-specific brackets for the 2.5″ bodied shocks

The kit is sold as one system: the manufacturer does not swap or remove individual parts from it. Every component is, however, available separately if you want to build your own configuration.

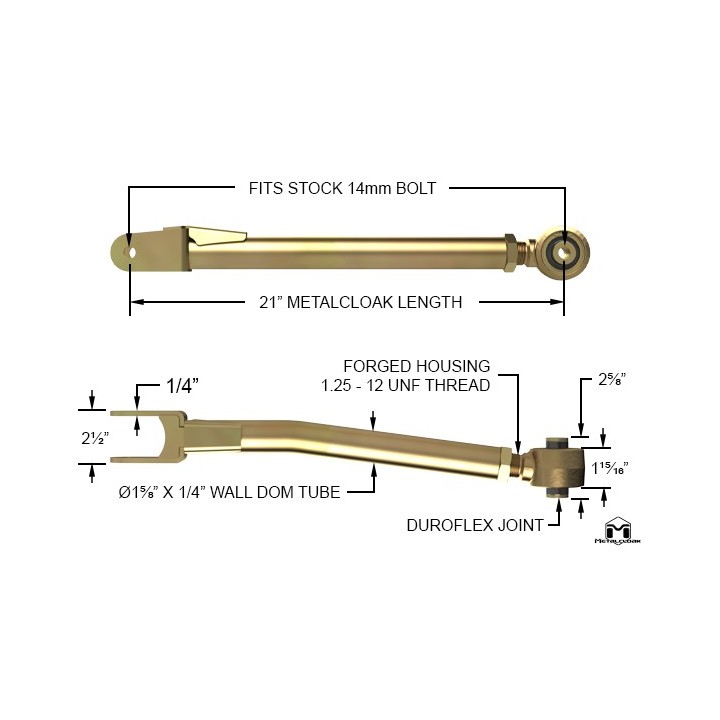

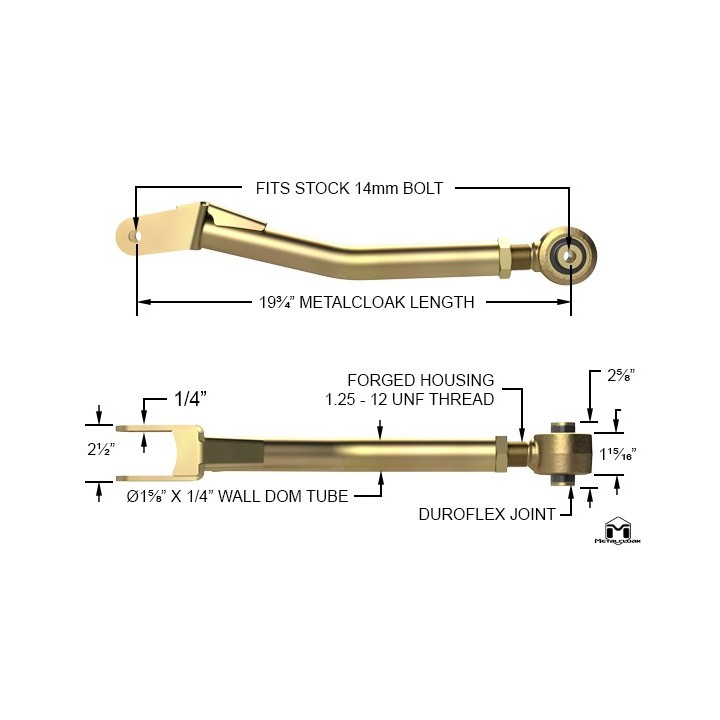

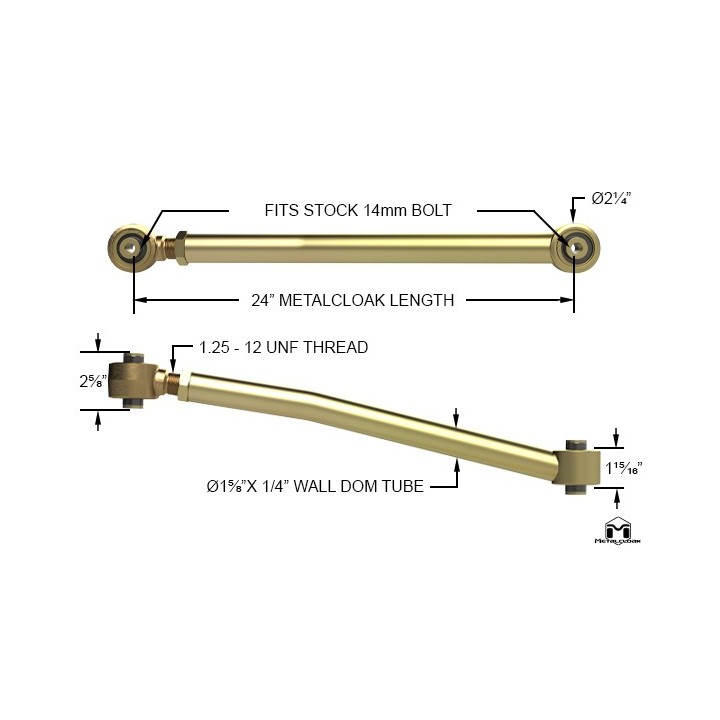

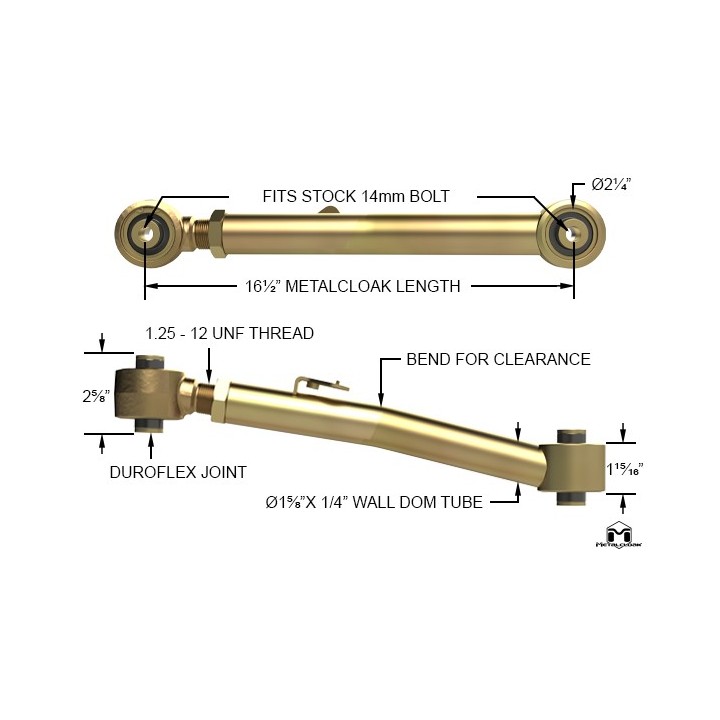

Duroflex control arms

Every arm is built from 1 5/8″ DOM tubing with a 0.25″ wall. That is not thin-wall tubing picked for a catalogue weight figure – that section survives a rock strike and off-axis loading.

Durotrak track bars

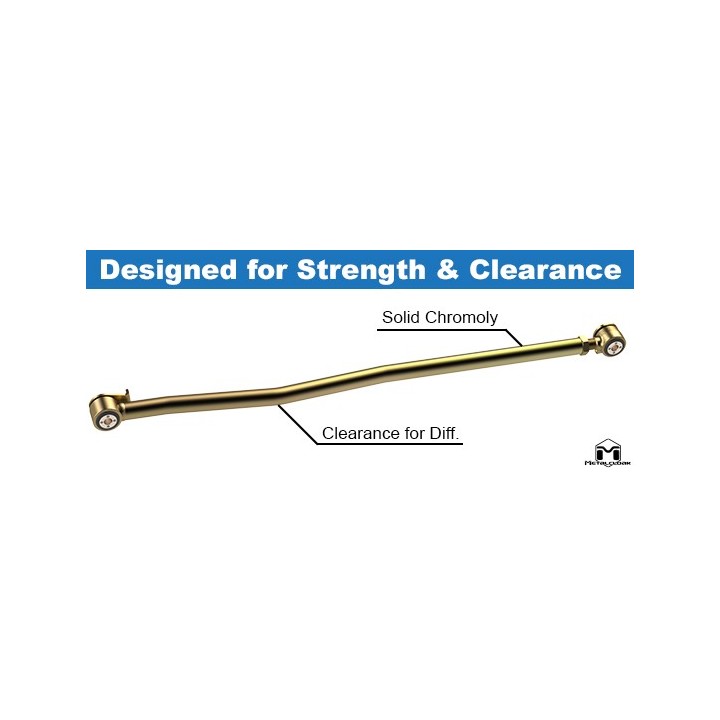

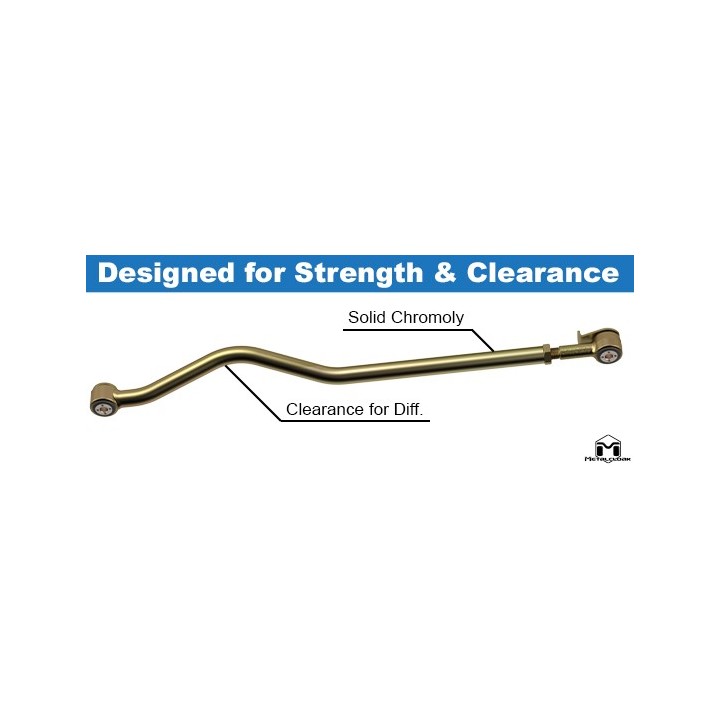

Both track bars are solid 4130 chromoly running Durotrak vulcanized elastomer bushings. Length adjustment lets you re-centre the axle after the lift – without it a lift always leaves the axle pushed to one side.

Coils and shocks

True Dual Rate coils carry two spring rates in a single coil, upper and lower. In practice the car rides softly over small stuff, and once loaded or deep into travel the spring firms up instead of slamming into the bump stops.

Front coils (8208).

Rear coils (8209).

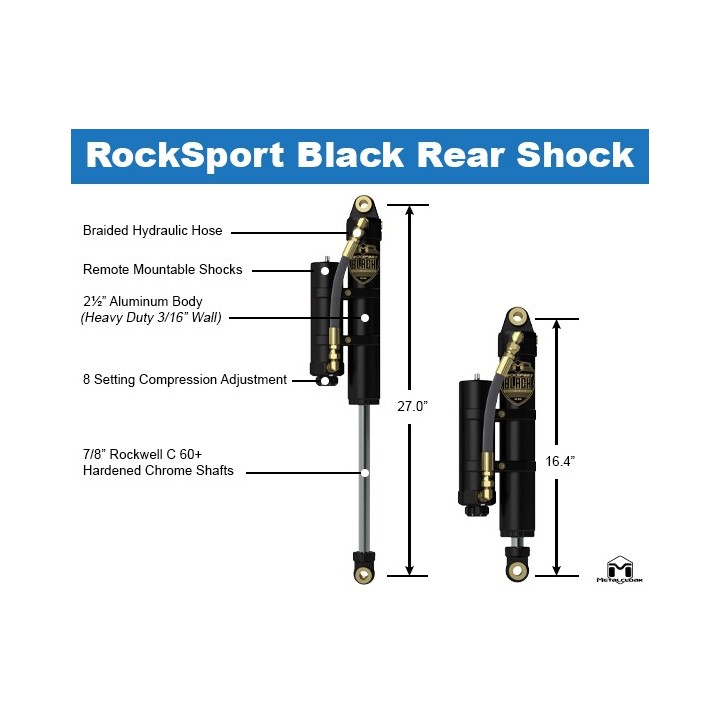

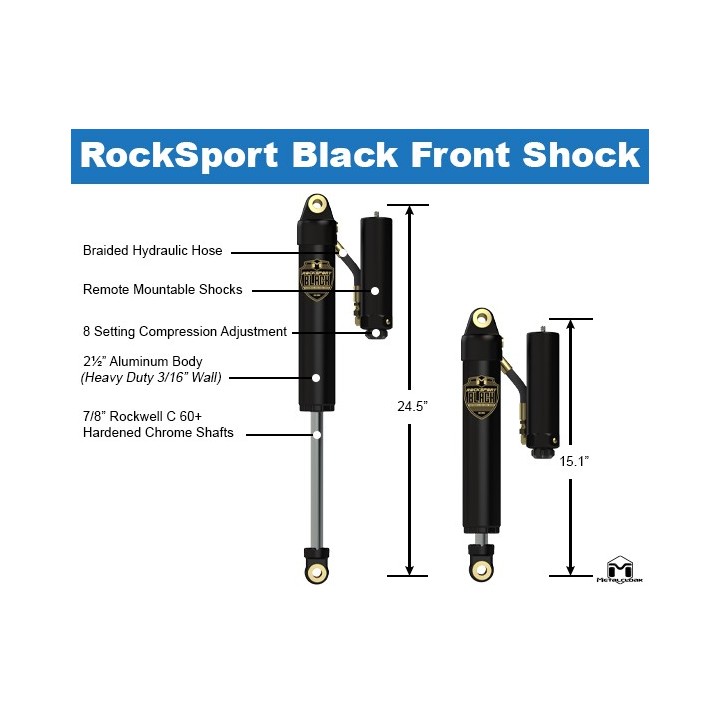

The RockSport BLACK shocks use a 2.5″ aluminium body with a 3/16″ wall and a 7/8″ hard-chrome shaft induction-hardened to Rockwell C 60+. The valving is parabolic: slow body movements and fast wheel impacts are damped differently.

Bump stops

The upper rear bump stop extensions are machined from 4″ OD black Delrin. DuroSpring bump stops are microcellular urethane, and the adjustable bump stops use a thermoset elastomer on 1008/1010 steel – together they close out the travel so nothing hits the body at full compression.

Technical data

• Lift height: 2.5 inches
• Front and rear, upper and lower control arms: 1 5/8″ × 0.25″ DOM steel tubing
• Duroflex bushing: vulcanized elastomer with DuPont Kevlar fibre
• Front and rear track bars: solid 4130 chromoly
• Durotrak bushing: vulcanized elastomer
• Shock body: 2.5″ aluminium, 3/16″ wall
• Shaft: 7/8″, hard-chrome-plated, induction-hardened to Rockwell C 60+
• Front shock: extended 24.5″, collapsed 15.1″, travel 9.4″
• Rear shock: extended 27.0″, collapsed 16.4″, travel 10.6″
• Compression adjustment: 8 settings, roughly +15% force per click
• Rear bump stop extensions: 4″ OD black Delrin
• DuroSpring: microcellular urethane
• Bump stops: thermoset elastomer, 1008/1010 steel
• Coating: hard black anodize (shock body and reservoir), gold zinc (suspension components)

Who it is for

For a Grenadier that is actually driven off-road and carries expedition gear, not one that only needs to look taller. It earns its place where a bumper, a winch and a load have made the factory suspension too soft and too low, and where damping has to stay consistent over long, fast gravel.

If the car lives on tarmac and the lift is cosmetic, this is more hardware than the job needs – its value shows up in how the suspension works under load.

Installation and notes

• Installation difficulty: moderate. Time: 6–8 hours.
• No body modification required.
• RockSport BLACK shocks are large-body, long-travel units with 2.5″ diameter bodies – they are a direct fit thanks to the model-specific brackets included in the kit.
• The manufacturer recommends a suspension alignment after installation.
• Kit components cannot be customised, replaced or removed. All of them are available individually if you need a custom build.

Separately from this kit, MetalCloak also offers front sway bar quick disconnects and 1″ rear spring spacers for the Grenadier – both are listed as related products on this page.

Why it is worth it

• A complete, matched system rather than parts from several manufacturers.
• Adjustment in every arm, both track bars and in the damping – the car can be set up for how it is actually used.
• Szekla4x4.pl is not only a shop but also an off-road workshop – we can take care of the installation and setup.

If you are not sure whether this is the right kit for your Grenadier, write to us with the build and how you drive it, and we will help you choose.

Summary

• 2.5″ lift for the Ineos Grenadier, 2022 and up
• 8 adjustable Duroflex control arms and 2 adjustable Durotrak track bars
• True Dual Rate coils front and rear
• RockSport BLACK 2.5″ remote reservoir shocks, 8-position adjustment
• Full set of bump stops and extensions
• 6–8 h installation, no body modification

Frequently asked questions

Which model years does this kit fit?

The Ineos Grenadier from 2022, that is from the model's introduction.

Does anything on the body need cutting or welding?

No. The manufacturer lists the installation as requiring no body modification, at moderate difficulty and 6–8 hours.

Is an alignment needed after installation?

Yes – the manufacturer recommends having a suspension specialist align the Grenadier after the kit is fitted.

Will the 2.5″ bodied shocks fit without modification?

Yes. They are large-body, long-travel shocks, but they are a direct fit thanks to the model-specific brackets included in the kit.

Are sway bar quick disconnects and rear spring spacers included?

No. Those are separate MetalCloak items – front sway bar quick disconnects and 1″ rear spring spacers. You will find them among the related products on this page.

Can a part of the kit be swapped for something else?

Not within this kit – the manufacturer sells it as one system. All components are available individually, so a custom configuration can be built from separate items.
