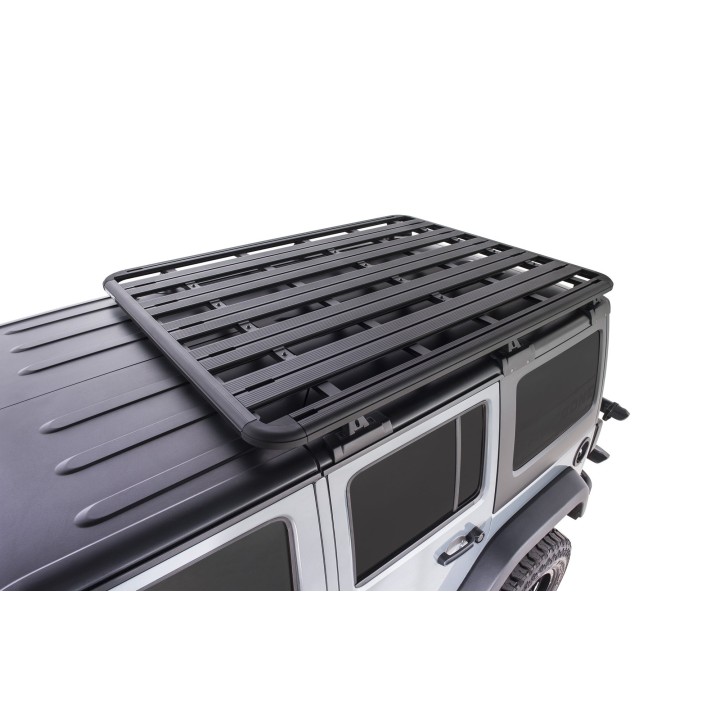

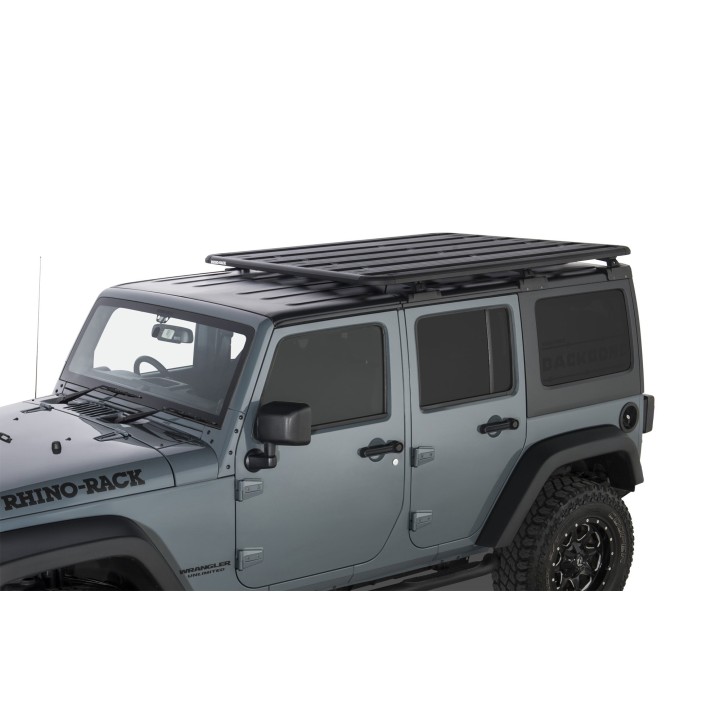

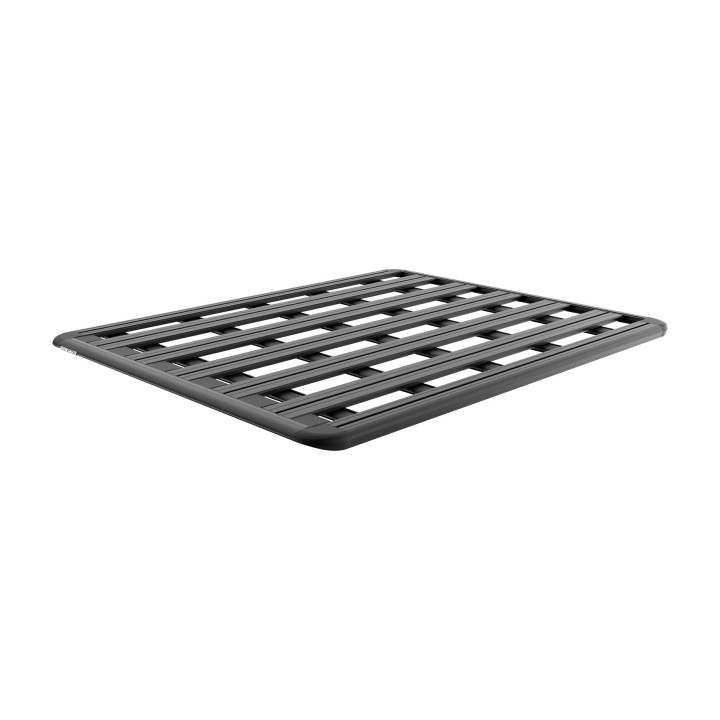

Rhino-Rack Pioneer 6 Backbone roof rack - Jeep Wrangler JK 4dr

A complete Rhino-Rack Pioneer 6 roof rack, 1800 x 1430 mm, put together for one specific vehicle: the 4-door hard top Jeep Wrangler JK. Nothing has to be sourced separately – the kit holds the platform, the Backbone system, a full set of six RX300L legs and the mounting hardware. From the RHINO RACK range stocked by Szekla4x4 – an online shop, a walk-in shop and a 4x4 workshop in Warsaw.

Manufacturer data

• Platform size: 1800 x 1430 mm
• Platform weight: 23.9 kg
• Backbone RJKB1 system: load rating up to 120 kg, weight 16 kg
• Leg system load rating: up to 100 kg or the vehicle manufacturer's roof limit – whichever is lower
• T-slot mounting channels running both lengthwise and across
• No channel apertures – the whole platform surface stays usable for mounting accessories
• Up to 25% more usable mounting channels than the previous generation
• Up to 60% less wind resistance and up to 20% less weight than the previous generation
• Cables can be routed inside the platform extrusions
• Locking cover with an Allen key compartment

In the box:

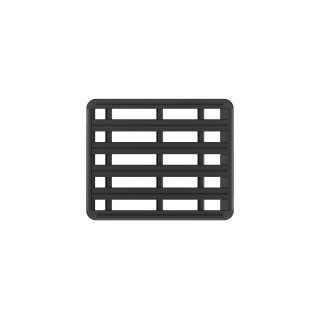

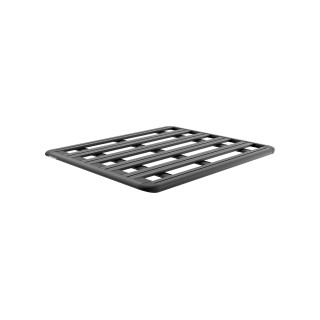

• Pioneer 6 platform, 1800 x 1430 mm (62108)

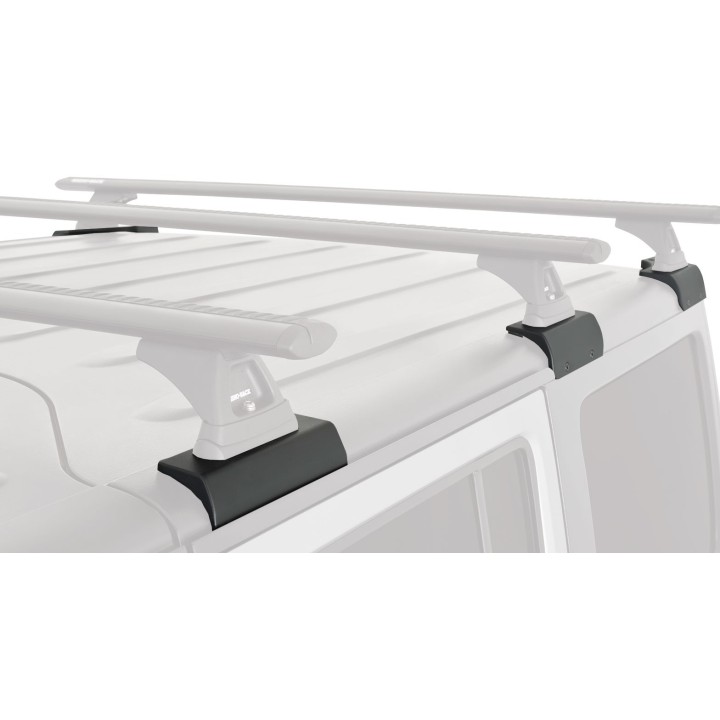

• Backbone system (RJKB1)

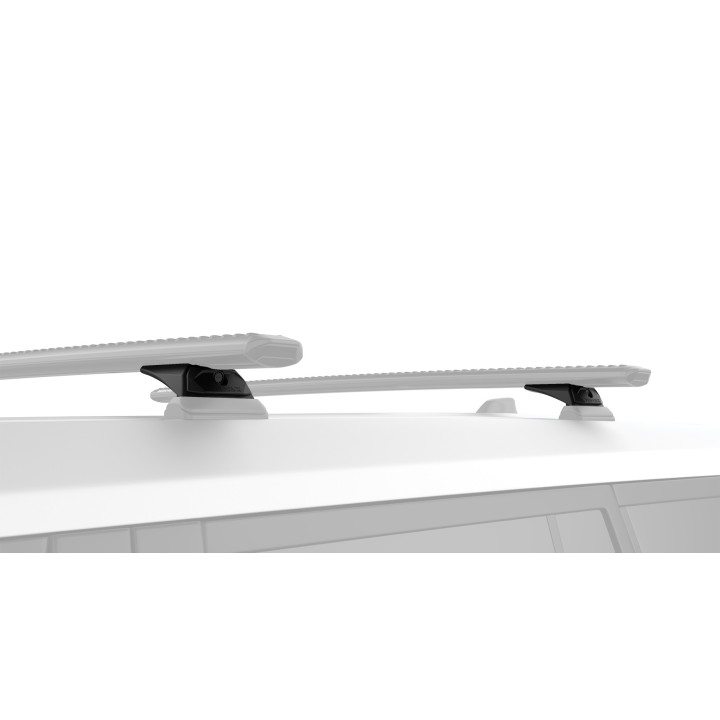

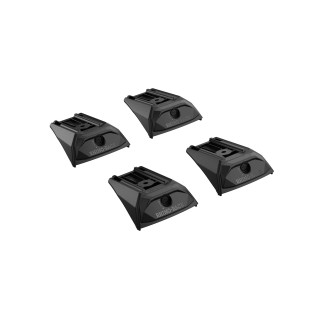

• RX300 Low legs, set of 4 (RX300L-4)
• RX300 Low legs, set of 2 (RX300L-2)

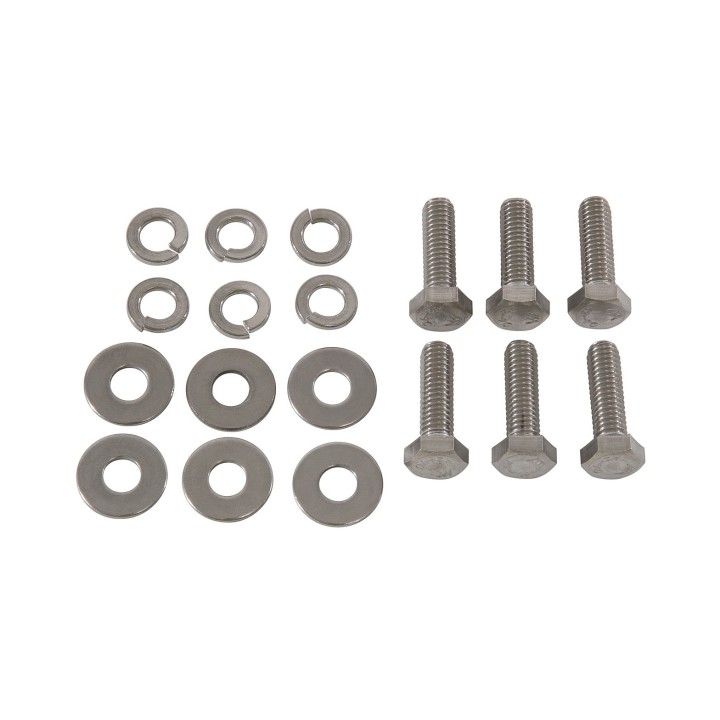

• Wrangler JK 4-door hardware kit (SUB0800)

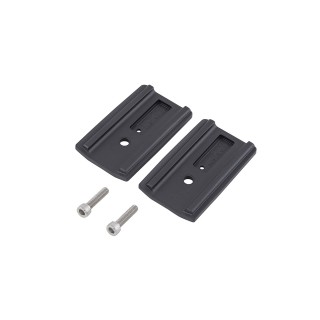

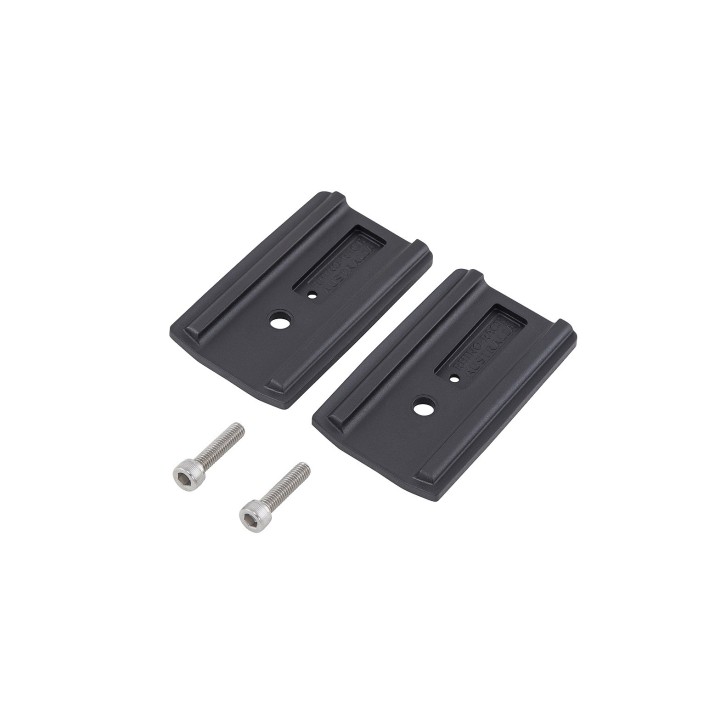

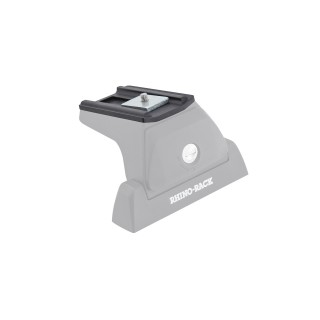

• Quick Mount Vortex spacer, 5 mm (QMVA05)

Notes:

• Never exceed the roof load limit stated by the vehicle manufacturer
• The manufacturer does not publish a separate off-road load rating – keep a margin when driving off-road
• Fitting instructions are issued separately for the platform, the Backbone, the legs and the adapter

Fitment

The manufacturer lists this kit for:

• Jeep Wrangler JK 4dr 4WD Hard Top, 02/2011 – 03/2019

Before you order: the manufacturer's own catalogue lists this part number for the 4-door hard top Wrangler JK from 02/2011, while an Australian distributor lists it for a wider 2007–2019 range and describes the vehicle as the rain gutter version. We will confirm the fit for your model year and roof type before the kit ships.

Actual fitment also depends on lift, tyre size and the rest of the hardware – if you are not sure, write to us and we will check.

Szekla4x4.pl is an online shop, a walk-in shop and a workshop specialised in off-road and overlanding. If you want us to fit this rack for you, write or call.
