Rhino-Rack Backbone Mounting System RJKB1

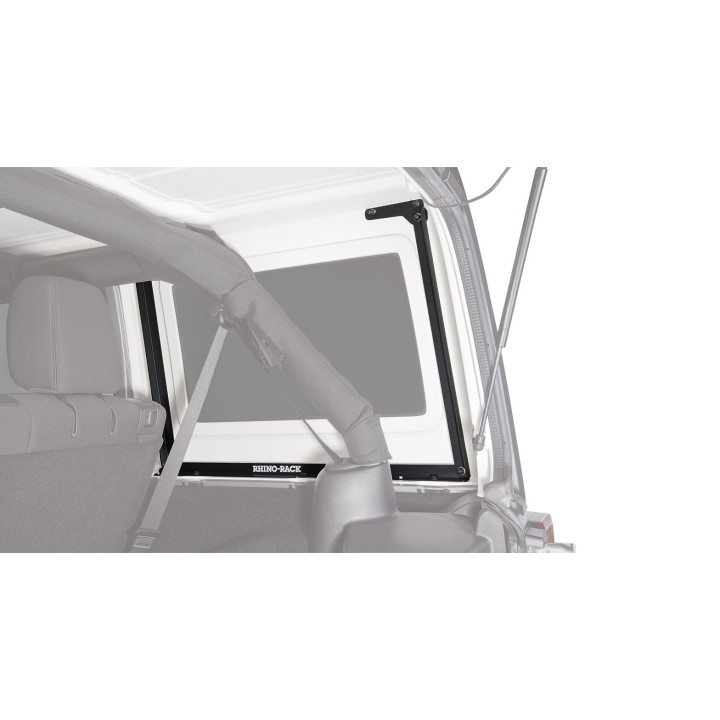

The roof of a Wrangler JK is not made to carry a heavy rack on its own – the hard top sits on a handful of points and will not take expedition loads. The Backbone solves that from the inside: an internal support frame fitted inside the hard top picks up the load and carries it out to mounting plates on both sides of the roof. Bars or a platform then go on top of that.

From the RHINO RACK range stocked by Szekla4x4 – an online shop, a walk-in shop and a 4x4 workshop in Warsaw.

Manufacturer data

• Brand: Rhino-Rack
• Model: Backbone Mounting System
• Part number: RJKB1
• Application: internal mounting structure for the hard top Jeep JK Wrangler
• Load rating: up to 120 kg / 264 lb
• Weight: 16 kg
• Package size: 1140 x 450 x 90 mm

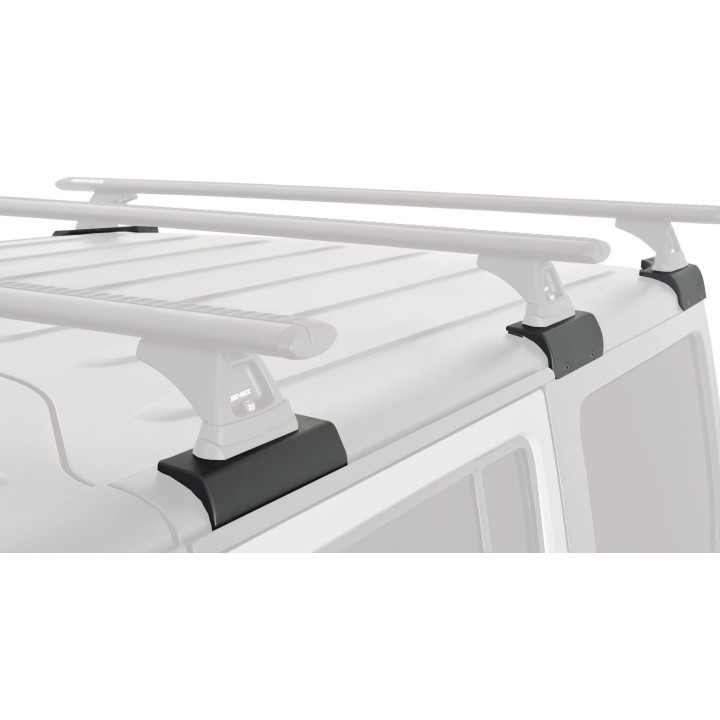

• Roof system compatibility: 2-bar rack, 3-bar rack, Pioneer Platform
• Country of origin: China
• Warranty: 5 years

In the box:

• Internal support frames
• Mounting plates for a 2-bar or 3-bar system or a Pioneer Platform
• Fitting hardware
• Fitting instructions

Notes:

• Never exceed the roof load limit stated by the vehicle manufacturer
• The Backbone is the mounting base – bars, platform and legs are chosen separately
• Do not confuse it with RJLB1, which is made for the Wrangler JL – the two are not interchangeable

Fitment

The manufacturer lists this system for the hard top Jeep Wrangler JK, 4-door. The product page does not state a model year range – we confirm the fit for your vehicle before the kit ships.

Fitment also depends on the condition and version of the hard top – if you are not sure, write to us and we will check.
