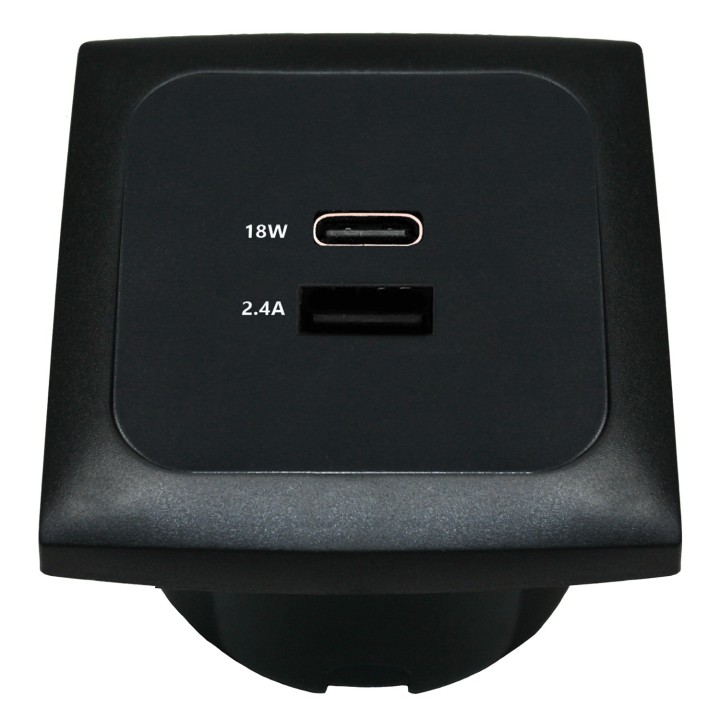

HABA C-Line USB-A/USB-C Charging Socket with Frame and Box, Black

A camper never has enough charging points: the phone running navigation, a second phone, the kids tablet and a power bank, all fighting over one cigarette-lighter socket and a splitter. The HABA C-Line charger solves that for good - it fits into a furniture panel like an ordinary switch and gives you two ports that work at the same time.

The USB-C port delivers 3 A at 18 W and USB-A adds 2.4 A. The unit runs straight off the on-board system across 10-24 V DC, so the same model suits a 12 V camper and a 24 V vehicle. The box holds the charger, a black Opal frame and a flush-mount back box.

Key benefits

• 18 W USB-C and 2.4 A USB-A - a newer phone gets the fast port, older gear and accessories stay on USB-A, with no swapping of plugs.
• Both ports at once - the manufacturer states simultaneous operation, so the passenger phone does not have to wait its turn.
• 10-24 V DC supply - works on a 12 V camper system and on 24 V in a larger vehicle.
• ECE R10 approval - confirmed electromagnetic compatibility, so the unit does not interfere with the vehicle electronics.
• Complete set - the Opal frame and the flush-mount box are included.
• C-Line standard - 46 x 46 mm hole spacing, the same as the 230 V outlets in the range, so the points line up neatly.

What is in the set

• C-Line USB-A / USB-C charging socket, black
• Opal frame, black
• Flush-mount back box

Technical data

Who it is for

For anyone fitting out a camper, van or caravan who wants charging by the bed, over the table and in the cab, without extension leads running across the whole interior. It also suits boats and expedition vehicles on 12 V or 24 V.

Installation

The box drops into a hole in the panel and the charger takes two screws - 3 mm holes spaced 46 x 46 mm, the same standard as the 230 V outlets in the C-Line range. The terminals take 0.5-2.5 mm2 conductors. Protect the circuit to match the 30 W draw and the cable cross-section you use.

Why it is worth it

• Two plug standards in one point - newer devices and older accessories charge at the same time.
• ECE R10 approval confirms the unit is intended for a vehicle, not for a house.
• A complete set with frame and box, in the same design as the rest of the C-Line system.

Planning several charging points in a conversion? Get in touch - we also run a workshop and build conversions, so we can advise on placement and circuit protection.

Frequently asked questions

Do both ports work at the same time?

Yes. The manufacturer states simultaneous operation of both ports: USB-C 3 A / 18 W and USB-A 2.4 A / 12 W.

Will it work on a 24 V system?

Yes, the supply range is 10-24 V DC, so both 12 V and 24 V are within spec.

Are the frame and the box included?

Yes - you get the complete set: the charging socket, the Opal frame and the back box for panel mounting.

How is it fixed in the panel?

With screws - the holes are 3 mm across, spaced 46 x 46 mm, the C-Line standard.

Can it go in a camper washroom?

The rating is IP21, which covers vertically falling drops. For places exposed to splashing water choose a fitting with a higher rating.

Summary

• USB-C 18 W + USB-A 2.4 A charging socket for campers, caravans and boats.
• 10-24 V DC supply, 30 W draw, both ports work at the same time.
• Complete set: charger, Opal frame, flush-mount box.
• IP21, CE, ECE R10 approval, 46 x 46 mm mounting centres.
