You bought a JK and the seller said it has "about three inches". Or you have just installed a kit and want to know whether you got what you paid for. Lift height is not stamped anywhere on the vehicle — it is a difference from stock that has to be measured. Below: four measuring methods, the full set of factory figures for the Wrangler JK, and why a kit sold as 2.5″ can deliver 1.5″.

Why "3.5-inch lift" rarely means 3.5 inches

Suspension manufacturers state this openly. TeraFlex publishes the following note with its JK coil springs: "Advertised lift heights are not actual final lift height. Use the coil spring lift height descriptions as the average lift height that may be achieved between the front and rear of the vehicle. Other variables will affect the actual final lift height such as a winch, aftermarket bumpers, full-size spare tire, loaded cargo weight, etc."

One product in their catalogue makes the point better than any explanation: the same front coil spring kit is listed as 2.5″ of lift on a 2-door JK and 1.5″ on a JK Unlimited. Identical springs. Different vehicle sitting on them.

The factory figures explain it. A 2-door JK Sport has a curb weight of 3,760 lb (approx. 1,705 kg); a JK Unlimited Rubicon with an automatic weighs 4,340 lb (1,969 kg). That is 580 lb — over 260 kg — spread across the same springs. Add a steel front bumper and a winch and the front end settles further still.

Preparing the vehicle for measurement

Measuring without preparation gives you half an inch of scatter. Before the tape comes out:

1. Level, hard ground. A sloped driveway will skew the left-to-right comparison.
2. Full fuel tank, fluids topped off. The tank alone in a JKU is meaningful weight over the rear axle.
3. Unloaded vehicle. Remove tools, recovery gear, fridge, jerry cans. Leave the spare — it is part of the factory configuration.
4. 2WD, wheels straight.
5. Settle the suspension. Rock the front and rear of the vehicle up and down several times, then roll it a few yards forward and back. Friction in the bushings can leave the suspension hanging above or below its true resting position.

Measure the left and right sides separately. A difference of up to a quarter inch is normal — the Wrangler leaves the factory with a slight driver-side lean. Three quarters of an inch or more points to a tired spring, a mismatched kit, or a previous install with a shim on one side only.

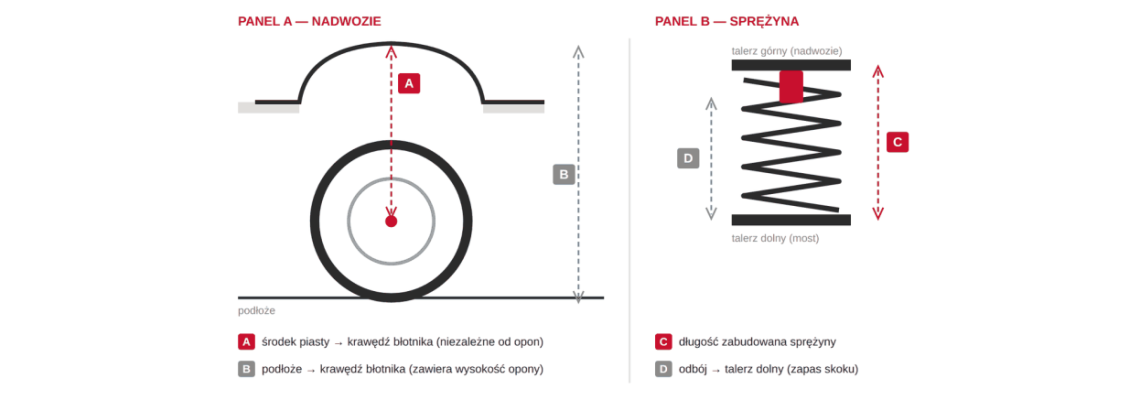

Four measuring methods — which to use

Method A — hub centre to fender lip

The fastest method and the one most shops use. Measure vertically from the centre of the hub to the lower lip of the fender opening. The advantage is that the result is independent of tyre size — a bigger tyre raises the body and the hub by the same amount, so the distance between them does not change.

The limitation: there is no published factory figure for this dimension on the JK. It is a comparative measurement, useful when you have a reference — a stock vehicle, a pre-install reading, or figures from your installer.

Method B — ground to fender lip

The simplest and the least reliable. This dimension grows with the tyre, so it mixes two things: suspension lift and tyre height. Going from factory 225/75R16 to 35s adds inches on tyre radius alone. Use it only to compare two vehicles on identical wheels and tyres.

Method C — installed coil spring length

Measure the spring in place with the vehicle on its wheels, from the upper seat to the lower seat. This is immune to tyre changes and shows directly how the spring behaves under that particular vehicle's weight.

The reference value most commonly reported in the JK community for a stock front spring is 9 3/8″ (roughly 238 mm). On that basis, 13 3/8″ would indicate a 4″ lift and 12 5/8″ roughly 3 1/4″.

Method D — jounce bumper to spring seat

The precise version: measure from the face of the jounce bumper cap to the top lip of the inner spring seat on the axle, front and rear separately. It requires a baseline for the specific year and model, so it is a workshop method — but it reads the suspension alone, with no influence from tyres or aftermarket fender flares.

Jeep Wrangler JK factory figures

Manufacturer data for the 2013 model year (JK with the 3.6 Pentastar). Use it as a baseline — if your ground clearance and angles clearly exceed these, the vehicle has a lift, larger-than-stock tyres, or both.

For the 2-door JK the manufacturer publishes the same parameters as tyre-dependent ranges: front ground clearance 9.1–10.6″, rear 8.8–10.3″, approach 40.8–44.6°, breakover 21.8–25.5°, departure 37.4–40.6°. The better breakover angle on identical tyres comes from the shorter wheelbase.

The weight spread in that table explains most measurement discrepancies. There is 580 lb — over 260 kg — between a 2-door Sport and a 4-door Rubicon. The same spring set cannot produce the same ride height in both.

What each lift actually delivers

Rather than a table promising "2.5″ equals 2.5″", here are the factors you have to correct the manufacturer's figure for. All of them come from suspension manufacturers' own documentation.

• Body style. The same TeraFlex front spring kit for the JK is catalogued as 2.5″ for the 2-door and 1.5″ for the Unlimited. A full inch of difference, purely from vehicle weight. Metalcloak applies exactly the same logic: coil SS-2130 is 2.5″ on a 2-door JK and 1.5″ on a JKU. Two independent manufacturers, one conclusion.
• Winch and steel front bumper. Manufacturers list these as the main contributors to front-end settling. The result is less lift at the front than the rear and a rake different from the one you planned.
• Full-size spare and permanent cargo. These load the rear — a drawer system, roof rack or a tailgate carrier with a 37″ spare will consume part of the rear lift.
• Coil spring isolators. The install guide for a 2.5″ JK kit warns explicitly that leaving the isolator out drops the rear by about 1/2″. This is the most common "missing half inch" after an install.
• Settling. New springs sit high for the first few hundred miles. A measurement taken straight after the install almost always flatters the result.

The practical consequence: a kit is specified for a configuration, not for a number on a box. A JKU with a steel bumper, winch and roof rack needs different springs from a stock 2-door if both are to end up at the same height.

Free length, solid height and rate — reading a coil spec

Manufacturers publish three figures that tell you more about a spring than the advertised lift does. They are also the only data that let you compare kits across brands.

Free length

The length of the spring out of the vehicle, unloaded. It is not the same as lift: a spring an inch longer will not raise the vehicle an inch, because it compresses under the weight immediately. What free length does tell you is how much extension the spring has in reserve — how long it keeps the tyre loaded when the axle articulates.

Solid height

The length of the spring compressed until the coils touch. Beyond that point the spring stops working and becomes a solid column of steel. The difference — free length minus solid height — is the spring's usable compression travel, and it decides whether the suspension lands on the bump stop (correct) or on coil bind (incorrect, and hard on both the spring and the seat).

Rate, in lbs/in

How many pounds of load compress the spring by one inch. Higher number, stiffer spring. A dual-rate design publishes two values: rate 1 for the upper, softer section of the coil and rate 2 for the lower, stiffer section. The upper section works at small deflections and governs on-road ride quality; the lower engages under load and at large travel, and is what keeps the suspension from blowing through its travel.

Metalcloak JK coil data

Below is the full set of figures the manufacturer publishes for its True Dual Rate line for the Wrangler JK. Note the application column: the same spring covers two different lift heights depending on whether it goes into a 2-door or a 4-door.

The same logic explains why no manufacturer offers one universal "3.5-inch" spring. A 132/215 lbs/in front coil (7208, 4DR 5.5″) under a light 2-door would sit too high and ride harshly. Under a heavy JKU carrying a winch, the same coil works in its intended range.

What lift changes besides height

The measurement is only half the job. Raising the body changes front axle geometry, and that shows up in how the vehicle drives.

Factory alignment figures for the JK are caster +4.2° within a +3.7° to +4.7° range, camber −0.25° (−0.62° to +0.12°) and total toe-in +0.20°. Caster drops as the vehicle is lifted — the axle rotates relative to the body on fixed-length control arms. The symptoms are highway wander and weak self-centring at the steering wheel.

Accepted practice: up to roughly 2.5″, most JK kits work without adjustable control arms. Above 3″, adjustable arms — lower, upper or both — are needed to bring caster back to 4.5–5.0° and restore highway stability.

Five mistakes that ruin the measurement

1. Measuring to an aftermarket flare instead of the steel body lip. Aftermarket fenders sit at a different height. If the vehicle has flares, note it alongside the figure.
2. Not settling the suspension. A vehicle straight off a trailer or a lift can sit half an inch high.
3. Measuring one side only. Without a left-to-right comparison you will not catch a tired spring or a shim left over from a previous install.
4. Using Method B across different tyres. This is where most "4-inch lift" classified ads come from when the truth is two inches and bigger tyres.
5. Comparing against a different year or trim. A 2007 Sport and a 2016 Unlimited Rubicon are different weights, different springs and different factory tyres.
