Part two of our Jeep Wrangler JL lighting guide. This is the list of A-pillar and bull bar lights we stock, with road mode, off-road mode, approval and the Ref value taken from each product listing.
Mounts, bumper versions, Ref arithmetic and the road rules are covered in part one: Jeep Wrangler JL Lighting Guide.

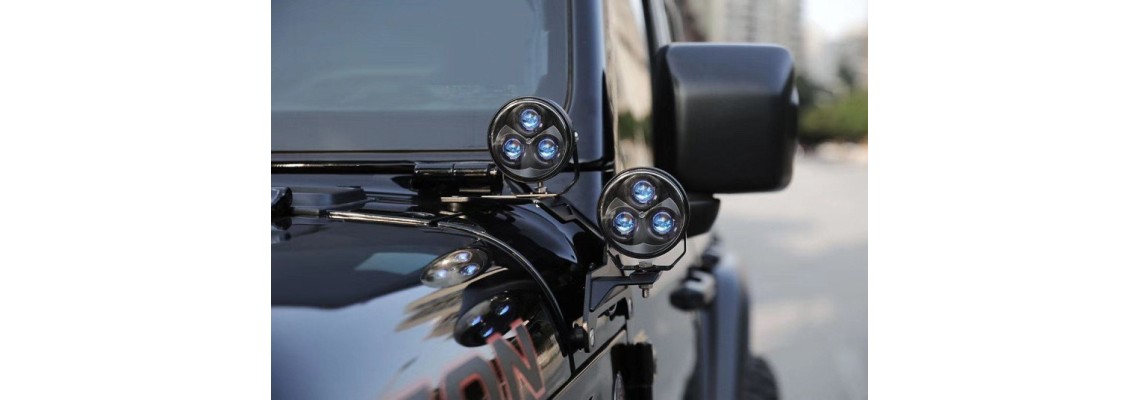

A-pillar lights
Two kinds of light go on the A-pillar. Small 3–6-inch driving lights reach further down the road; wide-beam work lights cover the verge and the area around the vehicle. Work lights are not driving beams and do not replace them in traffic.
Driving lights
| Photo | Light | Output | Power | Approval | Notes |
|---|---|---|---|---|---|
 | Strands Siberia X Driving Light 4″ | 4300 lm | about 60 W | not stated on listing | 350 m to 1 lux; black and amber covers included |
 | Strands NUUK D-Line MC Driving Light 3″ | 2540 lm | 39 W | ECE R148, R149 (per listing) | 276 m to 1 lux; listed as a motorcycle light |
 | Strands NUUK D-Line QB Driving Light 3″ | 2710 lm | 41 W | no road approval | about 240 m to 1 lux; white/amber position light |
 | Baja Designs LP6 Pro Clear Combo | 11,225 lm | — | not stated on listing | IP69K, IK10, backlight |
 | Baja Designs LP6 Pro Amber Combo | over 11,000 lm | — | not stated on listing | Baja Amber lens |
Work lights
| Photo | Light | Output | Power | Approval | Notes |
|---|---|---|---|---|---|
 | Strands Siberia X Work Light 70 W | over 5600 lm | 70 W | — | white or amber position light |
 | Strands Siberia XP Red Panda 38 W | 3150 lm | 38 W | — | red or amber position light |
 | Strands Siberia XP Red Fox 44 W | 3450 lm | 44 W | — | side-shooter with built-in warning light |
 | Strands Siberia XP Qube 38 W | 3150 lm | 38 W | — | 151 m range |
 | Strands NUUK D-Line QB Work Light 39 W | 2920 lm | 39 W | — | red and amber position light |
 | Strands NUUK D-Line MC Work Light 39 W | 2740 lm | 39 W | — | flood beam about 90°, 65 m |
 | Strands Work Light 10 W | 590 lm | 10 W | no E-mark | 55 mm, 9–50 V |
 | Strands Siberia with position and strobe light | — | — | — | no figures on the listing |
 | Strands Dark Knight Fortex Amber | 3200 lm | — | — | amber position light, selectable colour temperature |
 | Strands FOR9T No-Glare 78 W | 3220 lm | 78 W | — | top of the beam cut off, 65 m |
 | Strands FOR9T No-Glare 31 W | 1400 lm | 31 W | — | top of the beam cut off, 48 m |
 | Hella Black Magic 3.2″ Flood — set of 2 | 3000 lm (per listing) | 40 W (per listing) | — | IP68/IP69K, 12/24 V |
 | OSRAM LEDriving Round WL VX80-WD | 1350 lm | — | — | — |
 | OSRAM LEDriving Round WL VX100-WD | 2000 lm | — | ECE R10 (EMC) | — |
 | OSRAM LEDriving Cube WL VX80-WD | — | — | — | listing gives only the series range |
 | OSRAM LEDriving Rect WL VX80-WD | 1500 lm | — | ECE R148 (reversing lamp) | — |
 | OSRAM LEDriving Lightbar WL VX80-WD | 800 lm | — | ECE R148 (reversing lamp) | — |
 | OSRAM LEDriving Rect WL VX100-WD | 2300 lm | — | ECE R148 (reversing lamp) | up to 68 m |
 | OSRAM LEDriving Oval WL VX100-WD | 1500 lm | — | ECE R148 (reversing lamp) | — |
 | OSRAM LEDriving Round VX80-WD 22 W | 1150 lm | 22 W | ECE approval (per listing) | — |
 | OSRAM LEDriving Cube 20 W 1250 lm | 1250 lm | 20 W | off-road only (per listing) | — |
 | OSRAM LEDriving Cube VX80-SP 20 W | 1300 lm | 20 W | no ECE; not for use while driving (per listing) | — |
 | LAZER Utility-25 | — | — | — | 5000 K, Deutsch connectors |
 | LAZER Utility-25 MAXX | 4560 lm | 45 W | ECE R10 (EMC) | IP68, 80 × 80 mm |
 | LAZER Utility-80 HD | 8940 lm | 80 W | ECE R10 (EMC) | 5.6 A at 14.4 V; IP68/IP69K |
R148 on the OSRAM WL lights is an approval as a reversing lamp. R10 covers electromagnetic compatibility and is not an approval of a lighting function. The figures come from our product listings; a dash means the listing does not state the value.
Selected A-pillar lights
{{name}}
{{add_to_cart}} {{price}}
{{name}}
{{add_to_cart}} {{price}}
{{name}}
{{add_to_cart}} {{price}}
A-pillar brackets from TXNW, TXJL, OMU, DV8 and Nomadtech are covered in part one.
A-pillar brackets
{{name}}
{{add_to_cart}} {{price}}
{{name}}
{{add_to_cart}} {{price}}
{{name}}
{{add_to_cart}} {{price}}
Bull bar lights
Bull bars usually carry 7–9-inch round lights or short light bars. Most current models have two modes: a road-approved mode and a stronger off-road mode (Boost, Xperience, full power). The Ref value applies to the road mode, which on the LAZER Sentinel and some Linear bars is a reduced-power mode.
OSRAM LEDriving
| Photo | Light | Road mode | Off-road mode | Approval | Ref |
|---|---|---|---|---|---|
 | LEDriving Cube MX180-CB Amber Extreme 7″ | 3000 lm | 7000 lm (Boost) | ECE R149, R148 | 20 |
 | LEDriving Round MX180-CB 7″ | 39 W, range up to 300 m | — | ECE (per listing) | 25 |
 | Lightbar FX250-SP GEN 2 | 2120 lm | — | ECE R149 | 30 |
 | Lightbar FX500-SP | 3500 lm | — | road-approved (per listing) | — |
 | Lightbar FX500-SP SM GEN 2 | 3930 lm | — | 2 × ECE R149 | 30 + 30 |
 | Lightbar MX500-CB Amber Extreme | 5700 lm | 10,000 lm (Boost) | ECE R149, R148 | 30 |
 | Lightbar MX250-CB Amber Extreme | 3600 lm | 4600 lm (Boost) | ECE R149, R148 | 20 |
 | LEDriving Cube MX230-CB Amber Extreme 9″ | 3100 lm | 10,000 lm (Boost) | ECE R149, R148 | 25 |
Strands
| Photo | Light | Road mode | Off-road mode | Approval | Ref |
|---|---|---|---|---|---|
 | Siberia Skylord 7″ | 1500 lm | 5850 lm (Xperience) | ECE R149, R148 | 25 |
 | FOR9T Dragon Drive 9″ | 30 W, 305 m | 9300 lm (Xperience) | ECE R149, R148 | 20 |
 | Big Energy 2.0 7″ | 1900 lm | 9100 lm (Xperience) | ECE R149, R148 | 20 |
 | Freedom Maximum Position 7″ | 9761 lm | — | ECE R149, R148 | — |
 | Swedstuff Driving Light 7″ 65 W | about 3100 lm | — | ECE R149, R148 | — |
 | Siberia X Driving Light 7″ | about 1640 lm (E-mode) | 7430 lm (Xperience) | ECE R149, R148 | — |
LAZER Sentinel
| Photo | Light | Road mode | Off-road mode | Approval | Ref |
|---|---|---|---|---|---|
 | Sentinel 7″ | 1041 lm | 5208 lm | ECE R149 | 12.5 |
 | Sentinel 7″ Elite Black | 2049 lm | 10,248 lm | ECE R149 | 12.5 |
 | Sentinel 7″ Elite White | 2049 lm | 10,248 lm | ECE R149 | — |
 | Sentinel 9″ Black with position light | 1904 lm | 9520 lm | ECE R112 | 20 |
 | Sentinel 9″ Chrome with position light | 1904 lm | 9520 lm | ECE R112 | — |
 | Sentinel 9″ White with position light | 1904 lm | 9520 lm | ECE R112 | — |
 | Sentinel 9″ Elite Black | 3046 lm | 15,232 lm | ECE R112 | 20 |
 | Sentinel 9″ Elite Black with position light | 3046 lm | 15,232 lm | ECE R112 | — |
 | Sentinel 9″ Elite White with position light | 3046 lm | 15,232 lm | ECE R112 | — |
LAZER Linear 12 and 18″
| Photo | Light | Road mode | Off-road mode | Approval | Ref |
|---|---|---|---|---|---|
 | Linear-12 | 4500 lm | — | ECE R112 | 27.5 |
 | Linear-12 Elite | 8100 lm | — | ECE R112 | 37.5 |
 | Linear-12 Elite with position light | 8100 lm | — | ECE R112, R7 | 37.5 |
 | Linear-18 | 6750 lm | — | ECE R112 | 30 |
 | Linear-18 Elite | — | — | — | — |
 | Linear-18 Elite with position light | 12,150 lm | — | ECE R112, R7 | 45 |
 | Linear-18 Elite Double E-mark | 13,500 lm | — | ECE R149, double E-mark | 2 × 25 |
 | Linear-18 Elite+ | 4455 lm | 14,850 lm | ECE R149 | 27.5 |
 | Linear-18 Elite i-LBA | 5538 lm | 18,000 lm | ECE R112 | 17.5 |
A dash in the Ref column means the listing does not give the value; read it from the lamp housing.
Selected bull bar lights
{{name}}
{{add_to_cart}} {{price}}
{{name}}
{{add_to_cart}} {{price}}
{{name}}
{{add_to_cart}} {{price}}
The bumper, the OFD bull bar and the 45–50 mm tube clamps are covered in part one.
Before you order
Before you buy, check in part one how Ref values add up and which lights may be used on the road. If you are not sure which bumper and hood your Wrangler has, send us your VIN and we will check fitment before you order.
